Installed Position: Locking Collar/Synchronizer Hub for 3rd and
4th Gears

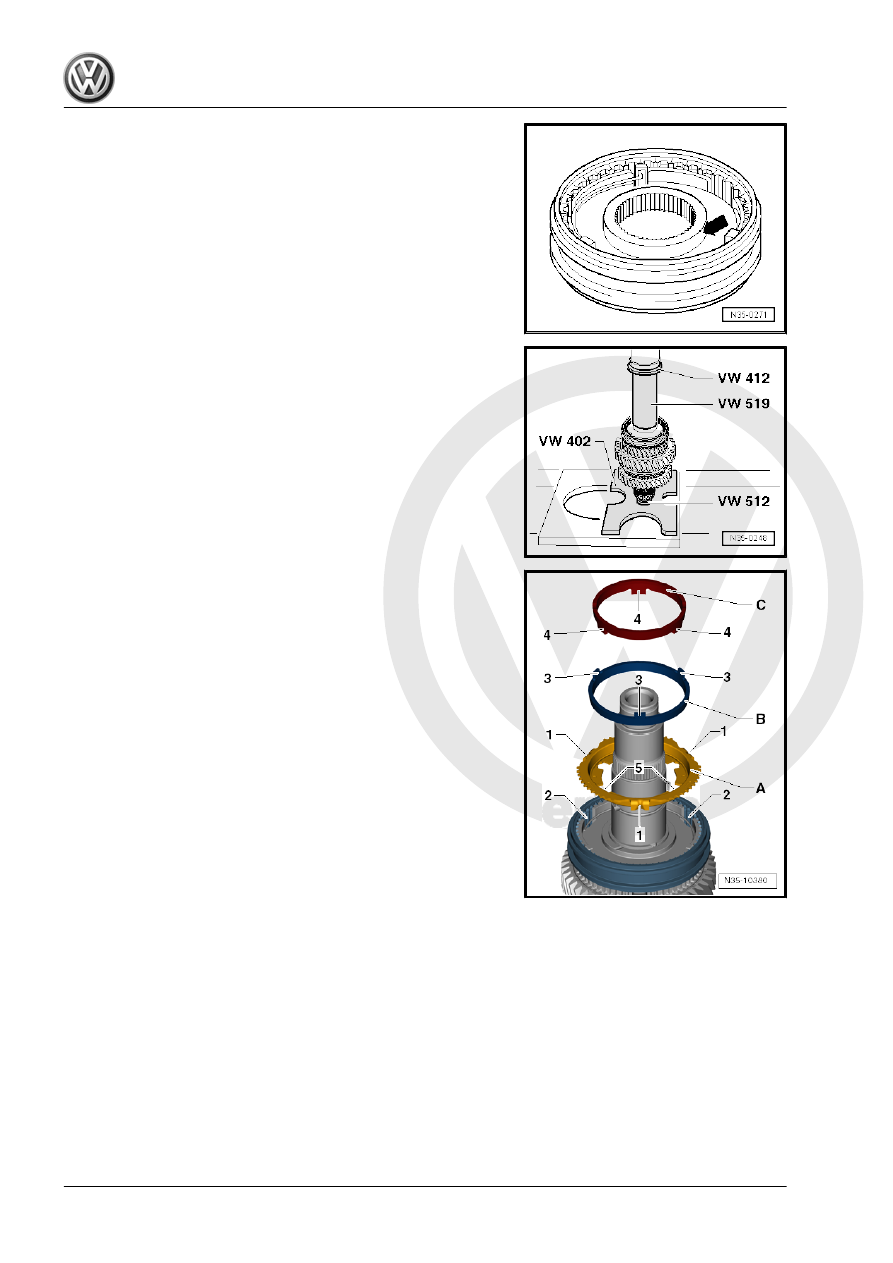

The wider collar on the synchronizer hub -arrow- faces 3rd gear.
– Place the synchronizer ring for 4th gear on the 4th gear wheel.
Warming and Installing the Synchronizer Hub with Locking Collar
for 3rd and 4th Gears
– Turn the 4th gear synchronizer ring so that the grooves line up
with the locking pieces.
– Install the locking ring.

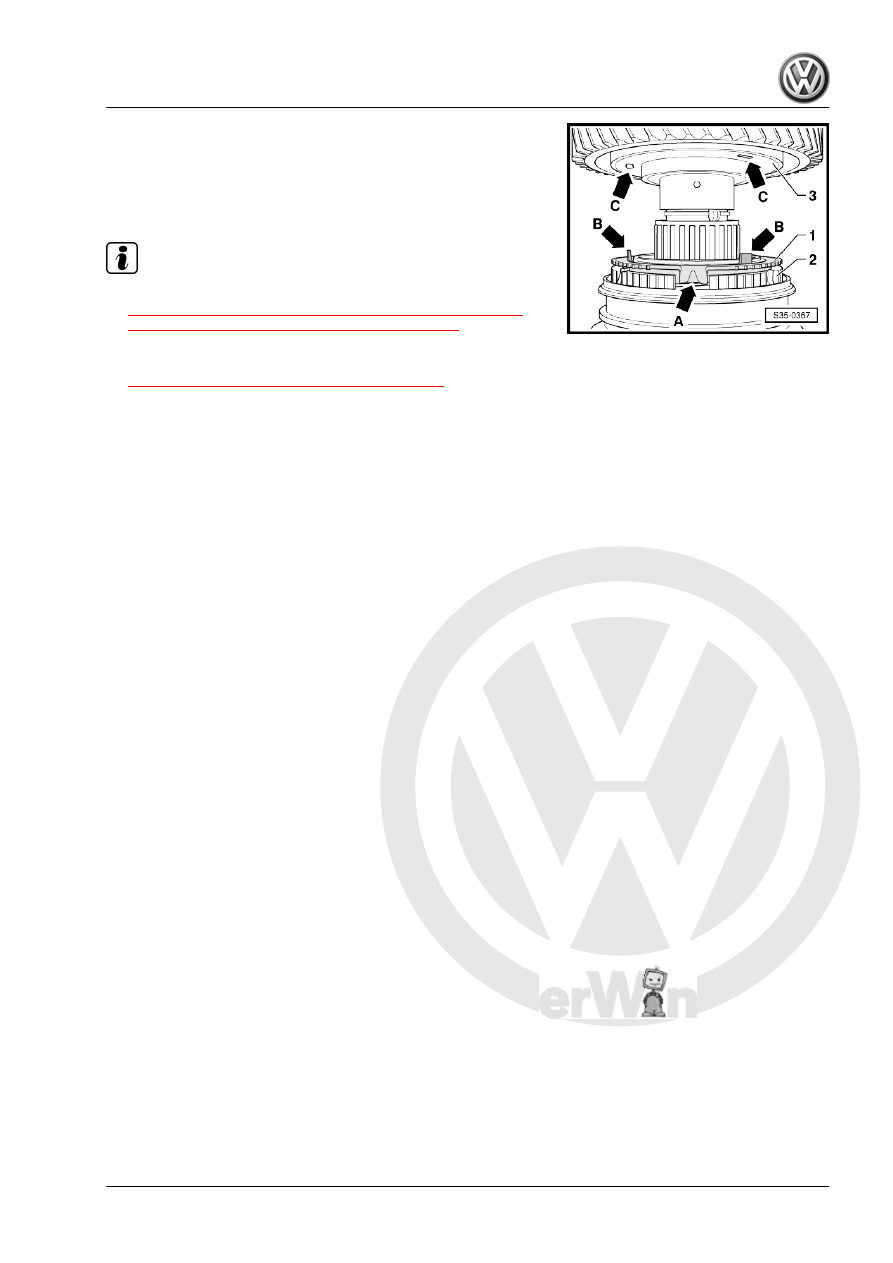

Installing the 3rd Gear Synchronizer Ring, Outer Ring and Inner
Ring
– Install the synchronizer ring -A- into the 3rd and 4th gear syn‐
chronizer hub.
The tabs -1- lock in the openings -2- in the synchronizer hub.
– Install the outer race -B- in the synchronizer ring.
The tabs -3- face away from the synchronizer ring.
– Install the inner race -C- in the outer race.
The tabs -4- lock in the larger openings -5- in the synchronizer
ring -A-.
