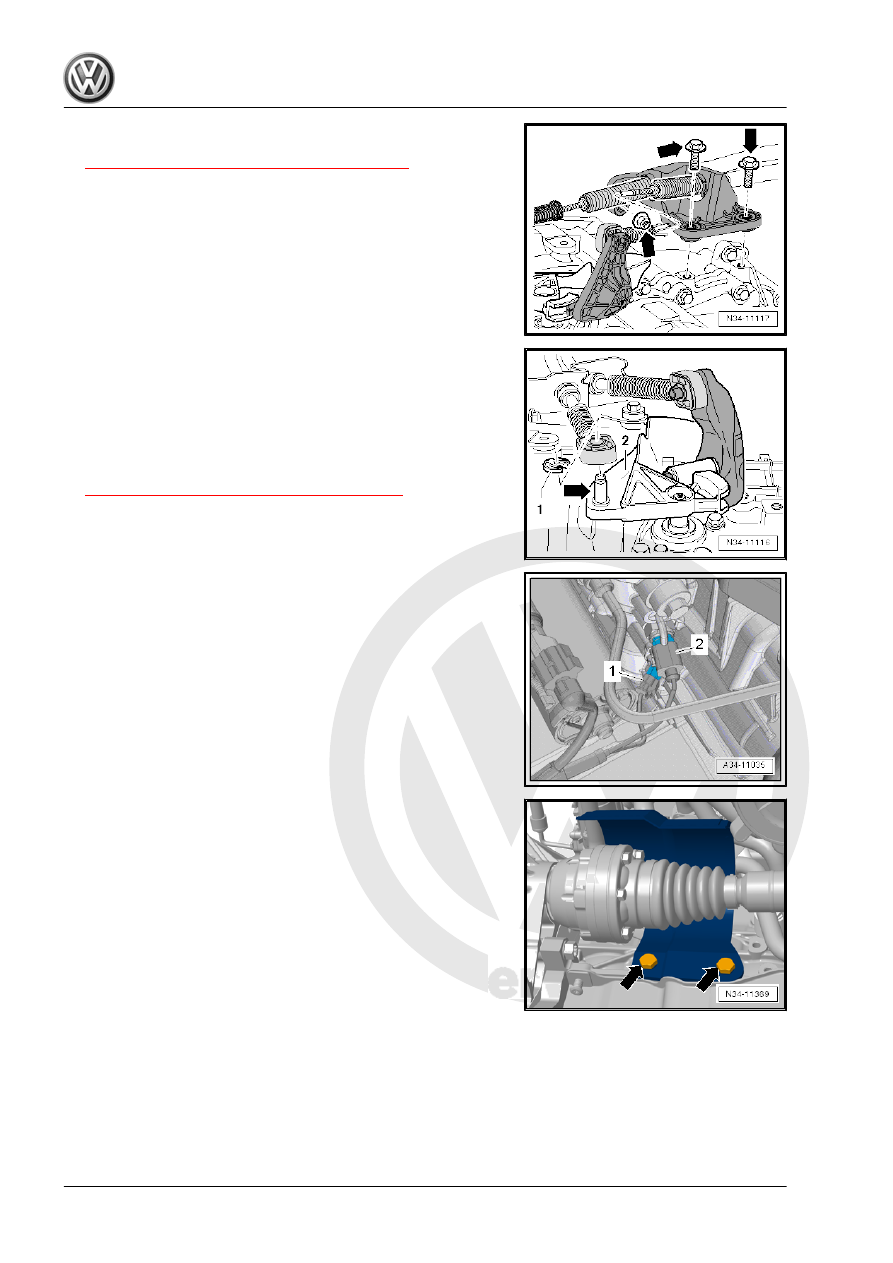

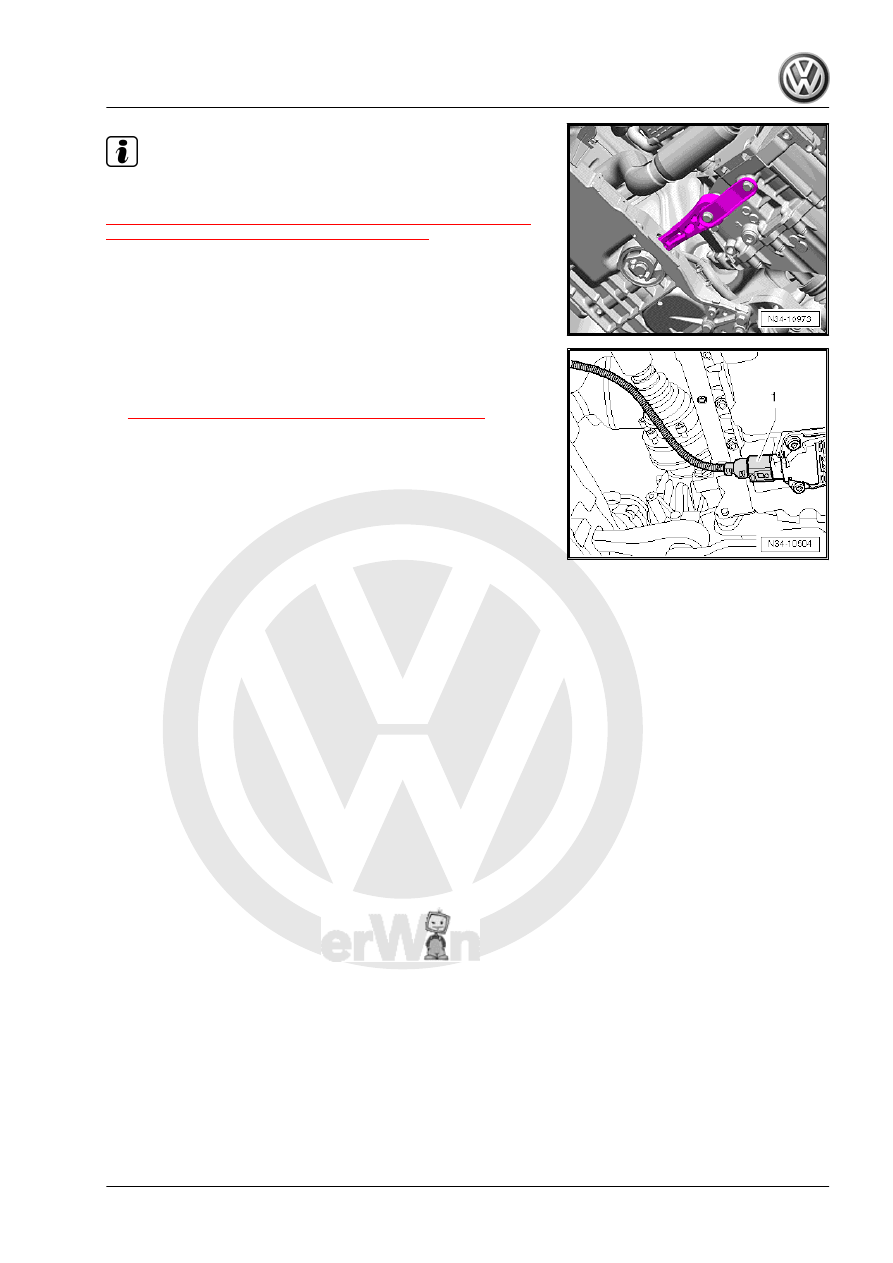

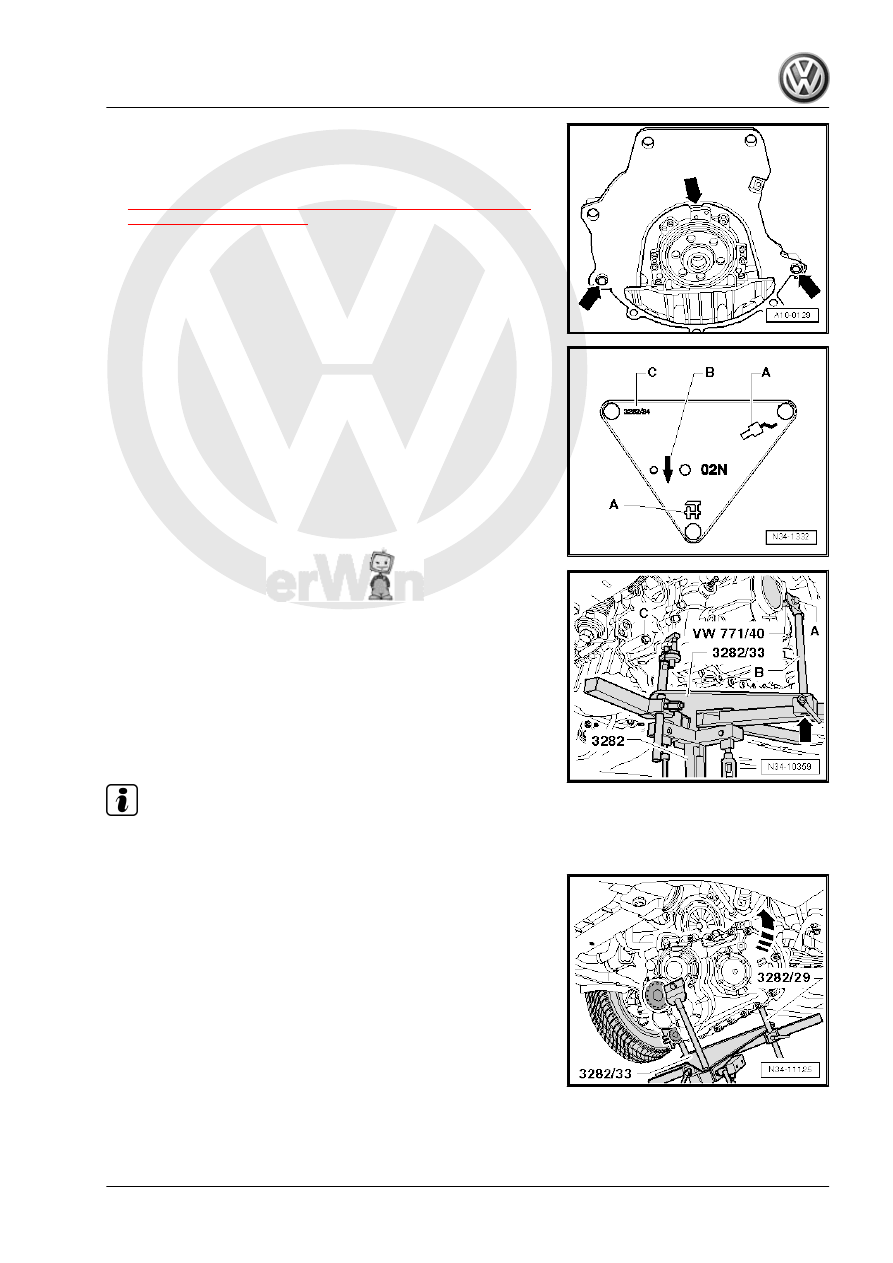

– Mount the cable bracket on the transmission and tighten the bolts and nuts -arrows-. Refer to ⇒ “1.2 Overview - Selector Mechanism”, page 60 . – Install the selector cable in the cable retainer. lever -2-. Grease allocation. Refer to the Parts Catalog. ⇒ “1.6 Selector Mechanism, Adjusting”, page 71 . – Install the starter. Refer to ⇒ Electrical Equipment; Rep. Gr. 27 ; Starter; Starter, Removing and Installing . – Connect the front left connectors to the transmission: sion Neutral Position Sensor - G701- 2 - Back-Up Lamp Switch - F4- ing; Rep. Gr. 40 ; Drive Axle; Drive Axle, Removing and Installing . – Install the drive axle heat shield (if equipped). Refer to ⇒ Sus‐ pension, Wheels, Steering; Rep. Gr. 40 ; Drive Axle; Drive Axle Heat Shield, Removing and Installing . – Assemble the exhaust system. Refer to ⇒ Engine Mechanical, Fuel Injection and Ignition; Rep. Gr. 26 ; Exhaust Pipes/Muf‐ flers; Overview - Muffler . – Install the subframe together with pendulum support. Refer to ⇒ Engine Mechanical, Fuel Injection and Ignition; Rep. Gr. 10 ; Subframe Mount; Overview - Subframe Mount . |
