Special Tools

Special tools and workshop

equipment required

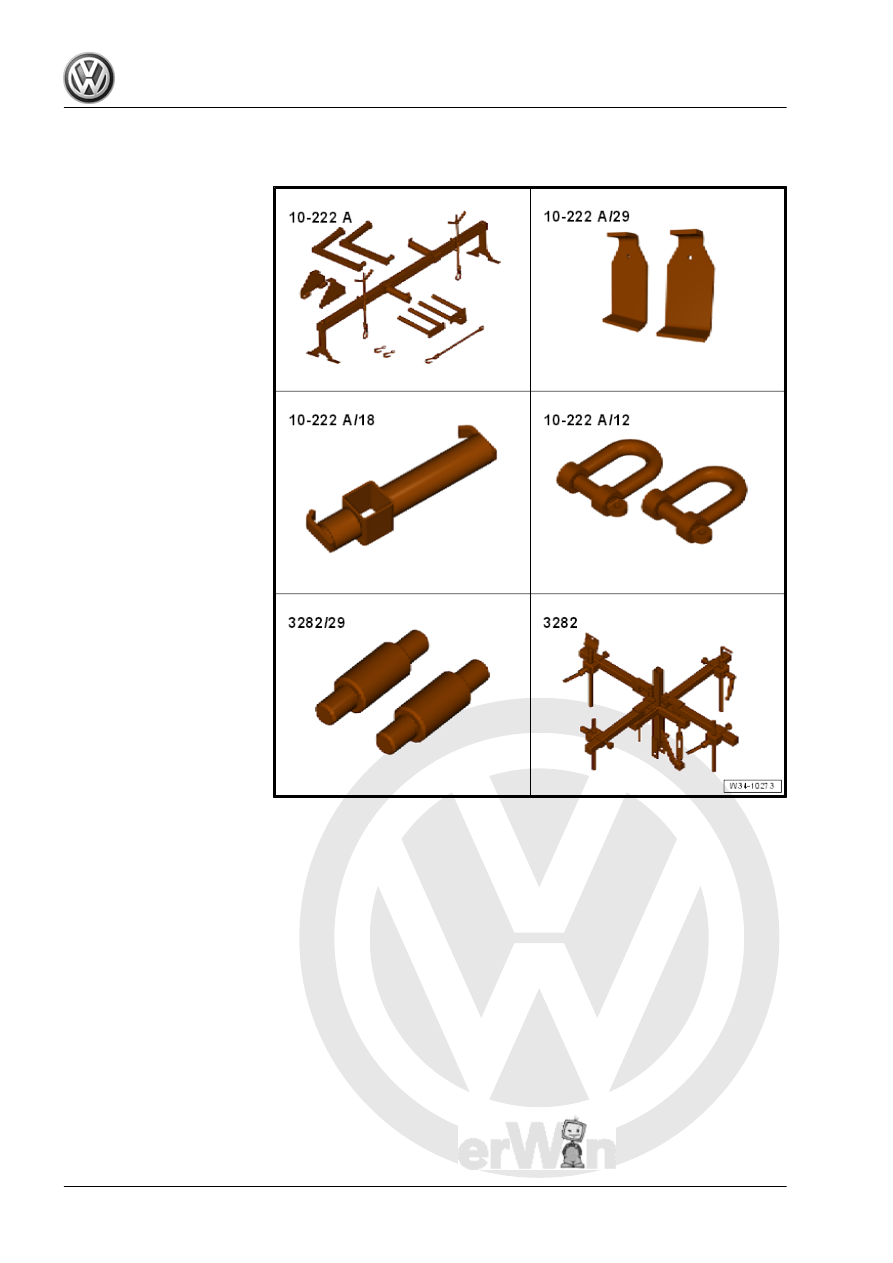

♦ Engine Support Bridge -

10-222A-

♦ Engine Support Bridge -

Engine Support 29 -

10-222A/29-

♦ Engine Support Bridge -

Engine Support 18 -

10-222A/18-

♦ Engine/Gearbox Support

Shackle (2 pc.) - 10-222A/

12- (quantity 2)

♦ Transmission Support -

Pins 29 - 3282/29-

♦ Transmission Support -

3282-

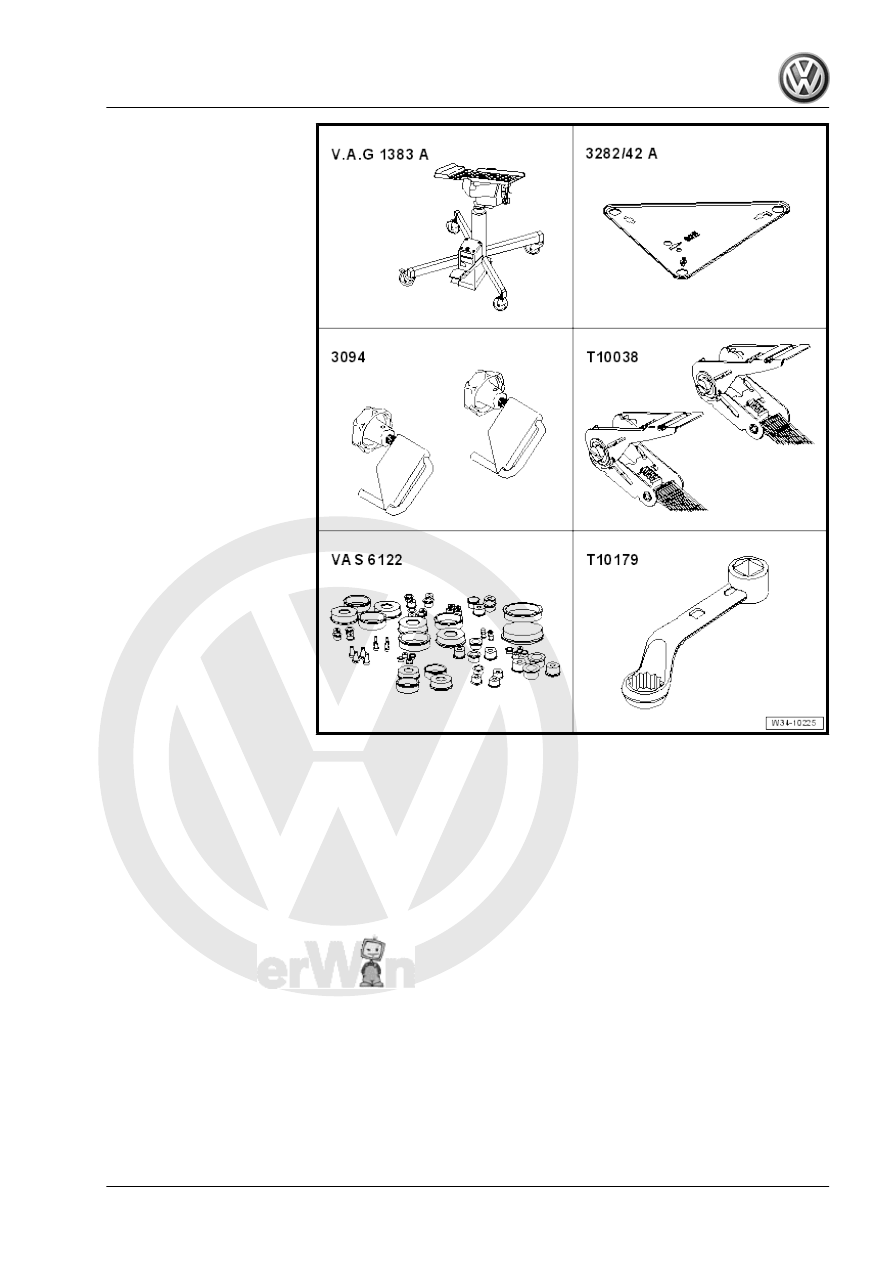

♦ Engine and Gearbox Jack -

VAS6931-

♦ Transmission Support -

Mounting Plate 42A -

3282/42A-

♦ Hose Clamps - Up To

25mm - 3094-

♦ Tensioning Strap - T10038-
♦ Engine Bung Set -

VAS6122-

♦ Insert Tool - 18mm -

T10179-

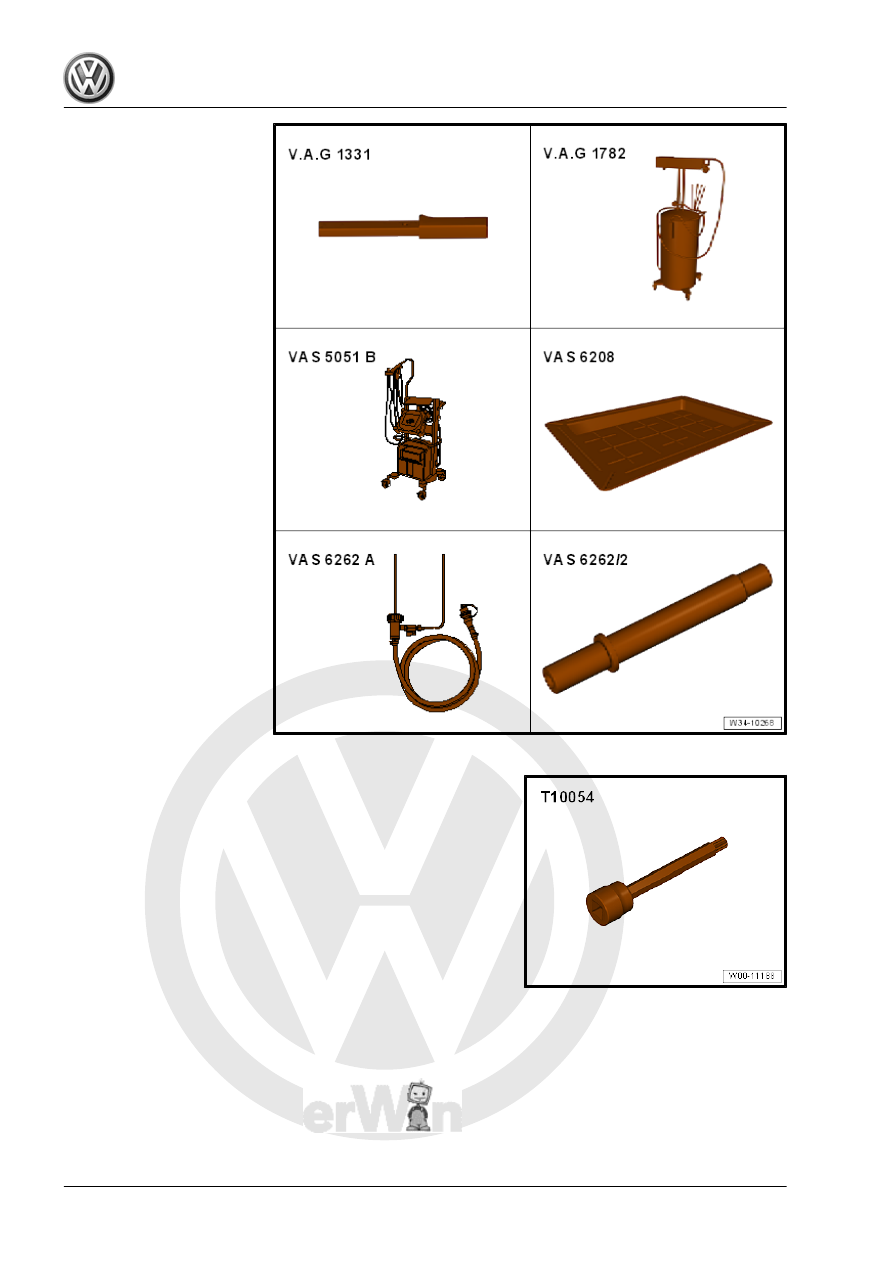

♦ Torque Wrench 5-50Nm -

VAG1331-

♦ Used Oil Collection and Ex‐

traction Unit - SMN372500-

♦ Vehicle Diagnostic Tester
♦ Shop Crane - Drip Tray -

VAS6208-

♦ Oil Filler - VAS6262A-
♦ Oil Filler - Adapter 2 -

VAS6262/2-

♦ Wrench - Pump/Injector Long Reach - T10054-

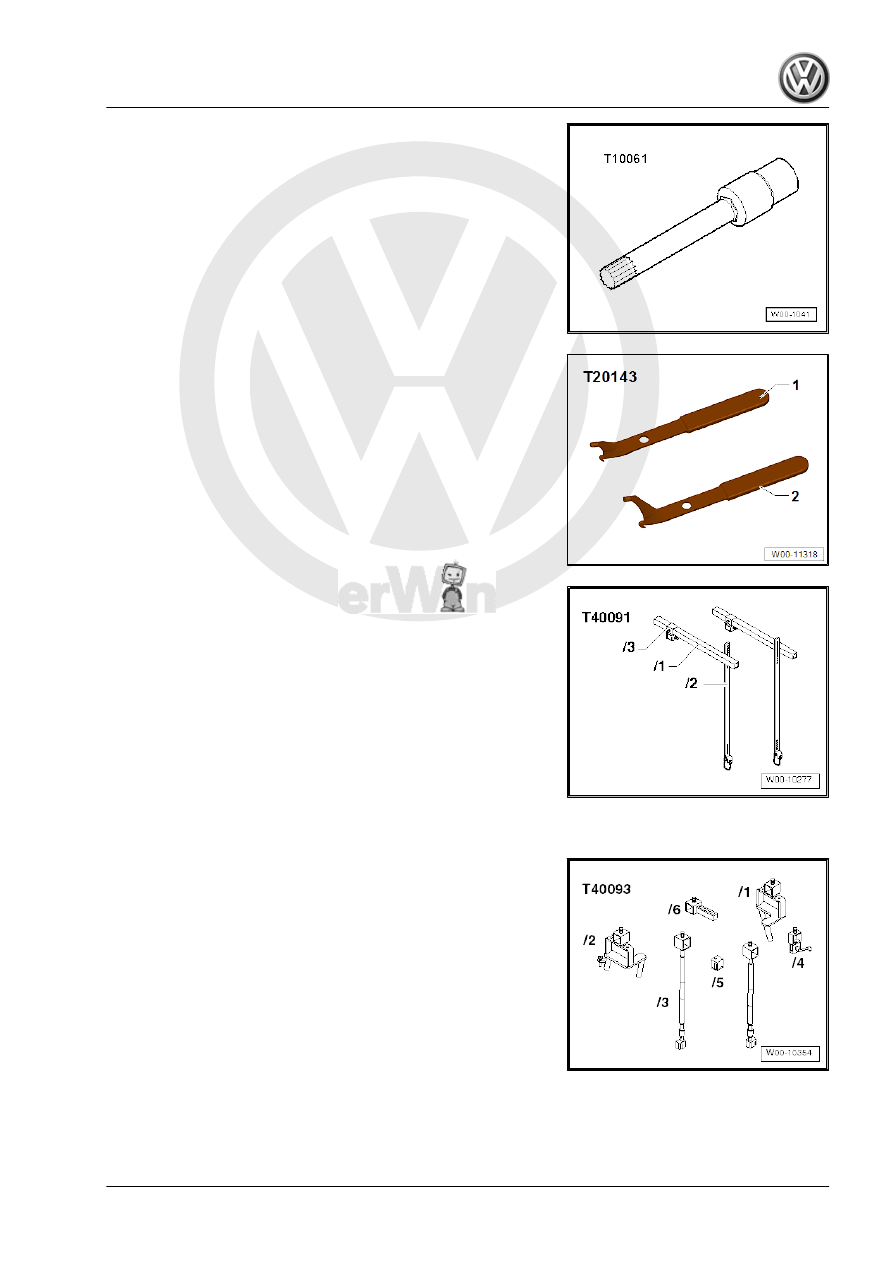

♦ Socket - Xzn 14 - T10061-

♦ Puller - Crankshaft/Power Steering Seal - T20143-

♦ Engine Support - Basic Set Square Pipe - T40091/1- (quantity

♦ Engine Support - Basic Set Movable Joint - T40091/3- (quan‐

tity 2)

♦ Engine Support - Supplement Kit Spindle - T40093/3- (quan‐

tity: 2) from the Engine Support - Supplement Kit - T40093A-
