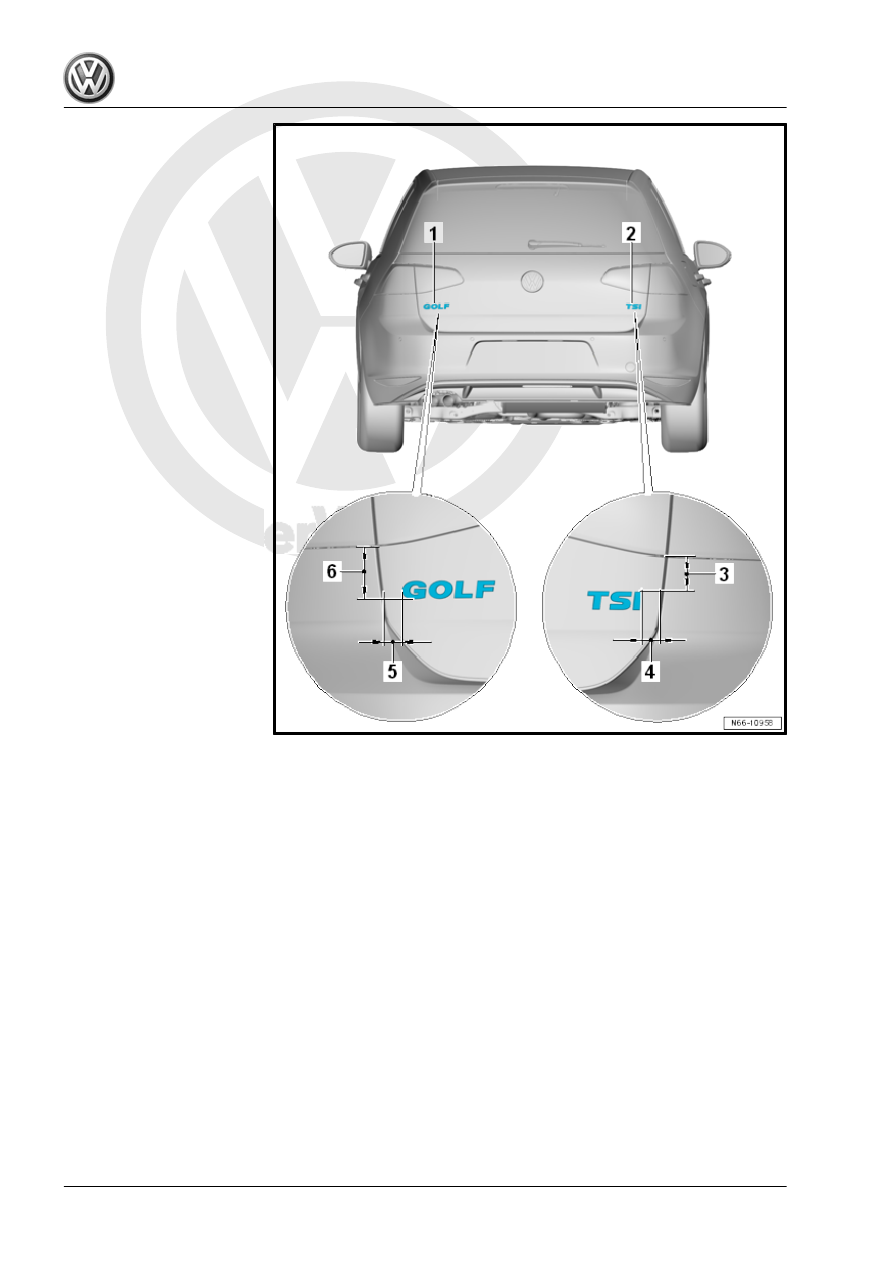

1 - Name Badge ❑ Model name 2 - Name Badge ❑ Engine designation or technical designation 3 - Height Dimension ❑ Engine designation 50.5 ± 1 mm, from the up‐ per edge of the name badge to the tail lamp lower edge ❑ Technical designations 75.5 ± 1 mm, from the lower edge of the name badge to the tail lamp lower edge ❑ Additional designations (only in conjunction with the engine designation) 6.0 ± 1 mm, from the up‐ per edge of the additional designation to the lower edge of the engine des‐ ignation 4 - Side Dimension ❑ 29.1 ± 1 mm, from the outer edge of the rear lid to the outer panel name badge 5 - Side Dimension ❑ 26.8 ± 1 mm, from the outer edge of the rear lid to the outer panel name badge 6 - Height Dimension ❑ 75.5 ± 1 mm, from the lower edge of the name badge to the tail lamp lower edge |
