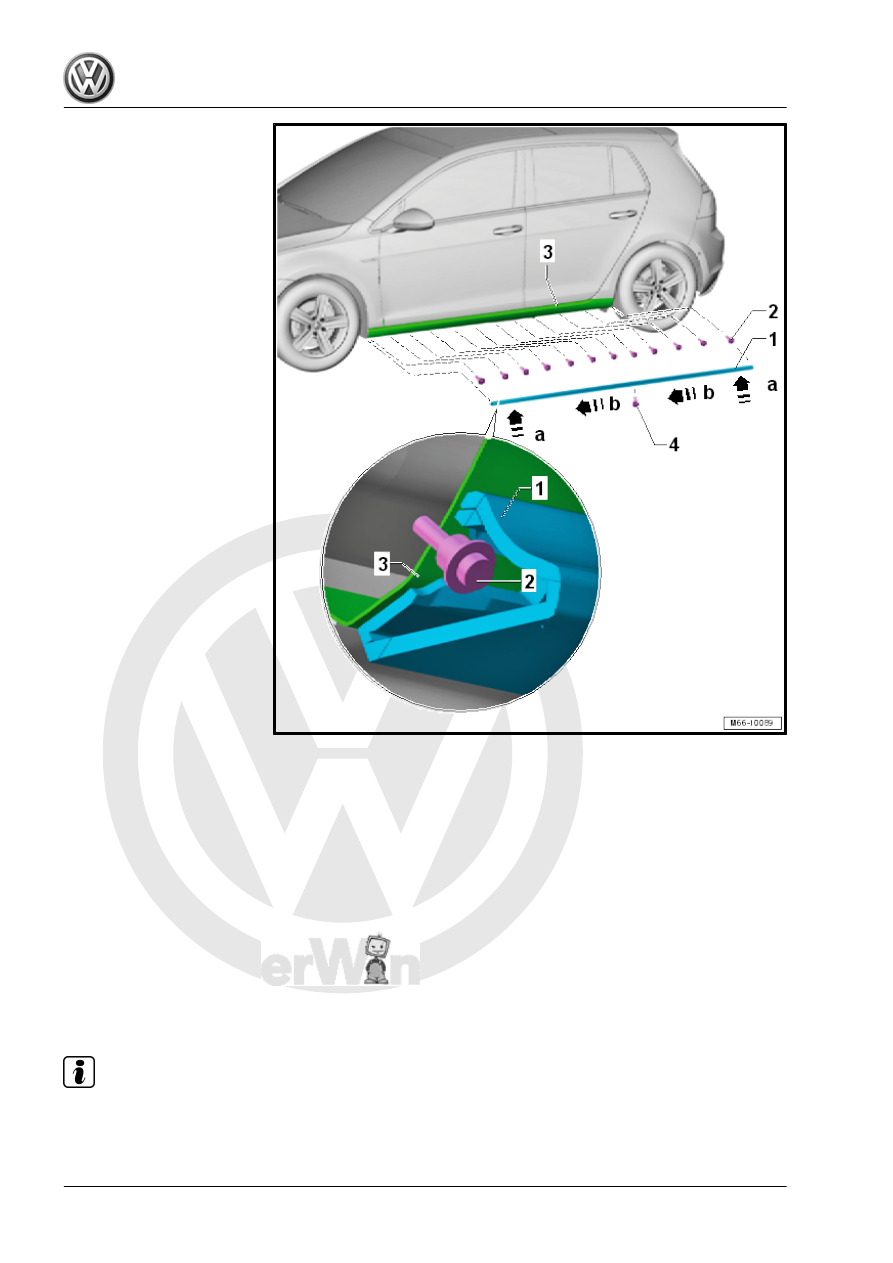

– Install the self-tapping bolts -2- until the thread engages. tion, so that they are not over tightened. – Position the side sill trim panel -1- evenly in direction of -a arrows- with the openings on the back over all of the screws -2- until the side sill trim panel touches the side sill -3-. Position the side sill trim panel with a second mechanic so that all screws remain in the openings when molding is slid on. rection of -b arrows-. – Install the exterior bolt -4- in the side sill trim panel. Note ♦ The screws for the side sill trim panel are corrosion-resistant. Additional treatment is not necessary. ♦ If a screw is overtightened, it must always be replaced with a “black” oversized screw. |
