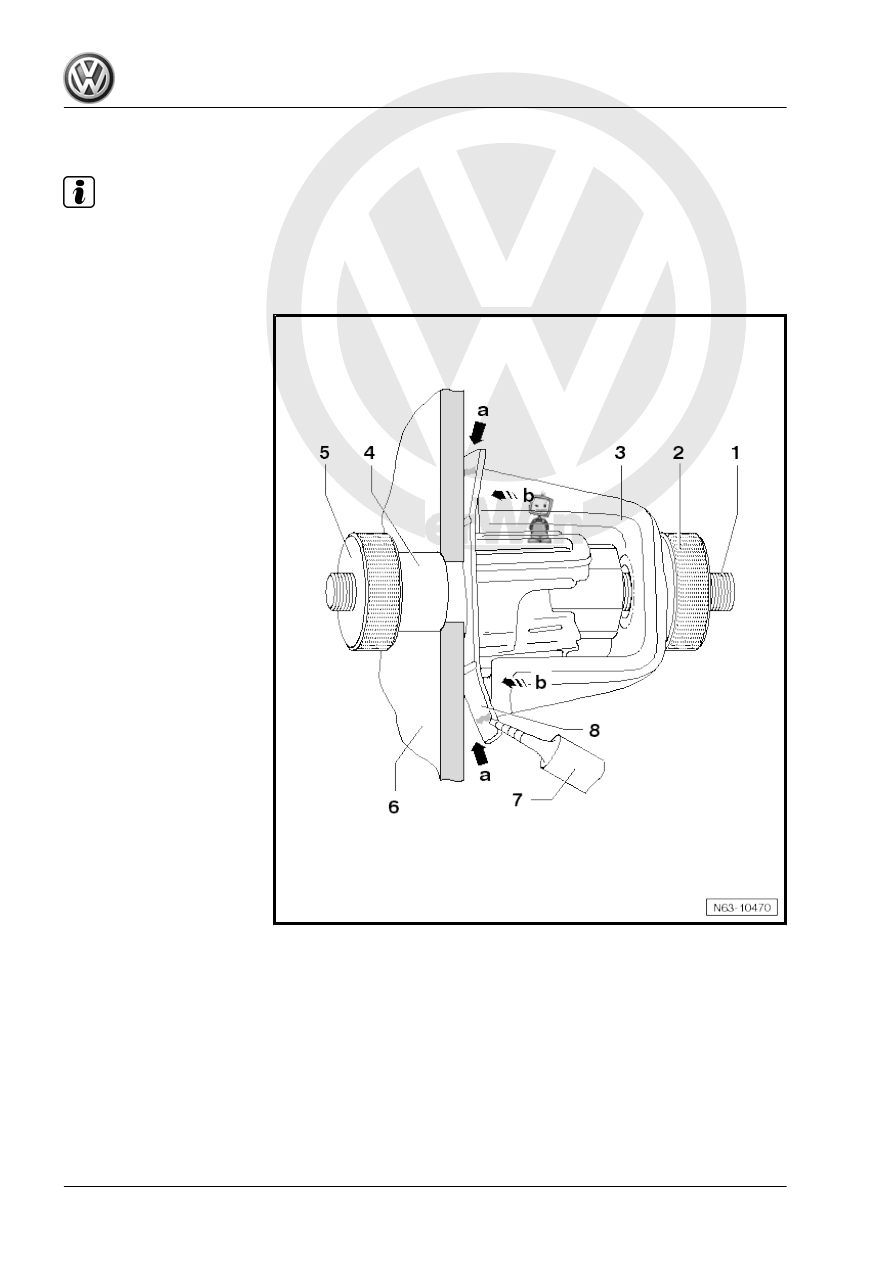

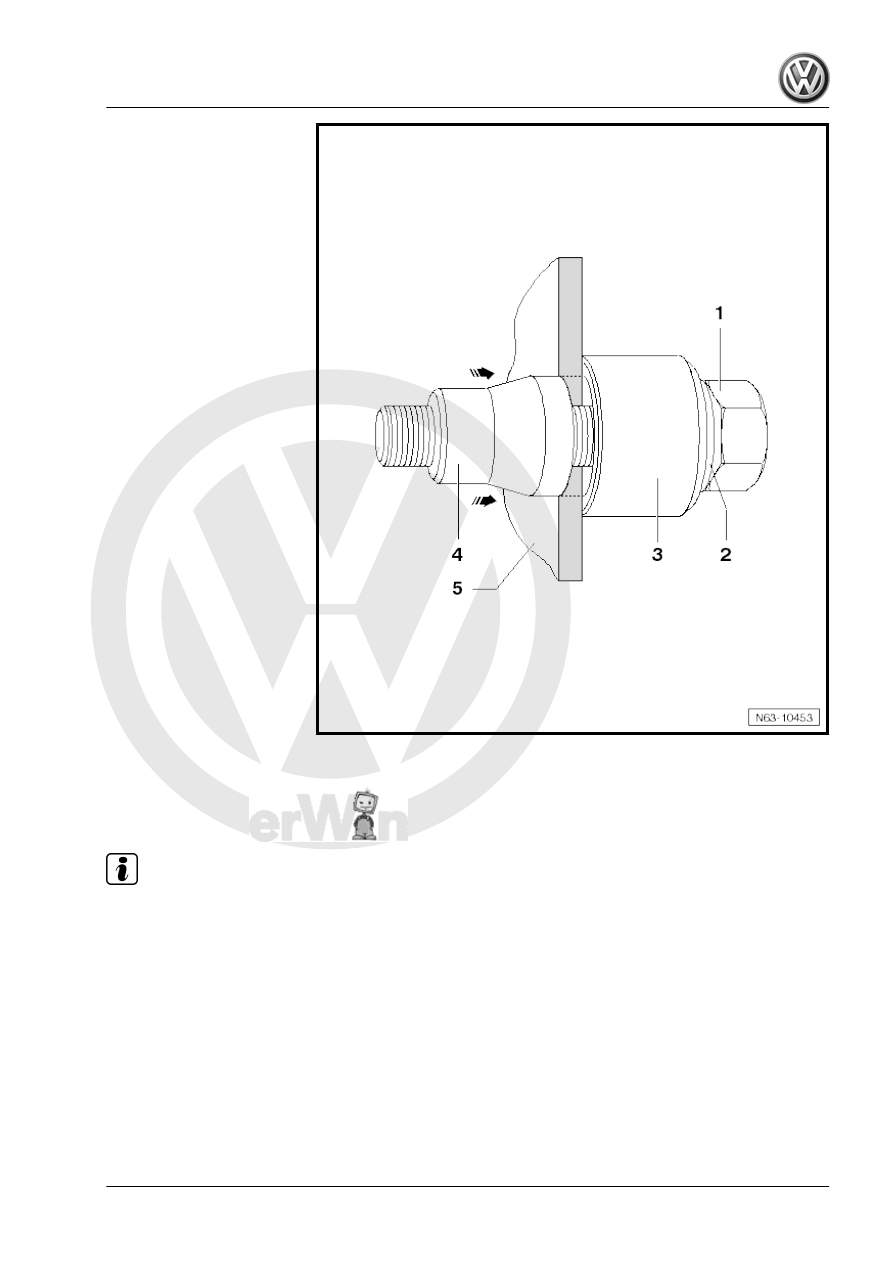

– Thoroughly clean the bumper cover and bracket with cleaning solution. Note Approximately 1 cm of adhesive from the tip should not be applied. – Lightly sand the inside of the bumper cover -6- and thoroughly clean it. – Very thinly apply the adhesive for plastic to the bumper cover and bracket and let it set for 10 minutes. – Slide the bracket -8- onto the centering drift -1- and push it through the bumper cover -6-. – Slide on the counterholder -4- and lightly tighten the knurled nut -5-. – Slide on the clamping clip -3- and position the knurled nut -2-, but do not tighten. – All brackets are prepared up to this step. |
