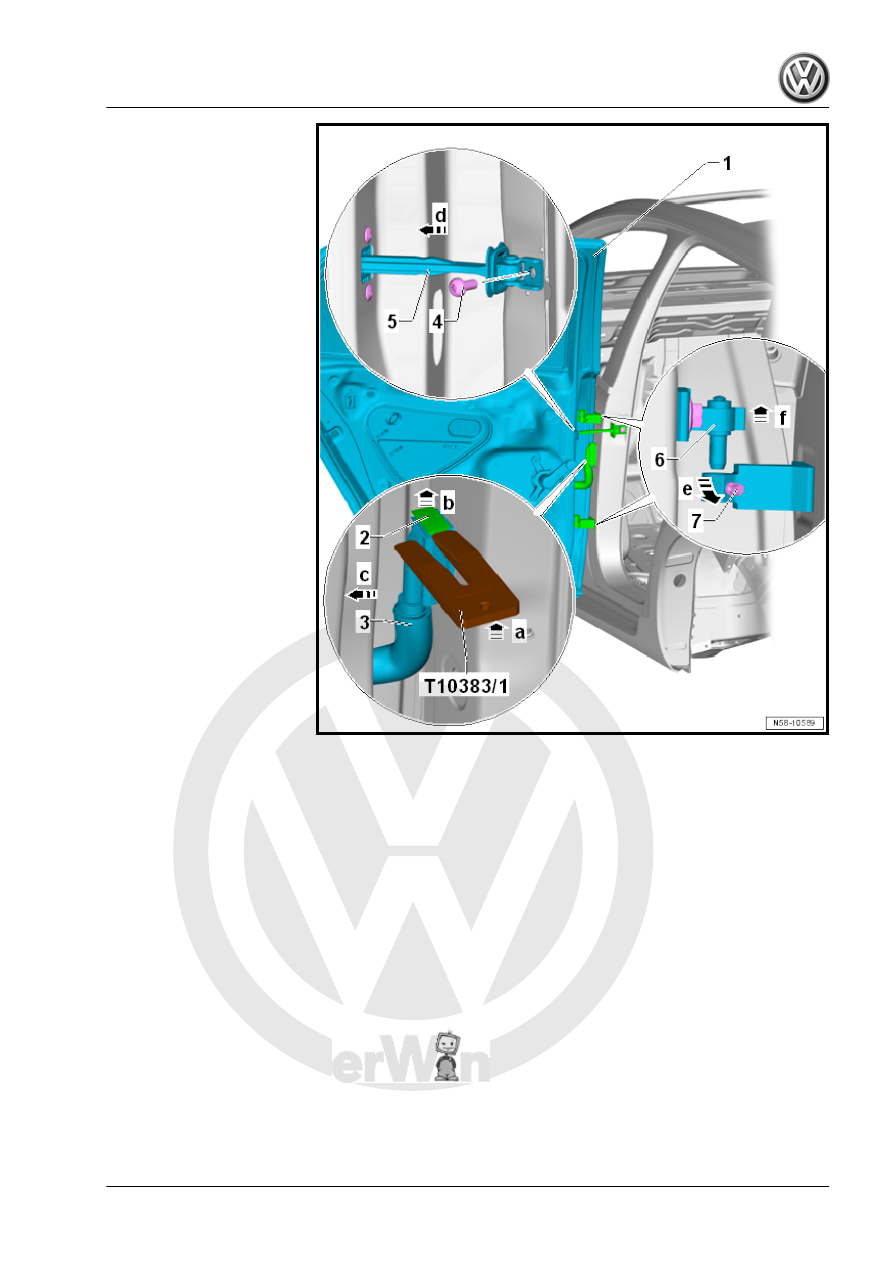

1 - Rear Door ❑ Removing and instal‐ ling. Refer to ❑ Adjusting. Refer to 2 - Bolt ❑ 50 Nm adjust the door is per‐ mitted. Always replace afterward. Note ♦ Another tightening specification must be observed after replacing the A-pillar. ♦ Tightening specification after re‐ placing the A-pillar: 20 Nm + 90° 3 - Door Hinge ❑ The hinge has two sec‐ tions. ❑ The bolt -8- attaches the hinge lower section to the upper section. 4 - Cap ❑ For the bolt -8- 5 - Bolt ❑ 50 Nm 70 ; Passenger Compartment Trim; B-Pillar Trim Panel, Removing and Installing . Note ♦ Another tightening specification must be observed after replacing the A-pillar. ♦ Tightening specification after re‐ placing the A-pillar: 20 Nm + 90° 6 - Cap ❑ For the bolt -7- 7 - Bolt ❑ 50 Nm 8 - Bolt ❑ 23 Nm |
