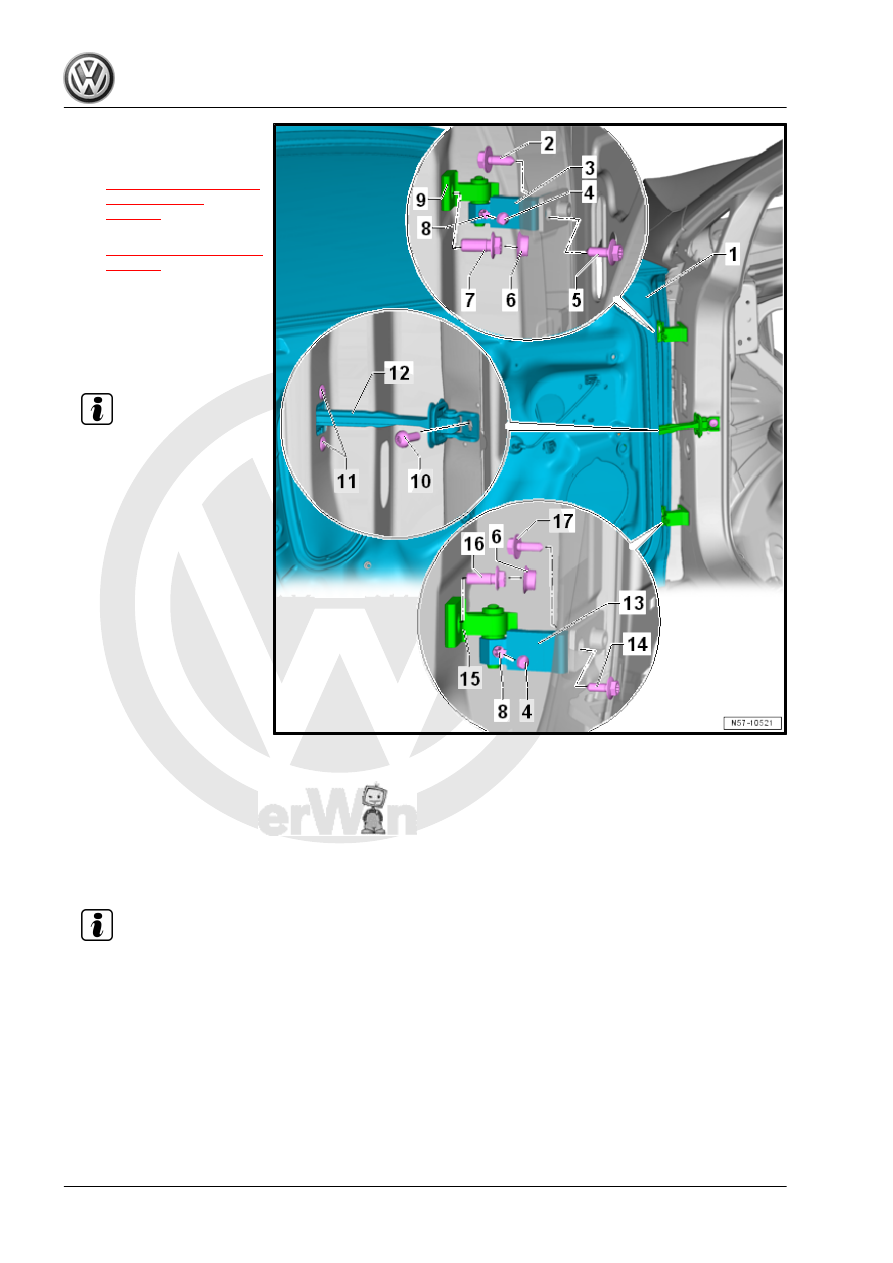

1 - Front Door

❑ Removing and instal‐

ling. Refer to

⇒ “1.4 Door, Removing

and Installing”,

page 86

 .

❑ Adjusting. Refer to

⇒ “1.5 Door, Adjusting”,

page 89

 .

2 - Bolt

❑ 50 Nm
❑ Loosening one time to

adjust the door is per‐

mitted. Always replace

afterward.

Note

Another tightening specification

must be observed after replacing

the A-pillar.

Tightening specification after re‐

placing the A-pillar: 20 Nm + 90°

3 - Door Hinge

❑ The hinge has two sec‐

tions. The upper and

lower section can be re‐

placed separately if nec‐

essary.

❑ The bolt -8- attaches the

hinge lower section to

the upper section.

4 - Cap

❑ For the bolt -8-
❑ Is not installed in all markets.

5 - Bolt

❑ 50 Nm
❑ Installed from the vehicle interior
❑ Loosening one time to adjust the door is permitted. Always replace afterward.
❑ The instrument panel is not removed for loosening and tightening.
❑ To remove and install, the instrument panel must be removed. Refer to ⇒  Body Interior; Rep. Gr.  70 ;

Instrument Panel; Instrument Panel, Removing and Installing .

Note

Another tightening specification

must be observed after replacing

the A-pillar.

Tightening specification after re‐

placing the A-pillar: 20 Nm + 90°

6 - Cap

❑ For bolts -7 and 16-
❑ Is not installed in all markets.

7 - Bolt

❑ 50 Nm

❑ Loosening one time to adjust the door is permitted. Always replace afterward.

8 - Bolt

❑ 23 Nm
❑ Connects the upper hinge portion -9 or 15- to the lower hinge portion -3 or 13-.

9 - Door Hinge

❑ The hinge has two sections. The upper and lower section can be replaced separately if necessary.
❑ The bolt -8- attaches the upper section to the hinge lower section.

10 - Bolt

❑ 30 Nm

11 - Bolt

❑ 9 Nm
❑ Quantity: 2

12 - Door Arrester

❑ Removing and installing. Refer to

⇒ “1.7 Door Arrester, Removing and Installing”, page 93

 .

13 - Door Hinge

❑ The hinge has two sections. The upper and lower section can be replaced separately if necessary.
❑ The bolt -8- attaches the hinge lower section to the upper section.

14 - Bolt

❑ 50 Nm
❑ Installed from the vehicle interior
❑ Loosening one time to adjust the door is permitted. Always replace afterward.
❑ The A-pillar lower trim must be removed in order remove and install. Refer to ⇒  Body Interior; Rep. Gr.

70 ; Passenger Compartment Trim; A-Pillar Trim Panel, Removing and Installing .

Note

Another tightening specification

must be observed after replacing

the A-pillar.

Tightening specification after re‐

placing the A-pillar: 20 Nm + 90°

15 - Door Hinge

❑ The hinge has two sections. The upper and lower section can be replaced separately if necessary.
❑ The bolt -8- attaches the upper section to the hinge lower section.

16 - Bolt

❑ 50 Nm
❑ Loosening one time to adjust the door is permitted. Always replace afterward.

17 - Bolt

❑ 50 Nm
❑ Loosening one time to adjust the door is permitted. Always replace afterward.

Note

Another tightening specification

must be observed after replacing

the A-pillar.

Tightening specification after re‐

placing the A-pillar: 20 Nm + 90°

1.2

Inner Door Seal, Removing and Installing

The inner door seals are equipped at the factory with sealant,

applied to the door flange and then rolled on.

Note

The sealant on the inside of the seal will spread when the seal is removed. The sides will bend up slightly.

If the seal is being reinstalled, the sealing strength and a secure fit are no longer guaranteed.

For this reason, every seal that has been completely removed must be replaced with a so-called “hammer-

stroke seal”.

For partially removed seals, the seal sides are pressed together before installing.

The following describes the removal and installation of the left inner door seal. The right side is identical.

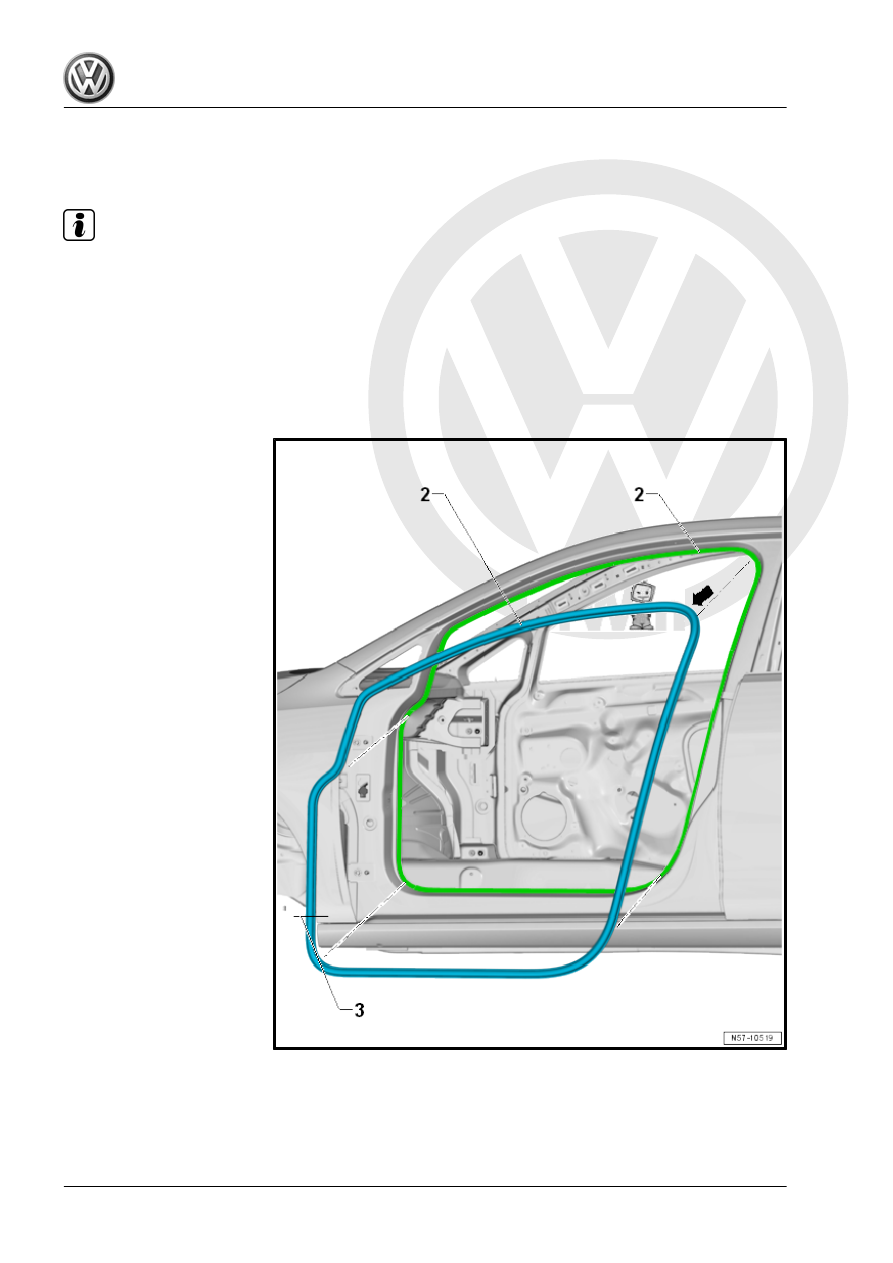

For better illustration the front door is removed.

Removing
– Remove the sill panel strip. Refer to ⇒  Body Interior; Rep. Gr.

70 ; Passenger Compartment Trim; Sill Panel Strip, Removing

and Installing .

– To remove the inner door seal, remove the necessary pillar

trim panels. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Passenger

Compartment Trim; Component Location Overview - Passen‐

ger Compartment Trim .

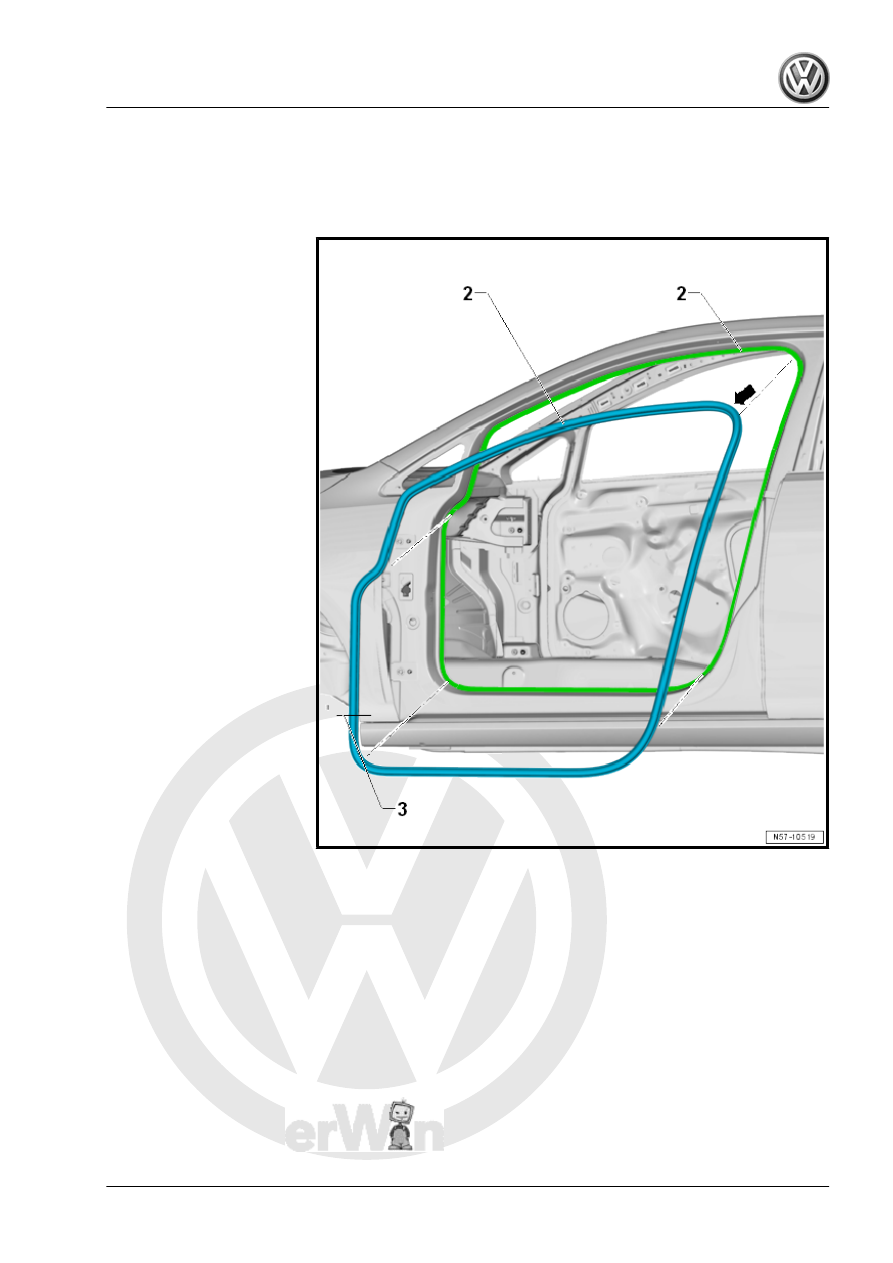

– Remove the inner door seal -2- from the body flange.

Installing
– Install the inner door seal -2- starting at the top of the door

opening -arrow-.

– Align the vulcanized point -3- above the lower hinge.
– Install the side trim panels. Refer to ⇒  Body Interior; Rep. Gr.

70 ; Passenger Compartment Trim; Component Location

Overview - Passenger Compartment Trim .

– Install the sill panel strip. Refer to ⇒  Body Interior; Rep. Gr.

70 ; Passenger Compartment Trim; Sill Panel Strip, Removing

and Installing .
