Volkswagen Golf / Golf GTI / Jetta. Manual - part 993

87-172





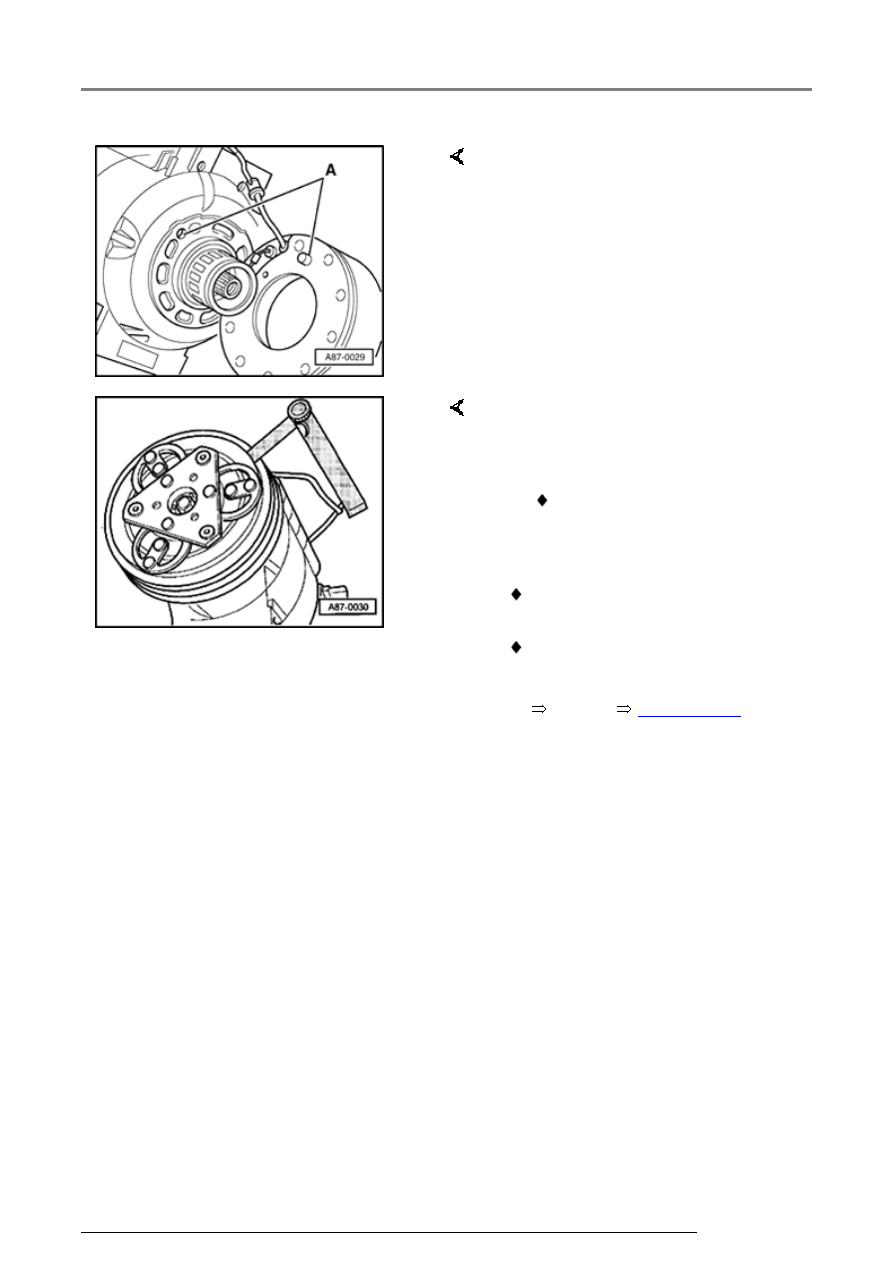

Fig. 5

Clutch coil, installing

-  Install coil on compressor.

-  Position pin -A- in recess



Notes:

Fig. 6

Clutch plate gap,
checking

-  Check gap with feeler gauge.



 Gap: 0.3 - 0.6 mm (0.0118 -

0.0236 in.)

 Gap must be within tolerance

around entire circumference.

 If gap is outside tolerance range,

remove clutch plate and adjust
gap by adding or removing shims

 item 3 ,



Page 87-168

 .

Compressor bracket, removing and installing

13/2/2005
