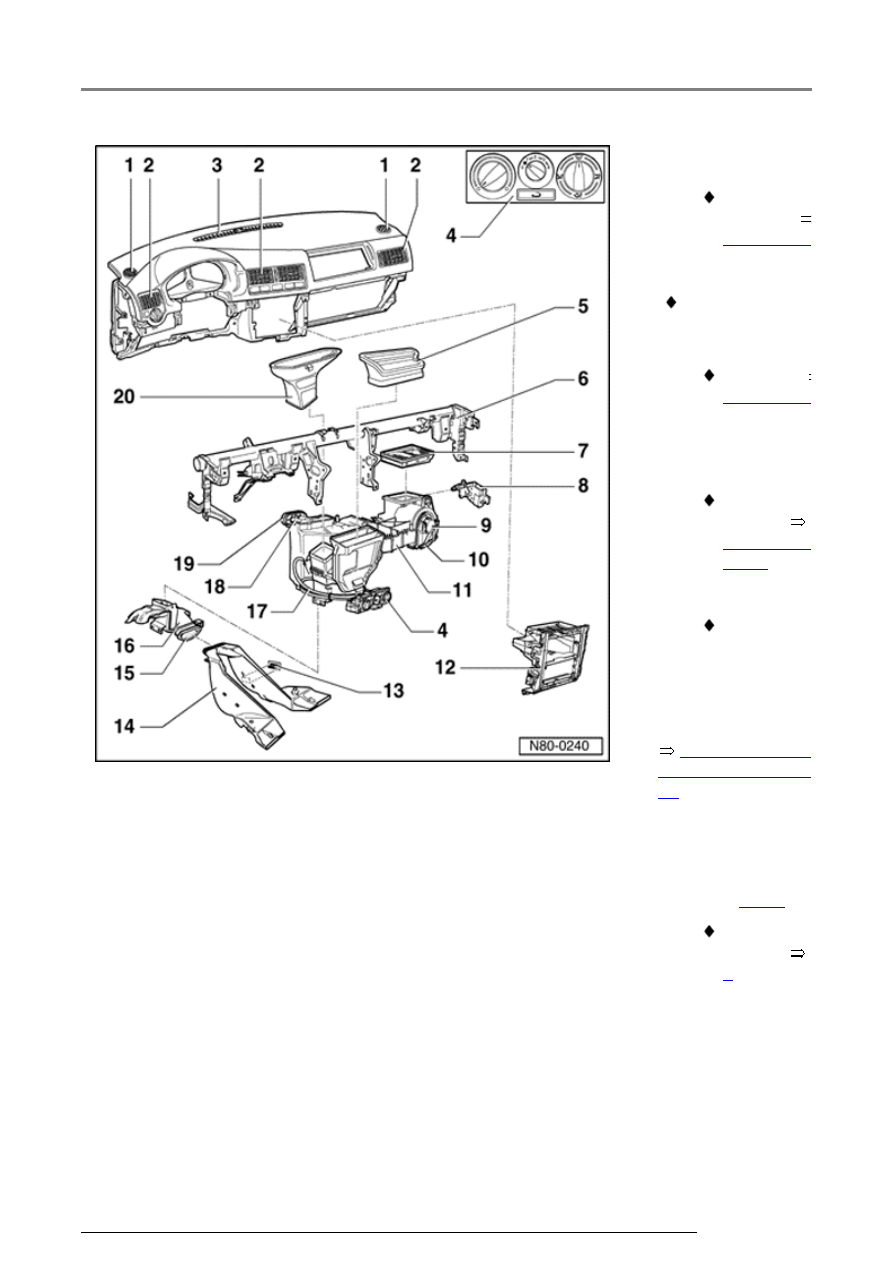

80-5







Repair Manual, Body

Interior, Repair Group
70



17 - Cables

 Installing and

adjusting

Page 80-25

18 - Heater core

 Always replace

coolant after
removal/replacement

 Replacing

Page 80-19

19 - Heater

core/bulkhead
seal


 Installation

position



Page 80-21
Fig. 2



20 - Defroster duct

 Replacing:



- Remove and

install
instrument
panel.



- Loosen

instrument
panel cross
member

Fig. 5



 Installation

position



2



Heating and ventilation system, servicing

13/2/2005

80-6





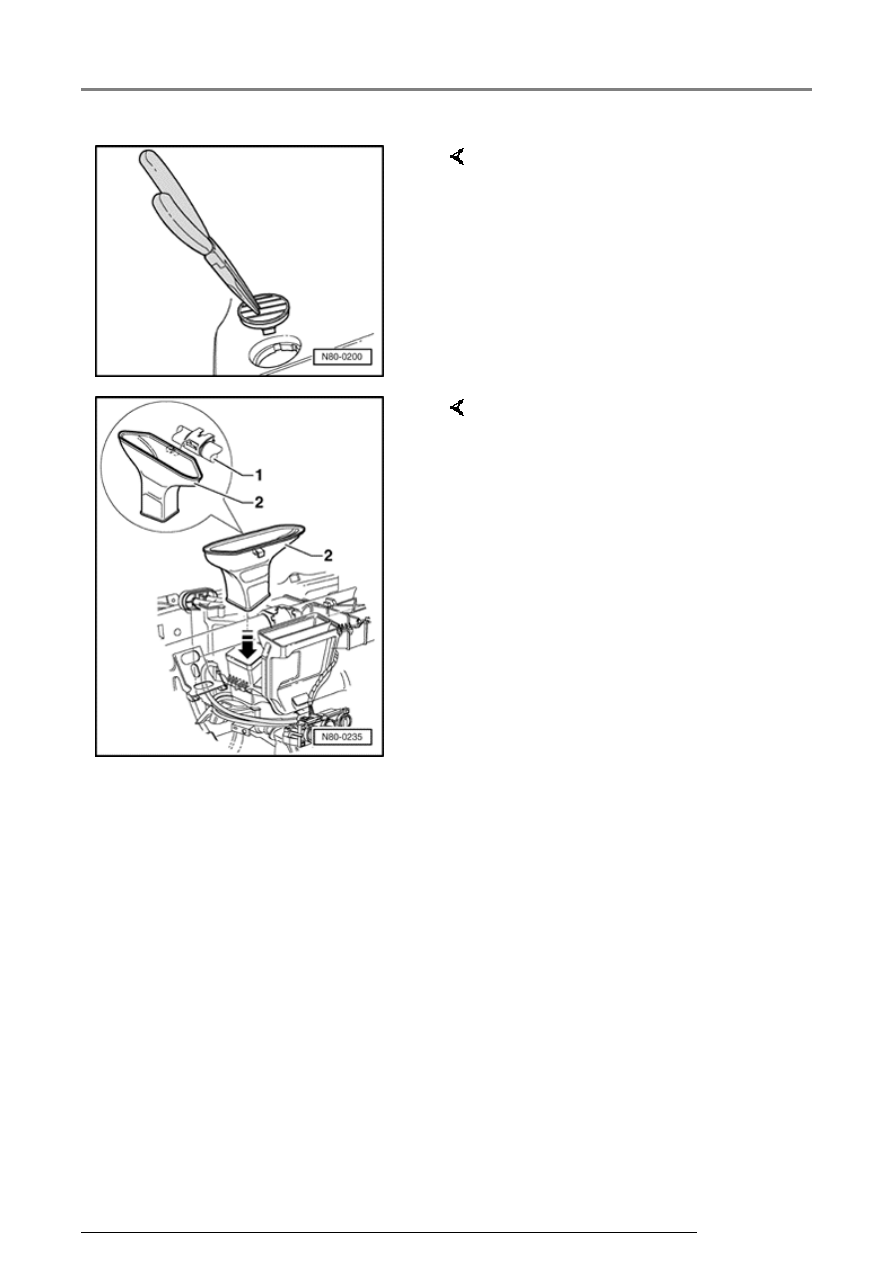

Fig. 1

Side window air outlet,
removing

-  Carefully pull out using needle

nose pliers



Fig. 2

Defroster duct,
installation position


-  Attach defroster duct -2- to heater

unit.

-  At the same time position

defroster duct -2- in instrument
panel cross member -1-.

Heating and ventilation system, servicing

13/2/2005

80-7





Removing



Repair Manual, Body-Interior,

Repair Group 68



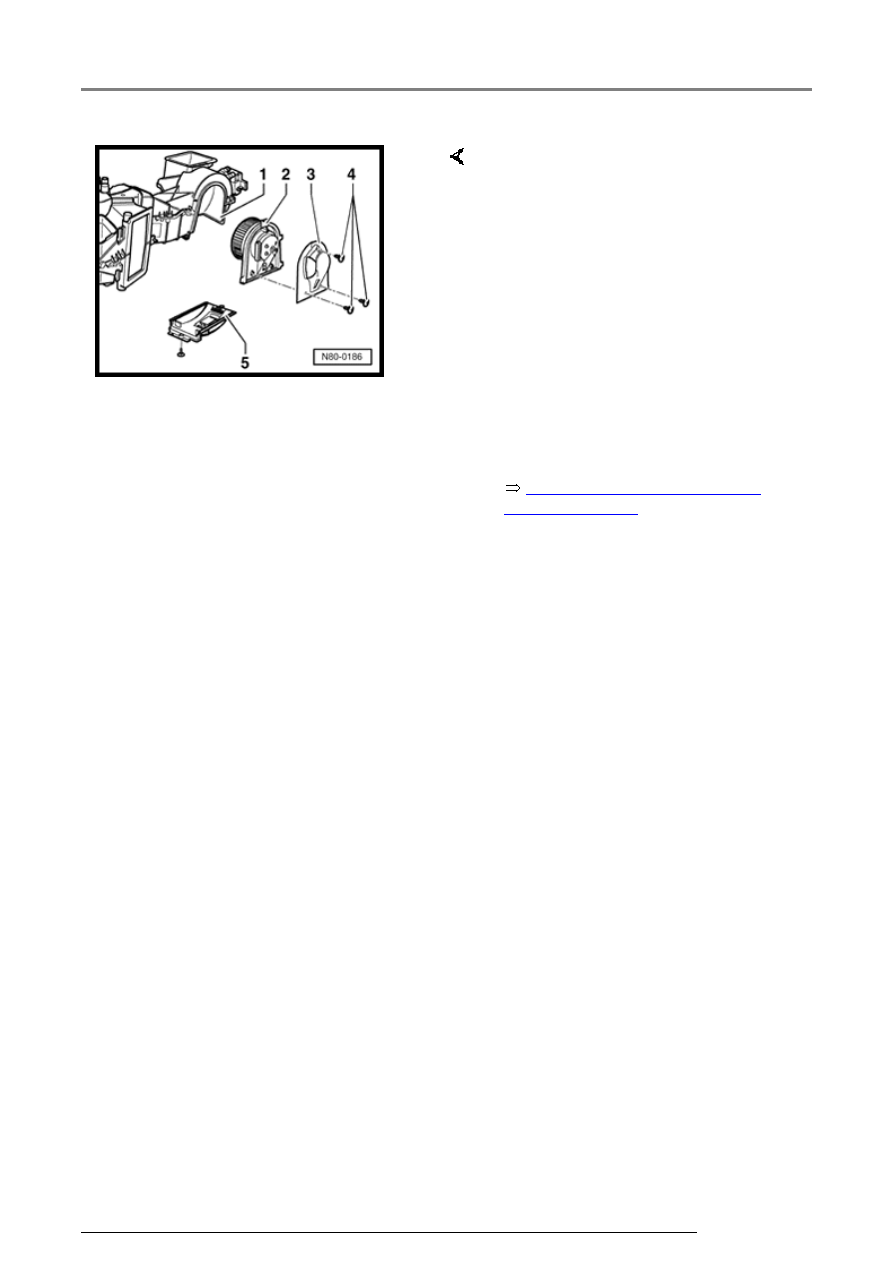

Fig. 3

Fresh air blower -V2-,
removing

1 - Heater unit

2 - Fresh air blower -V2-

3 - Cover

4 - Screws

5 - Fresh Air Blower Series
Resistance With Fuse -N24-

-  Remove glove box.

-  Disconnect electrical connector

for fresh air blower series
resistance with fuse -N24 .

-  Disconnect electrical connector

for heater fan.

-  Remove resistor for fresh air

blower.

-  Remove fresh air blower

downward.

Heating and ventilation system, servicing

13/2/2005

80-8





Removing

With plenum cover removed:

Installing

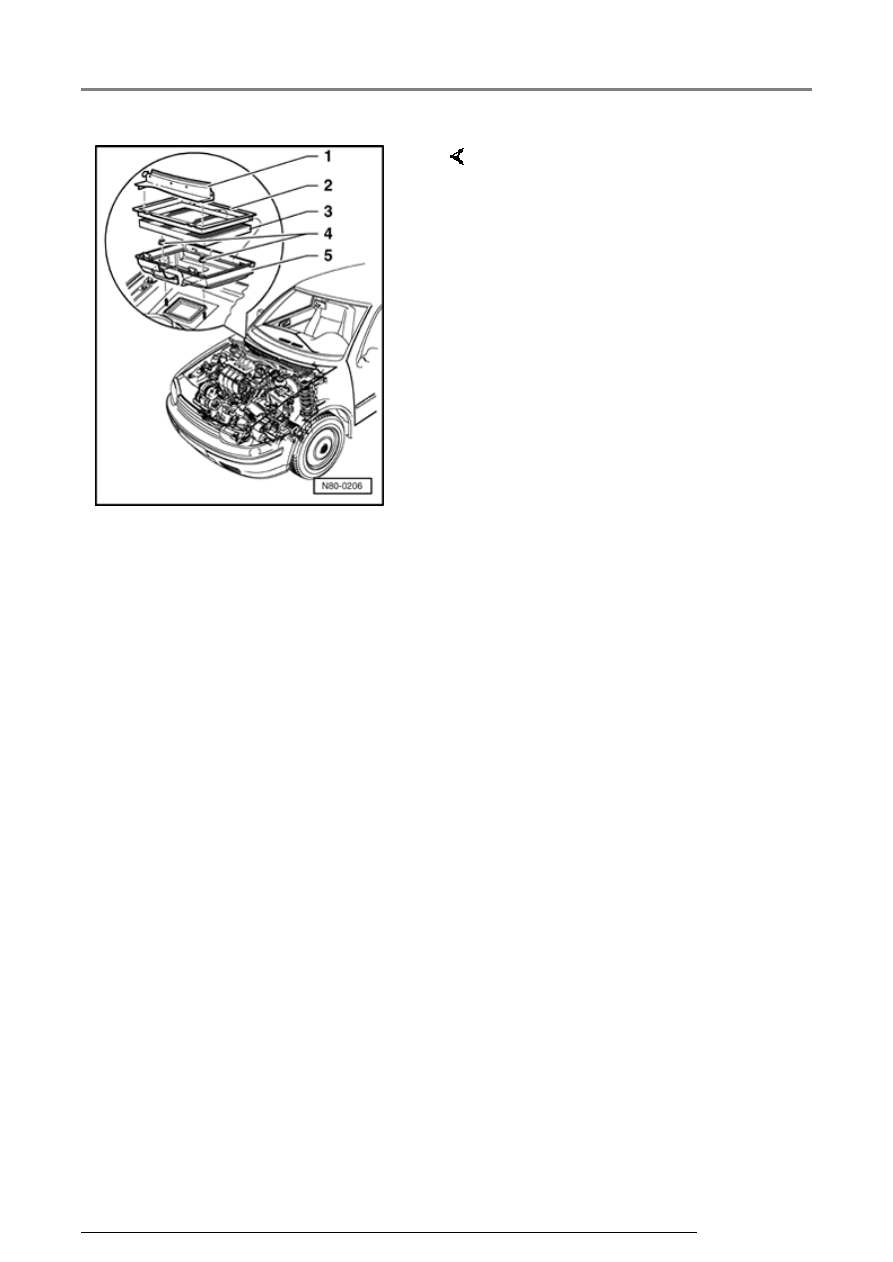

Fig. 4

Dust and pollen filter,
removing and installing


1 - Air deflector

2 - Frame

3 - Dust and pollen filter element

4 - Plastic nut, 2.5 Nm (22 in. lb)

5 - Filter housing

-  Depress tabs at front edge of

frame -2-.

-  Lift and pull out filter element with

frame to front .

-  Assemble filter element to frame

-  Insert so that pins fit into into filter

housing -5-.

-  Clip frame into place.

Heating and ventilation system, servicing

13/2/2005
