Volkswagen Golf / Golf GTI / Jetta. Manual - part 800

74 - 1

Front seat cushion and cover

Tools

Special tools, testers and auxiliary items required

Pry bar 80 - 200

Upholstery pliers V.A.G 1634

Front seat cover and upholstery, removing
and installing

Note:

Removal and installation is described for left front
seat. same instructions apply for removal and
installation for right front seat.

Slight changes may have to be made to removal and
installation procedures, depending upon equipment
installed in vehicle.

Removing

- Remove seat

72-1, Front seats, removing and

Front seat cushion and cover

13/2/2005

installing

- Remove backrest

72-1, Front backrest, removing and

installing

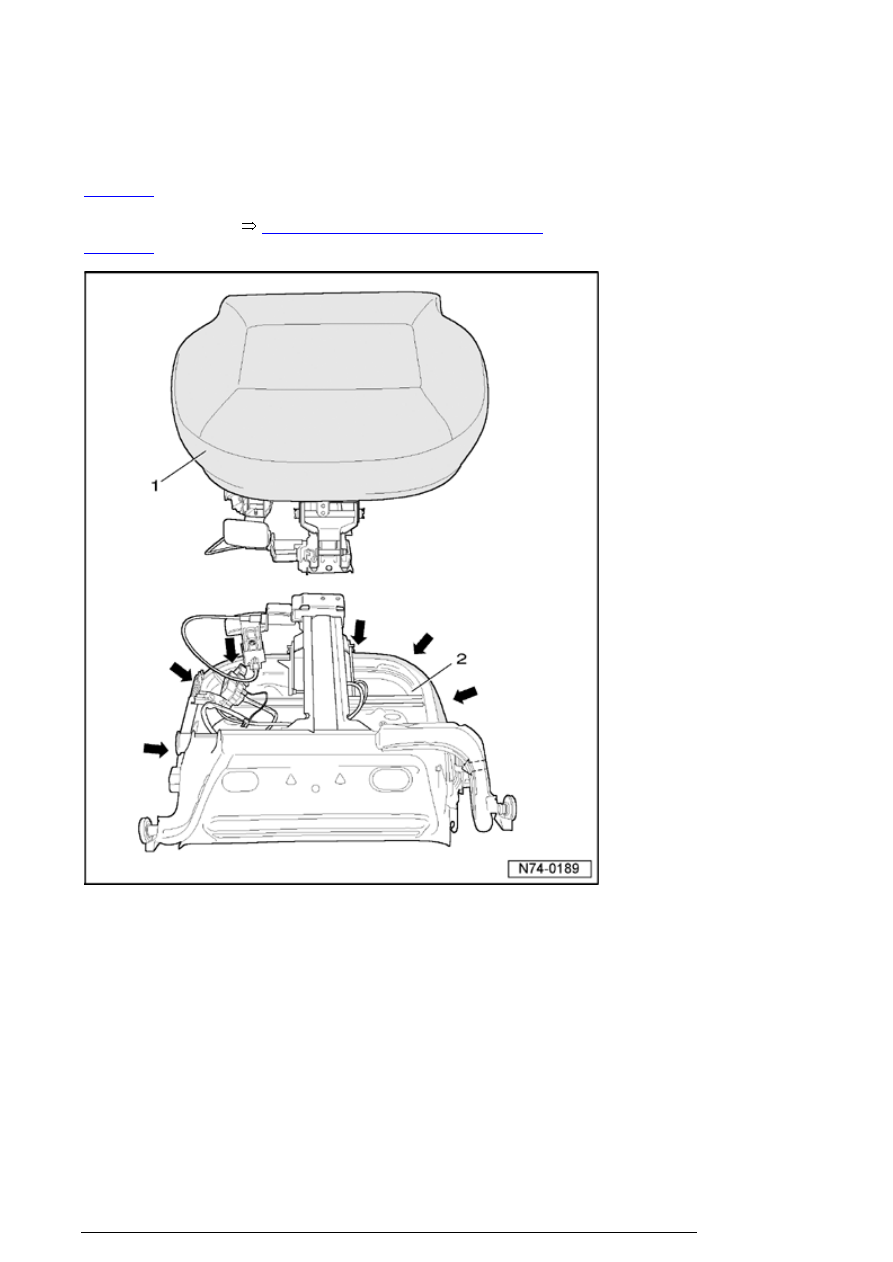

- Pull off cover - 1 - from seat frame - 2 - -
arrows - .

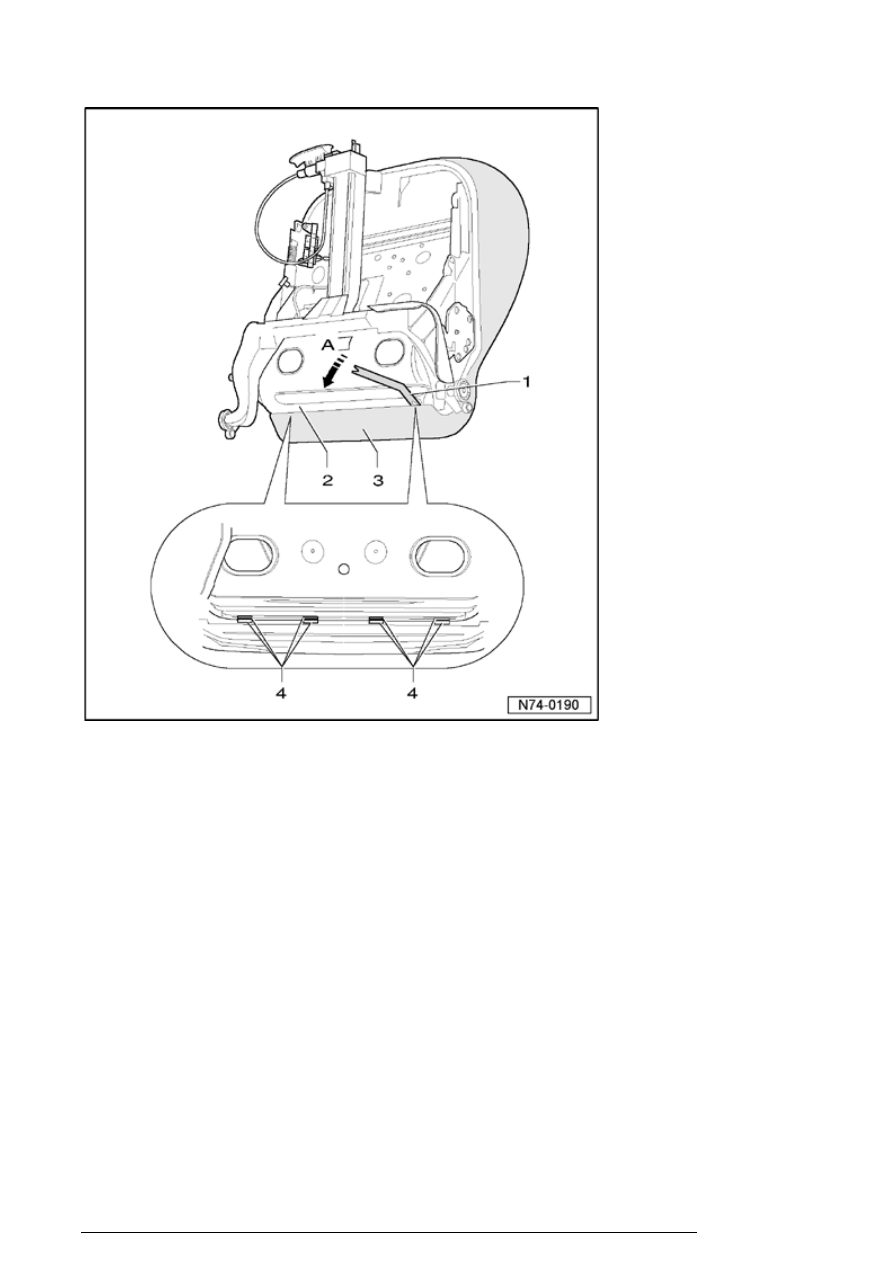

- Guide Pry lever 80 - 200 - 1 - between
seat frame - 2 - and cover - 3 - and press
apart locking lugs - 4 - - arrow A - .

- Remove cover - 3 - and cushion from
seat frame - 2 - .

Front seat cushion and cover

13/2/2005

- Remove cover.

Installing

Installation is reverse of removal.

Front seat cover and upholstery, removing
and installing (Golf R32)

Note:

Removal and installation is described for left front
seat. same instructions apply for removal and
installation for right front seat.

Removing

- Switch ignition off.

Front seat cushion and cover

13/2/2005

- Disconnect vehicle battery

Repair Manual, Electrical Equipment, Repair Group 27,

disconnecting and connecting battery

- Remove front seat

72-1, Front seats, removing and

installing

- Remove front backrest

72-1, Front backrest, removing

and installing

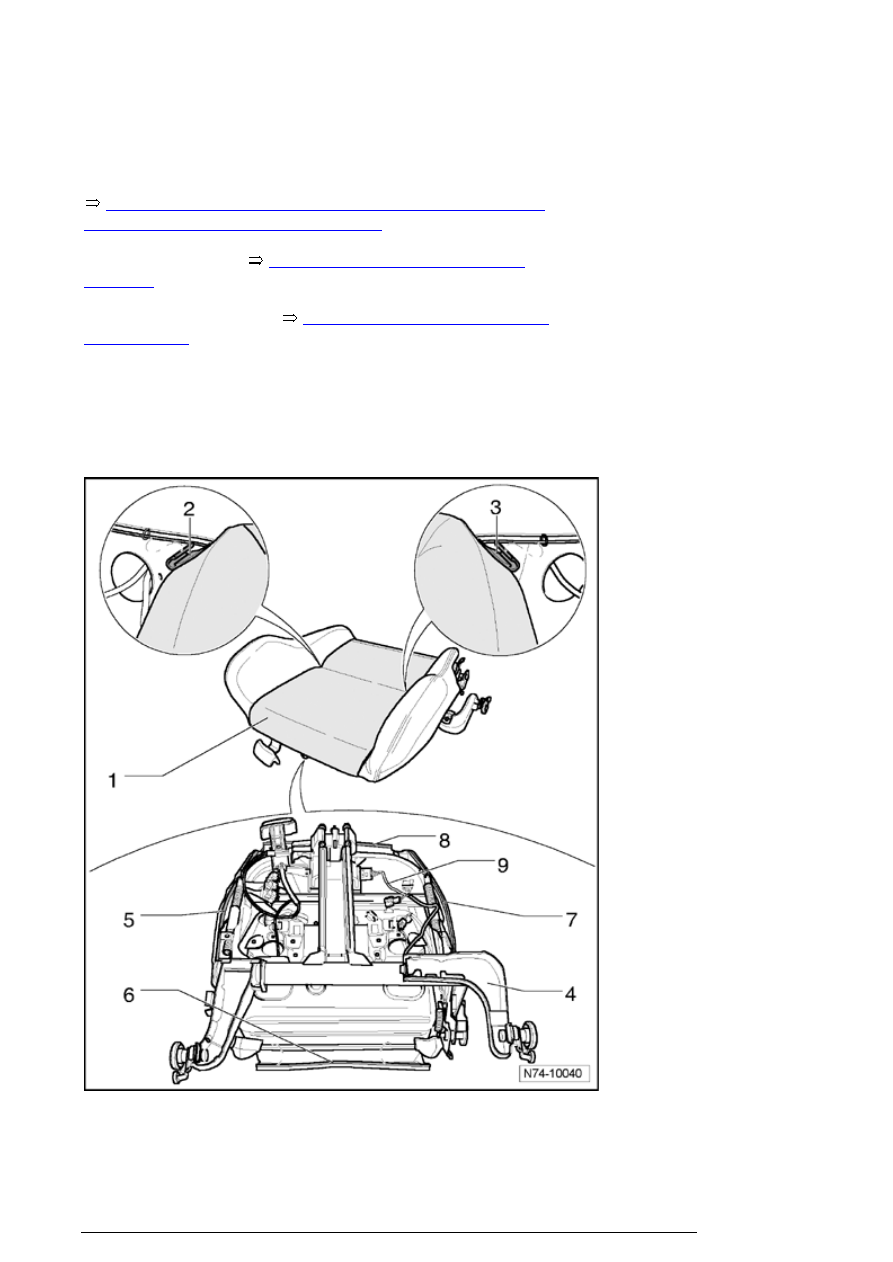

- Loosen beading strip - 5 - , - 6 - , - 7 -
and - 8 - from seat frame - 4 - .

- Disconnect wiring harnesses for seat
heater - 9 - from seat frame.

- Loosen both beading strips - 2 - and - 3 -
located at center portion of seat - 1 - from
seat frame.

Front seat cushion and cover

13/2/2005
