2. Bolts

2 Nm

3. Additional bolts

2 Nm

4. Front wheel housing liner

- Install speed nut on front valance spoiler and then bolt
front wheel housing liner and front valance spoiler, item - 3
-

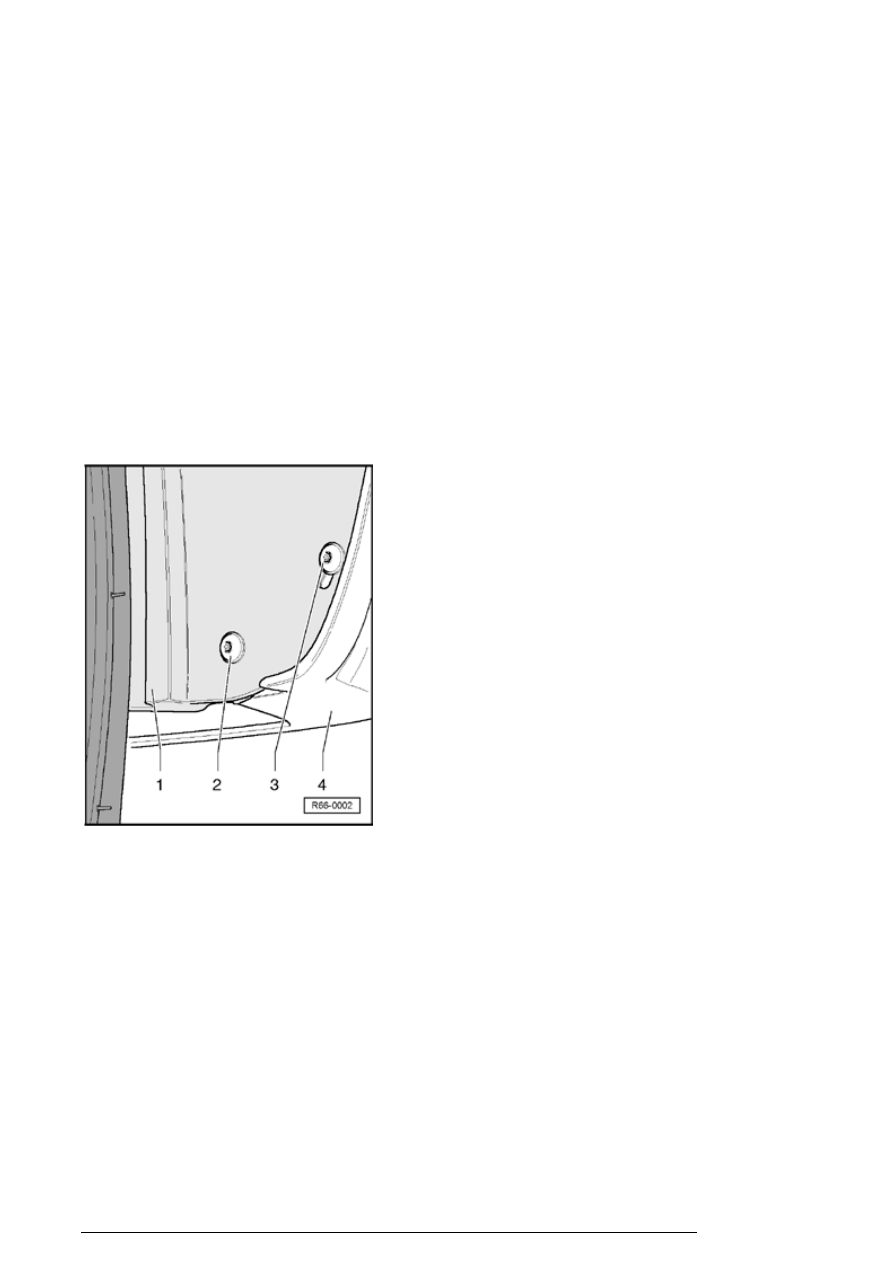

Additional bolts (Front view)

1. Front wheel housing liner

2. Additional bolts

2 Nm

3. Bolts

2 Nm

4. Front valance spoiler

Sill panel extension (Golf GTI, Golf R32)

Special components of Golf "GTI 337 Edition"/Jetta GLI Sport and Golf R32

13/2/2005

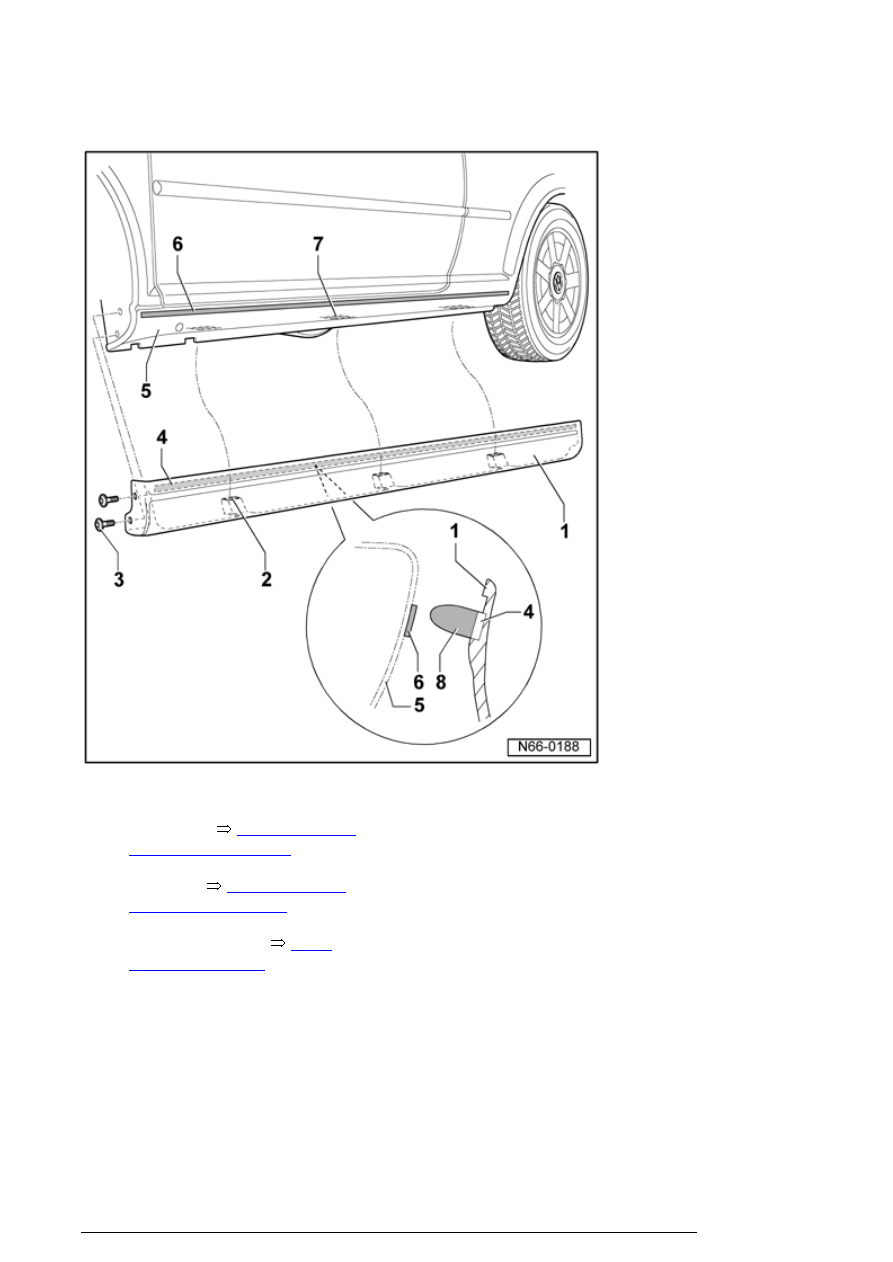

Assembly overview

1. Sill panel extension

Removing

66-8, Sill panel

extension, removing

Installing

66-8, Sill panel

extension, installing

Installation notes

66-8,

Installation notes

Material PUR-RIM

2. Lower adhesive surface on sill

panel extension

3. Bolt

Qty. 4

Special components of Golf "GTI 337 Edition"/Jetta GLI Sport and Golf R32

13/2/2005

2 Nm

4. Upper adhesive surface on sill

panel extension

5. Sill panel

Preparation

66-8, Preparing

bodywork for adhesive

6. Upper primer surface on sill

panel extension

7. Lower primer surfaces on sill

panel

8. PUR adhesive sealant

Minimum curing time

66-8,

Minimum curing time

Sill panel extension, removing

Special components of Golf "GTI 337 Edition"/Jetta GLI Sport and Golf R32

13/2/2005

Caution!

When disassembling special
components, a cutting cable must not
be used because of danger of
damaging painted surfaces.

- Clean dirt from all seams so that no
damage to paint will occur when
removing components.

- Cover sidemember with tape at top part
of extended sill panel in order to prevent
damage to paint by cutting cord.

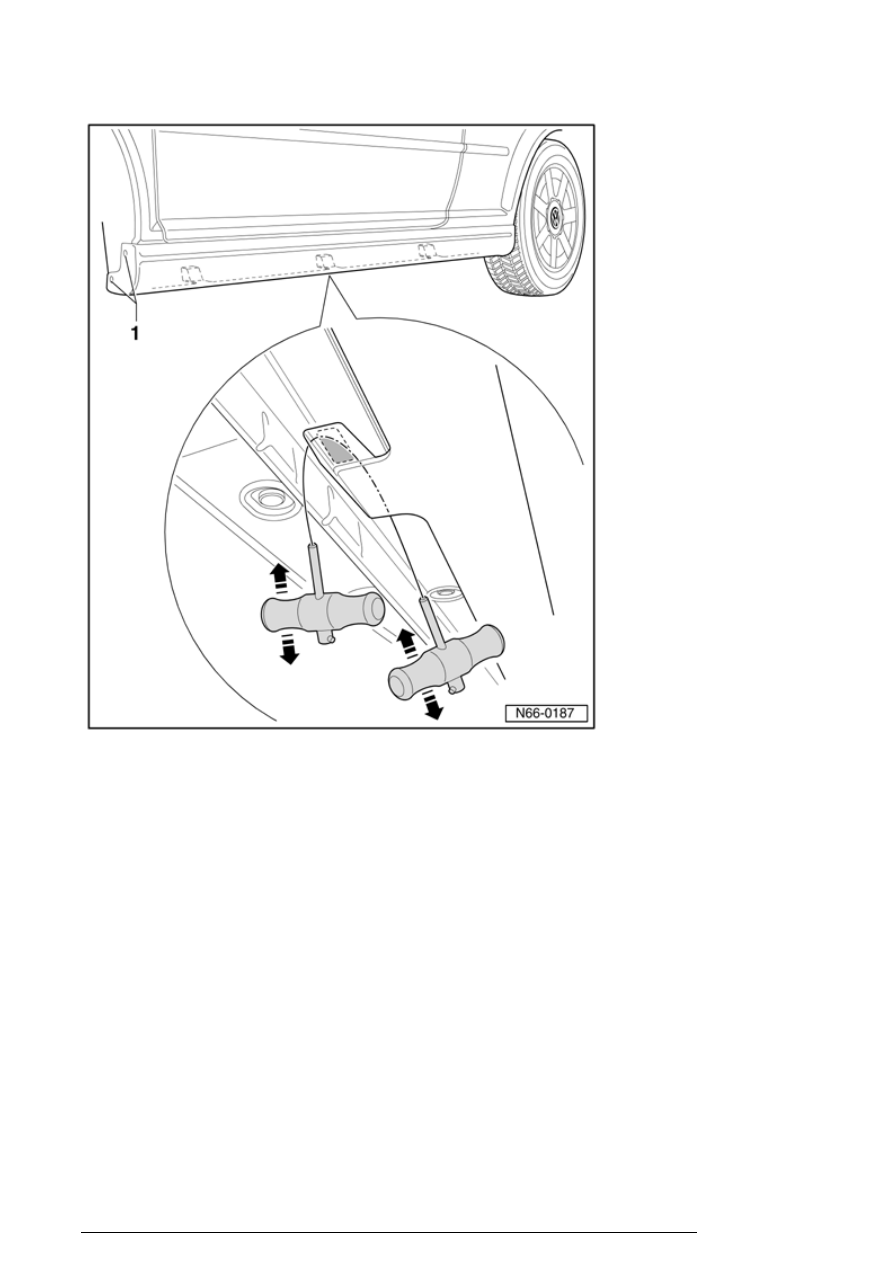

- Remove two bolts - 1 - in front
wheelhousing.

- Cut through three lower adhesive
surfaces of sill panel extension using
pulling handles and cutting cord.

Special components of Golf "GTI 337 Edition"/Jetta GLI Sport and Golf R32

13/2/2005
