from hinge. Tightening torque: 20 Nm +

1

 /

turn (90   ) turn

Note
This bolt must always be replaced.


- Lift out door upward from angle hinge.

Door, adjusting





For proper door adjustment, door hinge must be loosened
at pillar. Other measures, such as aligning door upward,
are not effective. Excess pressure thereafter will again
cause door to sag.

For this, Door adjusting wrench 3320 with Box spanner
3320/2 must be used.

If it should be necessary that door hinge must be loosened
at upper A-pillar from inside, Socket insert 3410 can be
used. To do so, instrument cluster must be removed




 Repair Manual, Body Interior, Repair Group 70,

Instrument Cluster; removing and installing instrument
cluster




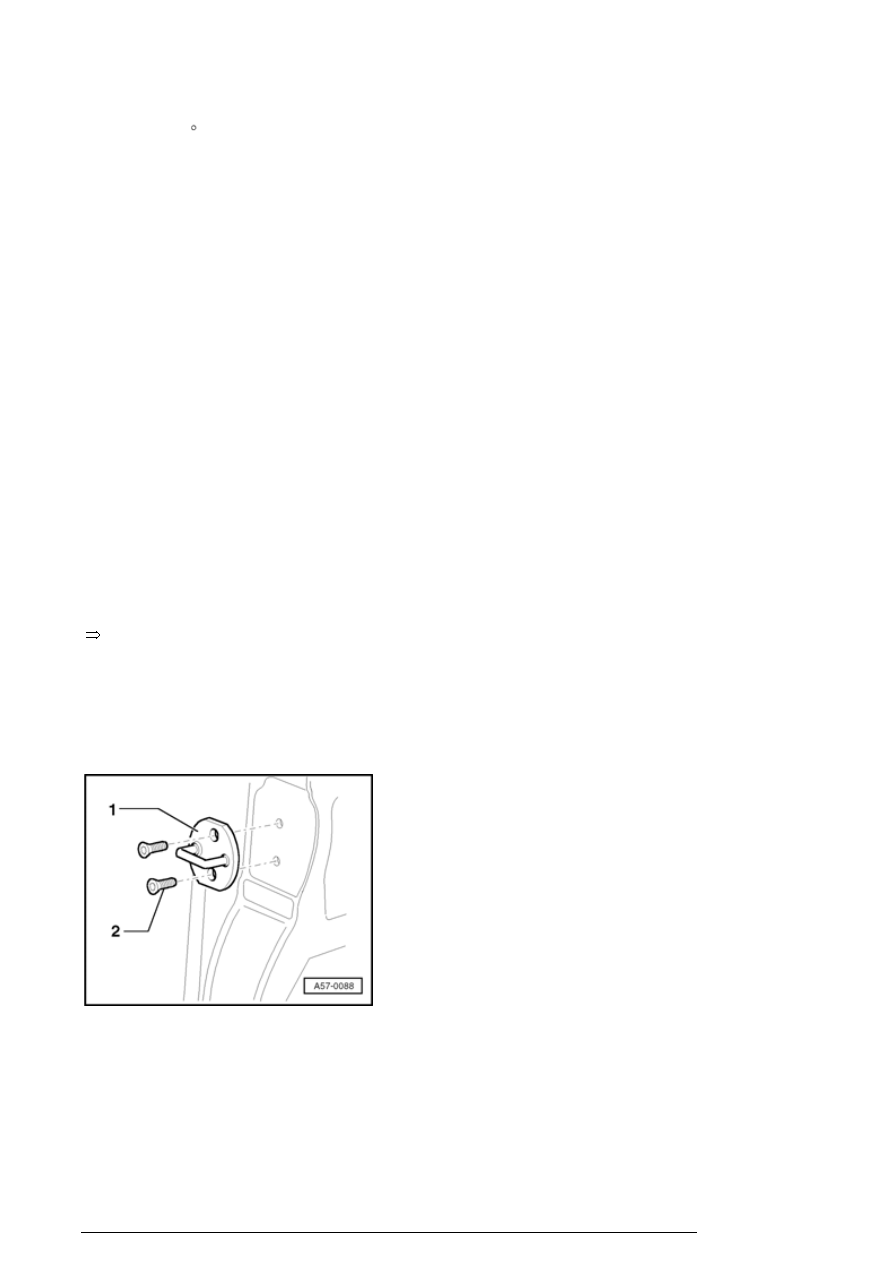

Adjusting door at striker plate

- Loosen bolts - 2 -

- Move striker plate - 1 - until door shell is flush with contour
of body.

- Tighten bolts.



Front door

13/2/2005





Tightening torque: 20 Nm

Warning!



Use this adjustment only to align the door inward or
outward, not vertically. Door should not move up or
down when closed or opened. If this occurs, vertical
alignment of striker is incorrect

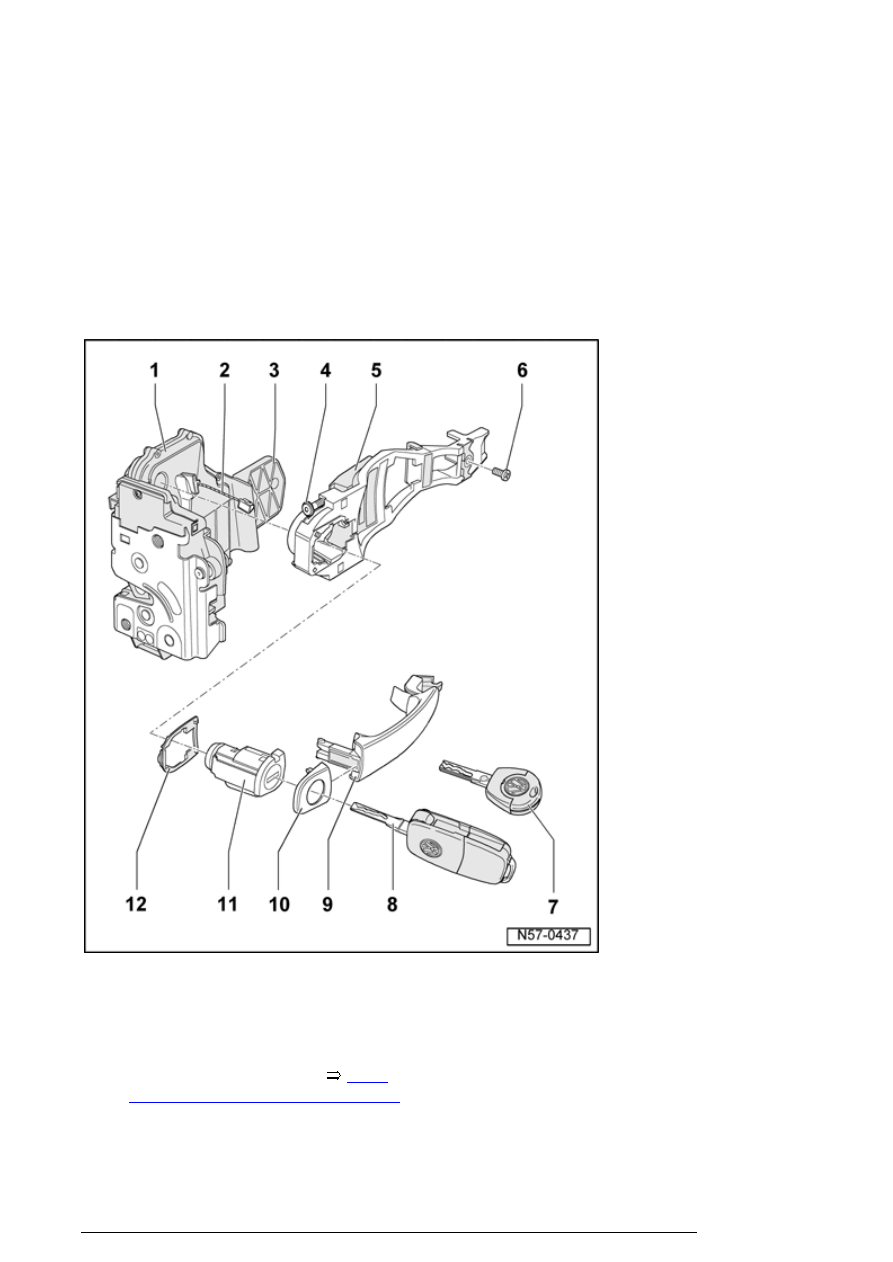

Door handle and lock, assembly overview

1. Door lock

¡

Door lock can only be removed in
conjunction with carrier assembly.

¡

Removing and installing



57-1,

Door lock, removing and installing





2. Cable

Front door

13/2/2005

¡

Lock release



3. Angle bracket

¡

Bolted and riveted to door lock

¡

Does not belong to door lock
delivery casing



4. Bolt

¡

This bolt was replaced by a Torx
bolt, and a new tool must be used
for it

¡

Socket wrench T10011

¡

Socket wrench T10072

¡

By loosening this bolt, locking
mechanism for lock cylinder
housing



Item - 11 -

is disengaged

and may be removed from
mounting bracket



Item - 5 -

.

¡

Bolt



Item - 4 -

must not be

threaded in without lock cylinder
housing installed. Lock mechanism
ring may fall into door.



5. Mounting bracket

¡

Removing



6. Screw

7. Key

¡

With radio-frequency remote control
(non-foldable)

¡

Changing battery

 04.01



57-2,



Door handle, lock cylinder
housing and carrier assembly
have been removed

- Remove bolt



Item - 6 -

slide mounting bracket
slightly to rear and remove
from door.

Front door

13/2/2005

Batteries for key with radio remote
control (not foldable), removing and
installing 04.01





8. Key

¡

With radio-frequency remote control
(foldable)

¡

Changing battery   04.01



57-2,

Batteries for key with radio remote
control (foldable), removing and
installing 04.01



¡

Changing battery 05.01



57-2,

Batteries for key with radio remote
control (foldable) removing and
installing 05.01



¡

Adapting new/additional keys to
remote control



57-2, Adaptation

of keys with radio remote control





9. Door handle with backing plate

¡

Removing and installing



57-1,

Door handle, removing and
installing





10. Cover cap

11. Lock cylinder housing

¡

Removing



57-1, Lock cylinder

housing, removing and installing



¡

Lock cylinder is not available as an
individual replacement part



12. Base plate

Lock cylinder housing, removing and
installing



Removing



Front door

13/2/2005
