Volkswagen Golf / Golf GTI / Jetta. Manual - part 579

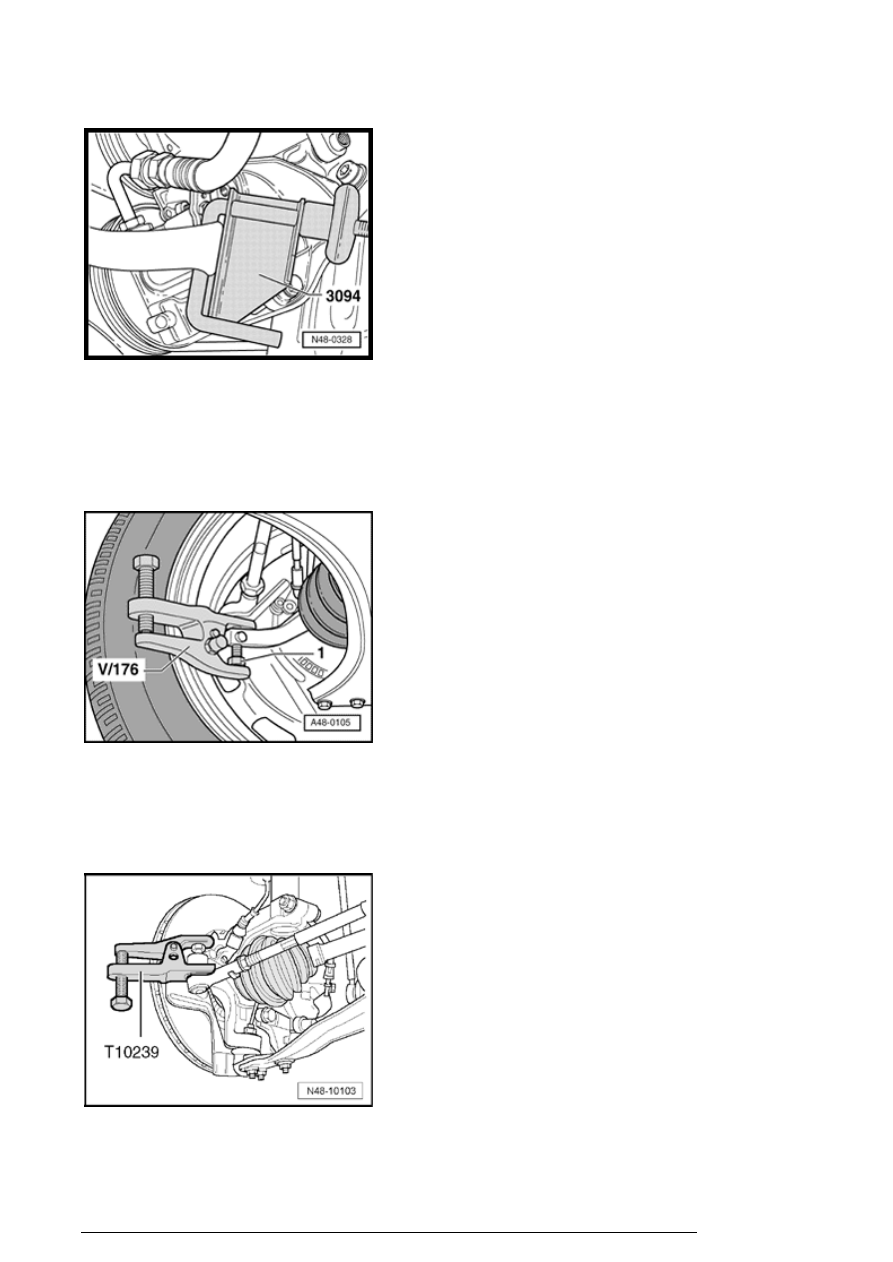

- Clamp power steering pump hose using hose clamp
3094 .

- Remove noise insulation tray.

- Place oil pan under vehicle.

- Press tie rod end off steering arm. .

1 - Ball joint puller (commercial type) e.g. Matra V 176

For R32

- Press tie rod end off steering arm.

Power steering, servicing





- If the bushing - 3 - is pressed out while pressing out tie
rod, it must be pressed in again.

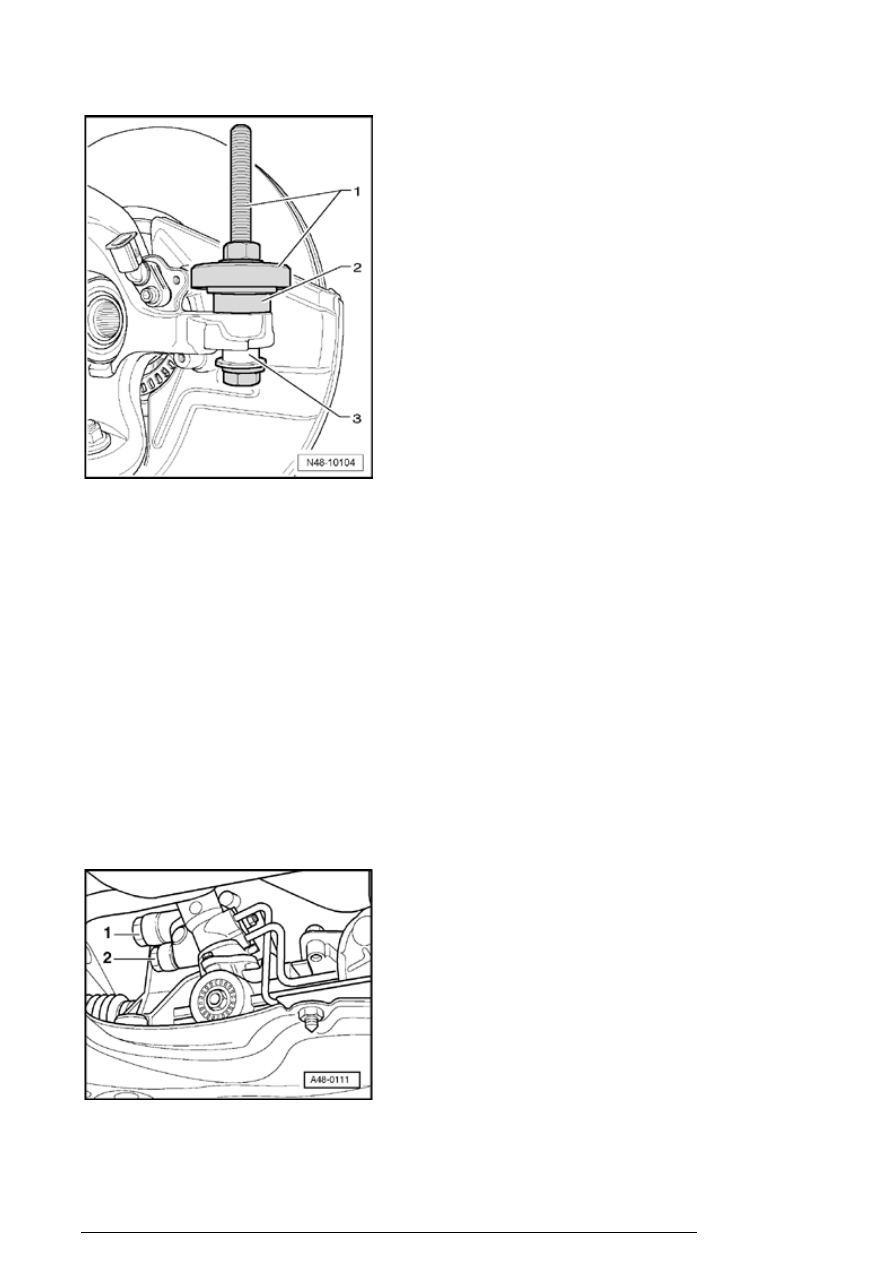

- Attach special tools as shown in illustration, and tighten
spindle to 50 Nm.

The bushing is correctly positioned in steering arm again.

1 - Assembly tool 3293

2 - Installing tool 40 - 503

Continue for all vehicles

- Disconnect hoses from steering gear and seal with plastic
bag and adhesive tape.

The return line - 1 - can only be removed after first lowering
subframe.

- Seal power steering gear threaded holes with plastic
sealing plugs.

Power steering, servicing

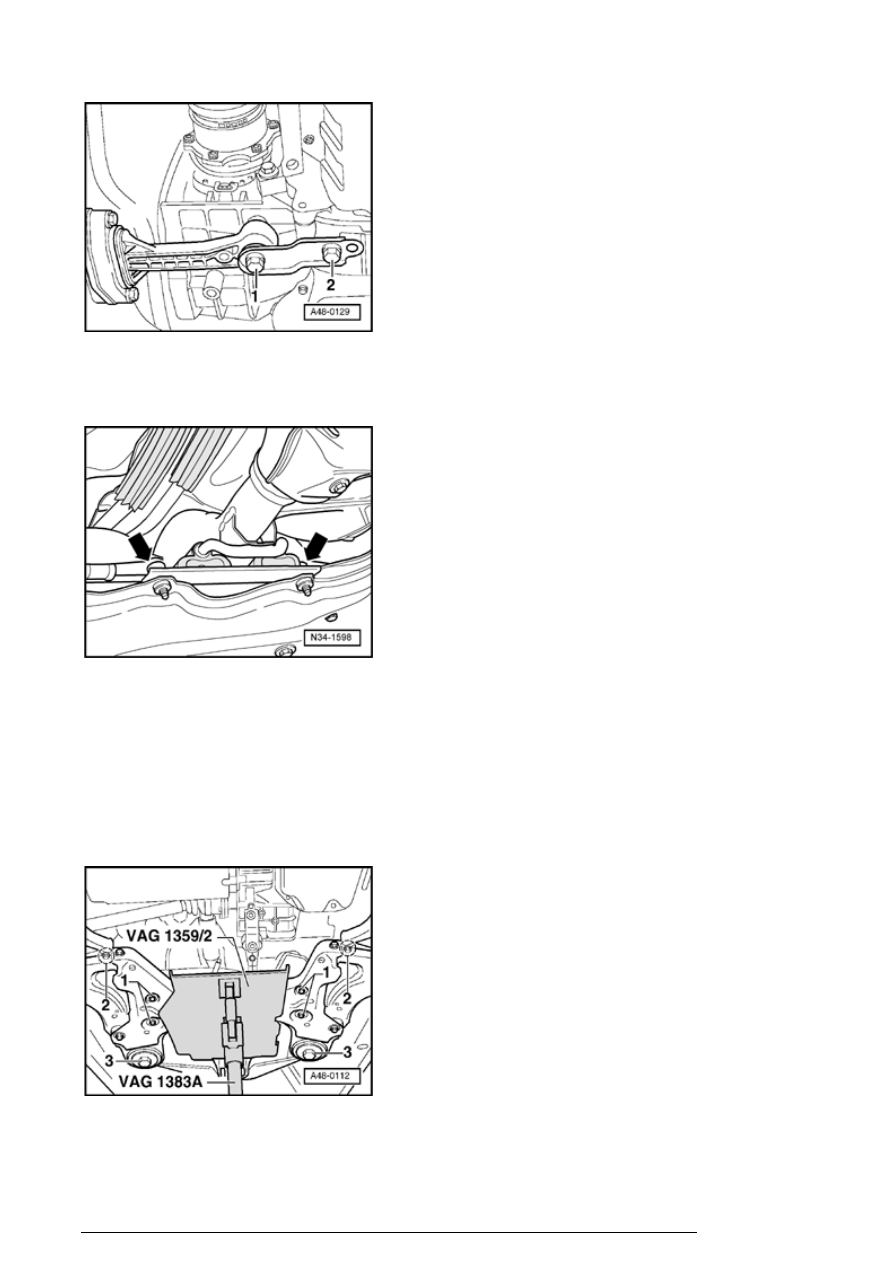

- Remove hex bolts - 1 - and - 2 - .

Vehicles with TDI engine

- Unbolt bracket for front exhaust pipe on subframe  - arrow
- and separate.

Continue for all vehicles

- Support subframe with engine/transmission jack
V.A.G1383A .

- Loosen hex bolt - 1 - .

- Remove hex bolts - 2 - and - 3 - .

- Lower subframe using engine/transmission jack

Power steering, servicing



V.A.G1383A .

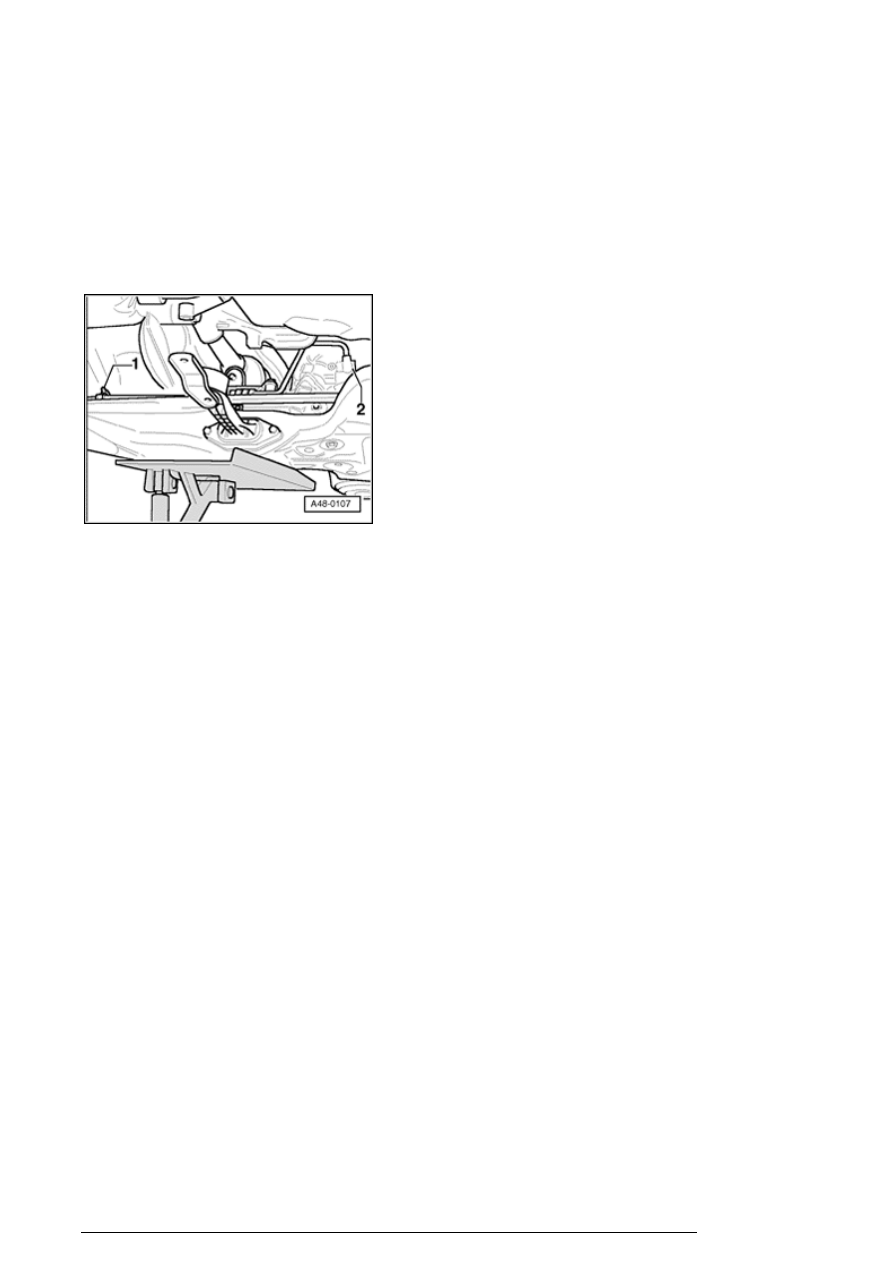

- Remove return line clamp - 1 - and line at steering gear - 2
- .

- Remove power steering gear bolts.

- Take power steering gear out towards rear.

Installing



Note:

n

Use new sealing O-rings for hose/line connections.



n

Coat steering gear O-ring seals with lubricant, e.g.
liquid soap, before installing steering gear.



n

After installation of steering gear to the universal joint
shaft, make sure that the seal lies against the
assembly plate without kinking and opening to the
footwell is correctly sealed. Water ingress and/or
noises may be the result.



n

Make sure sealing surfaces are clean.



Power steering, servicing
