assembly overview



I - Subframe, stabilizer bar, control arm,
assembly overview



Note

n

If a vehicle has a drive axle removed
and is to be moved, an outer CV
joint must be installed in place of the
drive axle and be tightened to 50
Nm. Otherwise, the wheel bearing
will be damaged.



n

Welding and straightening
operations are not permitted on
load-bearing or wheel-controlling
components.



n

Always replace self-locking nuts.



n

Always replaced corroded
nuts./bolts.

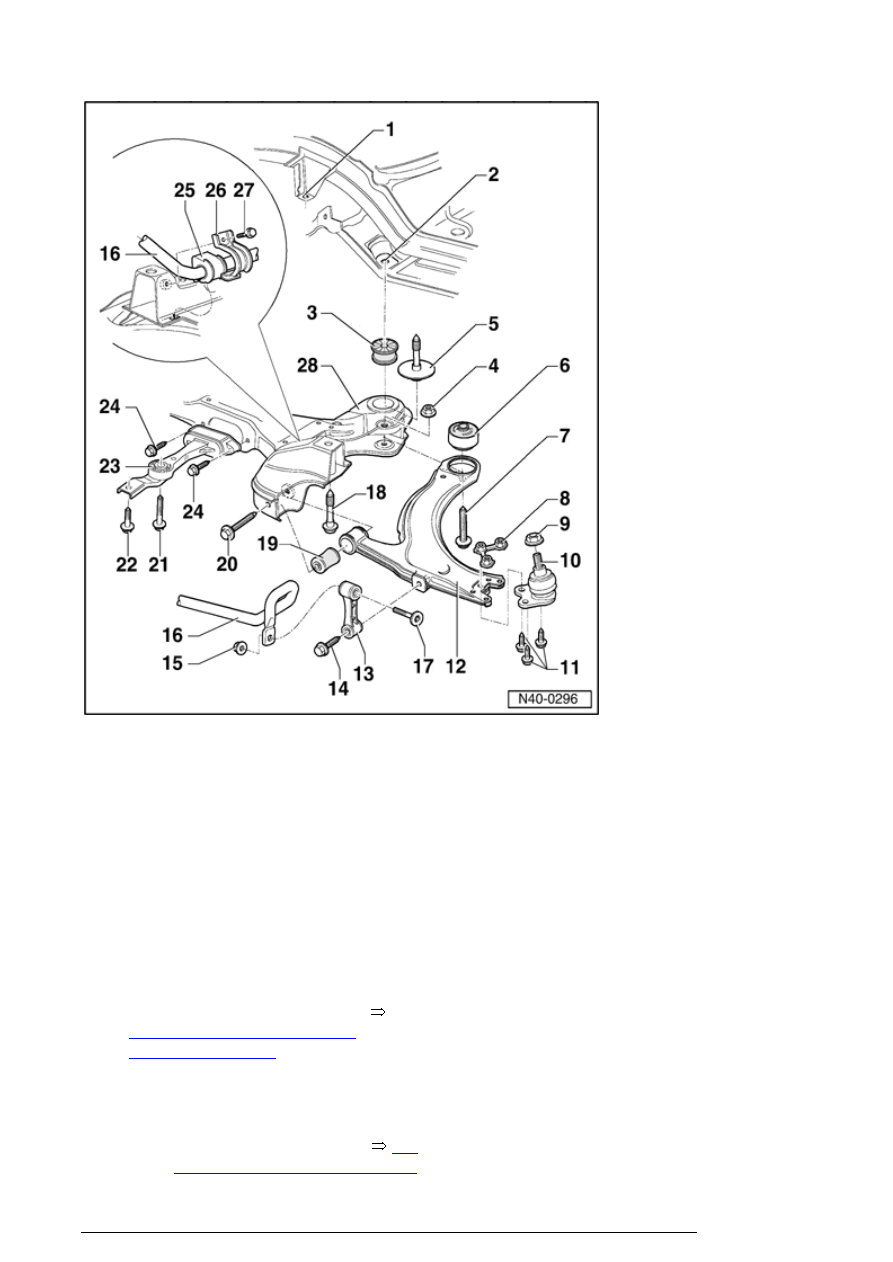

Front suspension, servicing



1. Subframe retaining bracket



2. Weld nut in body



3. Bonded rubber bushing

¡

Removing and installing



40-

3, Bonded rubber bushings for

The captive nut cannot be
reworked. If nut is damaged,
replace complete mounting
bracket.

If weld nut threads are damaged,
threads can be repaired using
Heli-Coil thread inserts.

Servicing thread in side rail



40-3, Threads in longitudinal
member, servicing



Front suspension, servicing

subframe, replacing





4. Self-locking nut

¡

Always replace



5. Hex bolt M 14 x 1.5 x 63

¡

100 Nm plus an additional

1

 /

4



turn 90

¡

Always replace



6. Rear control arm bushing

¡

Installation location



40-3,

Installation position of rear
control arm mount



¡

Pressing out and in



40-3,

Pressing out/in control arm
rear bushing





7. Hex bolt M 12 x 1.5 x 70

¡

70 Nm and turn additional 90



¡

Always replace



8. Plate with nuts

9. Hex nut, self-locking, 45 Nm

¡

Always replace



10. Ball joint

¡

Checking



40-3, Ball joint,

checking



¡

Removing and installing



40-

3, Ball joint, removing and
installing





11. Hex head bolt

¡

20 Nm an additional

1

 /

4

 turn

90

Front suspension, servicing

¡

Always replace



12. Control arm

13. Connecting Link

¡

Different versions

¡

Application

 See Parts

Catalog



14. Hex bolt

¡

15 Nm an additional

1

 /

4

 turn

90

¡

Always replace



15. Hex nut

¡

Self-locking

¡

15 Nm an additional

1

 /

4

 turn

90

¡

Always replace



16. Stabilizer bar

¡

Different versions

¡

Application

 See Parts

Catalog

¡

Modified mounting for
stabilizer bar with all wheel
drive



40-3, Modified

mounting for stabilizer bar





17. Hex socket head bolt

18. Hex bolt M 14 x 1.5 x 95

¡

100 Nm plus an additional

1

 /

4



turn 90

¡

Always replace

The subframe must be lowered
