Volkswagen Golf / Golf GTI / Jetta. Manual - part 489





40 - 2

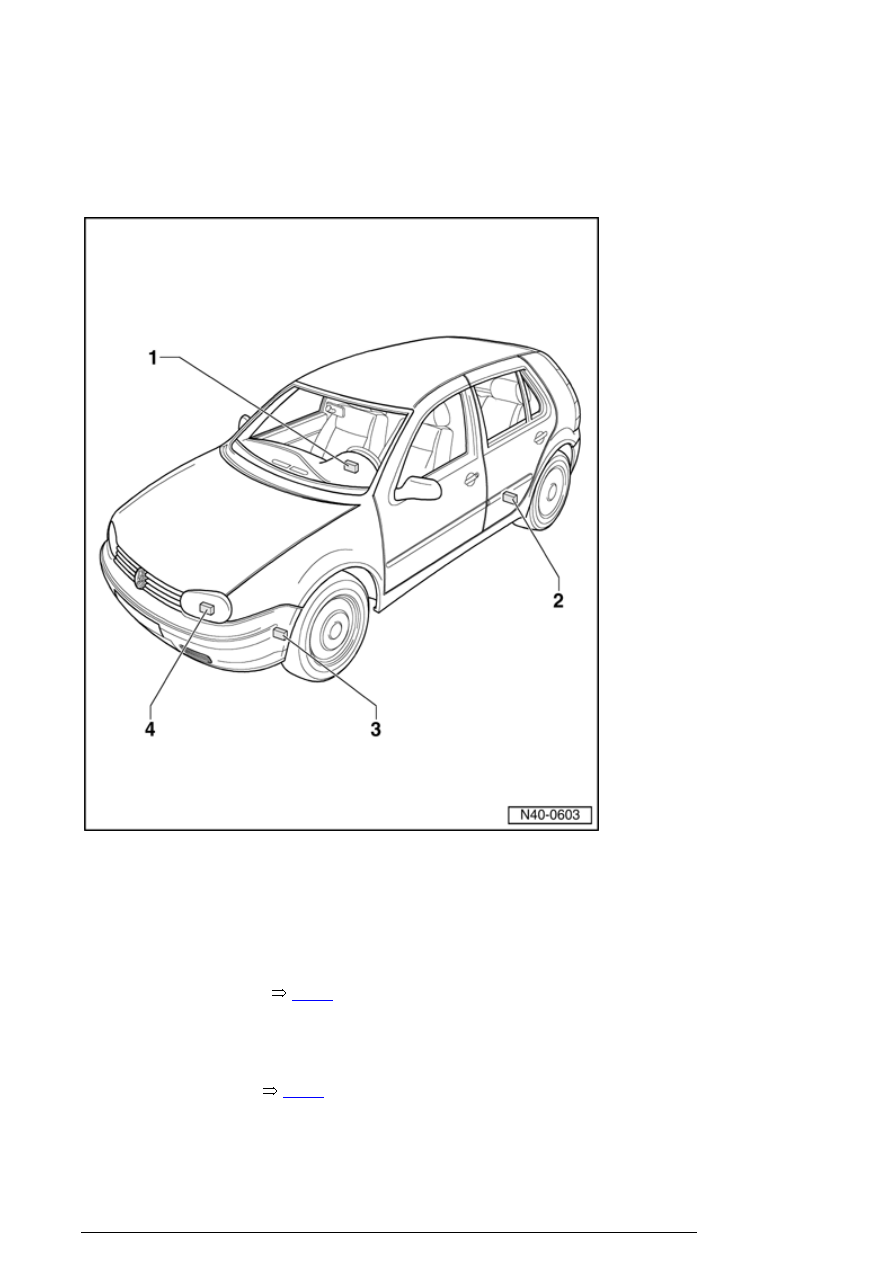

Electrical/electronic components and
installation locations



1. Steering angle sensor G85

¡

Location: On steering column
between steering wheel and
steering column switch

¡

Observe installation
instructions



48-4,



¡

After replacing steering angle
sensor G85 a zero
compensation must be
performed



48-4,





2. Left rear level control system

sensor G76 on the rear axle

Electrical/electronic components and installation locations

¡

General notes



40-2, Level

control system sensor in
vehicles with automatic
headlight range control -
general information



¡

Installation position front wheel
drive:



40-2, Left rear level

control system sensor G76 on
rear axle for front wheel drive



¡

Installation position all wheel
drive:



40-2, Left rear level

control system sensor G76 on
rear axle for all wheel drive





3. Left front level control system

sensor G78 on front axle

¡

General notes



40-2, Level

control system sensor in
vehicles with automatic
headlight range control -
general information



¡

Location:



40-2, Left front

level control system sensor
G78 on front axle



¡

Location R32:



40-2, Left

front level control system
sensor G78 on front axle R32





4. Headlight range control module

J431

¡

Location: on left headlight



Level control system sensor in vehicles with
automatic headlight range control - general
information

Vehicles with gas discharge headlights come standard with
automatic headlight range control.

The automatic headlight range control requires information
about suspension compression and rebound at the front
and rear axles.

Electrical/electronic components and installation locations

For this, the position of the left lower control arm in relation
to the structure is transferred over a connecting link to the
left front level control system sensor G78 . The sensor
transmits electrical signals to the headlight range control
module.

On the rear axle, signals are transmitted to the control
module from the left rear level control system sensor G76 .

These signals are required for determining vehicle height.

The automatic headlight range control reacts automatically
to changes in vehicle inclination.

The vehicle height can change in the following situations:

n

Towing a trailer



n

Different load conditions; vehicle empty, vehicle
partially or fully loaded



n

Slow or fast driving habits



Caution!



Adjustment of headlights!

Note

n

Checking the headlight basic setting is necessary
when:



n

The retaining clamp for the connecting link on the
lower control arm was loosened



n

The lower link/arm was removed and installed or
replaced



n

Work is performed on level control system sensor



n

The level control system sensor is replaced

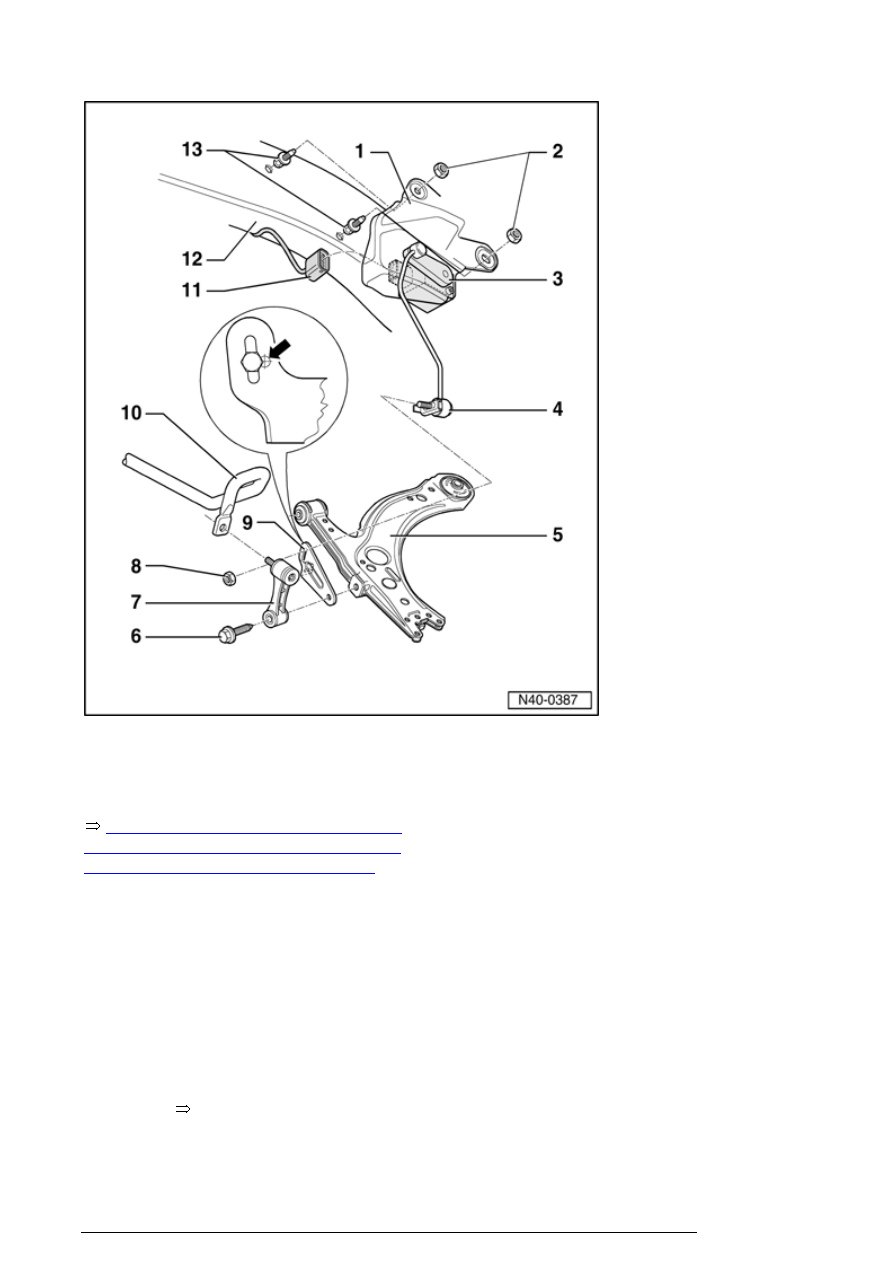

Left front level control system sensor G78
on front axle

General notes



40-2, Level control

system sensor in vehicles with automatic
headlight range control - general
information



Electrical/electronic components and installation locations



Headlight basic settings






Repair Manual, Electrical Equipment,

Repair Group 94, Setting gas discharge
lights; Adjusting gas discharge lights

1. Bracket

2. Hex nut, 6 Nm

3. Level control system sensor G78

¡

Check electrically using On
Board Diagnostics (OBD)

¡

When complaints are received

 Perform basic setting in

"Guided Fault Finding" with the
VAS 5051.


Electrical/electronic components and installation locations
