46-61





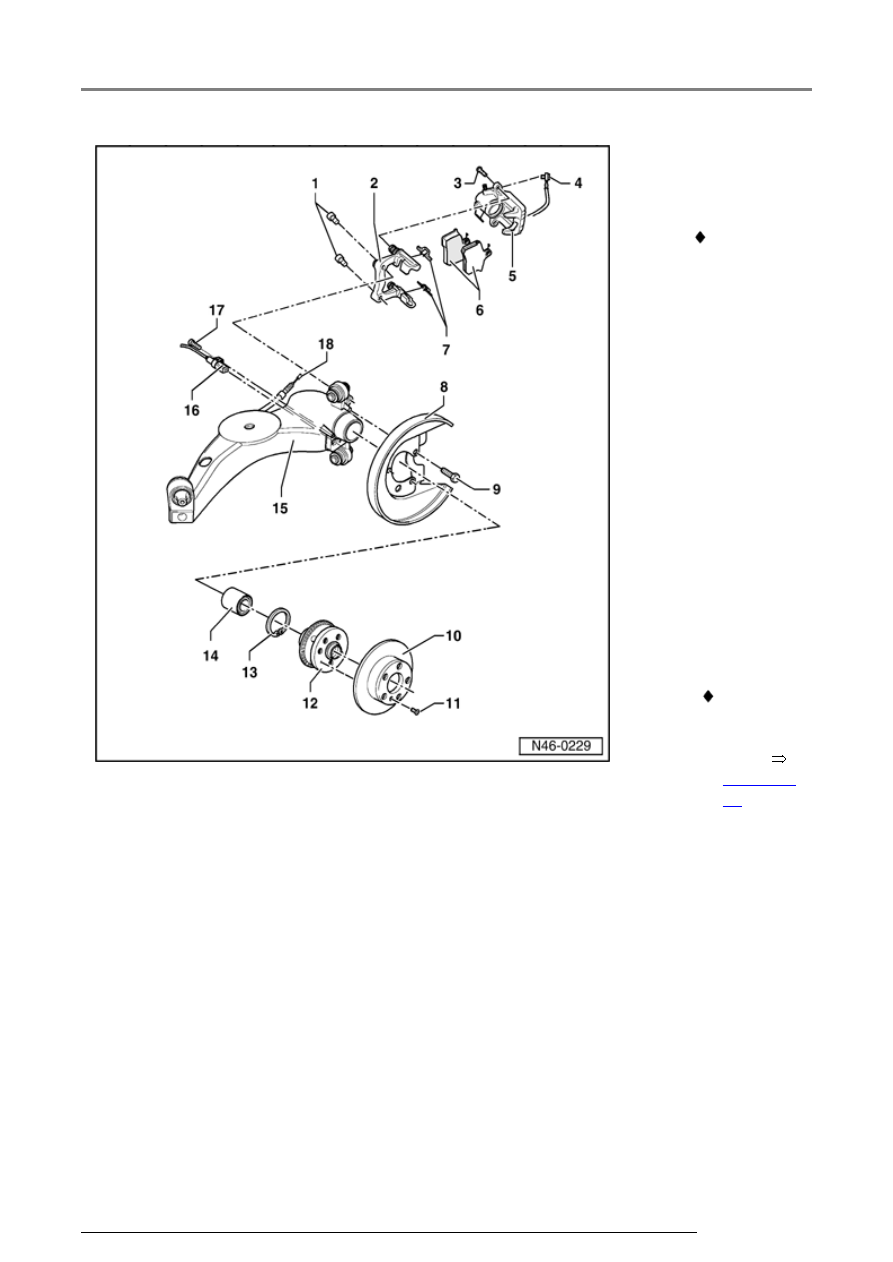

16 - ABS

speed
sensor

 Before

inserting
sensor,
clean
mounting
hole inner
surface
and coat
with
lubricating
paste G
000 650

17 - Hex

socket
head
bolt, 8
Nm (71
ft. lb)

18 - Parking

brake
cable

 Adjusting

parking
brake
cable



Page 46-
66



Rear wheel brakes/disc brakes (all-wheel drive), servicing

46-62







Brake pads, removing and
installing







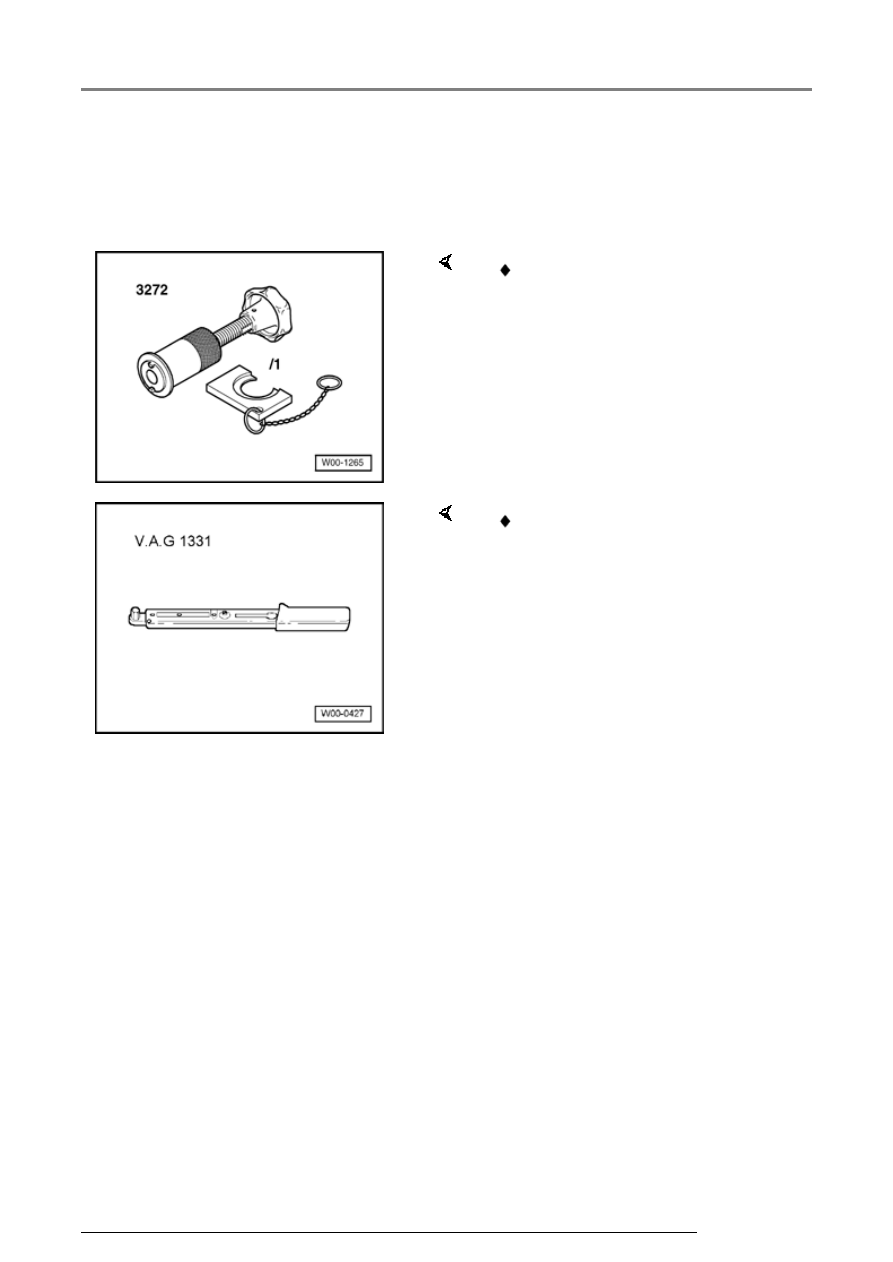

Special tools and equipment



 3272 Resetting and removal tool



 VAG 1331 Torque wrench

Rear wheel brakes/disc brakes (all-wheel drive), servicing

46-63







Note:





Mark brake pads when removing if
they are to be reused. Re-install in
their original position to prevent
uneven braking!





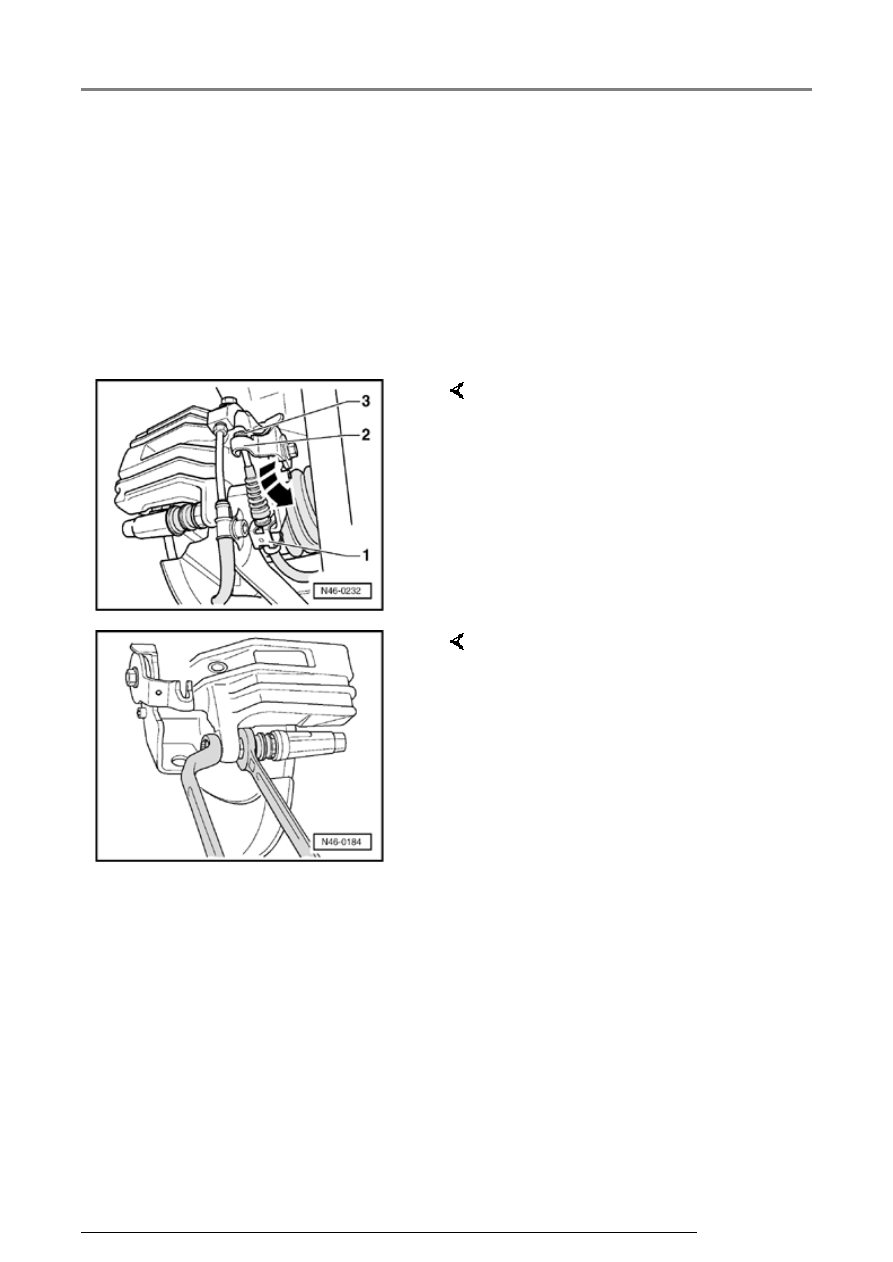

Removing





-  Remove wheels



-  Remove clip -1-.

-  Press brake lever -2- in direction

of arrow and unhook brake cable
-3-.



-  Remove securing bolts from

brake caliper housing, to do this
counterhold on guide pins.

Rear wheel brakes/disc brakes (all-wheel drive), servicing

46-64





Use methilated spirit only for
cleaning the brake caliper
housing.

Installing

Note:

Before pressing the piston back, use
a bleed bottle to draw off brake fluid
from the reservoir. If brake fluid has
been topped off between changes of
brake pads, brake fluid may overflow
out of the reservoir, and cause
damage.

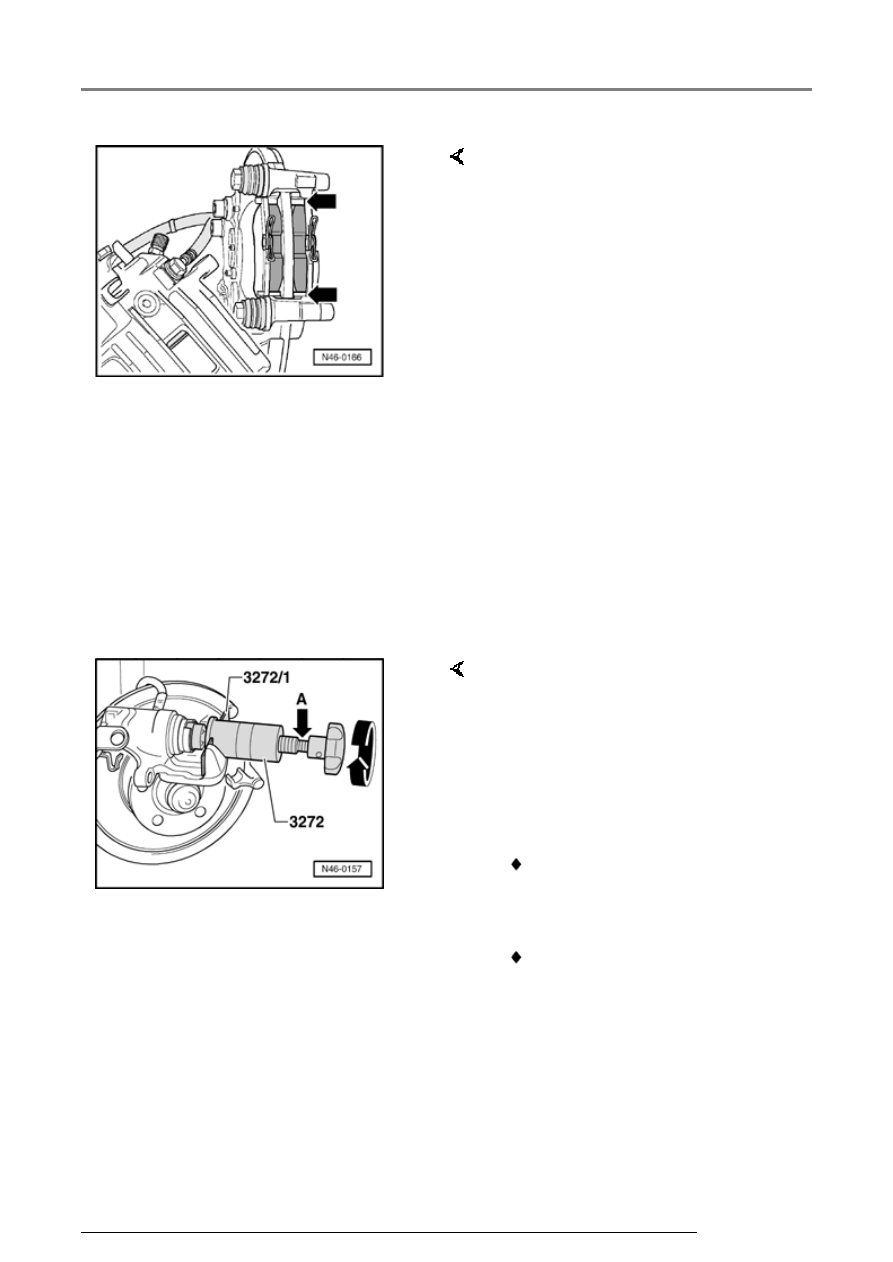

-  Remove brake pads and pad

retaining springs (arrows).

-  Clean brake caliper housing, in

particular the bonding surface for
the brake pad. It must be free
from adhesive and grease
residues.



Note:

-  Screw in piston by turning knurled

wheel of special tool 3272
clockwise, do not damage
protective cap when doing this.

-  To help screwing in, use special

tool 3272/1.

 If the piston is difficult to move,

use a 13 mm (.512 in.) AF open-
end wrench on the flats -arrow A-
provided for this purpose.

 If the piston is pushed back with

a piston resetting tool, the
automatic adjustment in the
brake caliper will be destroyed.
