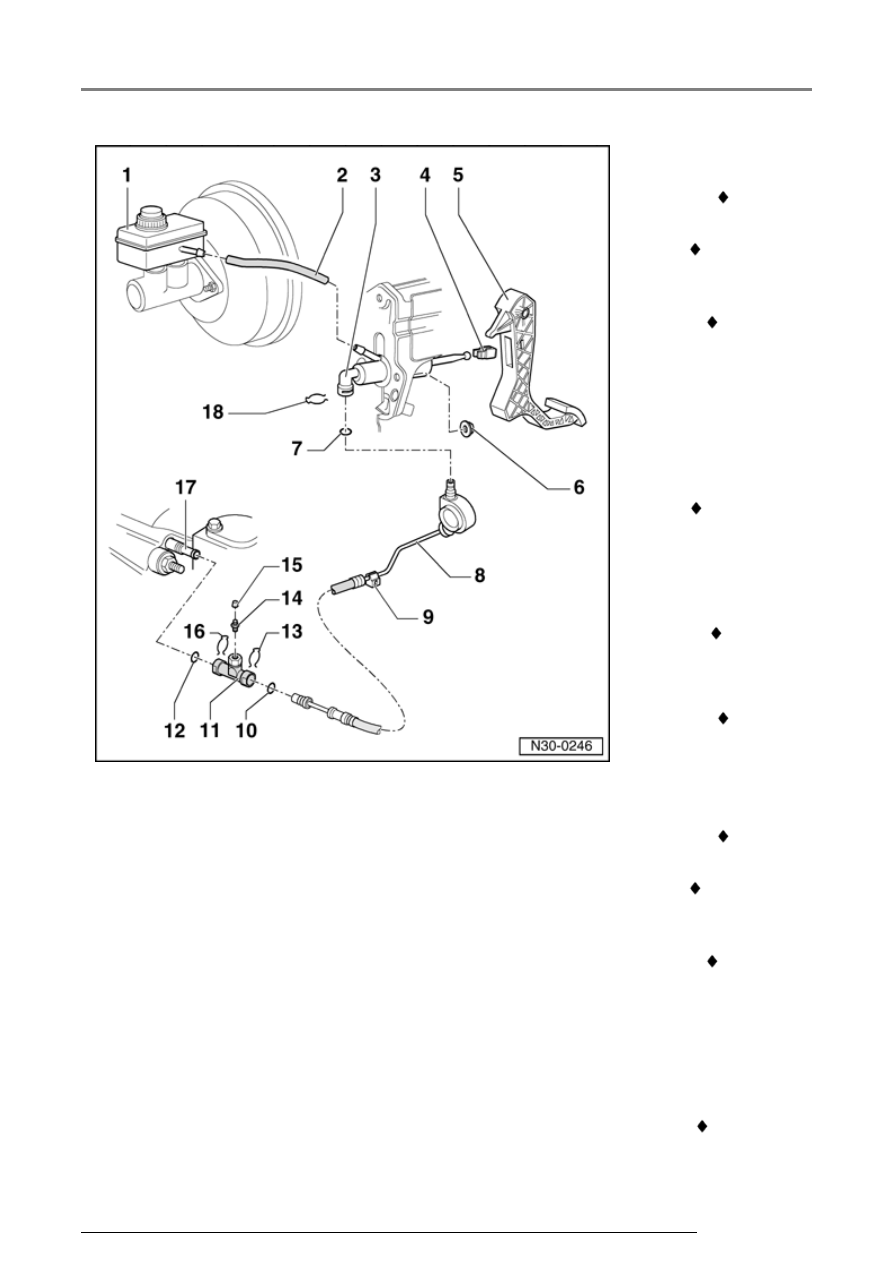

30-9
Removing
- Turn clutch pedal switch 45 to left and pull out from support.
- Remove over-center spring
Page 30-5
- Separate clutch pedal from clutch master cylinder
Page 30-14 and push operating rod toward engine compartment onto stop.

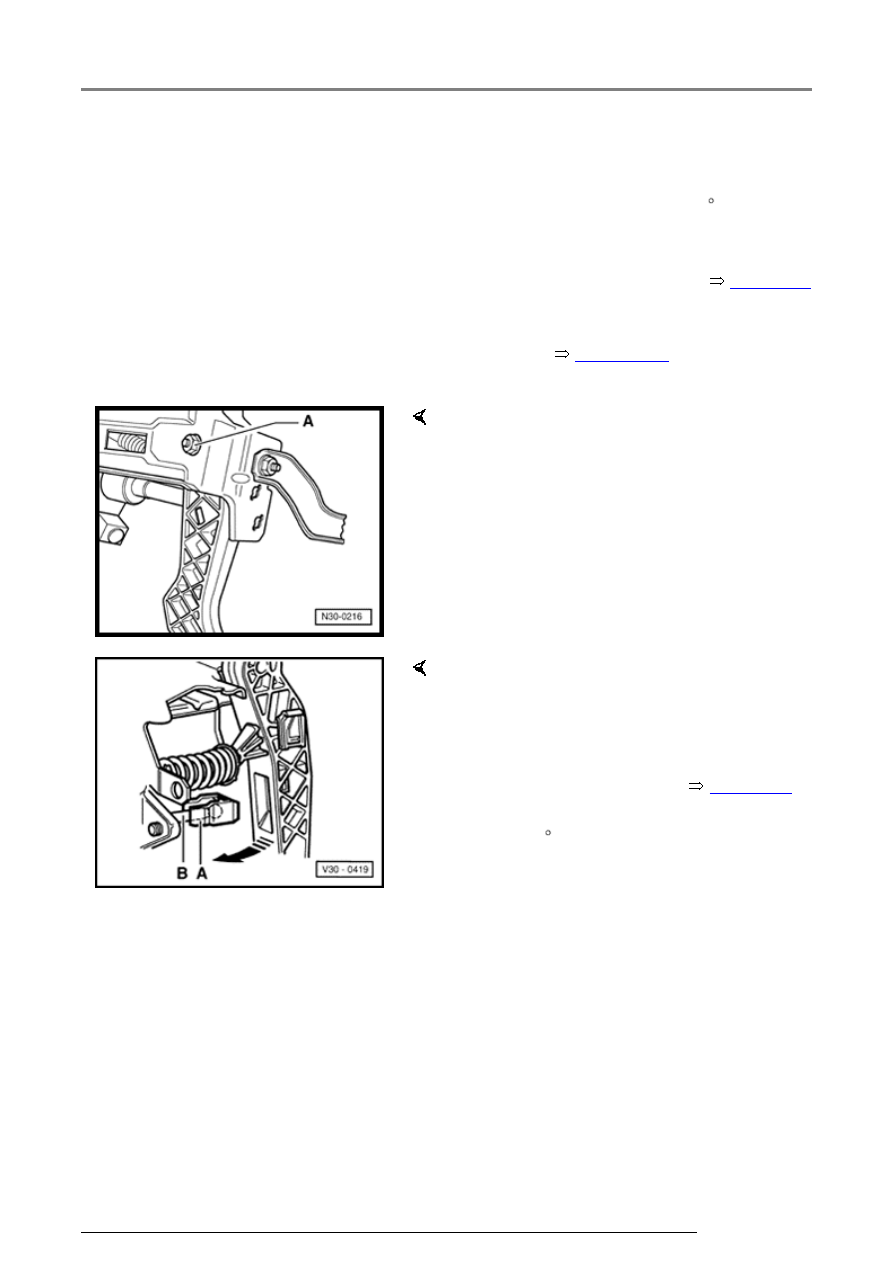

Installing Installation is performed in the reverse sequence. - Remove nut -A-. - Pull bolt out until clutch pedal can be removed. The bearing bracket -A- must be installed to the clutch master cylinder operating rod -B-. - Push clutch pedal in direction of arrow to engage it. Make sure it is secure. - Install over center spring

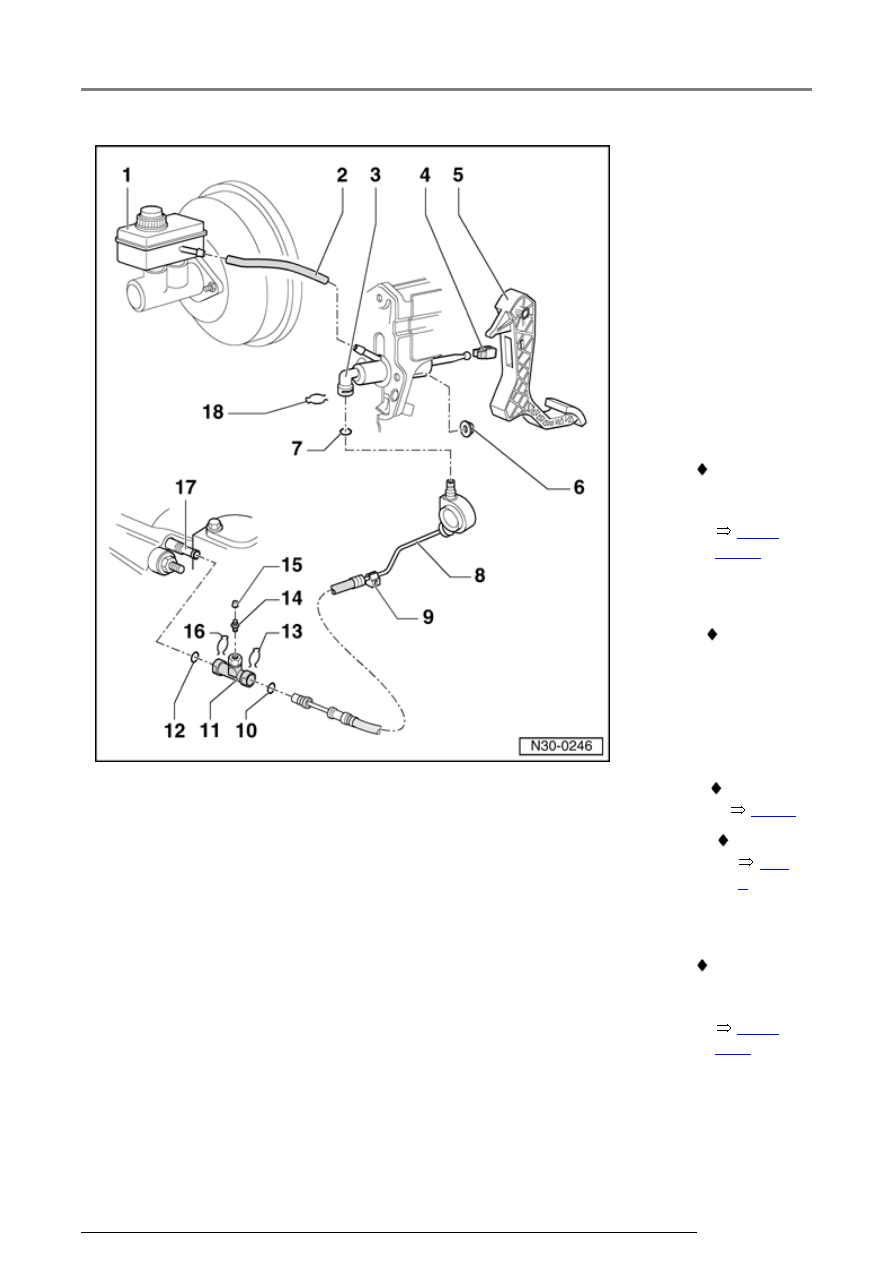

Page 30-5 . - Place clutch pedal switch in mounting hole and turn 45 to the right. Clutch mechanism, repairing |
