24-102





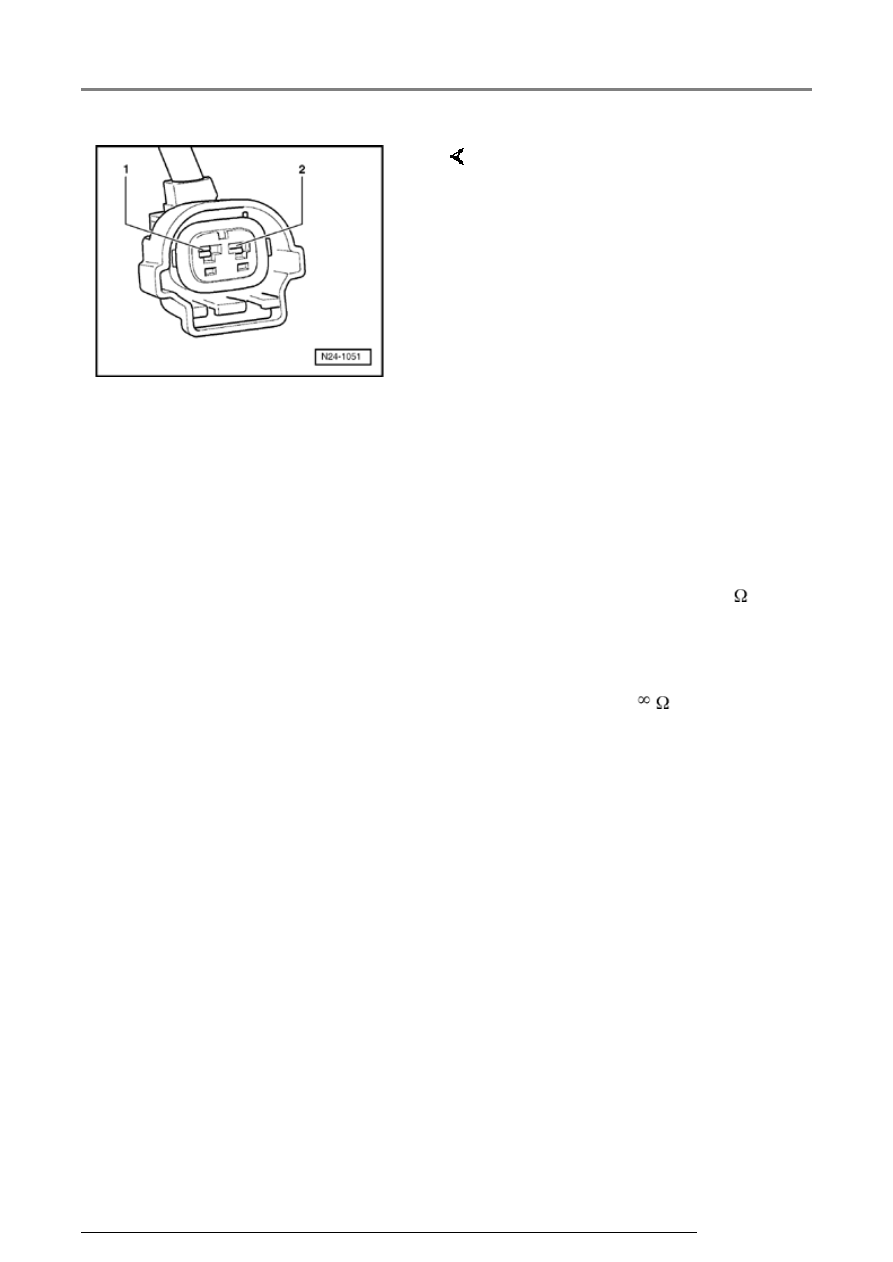

-  Check wiring for open circuit

between test box and the 2-pin
connector for fuel injectors
referring to Electrical Wiring
Diagrams.

   Fuel injector 1: Terminal 2 and

socket 96

   Fuel injector 2: Terminal 2 and

socket 112

   Fuel injector 3: Terminal 2 and

socket 88

   Fuel injector 4: Terminal 2 and

socket 113

   Fuel injector 5: Terminal 2 and

socket 97

   Fuel injector 6: Terminal 2 and

socket 89

   Wire resistance: max. 1.5



-  Additionally check wiring for short

to one another, to vehicle Ground
(GND) and to battery positive.

   Specification:



Components, checking

24-103





   If there is no Diagnostic Trouble Code (DTC) in

the wiring and the resistance measurement
values are OK.:





-  Replace Motronic Engine Control Module (ECM)

-J220-



Page 24-173

 .





-  Check DTC memory, repair malfunctions if

necessary and then erase DTC memory



Page

01-23

 .





-  Erase learned values and adapt Motronic

Engine Control Module (ECM) -J220- again



Page 24-182

 .





-  Read readiness code



Page 01-146

 . If DTC

memory has been erased or Motronic Engine
Control Module (ECM) -J220- was disconnected
from battery positive (B+), readiness code must
be generated again



Page 01-149

 .

Components, checking

24-104





Fuel
injectors,
checking
for leaks
and
quantity
injected

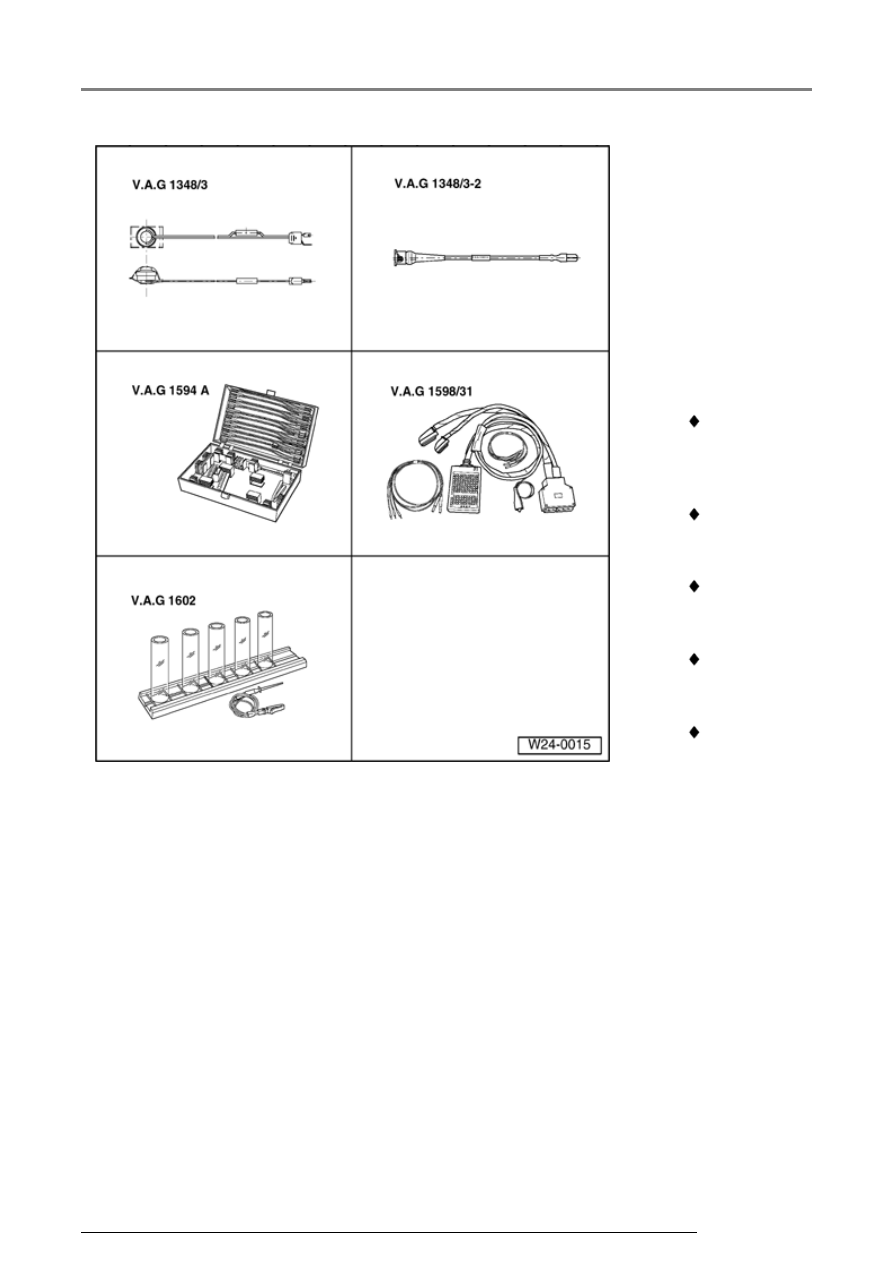

Special tools
and
equipment


 VAG

1348/3
Remote
control

 VAG

1348/3-2
Adapter

 VAG 1594

A Adapter
set

 VAG

1598/31
Test box

 VAG 1602

Calibration
tester

Components, checking

24-105





   Test requirements





 The fuel pressure must be in order, checking



Page 24-110

 .



   Test sequence





-  Remove intake manifold:







Repair Manual, 2.8 Liter VR6 4V Engine

Mechanical, Engine Code(s): BDF; Repair Group
15







-  Remove fuel rail complete (fuel lines remain

connected)



Page 24-26

 .



   Checking for leaks





-  Initiate output Diagnosis Test Mode (DTM)



Page 01-100

 ;





   Fuel pump must run.



   Note:



   This work sequence allows the fuel pump to run

when the engine is not running.





-  Check fuel injector for leaks (visual check).





   Only 1 to 2 drops per minute must emit from

each fuel injector when fuel pump is running.





-  Switch off ignition.

Components, checking
