Malfunctions found must be repaired (repair measure).

Brake pads (front and rear), check
thickness

Special tools, testers and auxiliary items required

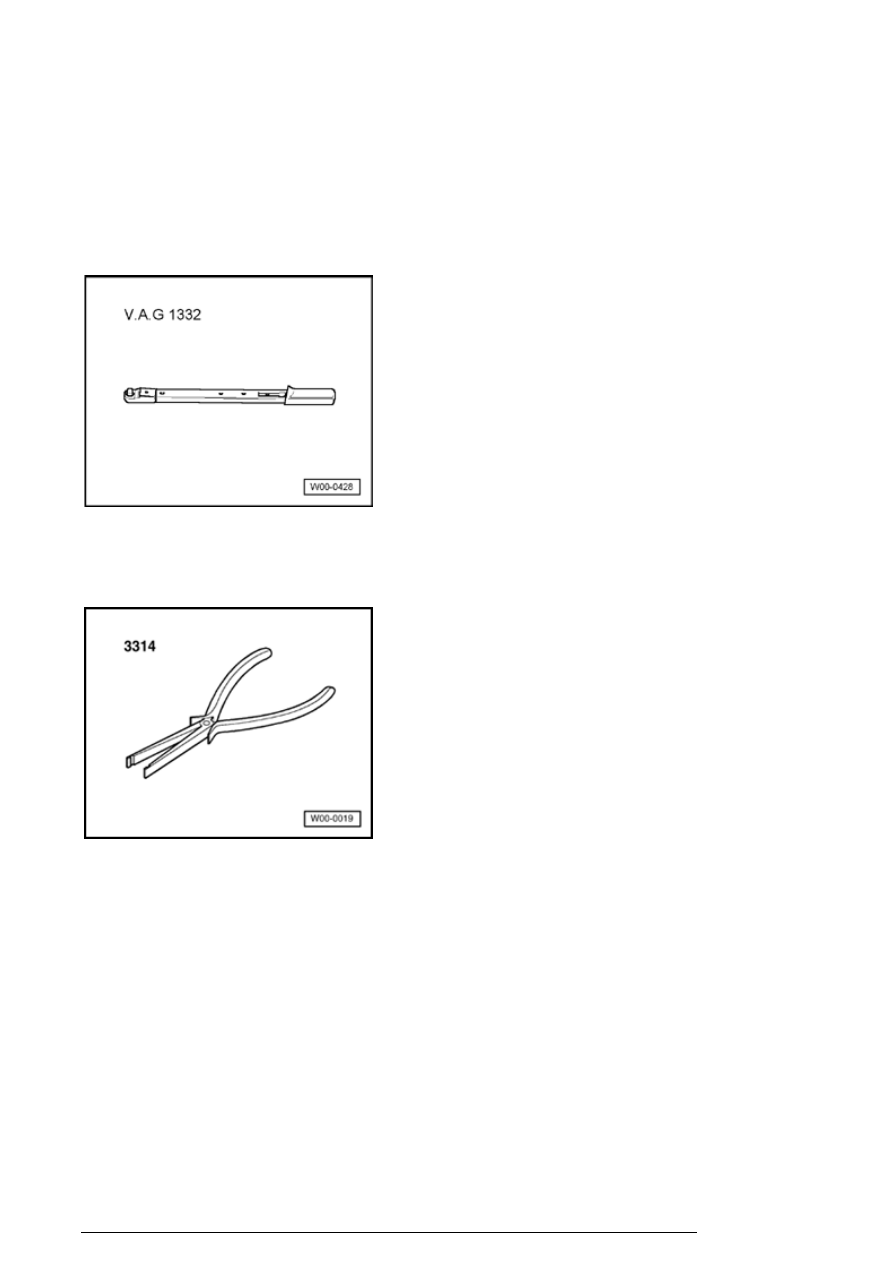

Torque wrench V.A.G 1332/ (40 -200 Nm)

Flashlight and mirror


Pliers VAS 3314




Remove full wheel cover



The removal hook is part of the vehicles tool kit.



Wheel bolts



The adapter to loosen/tighten the anti-theft wheel bolts is
located with the vehicle tool kit. If the adapter is not
present, ask the customer.



Perform the following work sequence:

Front disc brake pads



Description of work (part 2 of 2)

13/2/2005





Note:

Adapter to loosen/tighten anti-theft wheel bolts is located
with vehicle tool kit. If adapter is not present, ask customer.


- For better judgement of remaining pad thickness remove
the front wheel on the drivers side.

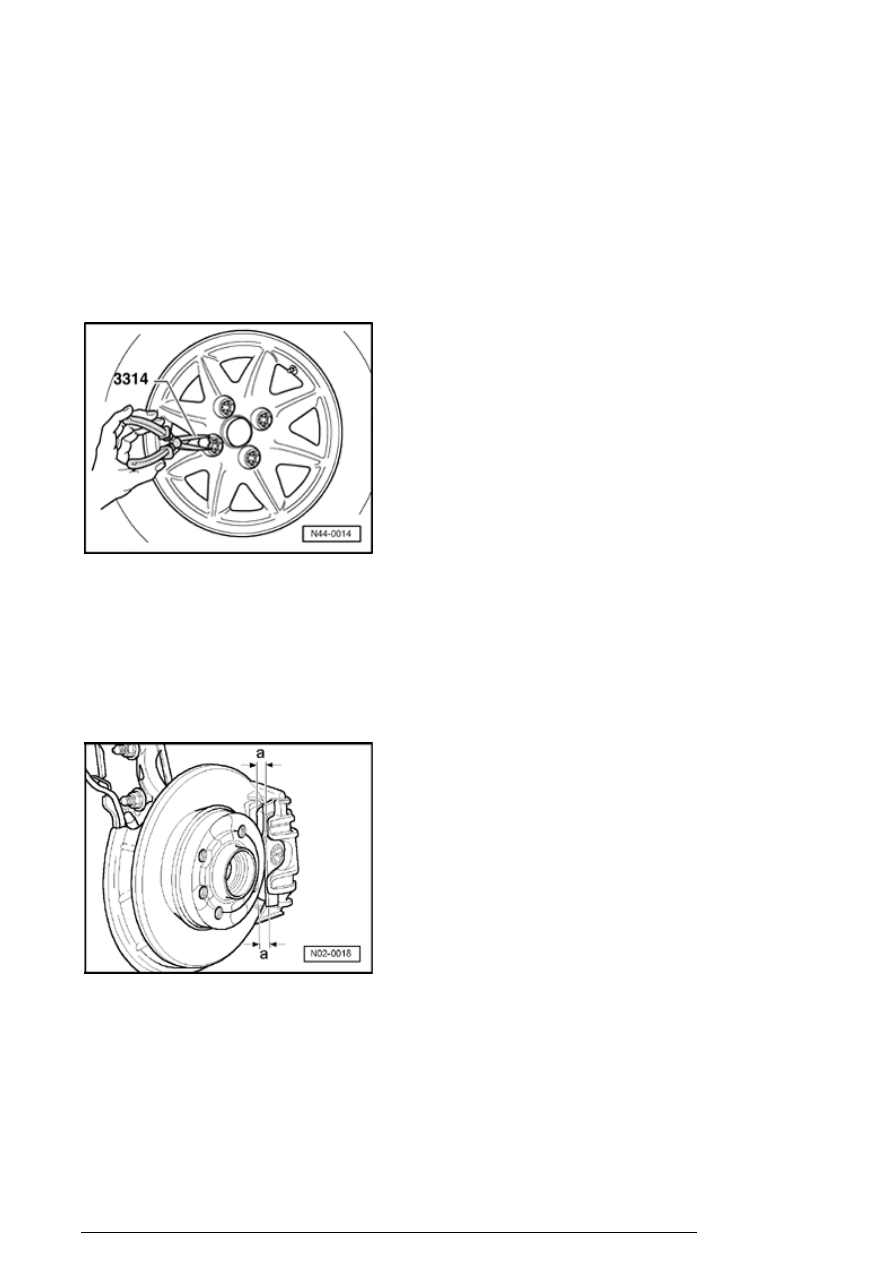

- If necessary, remove wheel bolt caps with Pliers VAS
3314 and/or remove wheel cover with removal hooks.

- Mark position of wheel in relation to brake disc.

- Unbolt wheel securing bolts and remove wheel.



Golf, Jetta

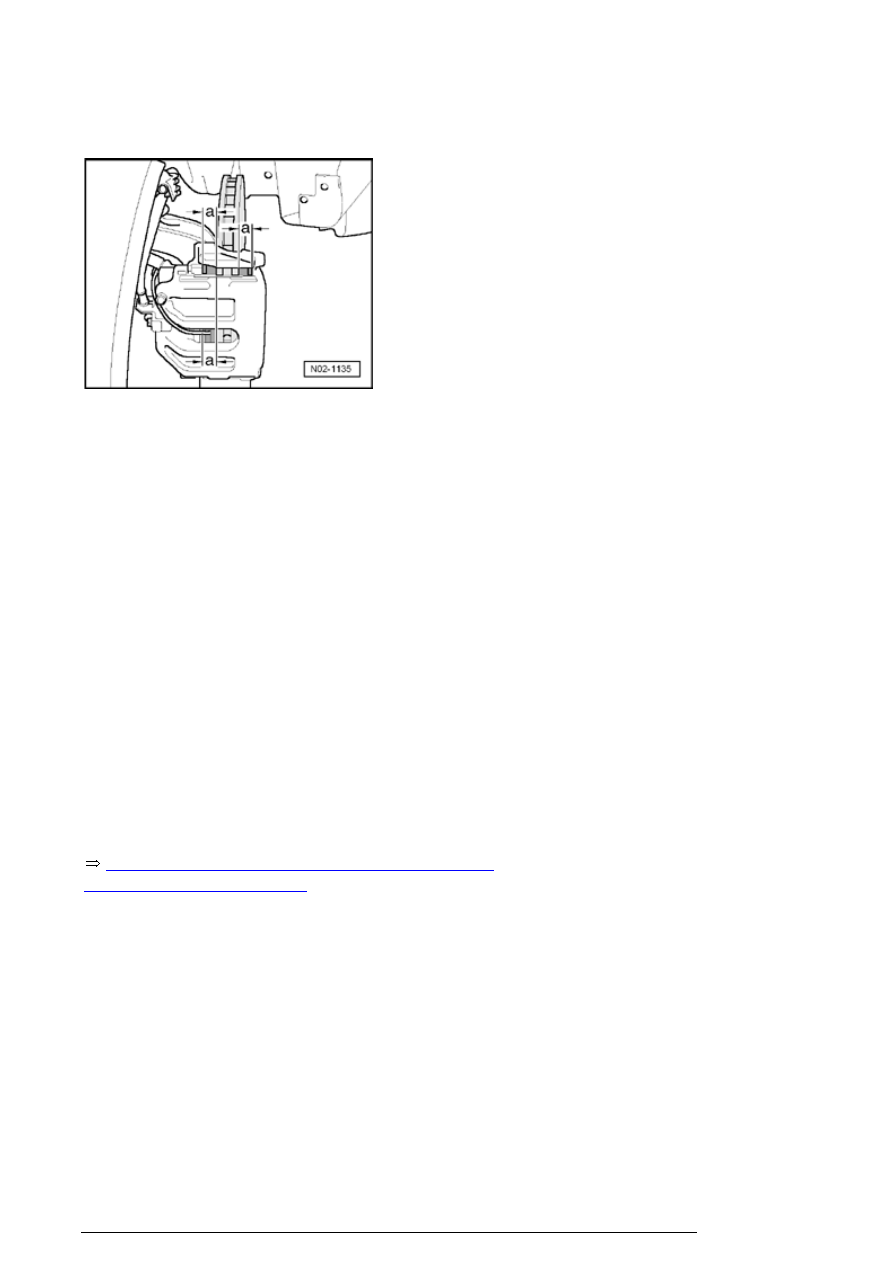

- Measure inner and outer pad thickness.

a - Pad thickness, not including backing plate



Wear limit: 2 mm



Golf R32

Description of work (part 2 of 2)

13/2/2005



- Measure inner and outer pad thickness.

a - Pad thickness, not including backing plate



Wear limit: 2 mm



Continued for all vehicles



With pad thickness (not including backing plate) of 2 mm,
the brake pads have reached their wear limit and must be
replaced (repair procedure). Inform customer!

Note:

If replacing the brake pads, check the brake discs for wear.
Checking and if necessary replacing brake discs is a repair
measure.


- Check brake discs for wear






Repair Manual, Brake System, Repair Group 46,

servicing front wheel brakes



- Install wheel to marked position.

- Tighten wheel securing bolts, using diagonal sequence to
following tightening torque:



Tightening torque: 120 Nm

- After completion of work, return adapter and hook for
wheel cover to vehicle tool kit.



Full wheel cover, installing

Description of work (part 2 of 2)

13/2/2005

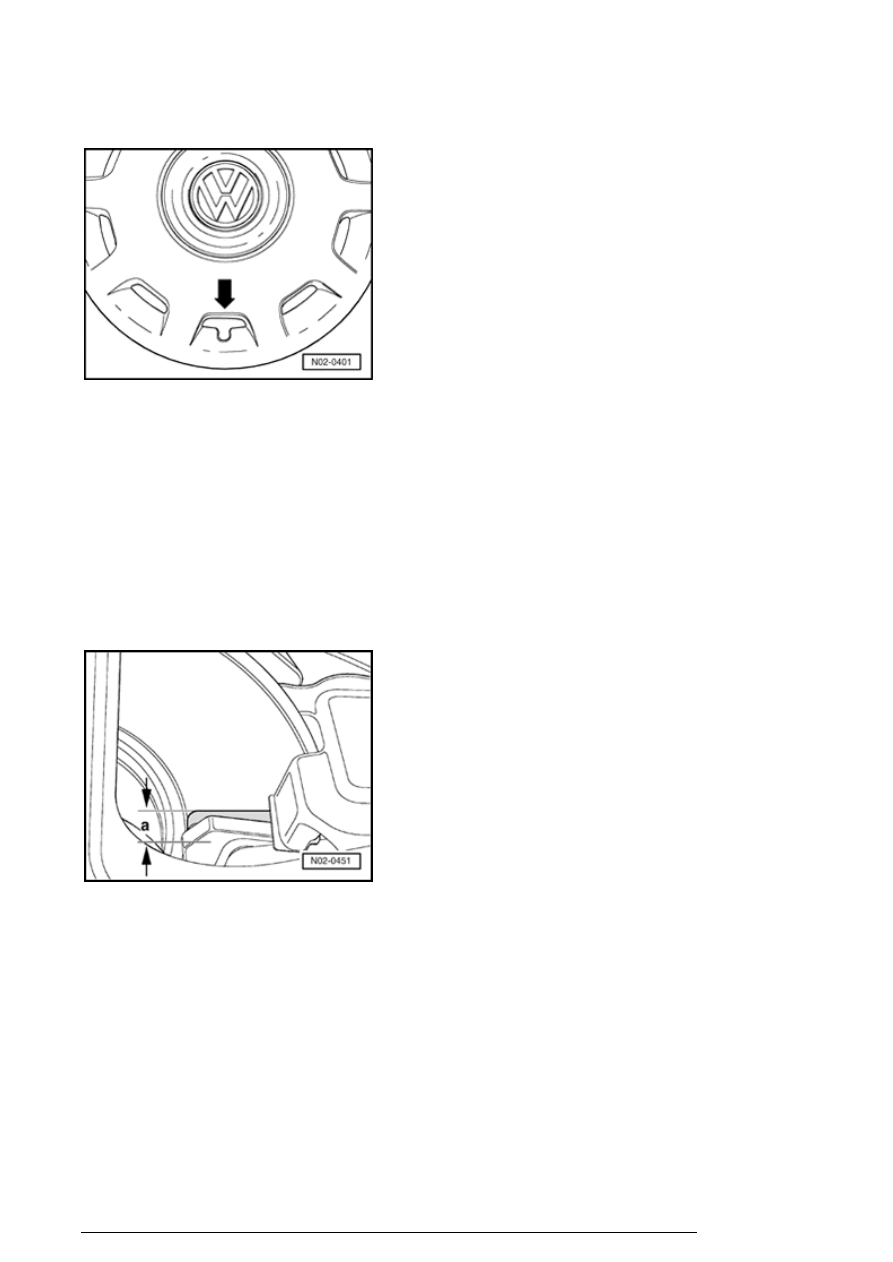

- Install full wheel cover with tire valve positioned in the cut-
out - arrow - .

- Install wheel bolt covers if necessary.

Rear disc brake pads



- If necessary, remove wheel covers with removal hook.

- Illuminate area behind hole in wheel using an flashlight.



Golf, Jetta

- Determine thickness of outer pad by checking visually.

- Illuminate inner pad using an flashlight and mirror.

- Determine thickness of inner pad by checking visually.

a - Pad thickness inner and outer, not including backing
plate



Wear limit: 2mm



Golf R32

Description of work (part 2 of 2)

13/2/2005
