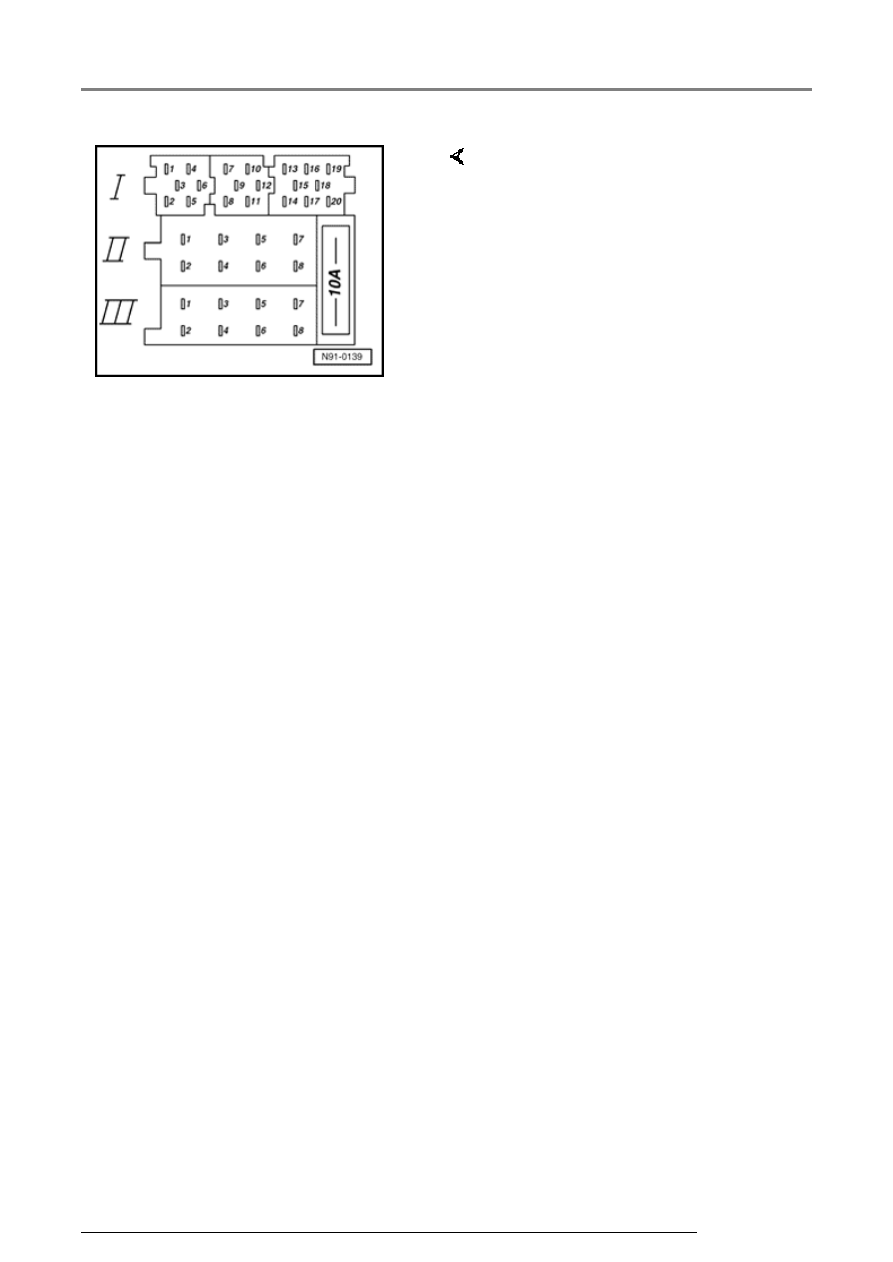

20 pin multi-connector I -T20-, part
3, blue



8 pin multi-connector II -T8a-,
brown

13 - CD Changer - DATA IN

14 - CD Changer - DATA OUT

15 - CD Changer - CLOCK

16 - CD Changer - Power supply,
positive (B+) supply

17 - CD Changer - Control signal

18 - CD Changer - Ground (GND),
terminal 31

19 - CD Changer - LINE OUT, left

20 - CD Changer - LINE OUT, right

1 - Speaker + right rear

2 - Speaker - right rear

3 - Speaker + right front

4 - Speaker - right front

5 - Speaker + left front

6 - Speaker - left front

7 - Speaker + left rear

8 - Speaker - left rear

Radio, Premium IV'

13/2/2005

91-12

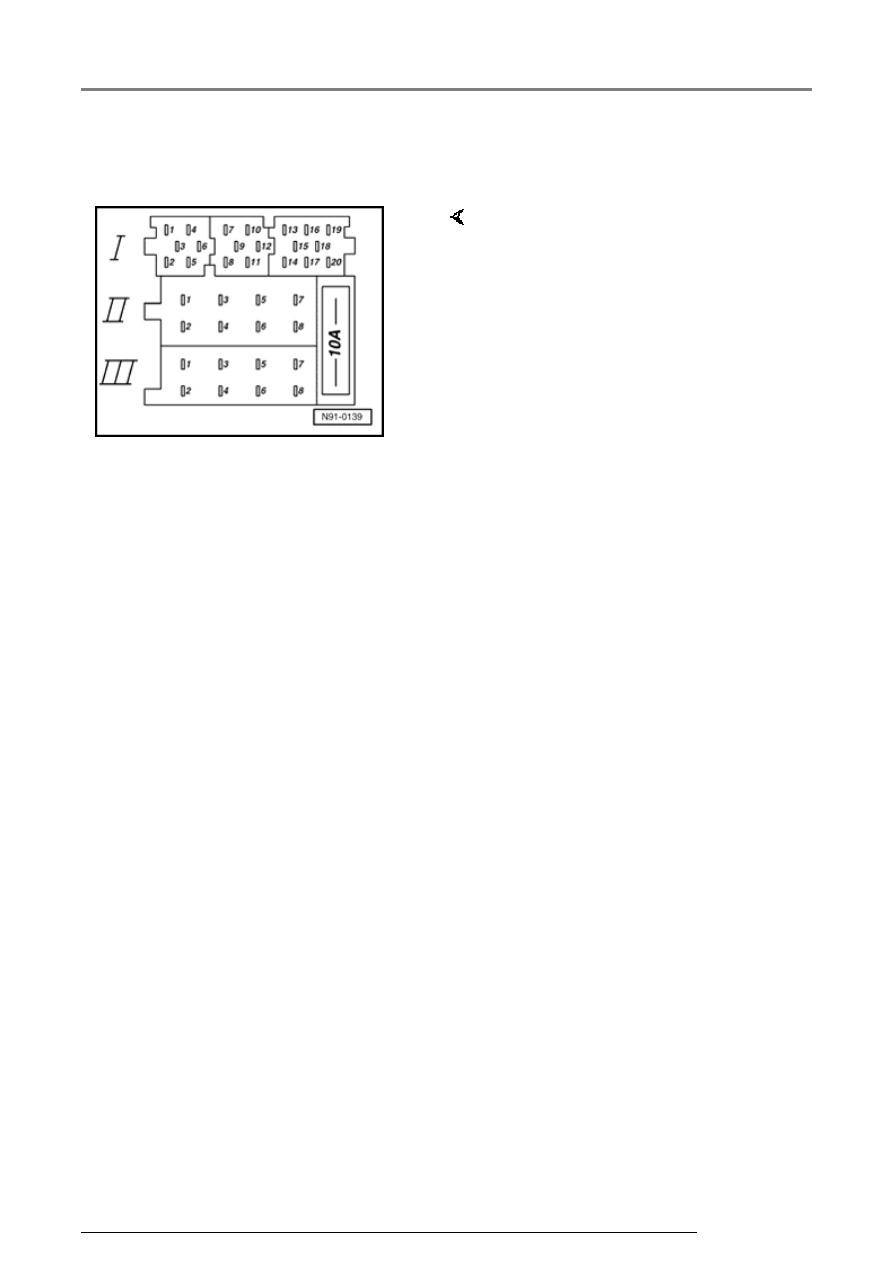

     8 pin multi-connector III -T8-,

black

1 - Signal for anti-theft alarm
system

2 - Open

3 - Data Link Connector (DLC) K-
wire

4 - Ignition switch - S contact

5 - Battery, positive (B+) supply,
terminal 30 (control input for
"SAFE" display/anti-theft)

6 - Illumination, terminal 58b

7 - Battery, positive (B+) supply,
terminal 30

8 - Battery, negative (-) ground
supply, terminal 31

Radio, Premium IV'

13/2/2005

91-13







Anti-theft security code, inputting





   The security code is "fixed", meaning the radio is

programmed by the radio manufacturer to accept
only one code. This code must be input during
the new vehicle delivery inspection, into newly
installed or existing units that have been
removed and reinstalled.



   Prerequisites:





 Obtain security code, either from code card or

from customer.





 Radio power supply fuse OK (according to

wiring diagram)



   Inputting code / cancelling electronic lock-up





-  Switch on radio





 "SAFE" appears in radio display, followed by

"1000" approximately 3 seconds later.





-  Input the security code found on the radio card

using the station preset buttons on the radio.
Button "1" corresponds to the first number in the
security code, "2" the second and so on. Press
the applicable button repeatedly until the desired
number appears in the display (E.g.: press
button "1" three times if the first number in the
code is 3).





-  When the entire code has been input and

appears on the display, press the right side of
the "Seek" button ("

") for longer than 2

seconds until an audible signal is heard.

Radio, Premium IV'

13/2/2005

91-14





   Incorrect code number



   If an incorrect code is entered, "SAFE" will

appear in the display (first blinking and then
continuous) and the radio will not function.
The entire coding procedure can only be
repeated one more time immediately (the
number of attempts is displayed).



   If during the second attempt an incorrect

code is entered, the radio will lock-up for
approximately one hour. Leave key in
ignition, radio switched on for 1 hour and
attempt coding again when the number of
attempts on display goes out (ensure proper
code is available).



   Cycle: 2 attempts - 1 hour lock-up still

applies.

Radio, Premium IV'
