01-80



Display group 002

Read Measuring
Value Block 2



 Indicated on

display





xxx

xxx

xxx

xxx





1

2

3

4

 Display

fields

Designation

Evaluating

display fields









Empty











Cruise control system
"CANCEL"

not oper. = not
operating

OFF = operating
button "CANCEL"



Page 01-81







Cruise control system
"RES+"

not oper. = not
operating

RES+ = operating
button "RES+"





Cruise control system "SET -"

not oper. = not

operating

SET - = operating
button "SET -"



Multi-function steering wheel through 11.01, On Board Diagnostic (OBD)

13/2/2005

01-81



Display group 002, evaluating

Display

field

Description

Display

Corrective action

1

Cruise control
system

"SET -"

not oper. = not
operating

SET - =
operating button
"SET -"

- - Perform visual check of wiring and
connections

- Check wiring and connections of
affected circuit for correct connection
and tight fit while simultaneously
observing display.

- If display does not change after
checking connections, troubleshoot
wiring using wiring diagram

- Replace relevant component, if
necessary.

- Erase DTC memory.

- Perform functional check

- Check DTC memory again.

2

Cruise control
system "RES+"

not oper. = not
operating

RES+ =
operating button
"RES+"



3

Cruise control
system
"CANCEL"

not oper. = not
operating

OFF = operating
button
"CANCEL"



4



Empty



Multi-function steering wheel through 11.01, On Board Diagnostic (OBD)

13/2/2005

01-82





   If the displayed values in all display zones

are OK:





-  Press

button.



   Note:



   Check DTC Memory after completing the

function "Read Measuring Value Block"



Page 01-62

 .

Multi-function steering wheel through 11.01, On Board Diagnostic (OBD)

13/2/2005

01-83







Multi-function steering
wheel from 12.01, On
Board Diagnostic
(OBD)





General information



     The multi-function steering wheel

allows the various functions of the
radio and cruise control system to be
selected from the steering wheel.

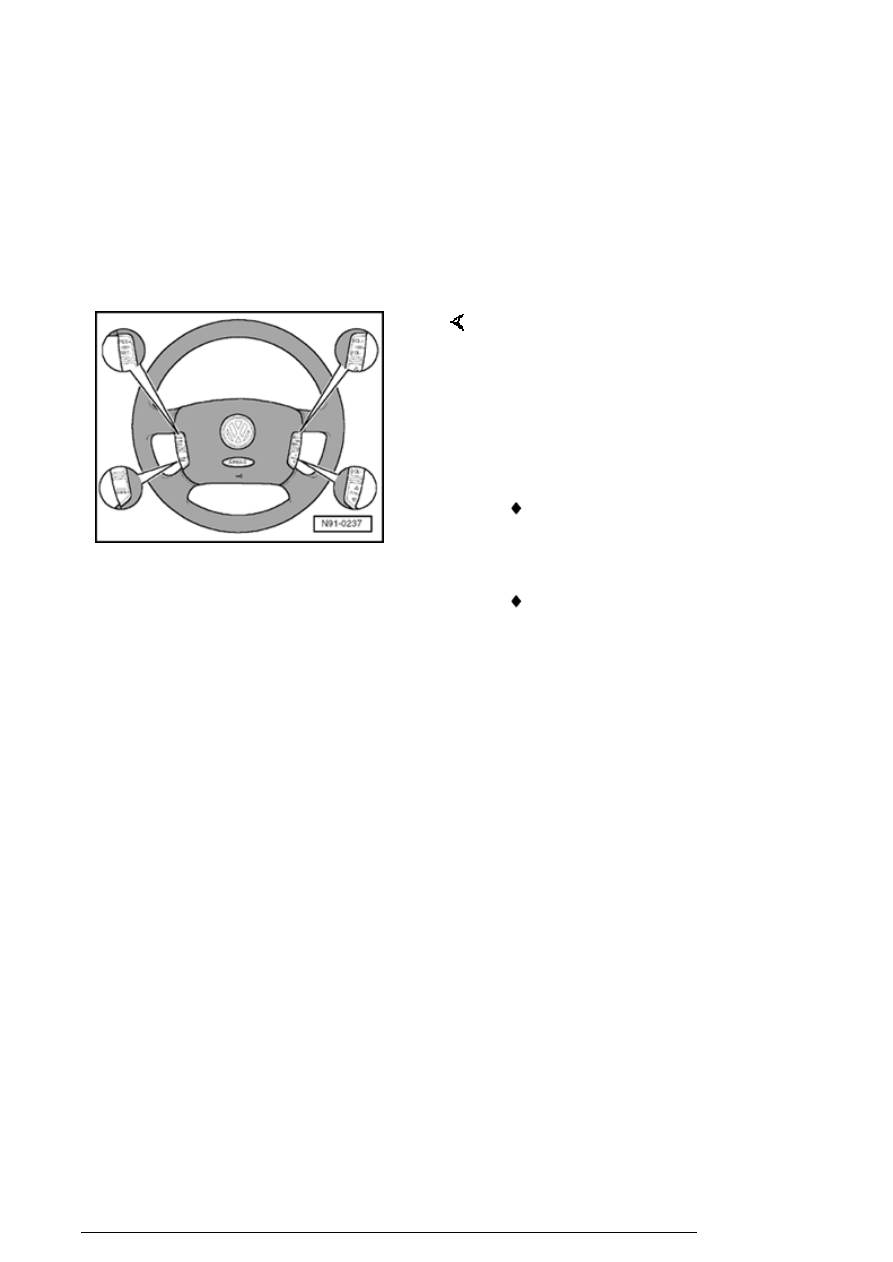

The multi-function steering wheel is
comprised of the following
components:

Before troubleshooting or servicing,
technicians must be familiar with the
functions and operation specifics of
the applicable standard or optional
radio system and cruise control
system as controlled by the multi-
function steering wheel. Always read
the vehicle/radio owner's manual
and review all radio, tape player and
CD changer functions.

The On Board Diagnostic (OBD)
must be initiated at the
commencement of troubleshooting
and the stored information checked
with the VAS 5051 Vehicle
Diagnostic Testing and Information
System.

 The operating unit in steering

wheel with two sets of buttons on
left and right integrated
electronics.

 The control module for the multi-

function steering wheel.

Multi-function steering wheel from 12.01, On Board Diagnostic (OBD)
