Antenna connector cable, replacing
Note:
The antenna cable system (antenna connector
and adapter cable sections) depends on the
available and optional audio equipment installed
in the vehicle. The antenna cable system may
also include routing to an antenna selection
control module, splitter, antenna booster or other
signal processing unit as required by the radio
system
Repair Manual, Radio, Telephone,
Navigation, Repair Group 91 . Regardless of
layout, only the faulty antenna cable section
(antenna connector cable or adapter) must be
replaced.
- Disconnect cable connections from faulty
antenna connector/adapter sections from unit
(radio, antenna etc.).
- Determine the routing of the antenna cable
system in the vehicle and calculate the total
length of the entire antenna cable layout
between units (radio, antenna etc.).

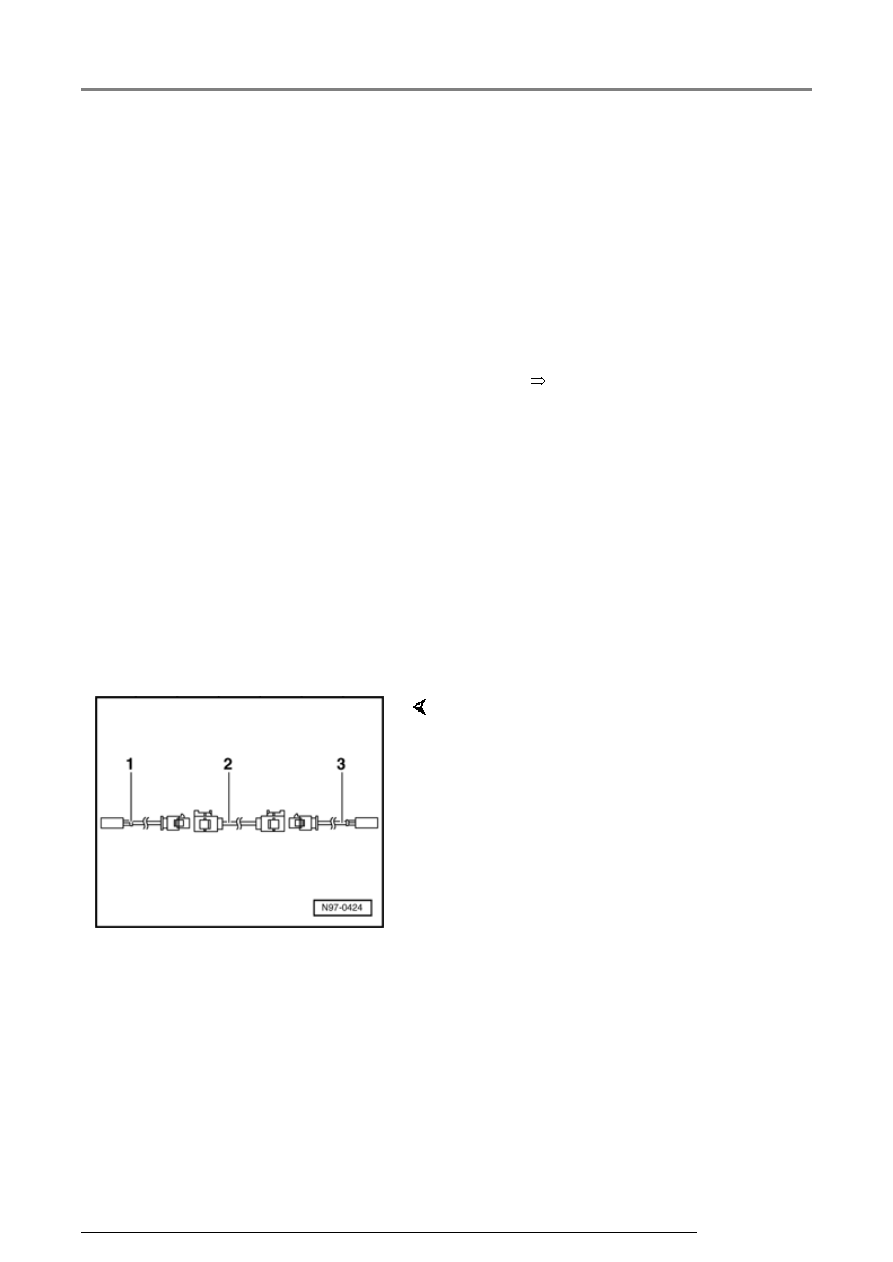

Calculation of the total length includes the required
adapter cable sections -1 and/or -3-, and connector
cable section -2- where applicable.
The faulty antenna cable section remains in the
vehicle.
- Subtract 60 cm from the total length calculation
for a connector cable to account for the adapter
cable sections.
- Using the calculated length, obtain the
appropriate connector cable (and adapter cable
if necessary) from the parts catalog.
- Cut the cable connection from the faulty antenna
cable section.
Antenna cables, replacing
