Volkswagen Golf / Golf GTI / Jetta. Manual - part 1146





96-34







Transponder (key)





   Replacement or servicing of the transponder

integrated with the vehicle keys is not
possible.



   In the event of transponder malfunction, the

complete key assembly requires
replacement.

Anti-theft Immobilizer

13/2/2005

97-1







Fuse holder and relay carriers





CAUTION!







Before beginning repairs on the electrical
system:









Obtain the anti-theft radio security code.









Switch off all electrical consumers.









Switch ignition off and remove ignition
key.









Disconnect negative ( - ) battery terminal.









When disconnecting and reconnecting
battery terminals, observe all applicable
Notes and torque specifications, as well as
instructions on performing OBD program
and electrical system function checks as
specified in this Repair Manual



Page 27-

39

 .





Fuse holder, removing and installing





   Removing





-  Disconnect battery



Page 27-39

 .





-  Carefully pry-off side cover from instrument

panel (left).





-  Remove driver's side instrument panel trim.







Repair Manual, Body Interior, Repair Group

70



Fuse holder and relay carriers

13/2/2005

97-2





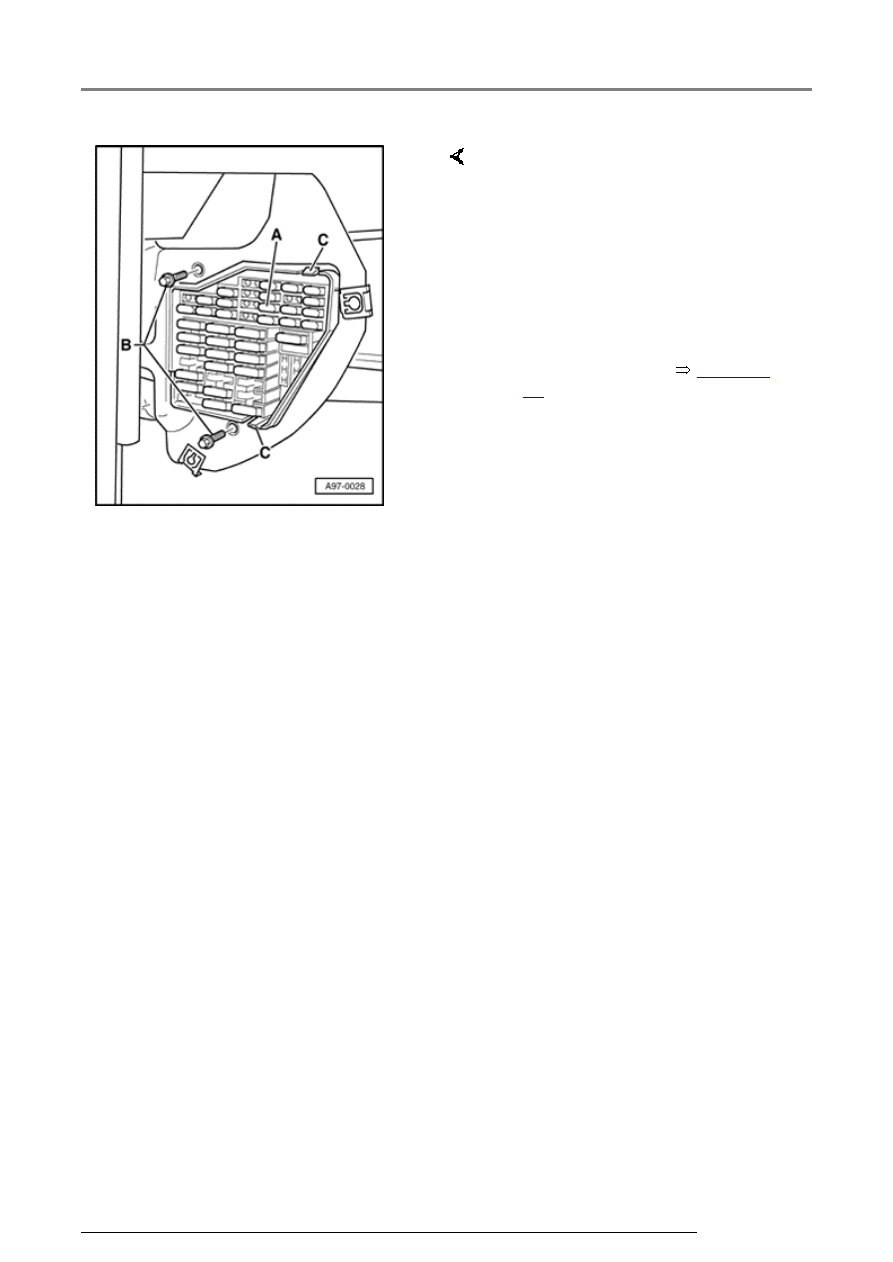

Installing

Install in reverse order of removal,
noting the following:

-  Remove screws -B- (2 Nm)

-  Press locking tab -C- while doing

pulling fuse holder -A- out inward.

-  Reconnect battery



Page 27-

39

 .

Fuse holder and relay carriers

13/2/2005

97-3







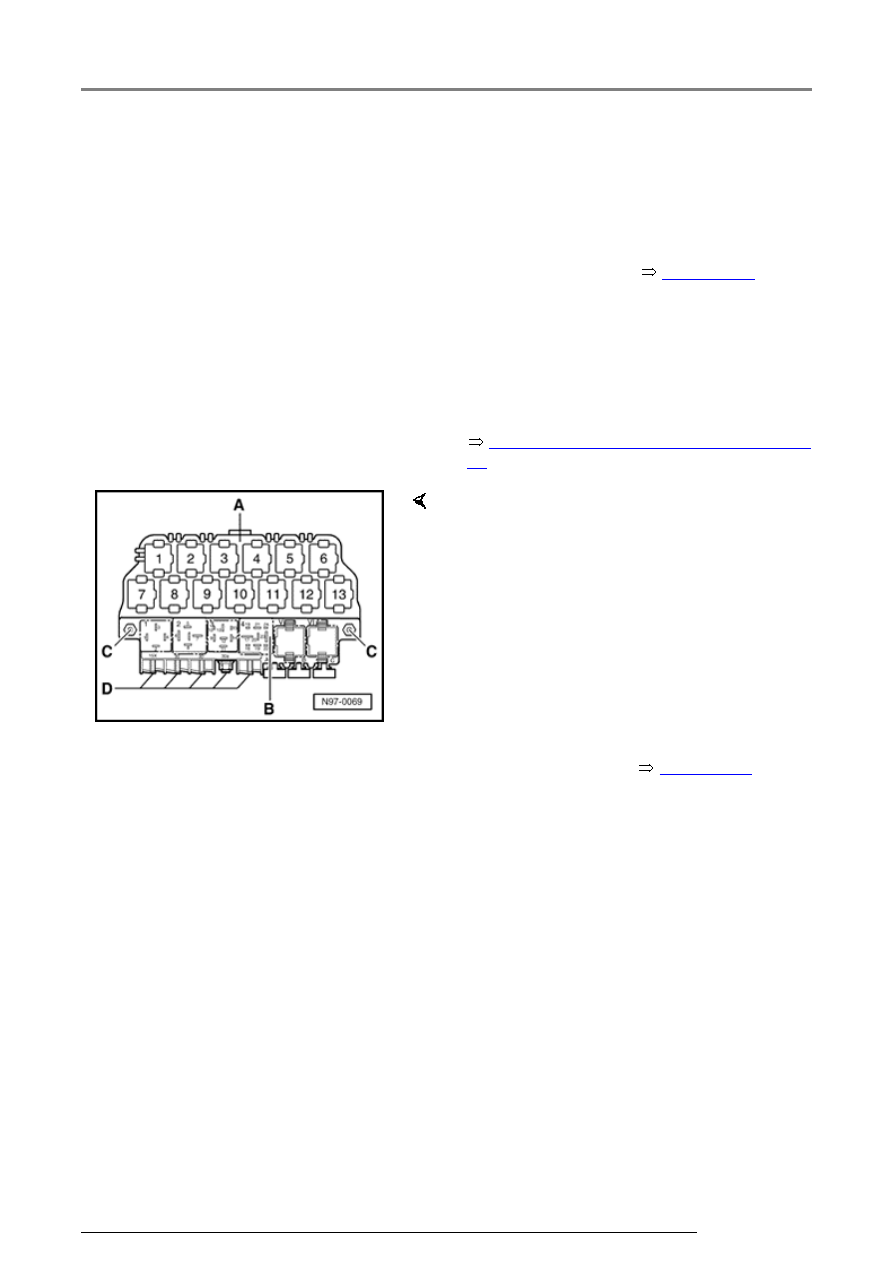

Relay plate and 13 position relay carrier,
removing and installing







Removing





-  Disconnect battery



Page 27-39

 .





-  Unclip instrument panel side trim.





-  Remove driver's side lower instrument panel

trim.







Repair Manual, Body Interior, Repair Group

70





Installing

Install in reverse order of removal, noting the
following:

-  Remove screws -C- (2 Nm)

-  Disconnect all screwed connections -D- as

necessary.

-  Take out central electric -B- and relay carrier

out downward.

-  Reconnect battery



Page 27-39

 .

Fuse holder and relay carriers

13/2/2005
