Volkswagen Golf / Golf GTI / Jetta. Manual - part 1139





96-7







Power Window Regulator Switches in
front passenger's door/rear doors,
removing and installing





   Note:



   The procedure for removing and installing the





 Right Front Power Window Regulator Switch -

E41-





 Left Rear Power Window Regulator Switch -

E52-





 Right Rear Power Window Regulator Switch -

E54-



   is essentially the same for all switches.



   The following illustrates the procedure for -E41-.



   Removing





CAUTION!







Before beginning repairs on the electrical
system:









Switch off all electrical consumers.









Switch ignition off and remove ignition
key.







-  Removing (appropriate) door trim







Repair Manual, Body Interior, Repair Group

70







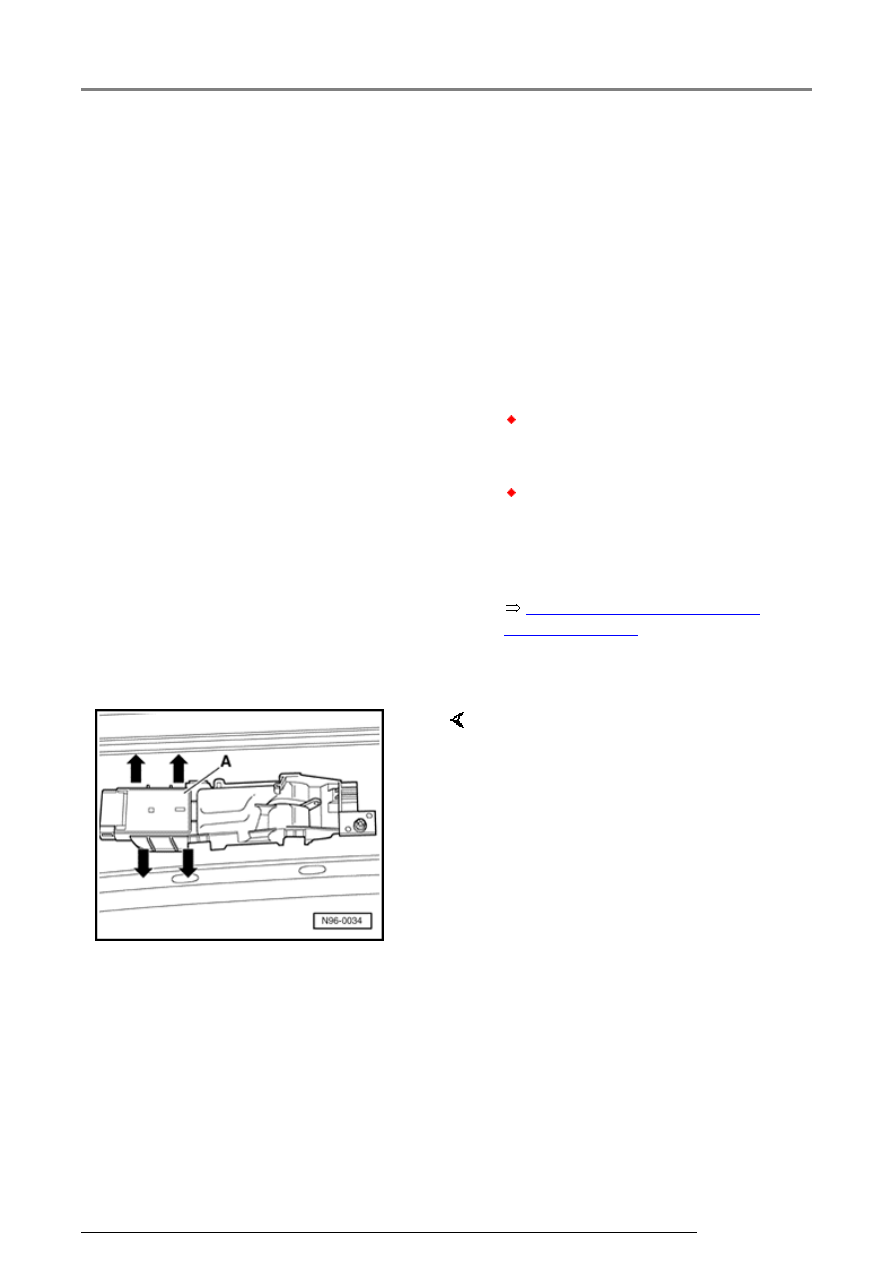

-  Disconnect electrical connector at switch

module.

Interior lights and switches

13/2/2005

96-8





Installing

Install in reverse order of removal.

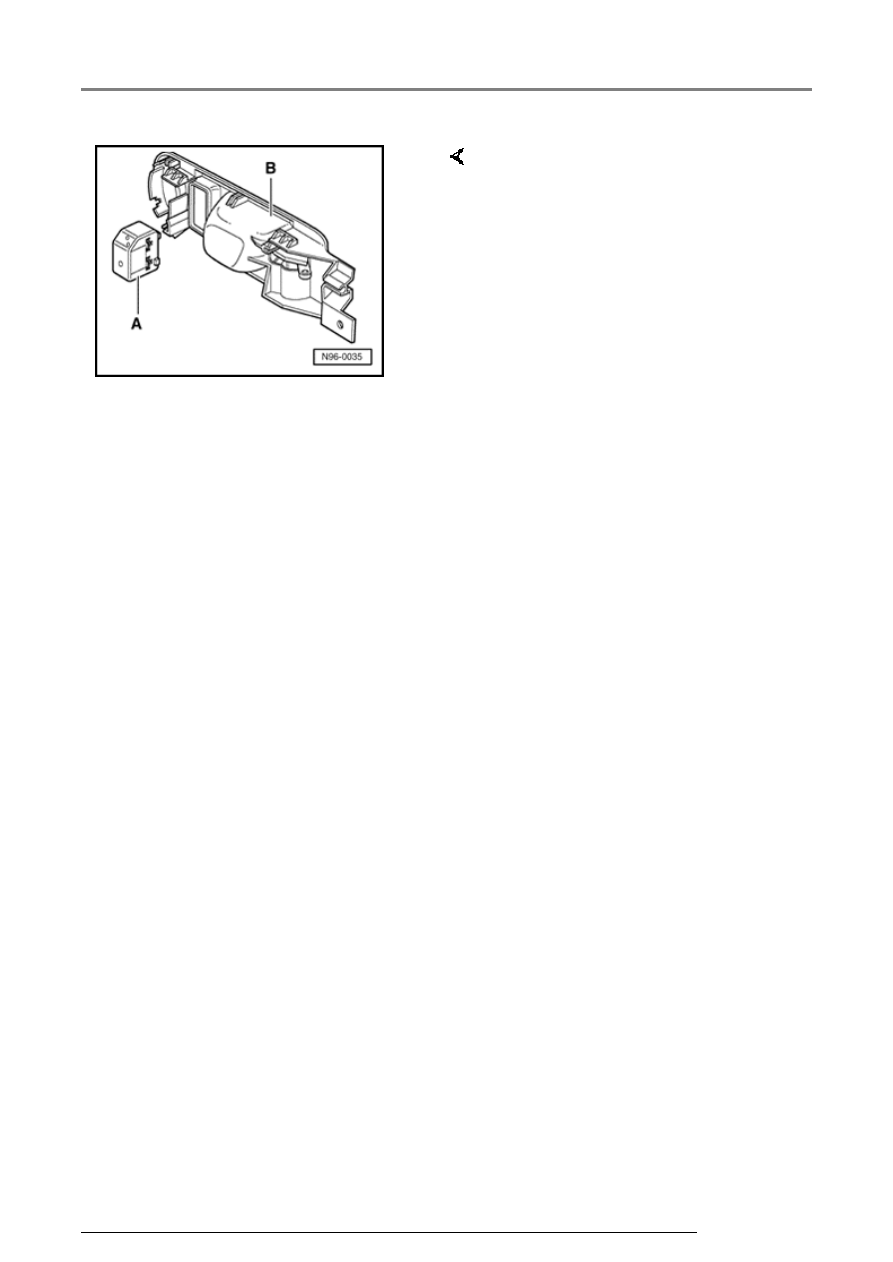

-  Bend mounting frame -B- out on

the longer switch side -A- and
remove switch from mounting
frame.

Interior lights and switches

13/2/2005

96-9







Mirror Adjustment Switch -
E43- with Mirror Adjustment
Selection Switch -E48-,
removing and installing







Removing





CAUTION!







Before beginning repairs on the
electrical system:









Switch off all electrical
consumers.









Switch ignition off and remove
ignition key.







-  Removing front door trim







Repair Manual, Body Interior,

Repair Group 70







-  Disconnect electrical connector.



Installing

Install in reverse order of removal.

-  Bend mounting frame -B- out on

the longer switch side -A- and
remove from mounting frame.

Interior lights and switches

13/2/2005

96-10







Switches in instrument panel, removing
and installing





   Switches consists of a switch housing and trim

plate with relevant symbol. The trim plate is
clipped onto the switch housing. If the trim is
released instead of the switch during removal,
the trim must be re-clipped onto the switch
housing afterwards.



   Remove switches with connected wiring from

instrument panel opening prior to disconnecting
electrical connection on rear of switch.



   If necessary, temporarily remove switch to the

left of of the switch to be removed/replaced to
allow sufficient access to the wiring.



   Switch blank-out covers (where applicable) are

removed in the same manner as switches.





CAUTION!









Be careful not to damage instrument panel
when removing switch. Protect trim in area of
switch with adhesive tape before removing
switch.







Do Not pry out switches from the side. Only
pull out from the top.



Interior lights and switches

13/2/2005
