01-25







-  Switch on scan tool printer with

the print button.





   Warning light in button must light

up.

Rapid data transfer

HELP

Select function XX

     Indicated on display:

-  Operate scan tool, taking into

account information on display:

-  Press buttons -0- and -2- for

function "Check DTC memory"
and confirm entry with -Q- button.

X Diagnostic Trouble Codes (DTCs) detected!

     The number of Diagnostic Trouble

Codes (DTCs) stored or "No
malfunction detected!" will be shown
on the display.

Note:

If no DTC is stored:

- Press the

 -button.

If one or more Diagnostic Trouble
Codes (DTCs) are stored:

The stored Diagnostic Trouble
Codes (DTCs) will be displayed and
printed out one after the other.

Rapid data transfer

HELP

Select function XX

     After the stored Diagnostic Trouble

Codes (DTCs) have been printed
out, the display will show:

DTC memory

01-26







-  Press buttons -0- and -5- for the function "Erase

DTC memory" and confirm entry with -Q- button.

Rapid data transfer

DTC memory is erased!

     Indicated on display:

Note:

If the ignition is switched off between "Check DTC
memory" and "Erase DTC memory" the DTC
memory will not be erased.

-  Press

 -button.

Rapid data transfer

HELP

Select function XX

     Indicated on display:

Repair Diagnostic Trouble Codes (DTCs) printed
out using DTC table:

-  Press buttons -0- and -6- for the function "End

output" and confirm entry with -Q- button.



 SAE P0 codes



Page 01-30

 ,



 SAE P1 codes



Page 01-58

 ,



 SAE P2 codes



Page 01-98

 ,



 SAE P3 codes



Page 01-99

 .

-  Read readiness code



Page 01-146

 . If the

DTC memory has been erased or the Motronic
Engine Control Module (ECM) -J220- was
disconnected from battery (B+) positive, the
readiness code must be generated again



Page 01-149

 .

DTC memory

01-27







Automatic test sequence







Special tools, workshop
equipment, testers, measuring
instruments and auxiliary items
required



Note:

All functions which could previously
be performed with VAG 1551/1552
can also be performed with the
vehicle diagnostic, testing and
information system VAS 5051.

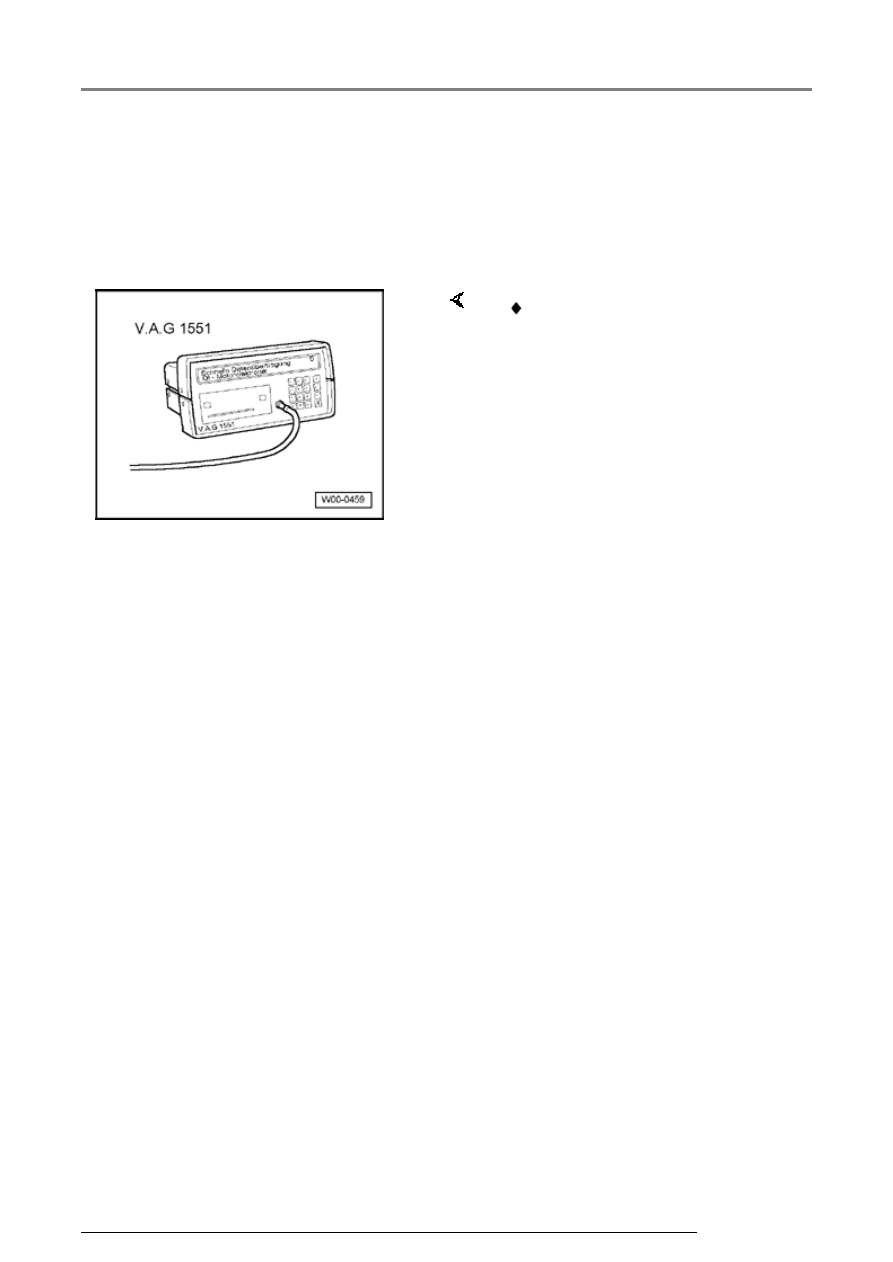

 VAG 1551 scan tool (or vehicle

system tester VAG 1552) with
VAG 1551/3 adapter cable

DTC memory

01-28







Work sequence



During test and assembly work
Diagnostic Trouble Codes (DTCs)
can be detected from other control
modules like e.g. connector
disconnected. Therefore on
completion the DTC memories of all
control modules must be checked
and erased. To do this:

When a control module answers with
its identification the number of stored
Diagnostic Trouble Codes (DTCs)
appears on the display or "No fault
detected".

Any system Diagnostic Trouble
Codes (DTCs) that are stored will be
displayed one after the other and
printed out. The VAG 1551 will then
transmit the next address word.

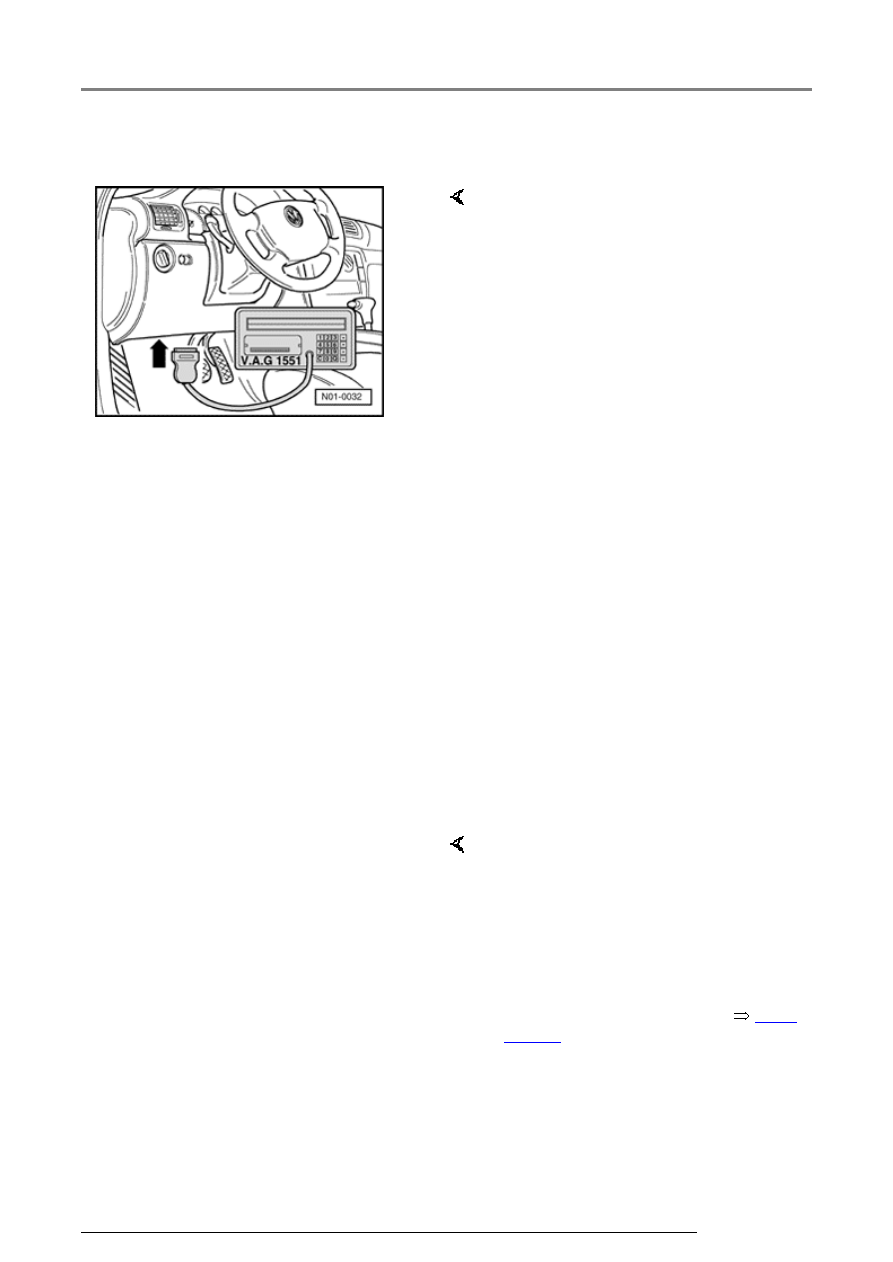

-  Connect VAG 1551 scan tool (or

VAG 1552) using VAG 1551/3
adapter cable.

-  Press button -0- twice for address

word "Automatic test sequence"
and confirm entry with -Q- button.
VAG 1551 transmits all known
address words one after another.

Rapid data transfer

HELP

Select function XX

     The automatic test sequence has

ended when following is indicated on
display:

Observe the valid safety precautions
when performing a road test



Page

01-182

 .

-  Erase all DTC memories and then

perform a road test.

DTC memory
