26-50



     If test is OK:

LDP has activated and the system is
pressurized.

If the test aborts and DTCs other
than for small or large leaks are
stored:

When "Check end" is indicated on
VAS 5051 or VAS 5052:

Note:

Only check LDP during "Check end"
phase when "Test OK" was
indicated.

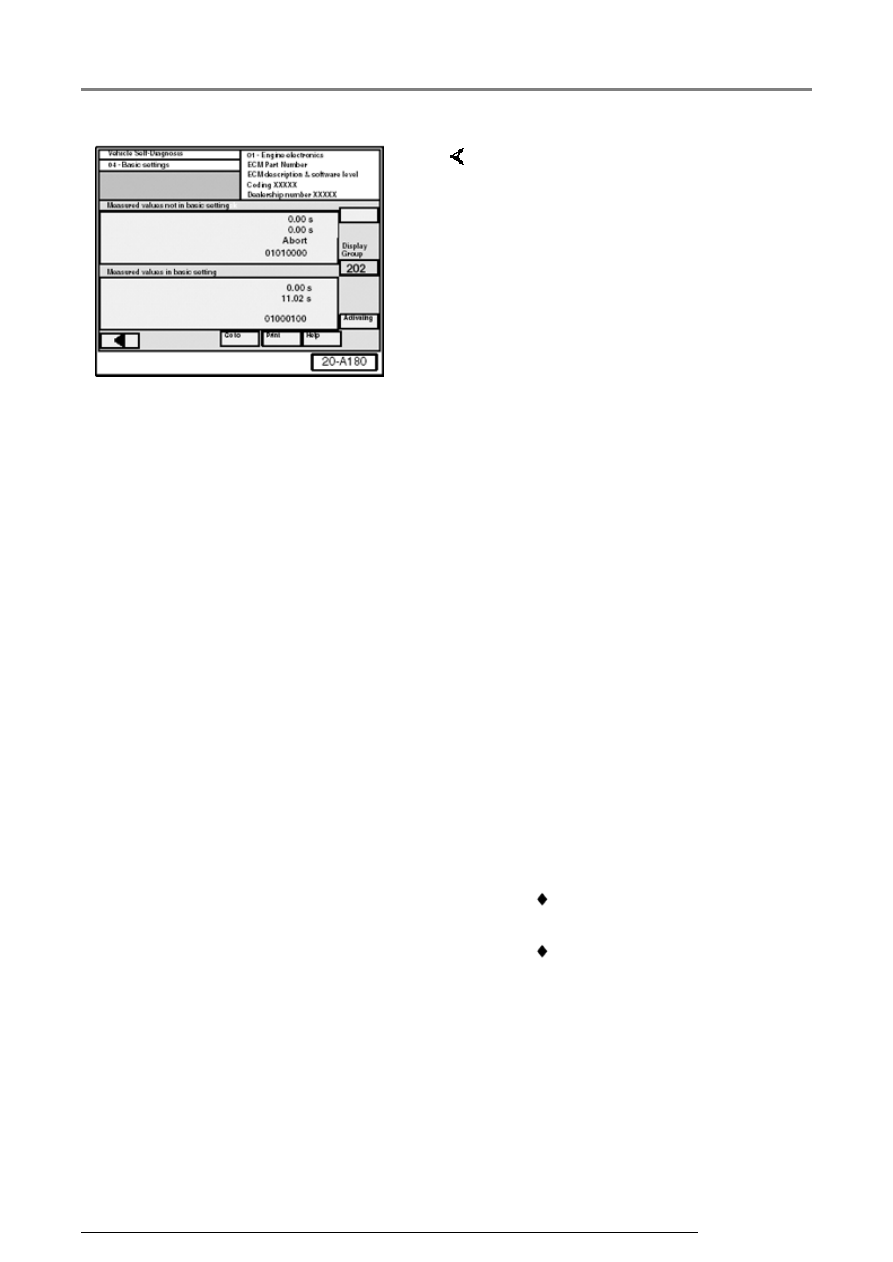

   Indicated by "1" in position 6 and

a "0" in position 8 as shown.

-  Using a compressed air blow gun,

clear area near LDP and LDP
filter of any residual smoke.

-  Check and repair according to

DTC listed in DTC table for
appropriate engine code.

-  Use smoke generator trigger to fill

system with smoke again.

-  Check for smoke doming from

LDP filter and LDP hose
connections.



 Smoke coming from filter

indicates a faulty LDP



 Smoke coming from LDP

outlet or hose indicates a
faulty hose or clamp

Secondary air system

26-51







-  Make repairs as necessary and check with

smoke again.







 No smoke coming from filter indicates LDP

is OK and leak is somewhere else in EVAP
system





Note:





If the KLI 9210 EVAP system tester is connected
in "Test" mode and Basic settings (using Self
Diagnosis) and Fault finding are activated, a
false "System OK" message may be generated.





If the LDP is OK and a DTC was stored for the
EVAP system:





-  Switch ignition off.





-  Continue checking EVAP system as follows:





Checking EVAP system for leaks



CAUTION!



Clamp only soft rubber lines when isolating a
leak. To avoid risk of damage, never clamp hard
plastic lines!



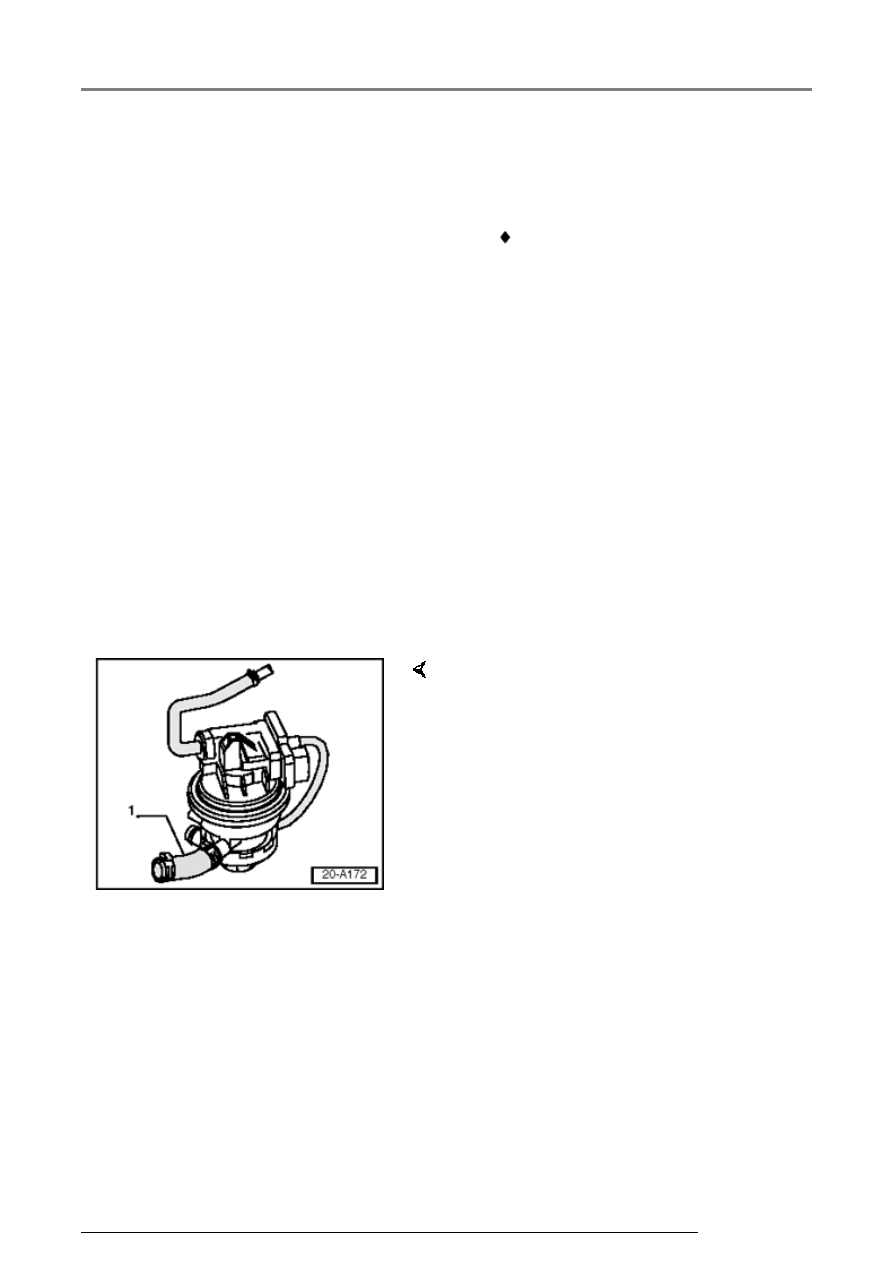

-  Clamp off LDP outlet (EVAP side) -1- using

special tool 3094 or equivalent.

-  Turn control valve from "Hold" to "Test".

-  Allow fuel system to pressurize.

Secondary air system

26-52





   Note:



   Fuel system pressurization depends on volume

of fuel system and amount of fuel in tank.



   If fuel system pressurization does not stabilize:





-  Verify that all fuel system outlets have been

sealed before continuing.



   Note:



   Any flow shown on flow meter indicates a leak.

Flow below flow meter flag set at vehicle leak
standard may indicate a sporadic DTC.



   If flow meter on tester registers flow near or

above pre-set pressure:





-  Clamp off hose leading from EVAP canister

purge regulator valve -N80- to intake manifold.



   If flow stops:





-  Replace EVAP canister purge regulator valve -

N80- and repeat test before continuing.



   If meter indicates no flow after test:





-  Perform quality check and return vehicle to

customer.



   If flow continues:





-  Use smoke generator trigger to charge fuel

system with smoke again.

Secondary air system

26-53







-  Inspect complete EVAP system for escaping

smoke.





Note:





It may be necessary to move, twist, or wiggle
EVAP components around to reproduce leak.





If leak cannot be found using smoke:



If leak cannot be located:

CAUTION!



Clamp only soft rubber lines when isolating a
leak. To avoid risk of damage, never clamp hard
plastic lines!



If flow stops:

When leak has been located:

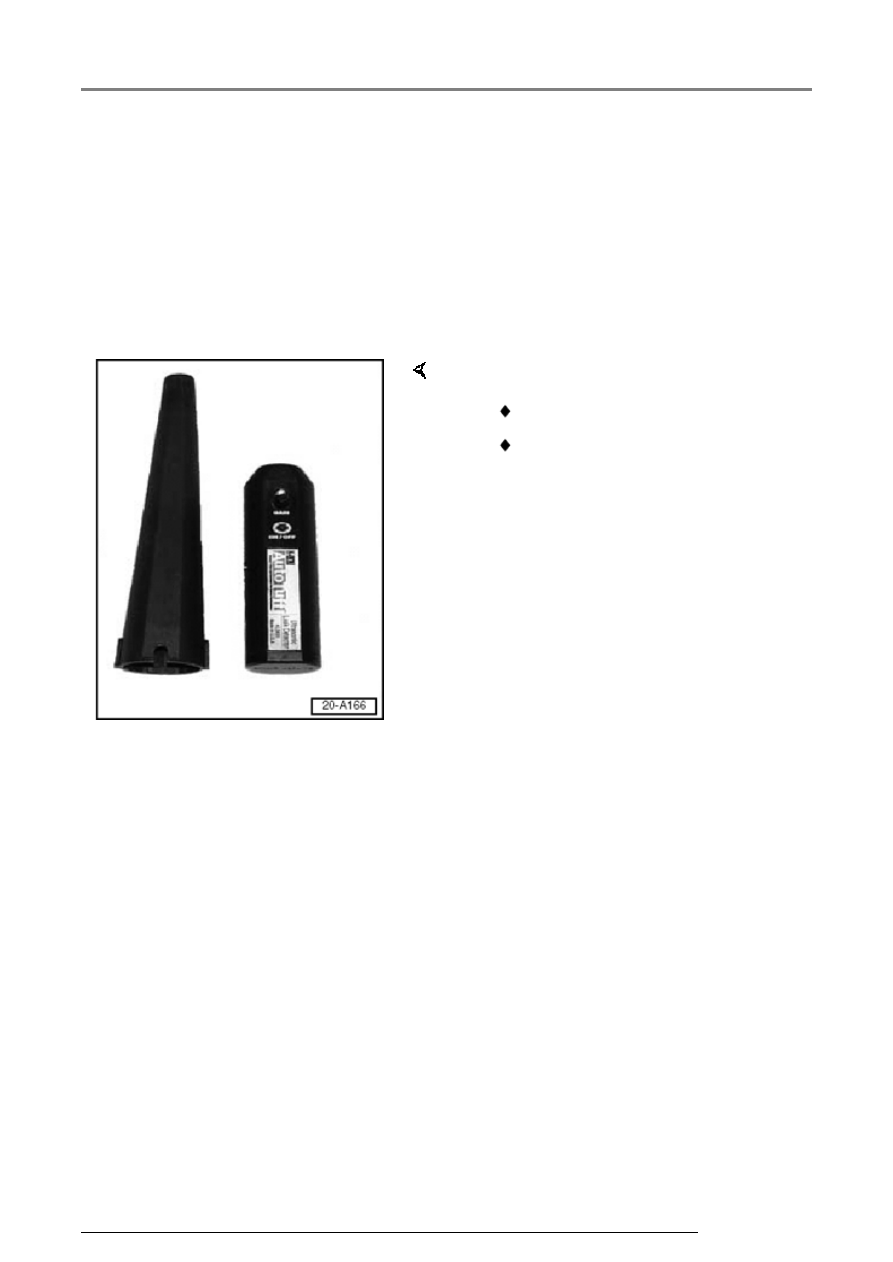

-  Locate leak with ultrasonic tester.



 General search: tester only



 Localized search: tester with extension

wand (left)

-  Disconnect and plug or clamp shut EVAP lines

to isolate fuel tank using special tool 3094 or
equivalent before continuing.

-  Reconnect EVAP lines and search area that was

isolated.

-  Repair leak and repeat EVAP system test.
