Volkswagen Golf / Golf GTI / Jetta. Manual - part 1001







Note:

- Switch pressures, removing and installing switches as
well as switch arrangement and version, refer to vehicle
specific refrigerant circuit.




 Repair Manual, Heating & Air Conditioning, Repair

Group 87 ,

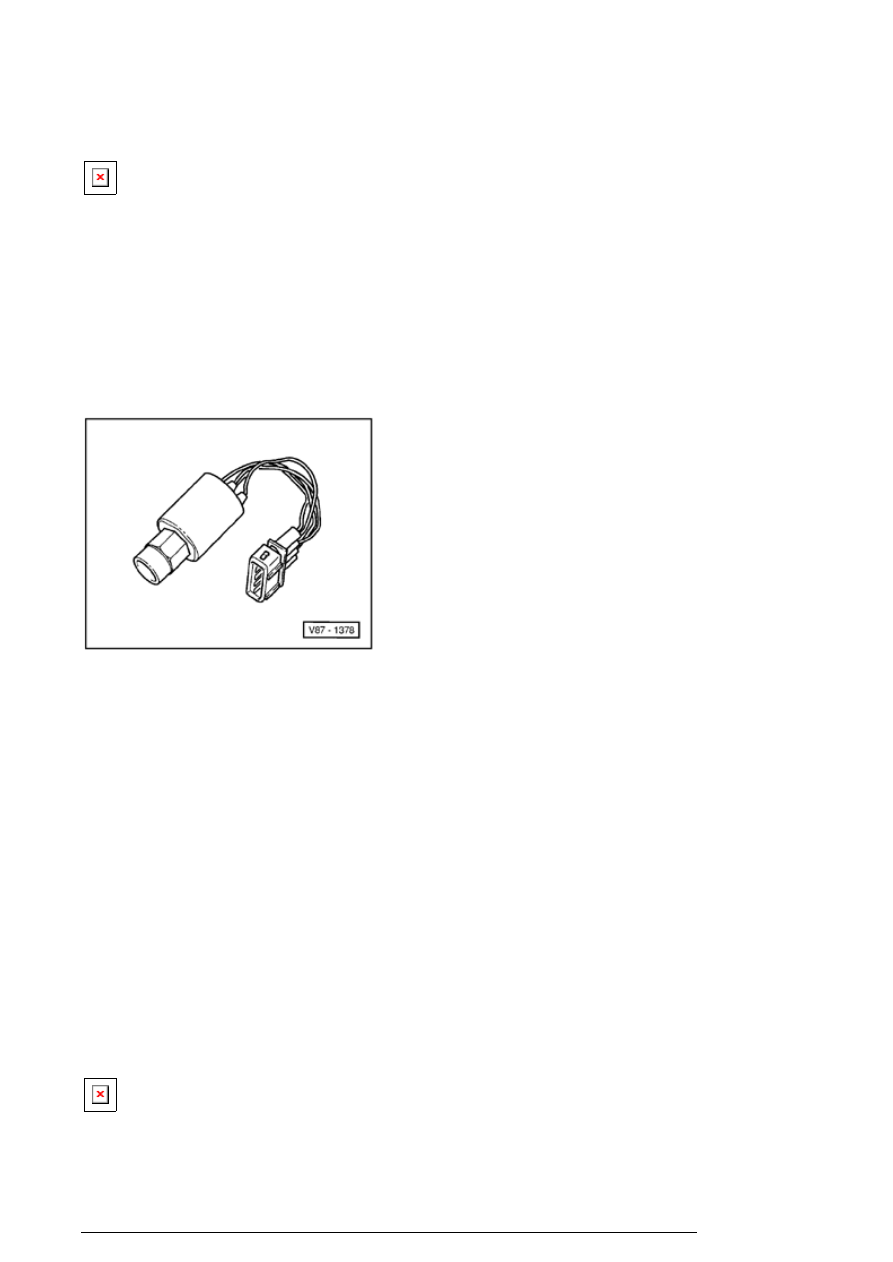

A/C Refrigerant High Pressure Switch F23



Function:



Switches coolant fan to next higher stage upon pressure
increase in refrigerant circuit (approx. 16 bar).

A/C Refrigerant High Pressure Switch F118



Function:



Switches off A/C compressor when there is excessive
pressure in the refrigerant circuit (approx. 32 bar).

A/C Refrigerant Low Pressure Switch F73



Function:



Switches off A/C compressor when pressure drops in the
refrigerant circuit (approx. 2 bar).

Connections with valve for switches on
refrigerant circuit



Warning!



There is a danger of ice-up.



Refrigerant may leak out if refrigerant circuit is not
discharged.

Refrigerant must be extracted before removing valve -
C - .

General information on refrigerant circuit

13/2/2005







- Different threads for switch on high pressure and low
pressure sides.

- Only valves and O-ring seals that are resistant to
refrigerant R134a and refrigerant oil must be installed.

A - Connection (soldered in)

B - O-ring seal

C - Valve (with O-ring seal)

A/C Pressure Switch F129



This pressure switch has 3 functions:



1. Switches coolant fan to next higher stage upon pressure
increase in refrigerant circuit (approx. 16 bar).



2. Switches off A/C system if pressure is excessive
(approx. 32 bar), e.g. because of insufficient engine
cooling.



3. Switches off A/C system if pressure is insufficient
(approx. 2 bar), e.g. loss of refrigerant.

Note:

- A/C Pressure Switch F129 replaces the A/C Refrigerant
High Pressure Switch F23 , A/C Refrigerant Low Pressure
Switch F73 and the A/C Refrigerant High Pressure Switch
F118 .

High Pressure Sensor G65

This High Pressure Sensor G65 is installed instead of A/C
Pressure Switch F129 .

General information on refrigerant circuit

13/2/2005





When a voltage is applied, the high pressure sensor
generates a square wave signal or a data telegram. This
signal changes along with pressure in the system.

The downstream control modules (Coolant Fan Control
(FC) Control Module, Engine Control Module (ECM), A/C
Control Head E87 or Climatronic Control Module J255 ,
etc.) use this signal to calculate pressure in the refrigerant
circuit and accordingly to activate coolant fans and motor,
A/C Clutch N25 or to change activation of A/C Compressor
Regulator Valve N280 .

A/C Pressure/temperature Sensor G395

Warning!



There is a danger of ice-up.



Refrigerant may leak out if refrigerant circuit is not
discharged.

Refrigerant must be extracted before removing the A/C
Pressure/temperature Sensor G395 .

This A/C Pressure/temperature Sensor G395 is installed
instead of High Pressure Sensor G65 or A/C Pressure
Switch F129 .

The pressure signal is continuously checked, where the
temperature signal is only checked at temperatures above
0   C.

The Climatronic Control Module J255 operates with this
information and accordingly controls the coolant fans and
activation of the A/C Compressor Regulator Valve N280 .

General information on refrigerant circuit

13/2/2005

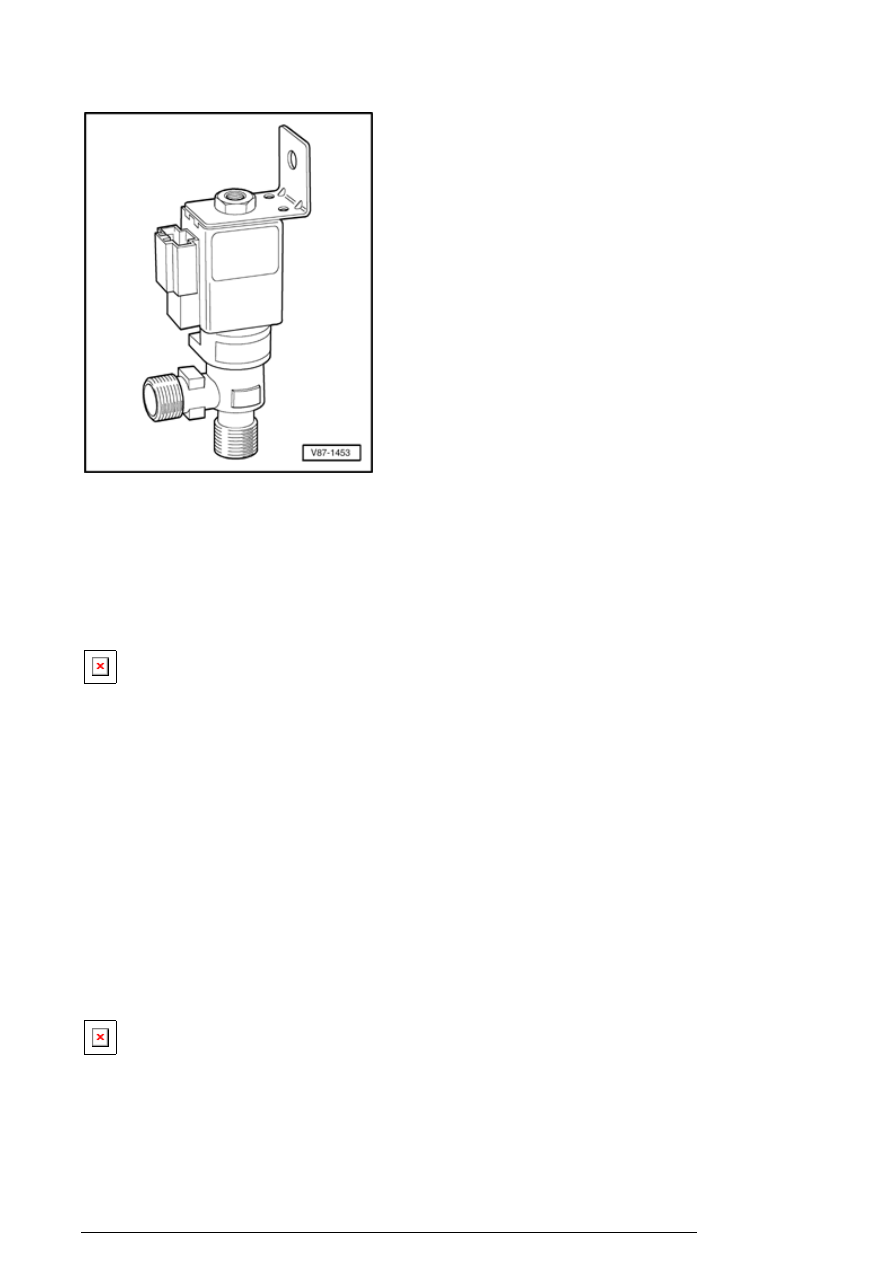

A/C Refrigerant Shut-Off Valve N43



The flow of refrigerant in the second evaporator is switched
on or off by the shut-off valve. It opens when voltage is
applied, switched by the A/C Programmer.

A/C Compressor Regulator Valve N280

The regulator valve is installed in the A/C compressor. It is
activated by the A/C Control Head E87 or the Climatronic
Control Module J255 . Pressure on the low pressure side is
influenced via the regulator valve and thus regulates the
temperature in the evaporator.

Note:

- A/C Compressor Regulator Valve N280 is a structural
component of the A/C compressor and cannot be replaced
separately.

Electrical components not installed on the
refrigerant circuit



A/C Programmer J127



This programmer switches off the refrigerant flow through
the 2nd evaporator when the temperature on the cooling
ribs of the 2nd evaporator sinks to the freezing point for
