15-27







-  Remove intake manifold



Page 15-16

 ,

Removing and installing cylinder head cover.



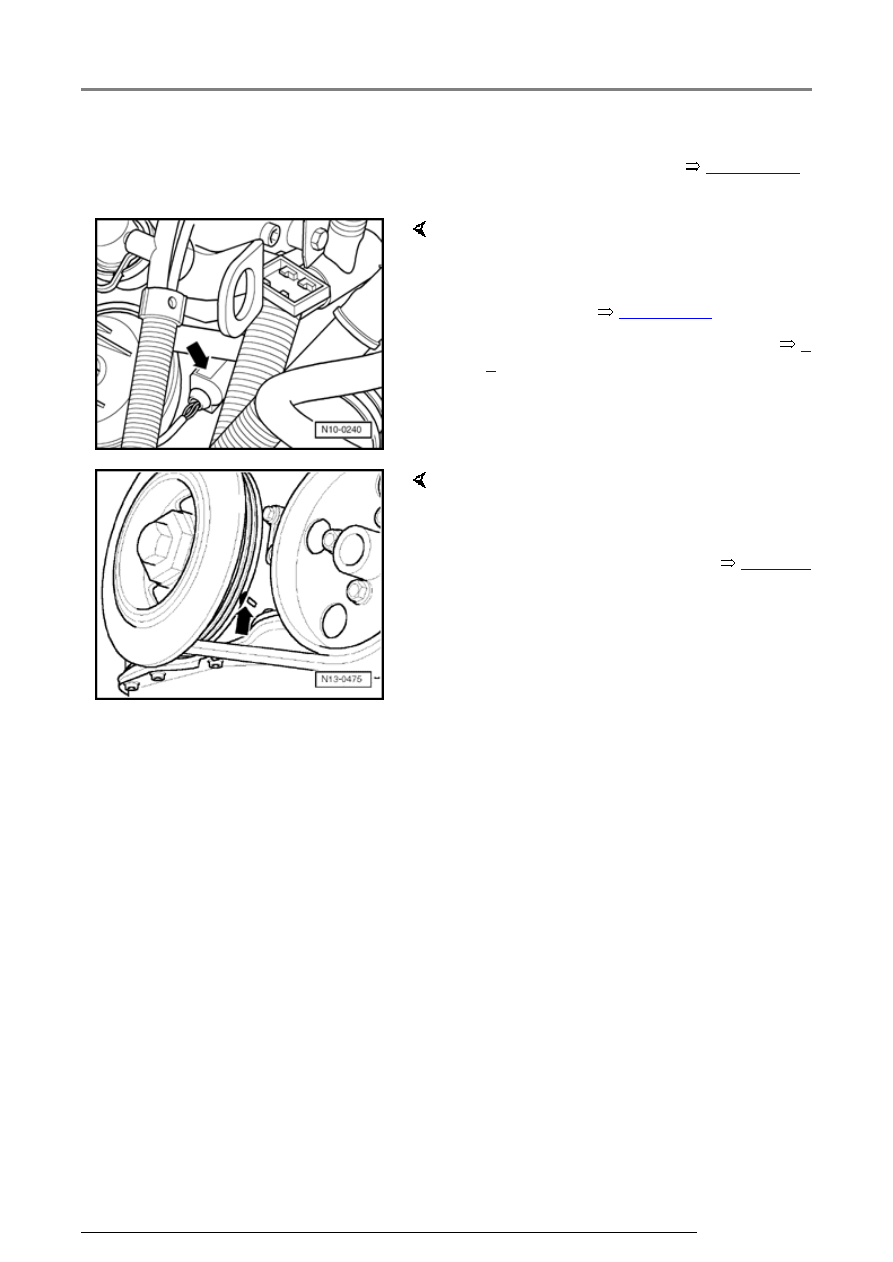

-  Disconnect 4-pin connector (arrow) from Engine

Coolant Temperature (ECT) sensor -G62
Engine Coolant Temperature sensor -G2

-  Drain coolant



Page 19-15

 .

-  Remove coolant thermostat housing



Page 19

6

 , Parts of cooling system, engine side.



-  Turn crankshaft on vibration damper securing

bolt in engine direction of rotation to TDC cyl. 1
(arrow).

-  Remove cylinder head cover



Page 15-

Cylinder head, servicing

15-28





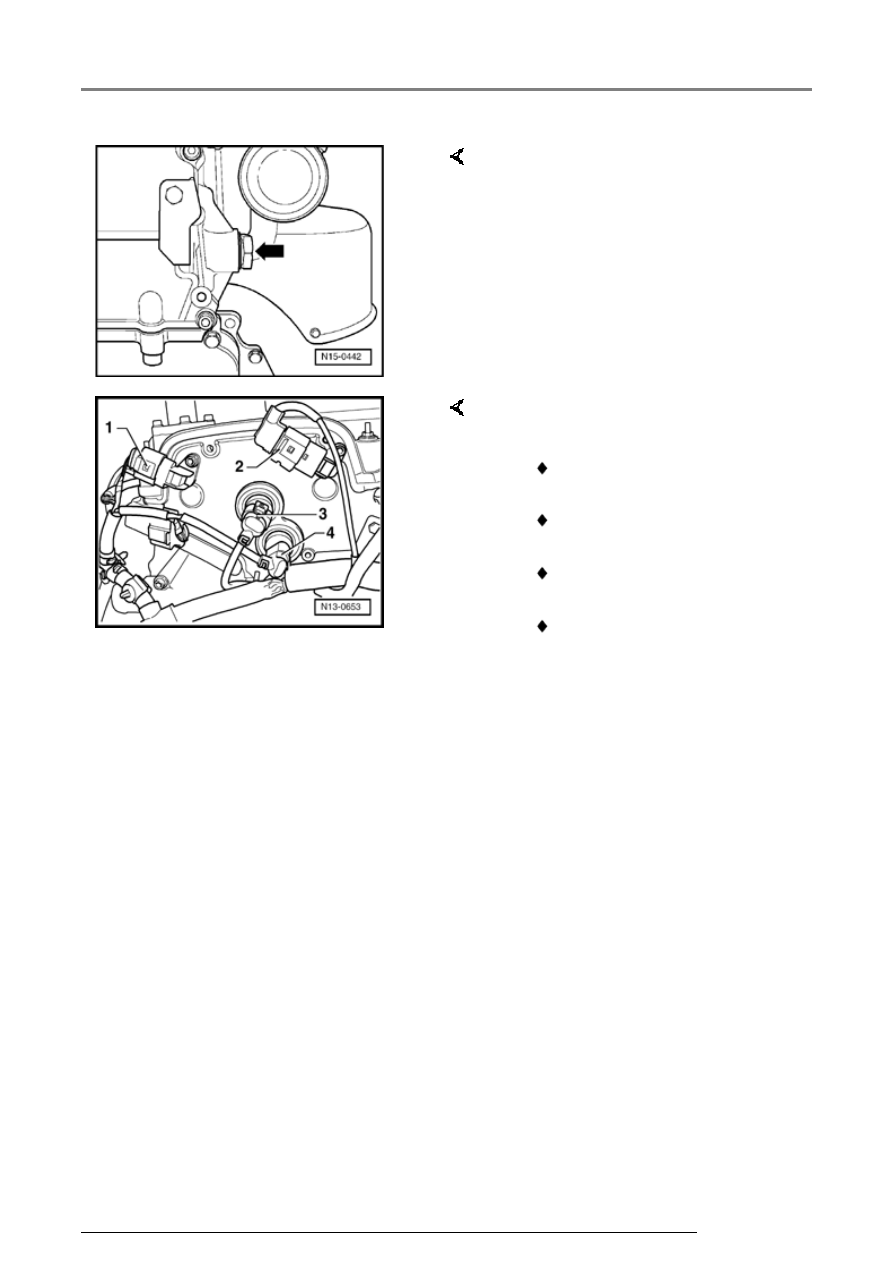

-  Remove camshaft roller chain

tensioner (arrow).



Note:

Mark connector and component
before disconnecting.


-  Disconnect connections from

following components on cover:



 Camshaft Position (CMP)

sensor -G40- -1-,



 Camshaft Position (CMP)

sensor 2 -G163- -2-,



 Valve -1- for camshaft

adjustment -N205- -3-,



 Camshaft adjustment valve 1

(exhaust) -N318- -4-.

-  Release and free wiring harness.

Cylinder head, servicing

15-29







-  Remove camshaft cover



Page 15-11

 ;

Removing and installing camshaft.



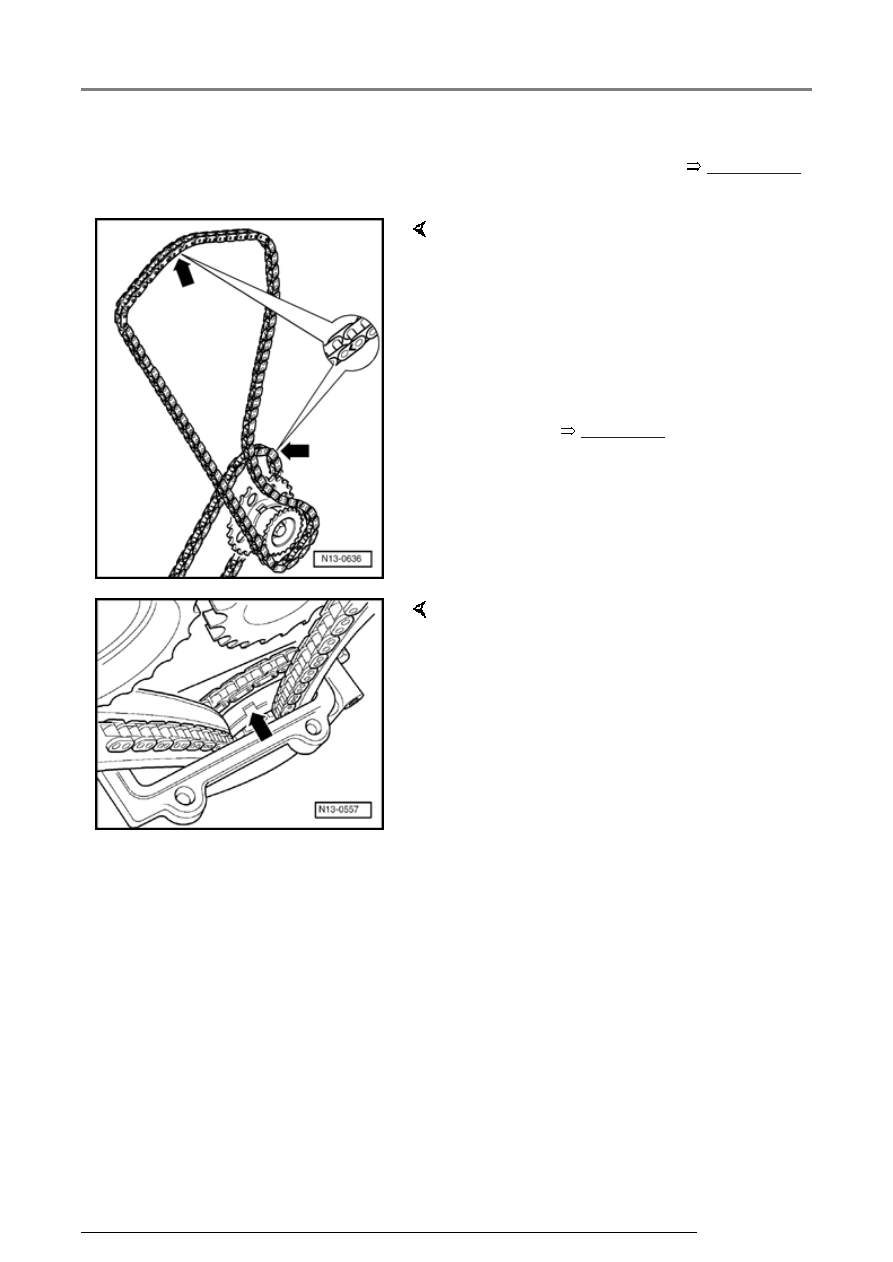

Note:

Do not mark chain with a punched mark, notch or
similar!


-  Mark roller chains before removing (e.g. with

paint, arrow pointing in direction of rotation).

-  Separate front exhaust pipe from exhaust

manifold



Page 26-1

 , Removing and installing

parts of exhaust system.

-  Check timing settings:



Note:

This condition only occurs at every 2nd TDC
position.


   When correctly positioned at TDC cyl. 1, a

groove (arrow) can be seen in intermediate shaft
chain sprockets

Cylinder head, servicing

15-30







If the notch cannot be seen:





-  Turn crankshaft one full turn further in engine

direction of rotation.





Note:





When the crankshaft is turned, the tensioning rail
must be pressed against the camshaft roller
chain by hand instead of with the chain
tensioner.




Note:

If the camshaft bar cannot be installed, turn the
crankshaft in engine direction of rotation until
approx. 5 mm past the TDC setting for No. 1 cyl.
(dependent on drive chain tolerances).


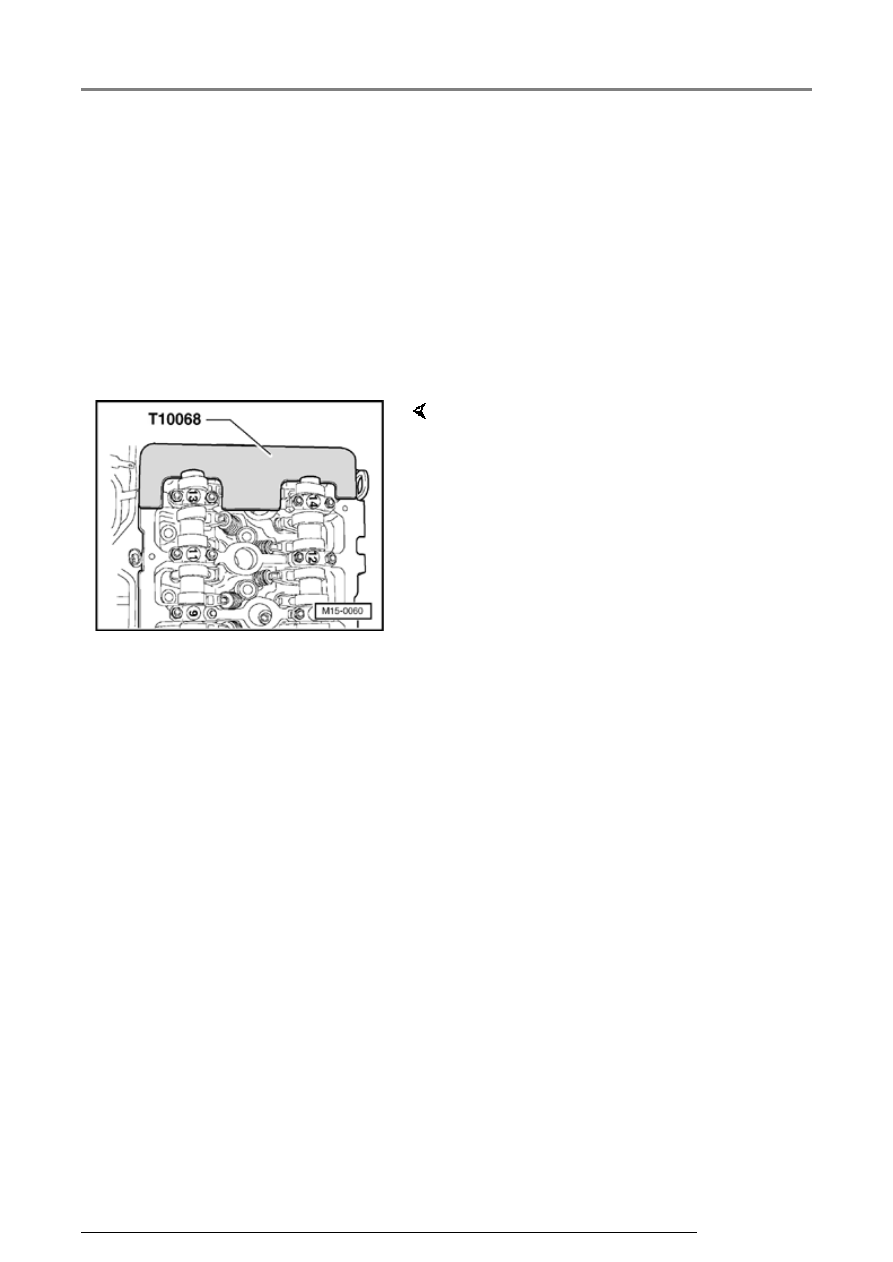

   The camshaft bar T10068 must engage in both

shaft grooves.

Cylinder head, servicing
