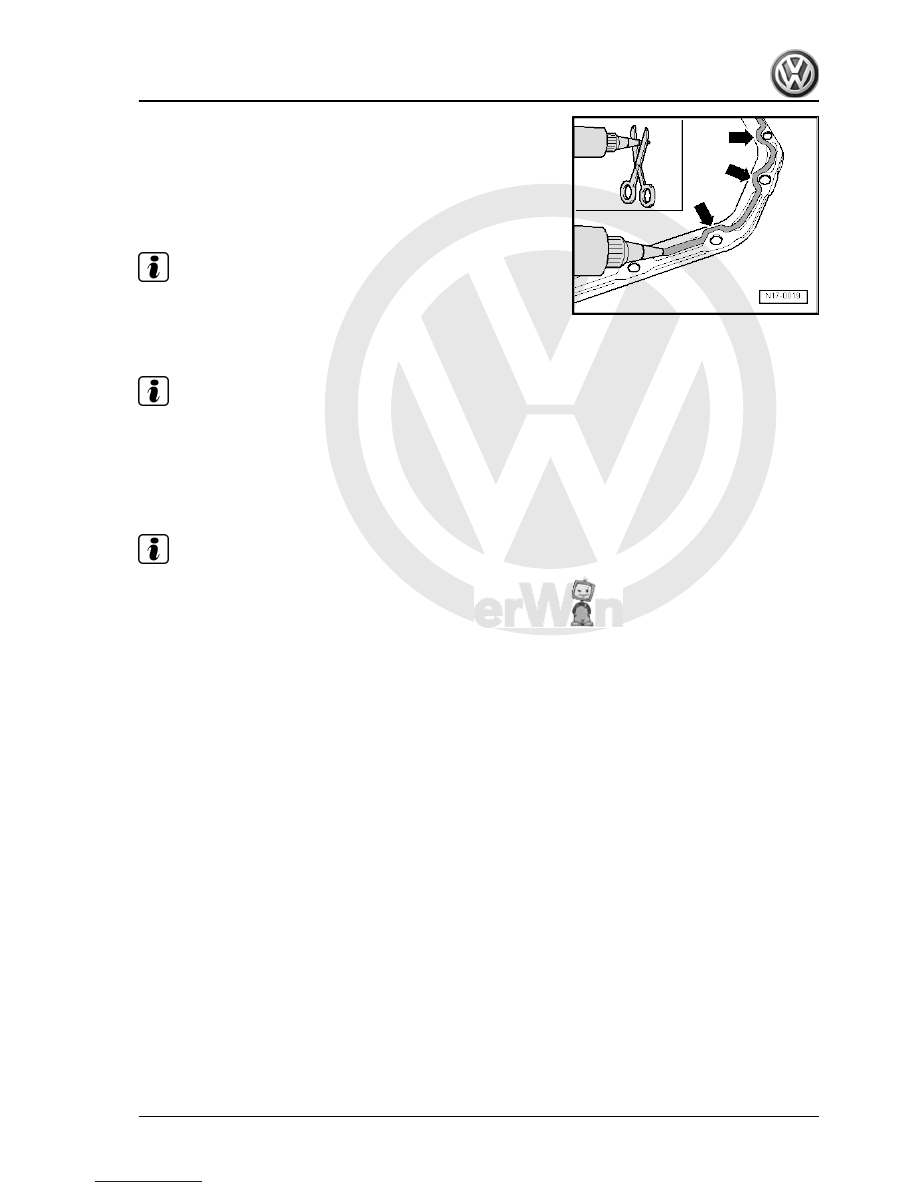

– Apply silicone sealant, as shown, onto crankcase clean seal‐

ing surface. Sealing cord shall:

♦ Be 2...3 mm thick.
♦ Run on inside of bolt holes region -arrows-.

Note

Sealing cord may not be thicker, otherwise excess sealant may

drop into crankcase and block suction tube strainer.

– Install crankcase immediately and slightly tighten all the bolts.

Note

Crankcase shall be aligned with engine block.

Note

After installing the crankcase, the sealant should dry for approx‐

imately 30 minutes before replenishing with engine oil.

Fox 2004 ➤

1. Lubrication system components - remove and install

69



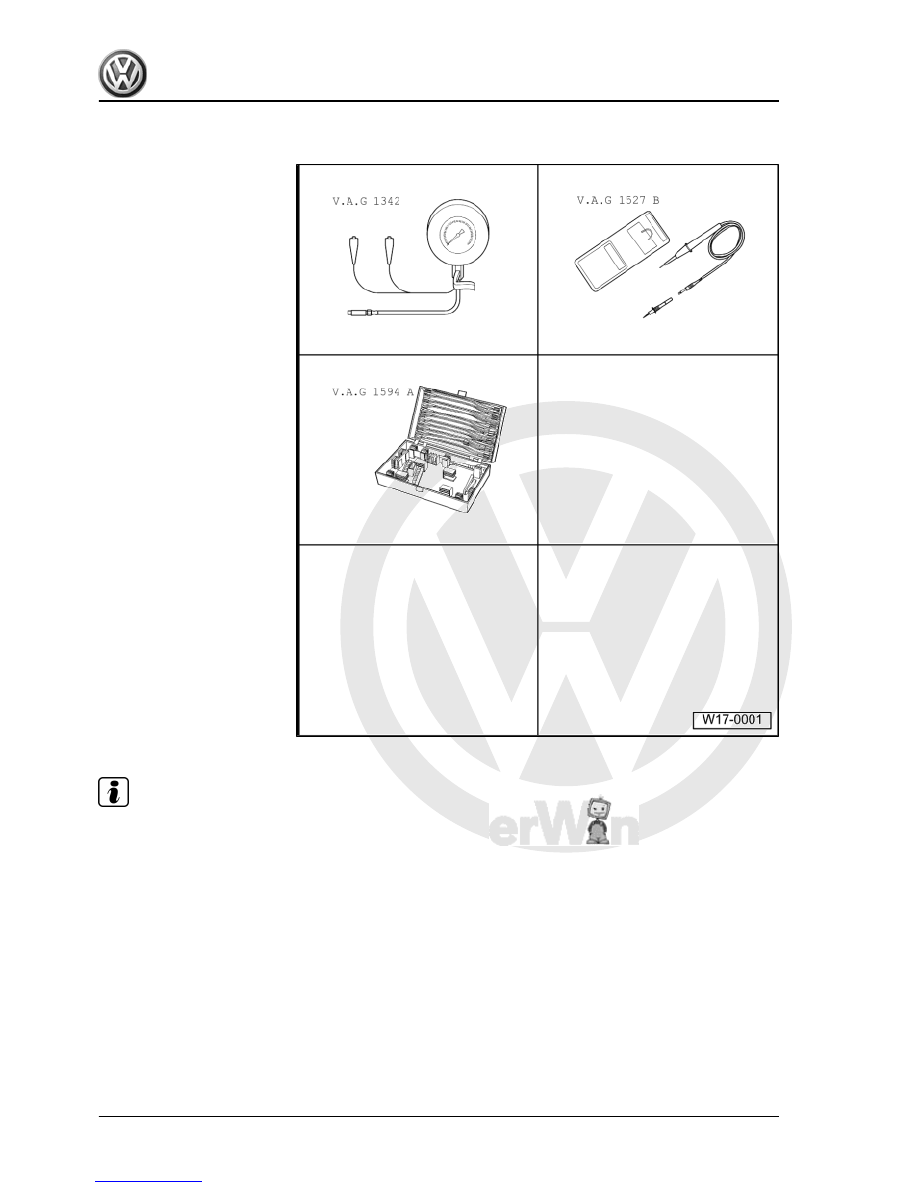

Special tools and workshop

equipment required
♦ Oil pressure meter -

V.A.G 1342-

♦ Test probe -VAG 1527B-
♦ Auxiliary measuring cable

set -VAG 1594C-

Note

Operation and maintenance test of visual and acoustic oil pres‐

sure indicator ⇒ Current flow diagrams, Electrical fault finding and

Fitting locations

Fox 2004 ➤

70



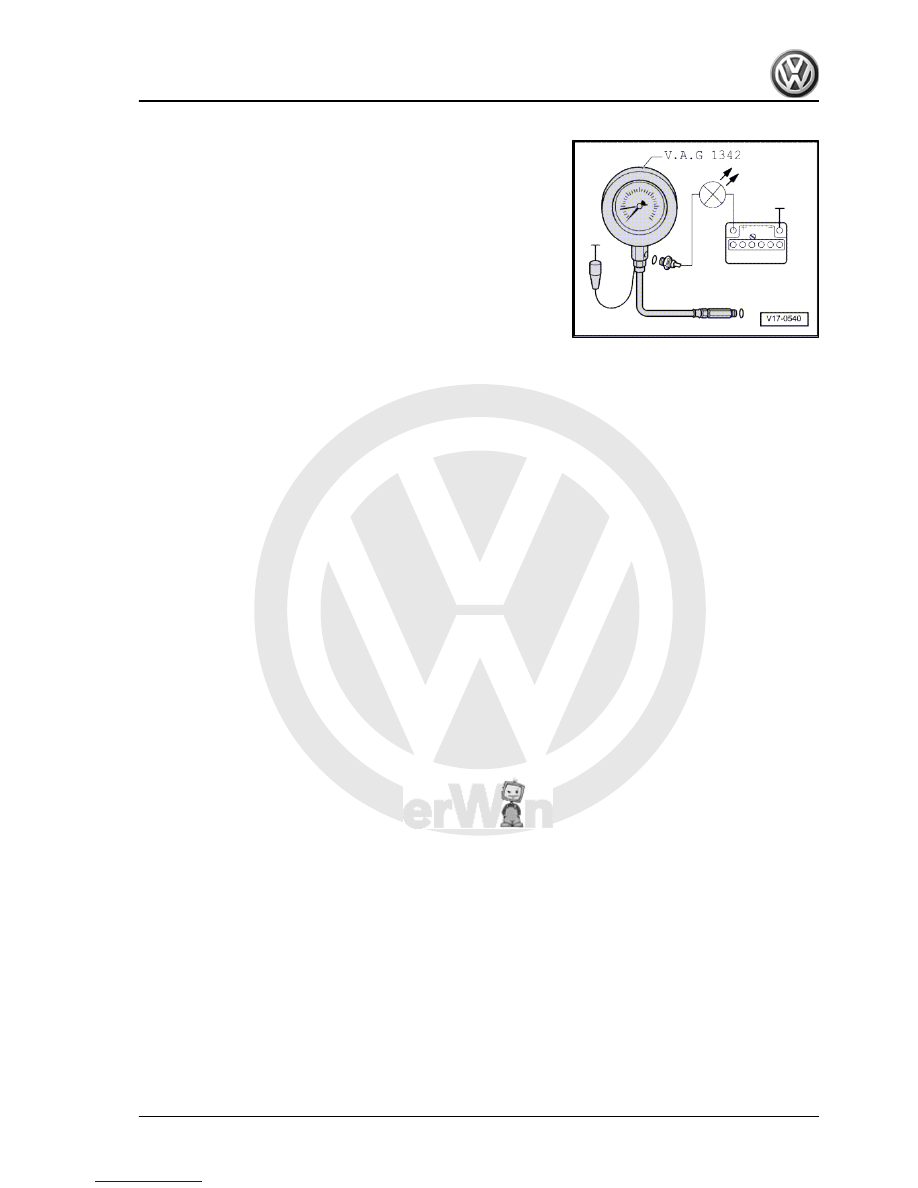

– Install test equipment in place of the oil pressure switch on the

oil filter support.

– Connect brown wire of tester to earth (-).
– Connect Test probe -VAG 1527B- , using Aux. measuring ca‐

ble set -VAG 1594C- , to battery positive (+) terminal and Oil

pressure switch -F1- .

– Start engine and increase speed slowly. In 0.55...0.85 bar, the

LED shall light OFF; otherwise, replace the Oil pressure

switch .

– Continue increasing speed. At 2000 rpm and an oil tempera‐

ture of 80°C, the oil pressure should be at least 2.0 bar.

At higher speeds, oil pressure may not exceed 5.8 bar. If neces‐

sary, replace the oil filter support.

Fox 2004 ➤

1. Lubrication system components - remove and install

71



Cooling system components - re‐

move and install

Note

♦

The cooling system is under pressure when the engine is hot.

Thus, it is necessary to reduce the pressure before doing re‐

pairs.

♦

Hose junctions are fastened by spring clamps. When doing

repairs, use spring clamps only.

♦

To install spring clamps, we recommend using Standart-type

clamp pliers -VAS 5024A - or Hose clip pliers -VAG 1921- .

Check the cooling system tightness with the Engine cooling sys‐

tem tester -VAG 1274- and the Adapter for VAG 1274 -VAG

1274/8- and the Adapter for VAG 1274 -VAG 1274/9- .
Cooling system components in the body

⇒ page 73

 .

Cooling system components in the engine

⇒ page 74

 .

Cooling system - drain and replenish

⇒ page 76

 .

Coolant mixture proportions

⇒ page 76

 .
