Technical data

1.1

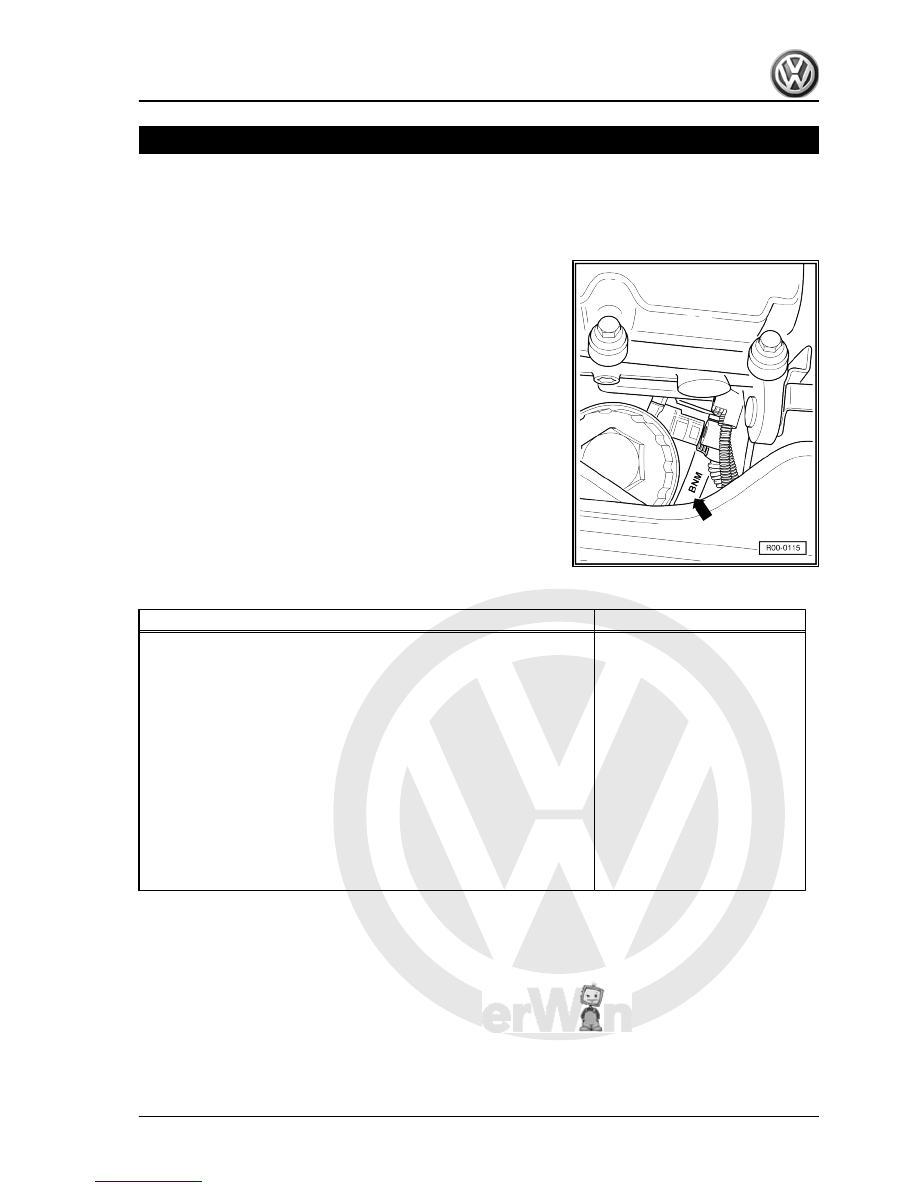

Engine number

Engine number (“identification letters” and “serial number”) is en‐

graved on the flange between the engine and the transmission.
The engine number comprises a maximum nine digits (alphanu‐

merical). The first part (max. of three identification letters) repre‐

sents the “the engine ID letters”; the second part (six characters)

represents the “serial number”. If more than 999,999 engines are

manufactured under the same identification letters, the first digit

of the 6-digit group is replaced by a letter.
Additionally a sticker is found on the upper cover of the mechan‐

ical distribution system -arrow- with the “engine identification

letters” and the “serial number”.
The “engine identification letters” are also indicated on the vehicle

data plate.

1.2

Engine features

Engine codes

BNM

Production

11.04 ▸

Cylinder volume

l

1,4

Power

kW / rpm

51/4000

Torque

Nm / rpm

155/1600 to 2800

Bore

∅Ø mm

79,5

Stroke

mm

95,5

Compression rate

19,5

Octanage

at least

49

Firing order



1-2-3

Catalytic converter

yes

Recirculation of exhaust gases

yes

Charged

yes

Intercooler

yes

Fox 2004 ➤

1. Technical data

1



Engine - remove and install

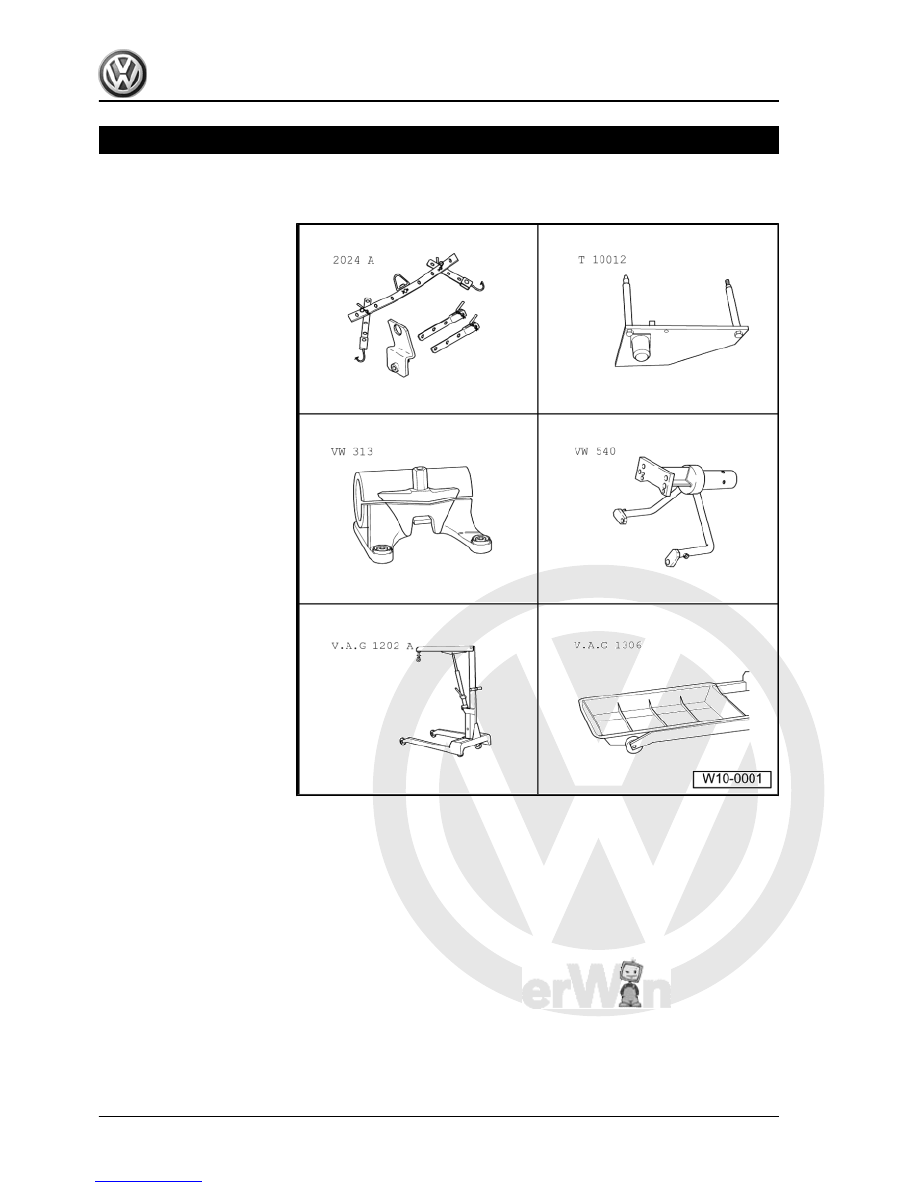

Special tools and workshop

equipment required
♦ Lifting tackle -2024A-
♦ Engine and gearbox sup‐

port -T10012-

♦ Engine and gearbox sup‐

port -VW 313-

♦ Engine and gearbox sup‐

port -VW 540-

♦ Workshop winch -

V.A.G 1202 A-

♦ Oil sump -V.A.G 1306-

Fox 2004 ➤

2

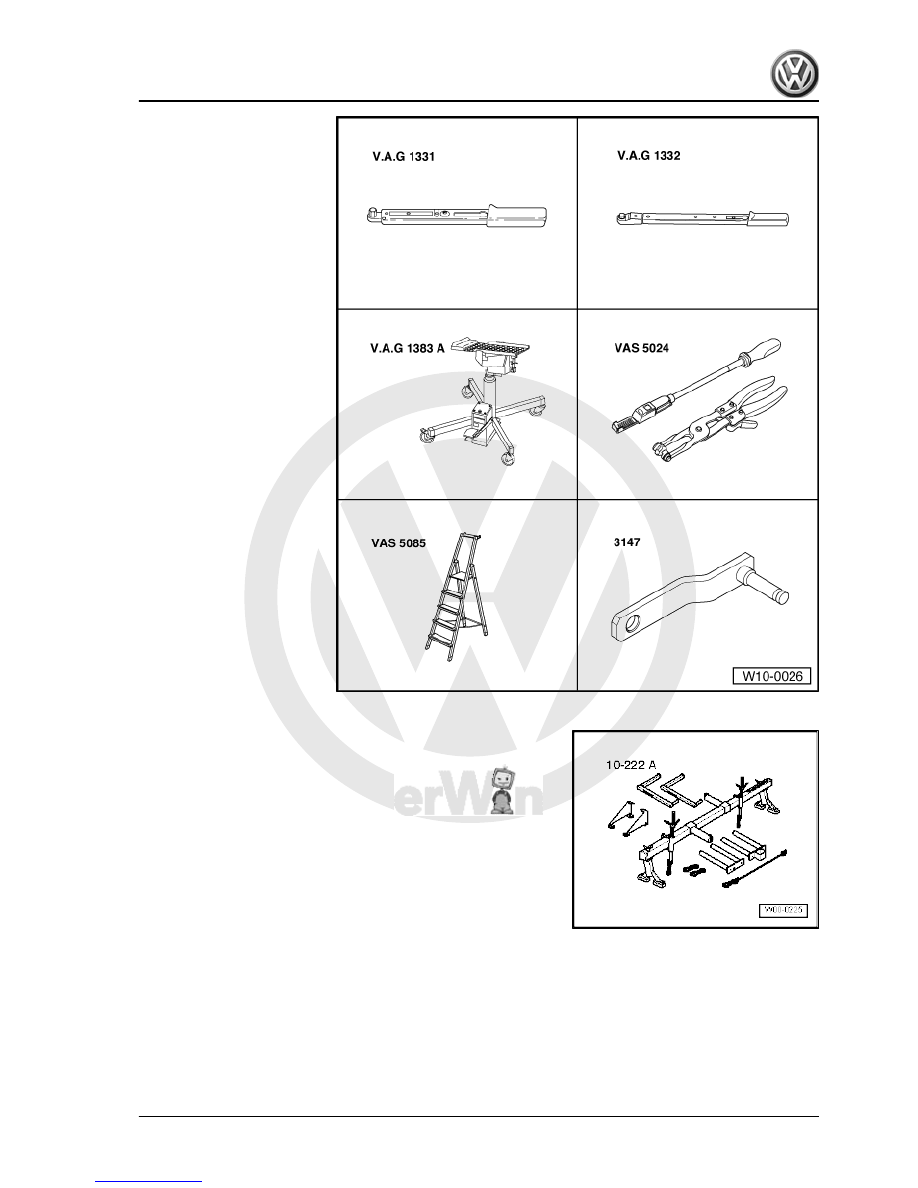

♦ Torque wrench - 40 to 200

Nm ( enc. 1/2") -VAG 1332-

♦ Jack for Gearbox or engine

+ gearbox combo -VAG

1383A-

♦ Standart-type clamp pliers -

VAS 5024A-

♦ Stepladder -VAS 5085-
♦ Engine and gearbox sup‐

port -3147-

♦ 3 Washers A13 X 24 X 2.5
♦ 2 Washers A10.5 X 21 X 2
♦ Cable tie

♦ Support bracket -10-222A- with   Rack -10-222A/1-

♦ Adapter -10-222A/18-

Fox 2004 ➤

1. Engine - remove and install

3



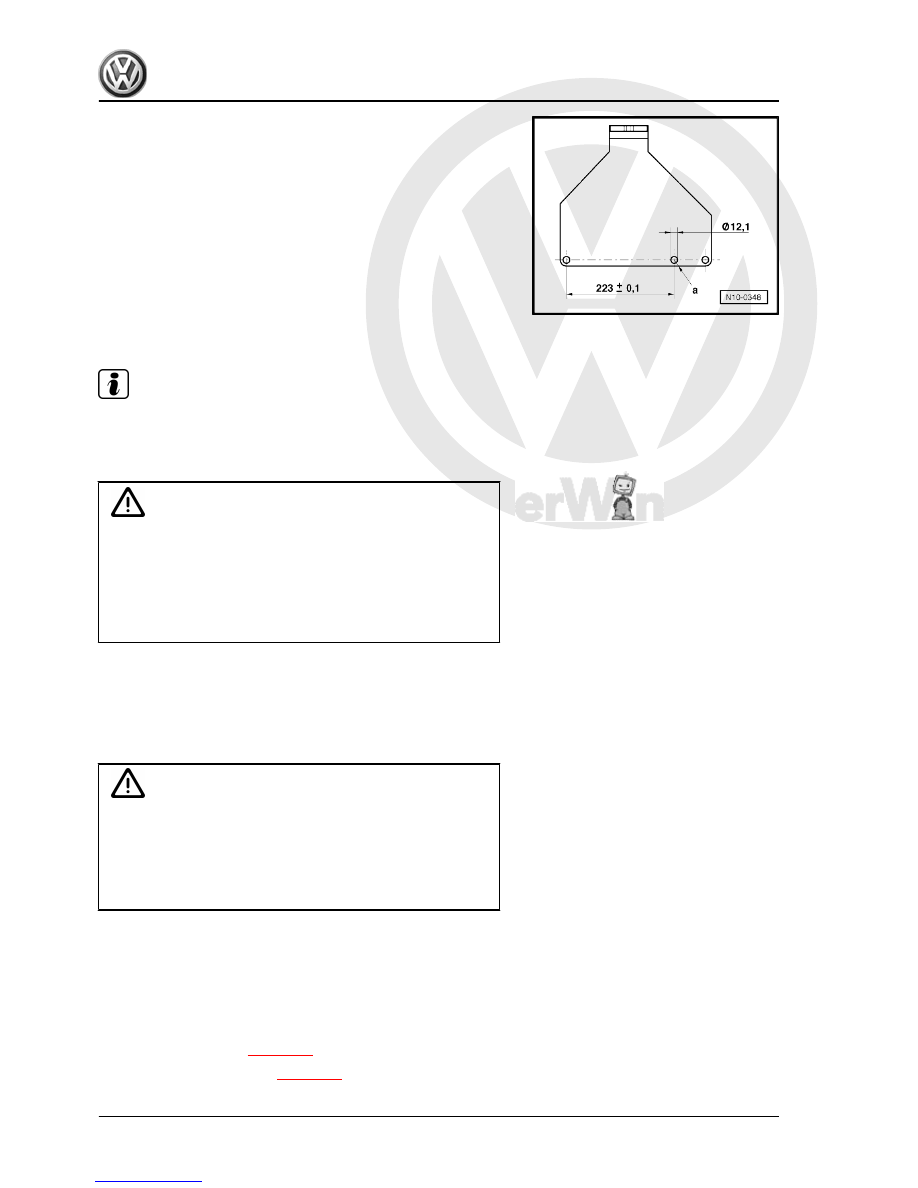

as the other holes.

1.1

Removal - indications

Note

Check whether vehicle has code radio, if so obtain the anti-theft

code before disconnecting earth lead from battery.

– The engine is removed downwards, along with transmission.

WARNING

For installation jobs, especially in the engine compartment, due

to reduced existing space, consider the following:

♦ All hoses (fuel, hydraulics, activated charcoal filter sys‐

tem, cooling fluid and gas, brake fluid, vacuum) and elec‐

tric cables must be restored to original positions.

♦ Provide easy access to all the moving or hot parts.

– With ignition switched off, disconnect battery earth lead.
– All cable ties that open or break during engine removal should

be replaced and installed at the same locations when engine

is installed.

– Release the supply and return hoses in the cylinder head.

WARNING

♦ The fuel and the fuel system hoses may be very hot (burn

risk)!

♦ Fuel system is under pressure!
♦ Use protective gloves and goggles when performing any

repairs on the fuel system!

– Remove connecting pipe between intercooler and intake con‐

necting flange.

⇒ page 14

 .

– Drain the cooling system

⇒ page 76

 .

Fox 2004 ➤
