Volkswagen Passat / Passat Variant (2011 year). Manual - part 22

tudinal member -2- congruently and cut out.

– Take note of laser weld seam -4-.

Passat 2011 ➤ , Passat Variant 2011 ➤

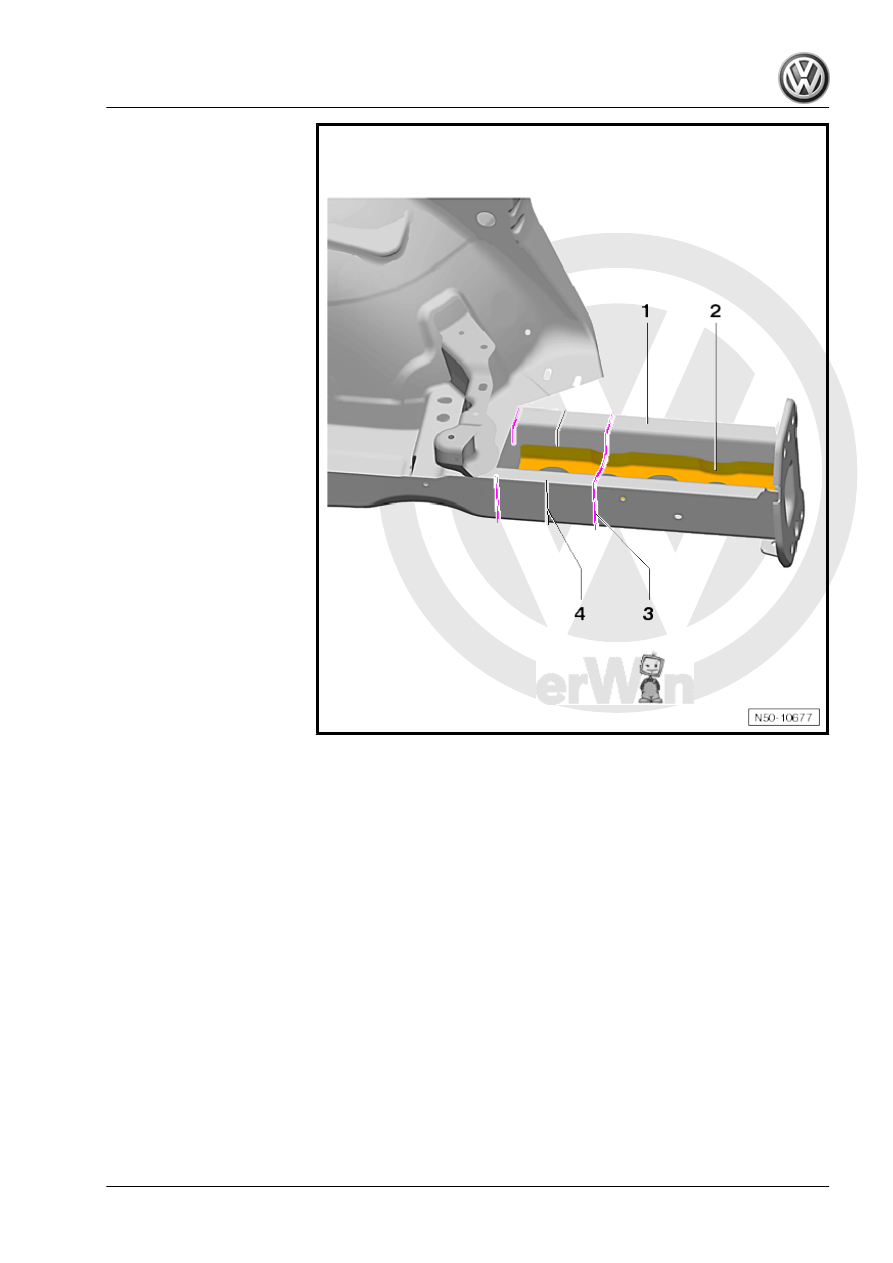

9. Renewing front longitudinal member - part section

85

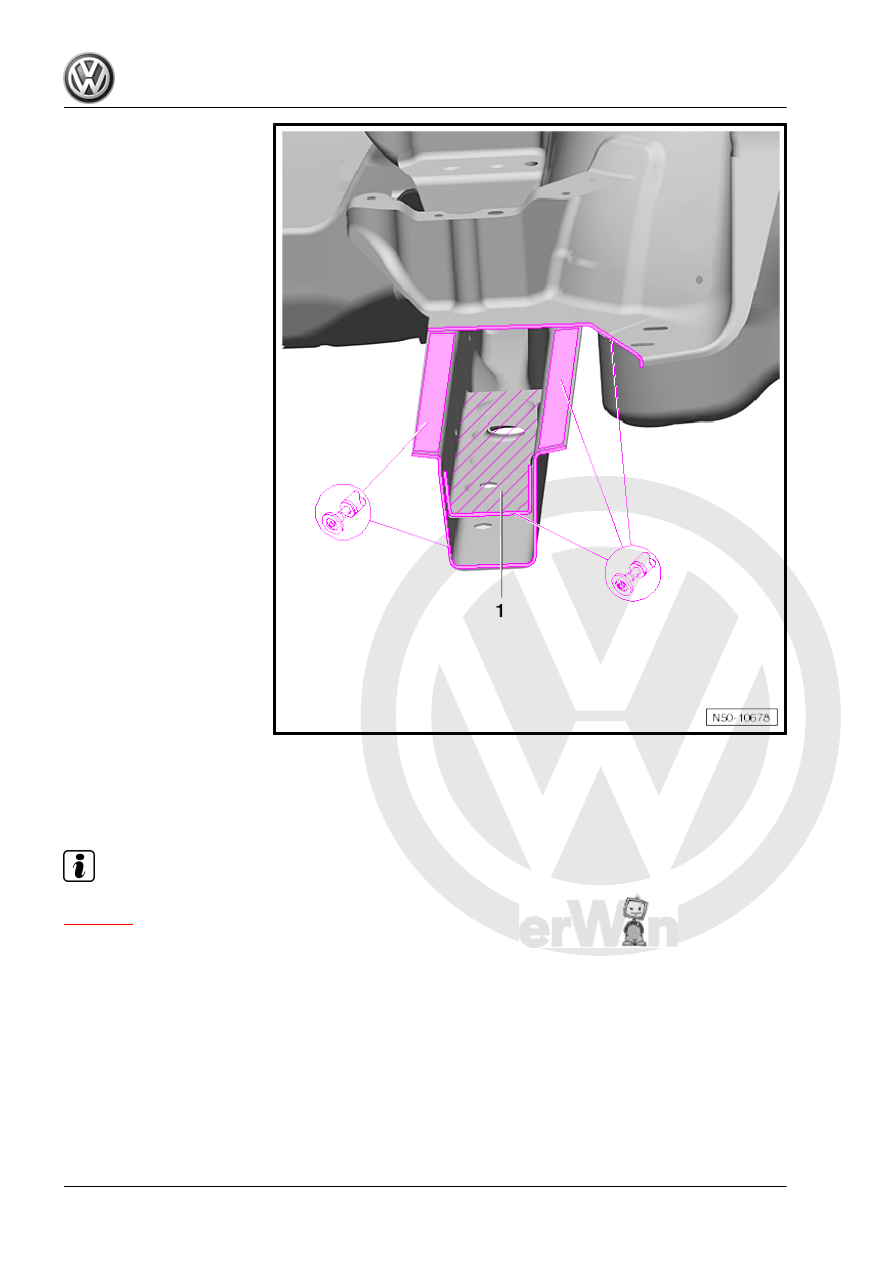

ber reinforcement -1-.

9.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 83

 .

9.3.1

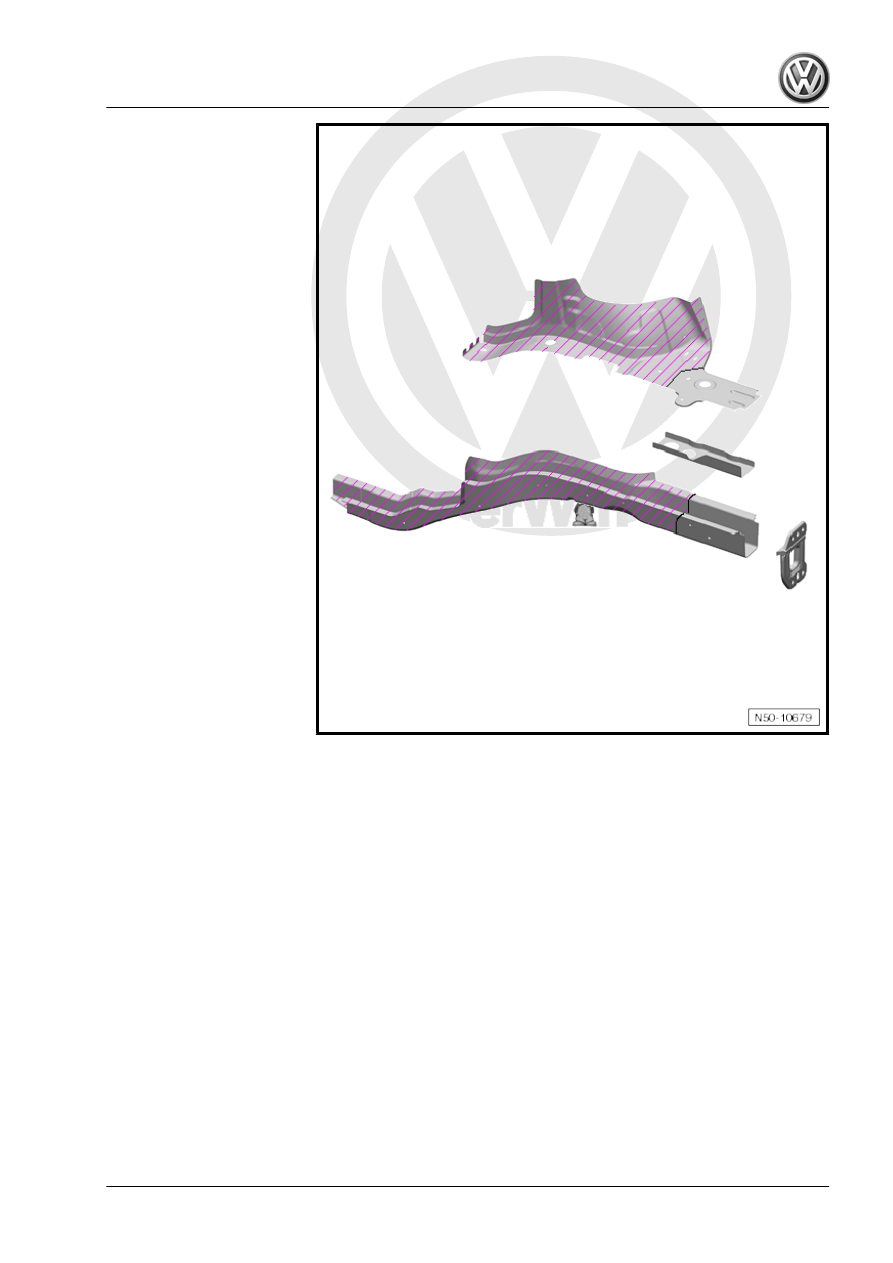

Preparing new part

New part
♦ Longitudinal member
♦ Cover plate for longitudinal member
♦ Longitudinal member reinforcement (parts designation: bulk‐

head plate)

Passat 2011 ➤ , Passat Variant 2011 ➤

86

member cover plate and cut out.

9.3.2

Welding in

– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.

Passat 2011 ➤ , Passat Variant 2011 ➤

9. Renewing front longitudinal member - part section

87

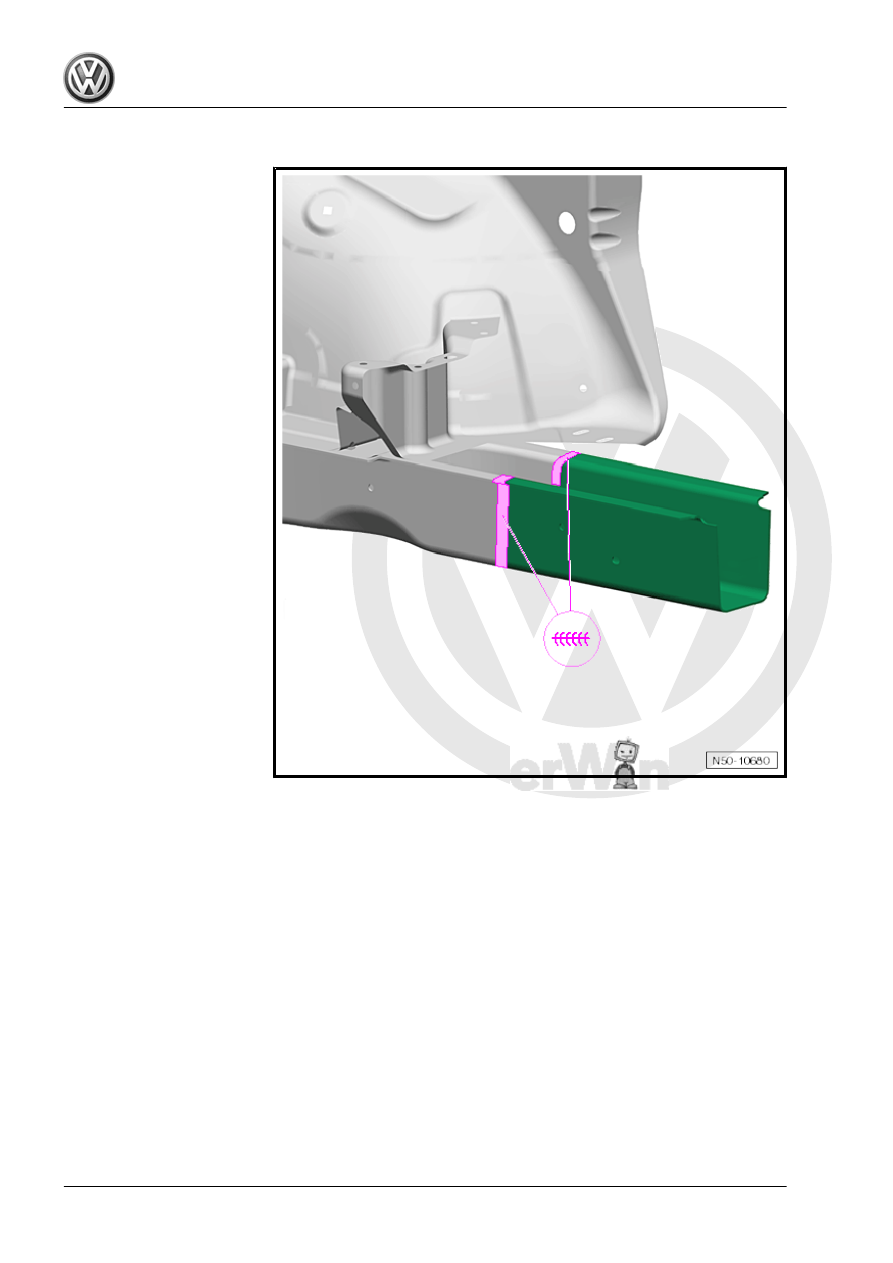

– Weld in longitudinal member parting cut (all round), SG con‐

tinuous weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

88
