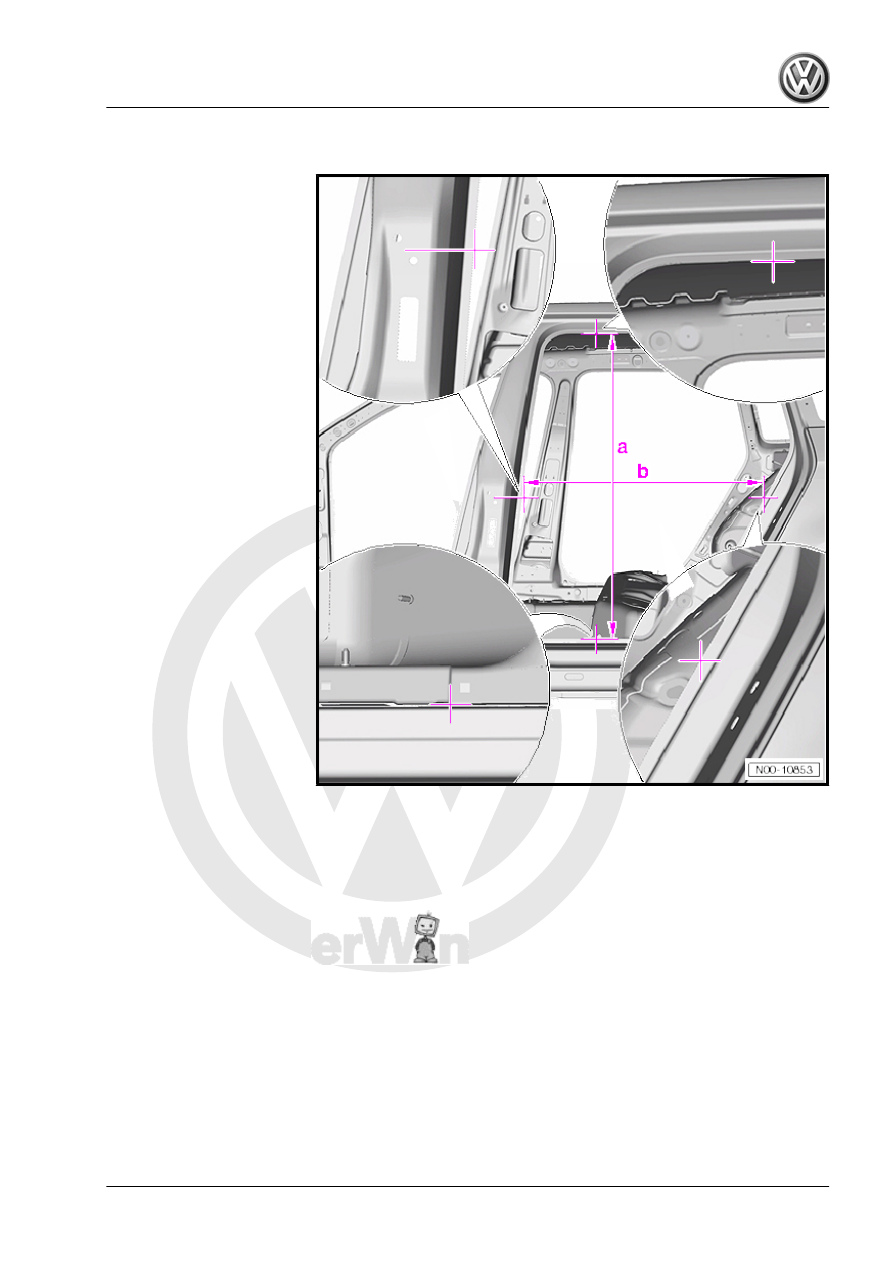

Body - centre (Variant)

a - 972 mm ± 2.0 mm
b - 740 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Body dimensions

21

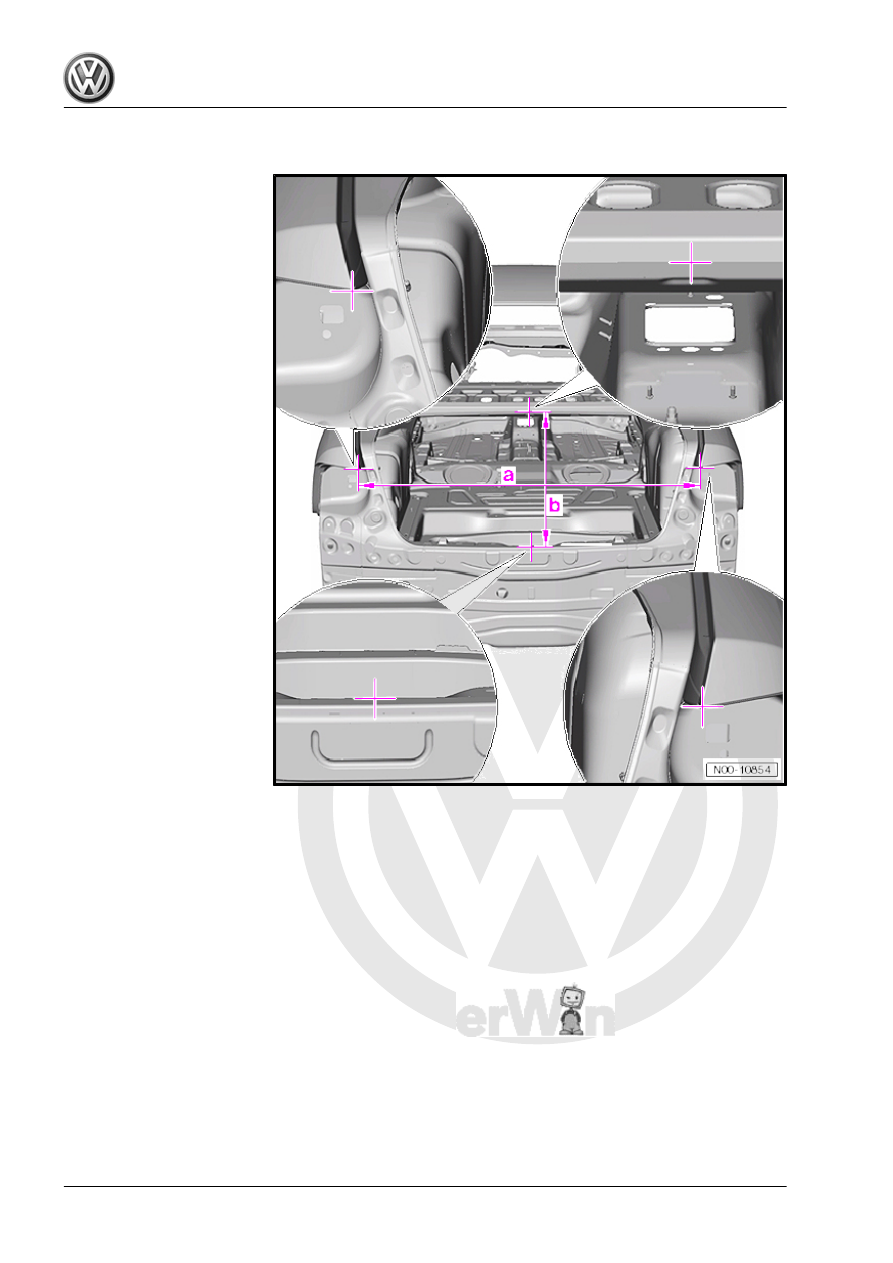

Body - rear

a - 528 mm ± 2.0 mm
b - 1,125 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

22

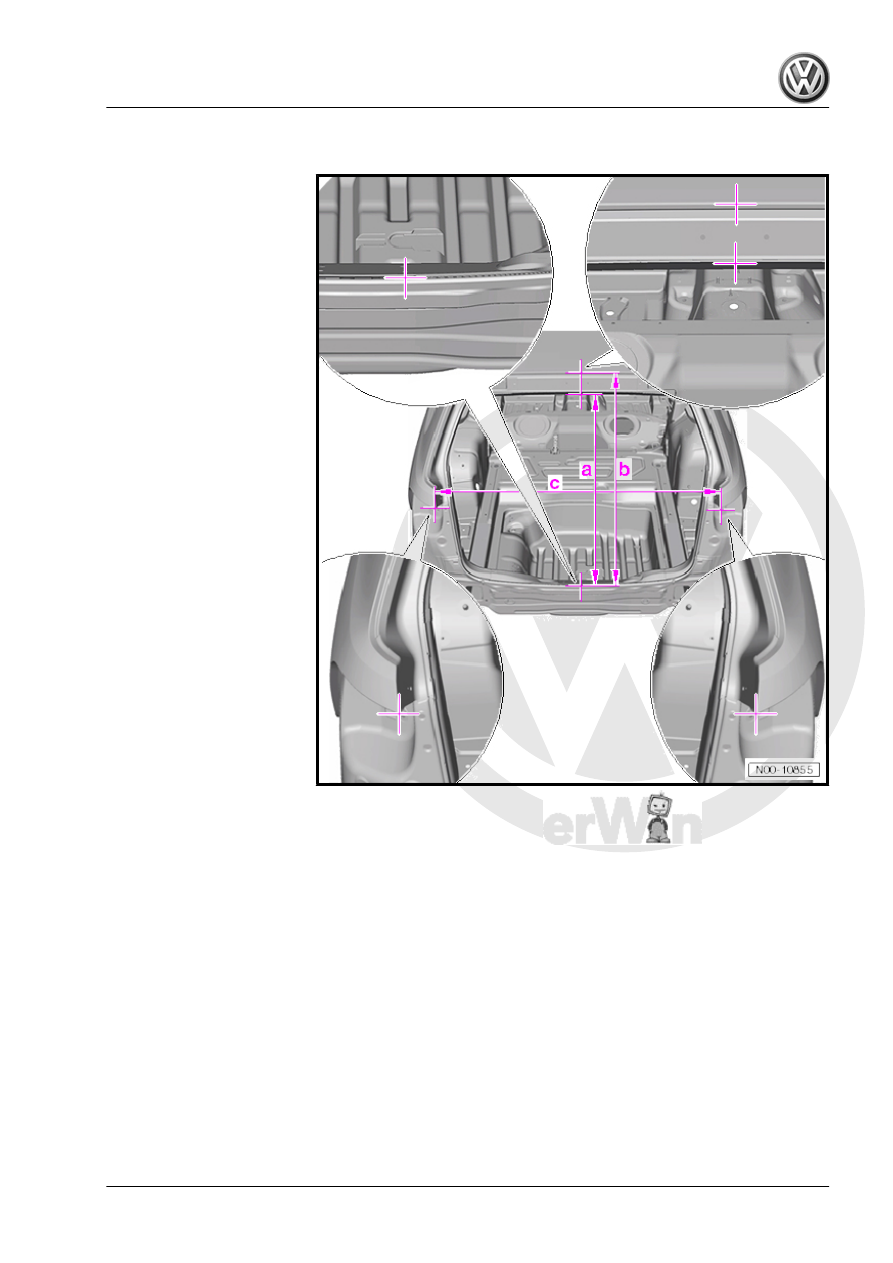

Body - rear (Variant)

a - 857 mm ± 2.0 mm
b - 938 mm ± 2.0 mm
c - 1,198 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Body dimensions

23

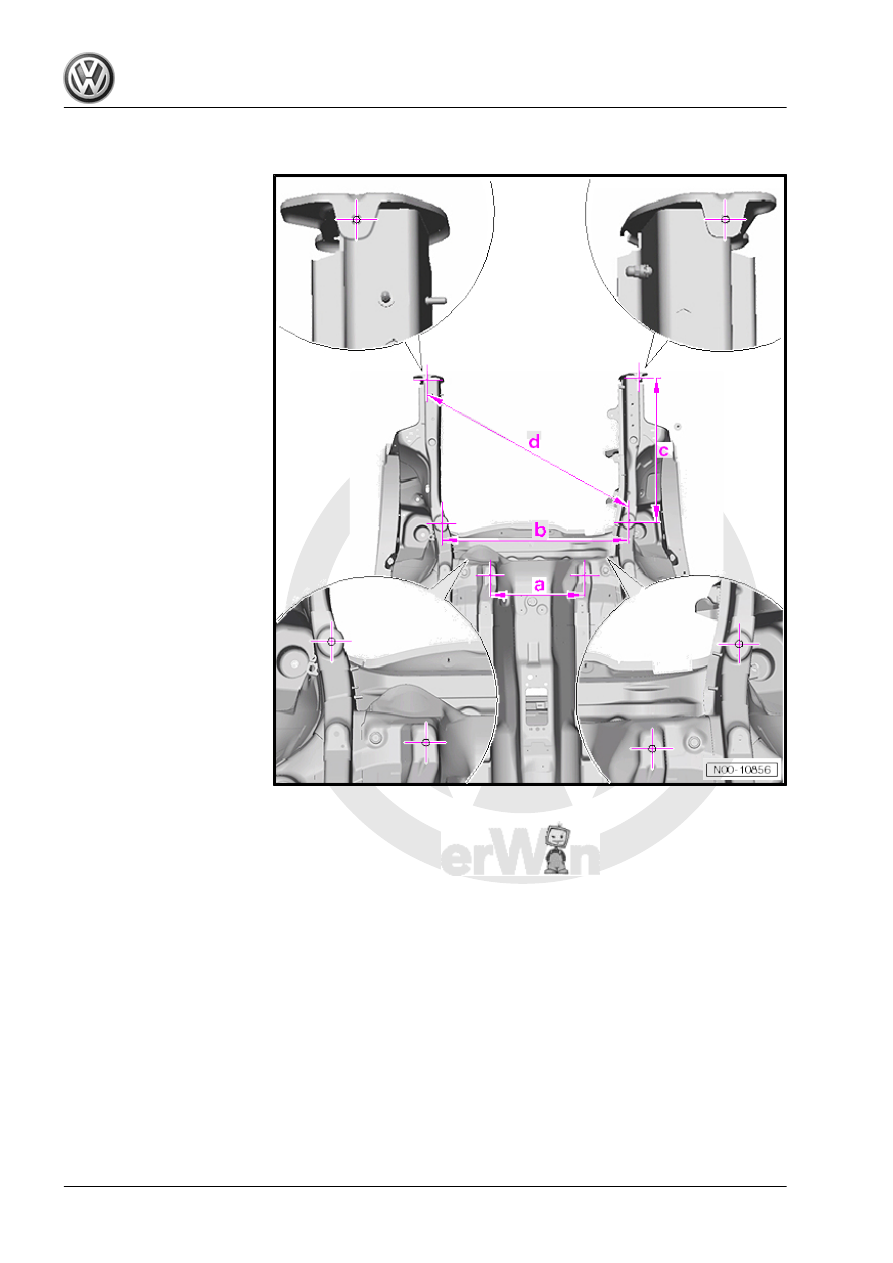

Floor group - front

a - 430 mm ± 2.0 mm
b - 874 mm ± 2.0 mm
c - 678 mm ± 2.0 mm
d - 1,152 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

24
