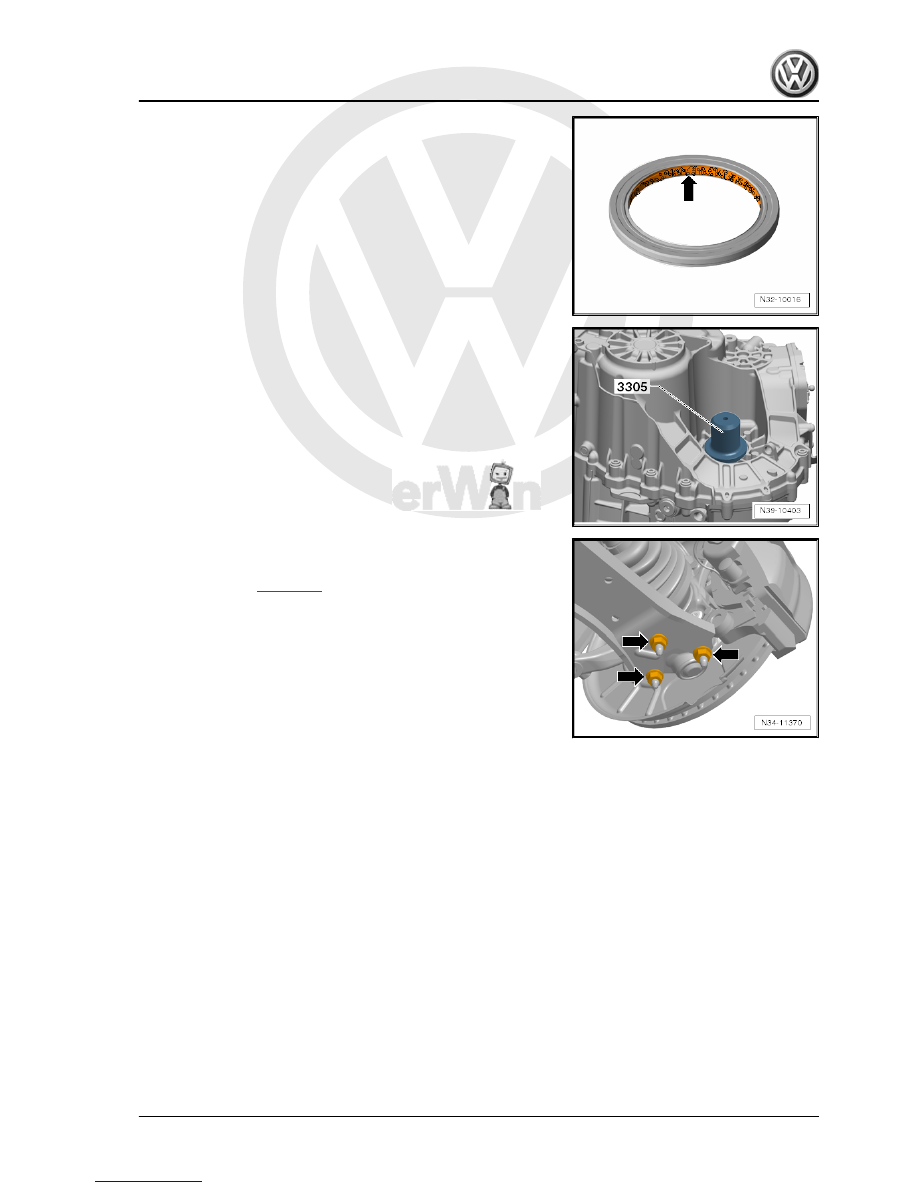

– Drive in new seal to stop with thrust piece -3305- , being careful

not to cant seal.

– Insert flange shaft.
– Tighten new countersunk bolt to 30 Nm. When doing this,

press flange shaft against gearbox so that bolt engages in

thread.

drive shafts .

Removing and installing drive shafts .

– Renew gear oil

⇒ page 30

 .

sembly overview - noise insulation .

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

1. Oil seals

123
