BE2MO–01

I08152

N14863

3

1

2

5

3

1

5

2

I15351

2

1

I15352

2

1

–

BODY ELECTRICAL

POWER WINDOW CONTROL SYSTEM

BE–69

3473

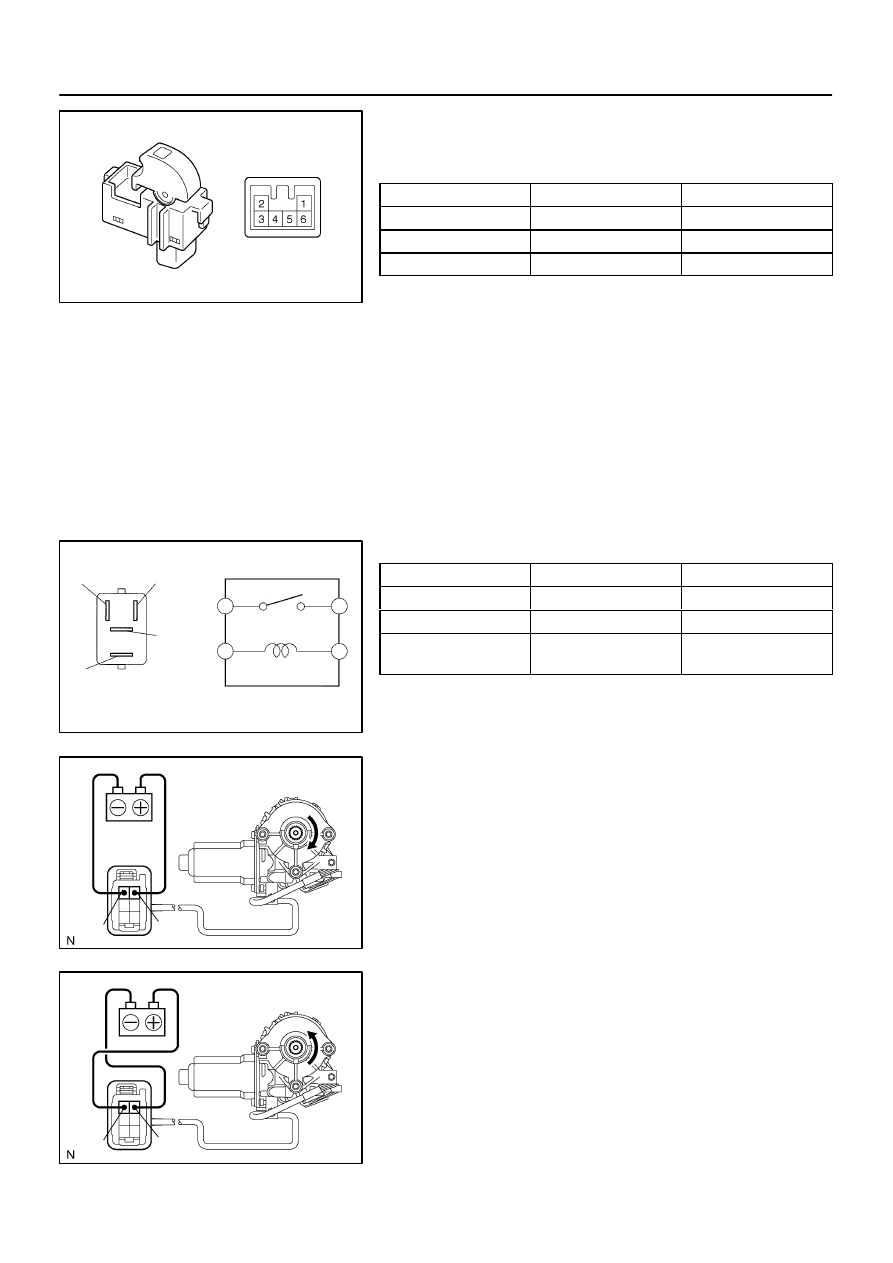

INSPECTION

1.

INSPECT REAR DOOR POWER WINDOW SWITCH
CONTINUITY

Switch position

Tester connection

Specified condition

UP

2 – 3, 4 – 5

Continuity

OFF

2 – 3 – 5

Continuity

DOWN

2 – 4, 3 – 5

Continuity

If continuity is not as specified, replace the switch.
2.

INSPECT POWER WINDOW SWITCH CIRCUIT
(Driver’s Door: See page

DI–1788

)

(Passenger ’s Door: See page

DI–1826

)

(Rear Door: See page

DI–1747

)

(Back Door: See page

DI–1747

)

3.

INSPECT POWER MAIN RELAY CONTINUITY

Condition

Tester connection

Specified condition

Always

1 – 2

Continuity

Always

3 – 5

No continuity

Apply B+ between

terminals 1 and 2.

3 – 5

Continuity

If continuity is not as specified, replace the relay.

4.

Driver’s Door:
INSPECT POWER WINDOW MOTOR OPERATION

(a)

Connect the positive (+) lead from the battery to terminal
1 and the negative (–) lead to terminal 2, and check that
the motor turns clockwise.

(b)

Reverse the polarity and check that the motor turns coun-
terclockwise.

If operation is not as specified, replace the power window mo-
tor.
NOTICE:
Since the jam protection may not work properly, be sure to
conduct procedures described in ”HOW TO RESET POW-
ER MOTOR (RESET AND PULSE SWITCH)” after this in-
spection.

I05476

2

1

I05477

2

1

I15357

2

1

I15358

2

1

I15353

2

1

BE–70

–

BODY ELECTRICAL

POWER WINDOW CONTROL SYSTEM

3474

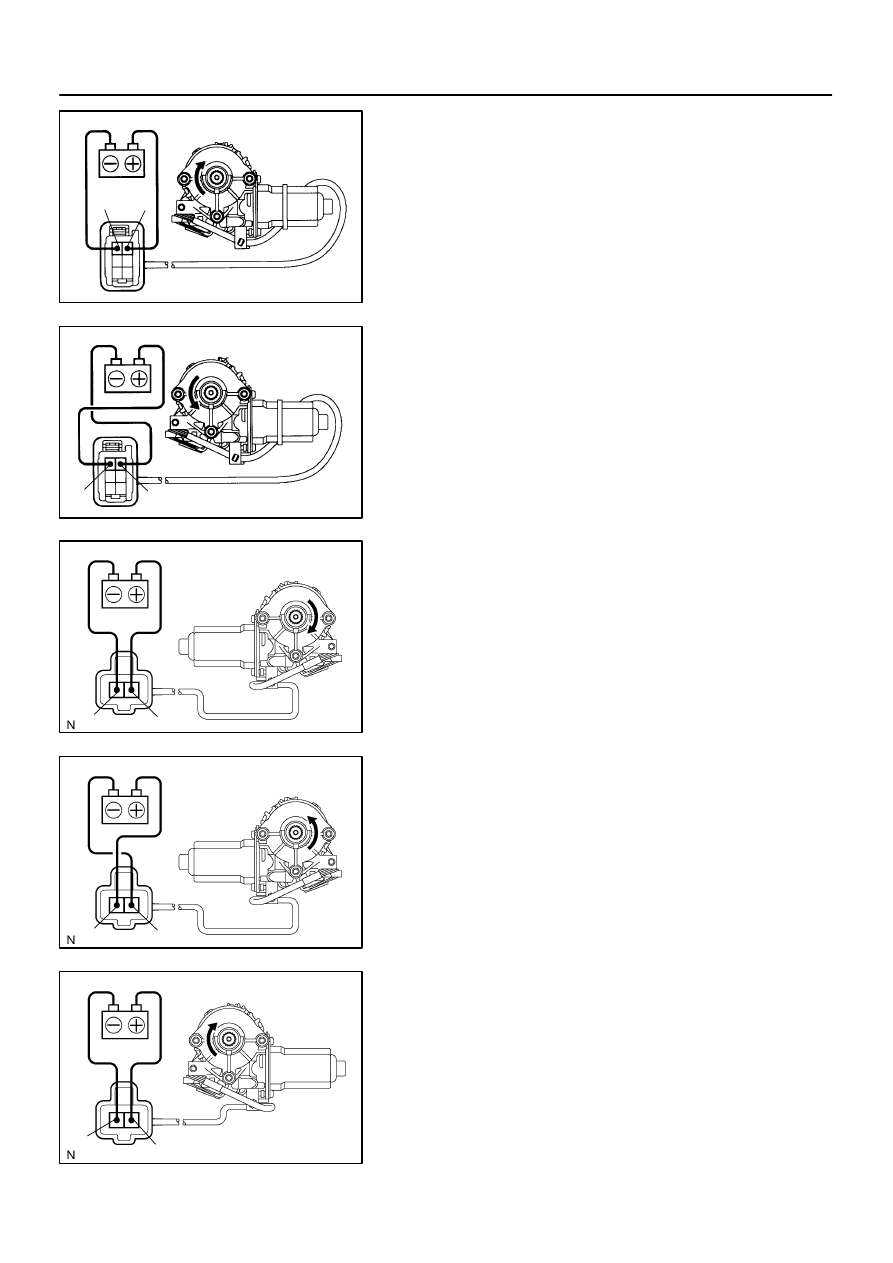

5.

Passenger ’s Door:
INSPECT POWER WINDOW MOTOR OPERATION

(a)

Connect the positive (+) lead from the battery to terminal
1 and the negative (–) lead to terminal 2, and check that
the motor turns clockwise.

(b)

Reverse the polarity and check that the motor turns coun-
terclockwise.

If operation is not as specified, replace the power window mo-
tor.
NOTICE:
Since the jam protection may not work properly, be sure to
conduct procedures described in ”HOW TO RESET POW-
ER MOTOR (RESET AND PULSE SWITCH)” after this in-
spection.

6.

Rear Right Door:
INSPECT POWER WINDOW MOTOR OPERATION

(a)

Connect the positive (+) lead from the battery to terminal
1 and the negative (–) lead to terminals 2, and check that
the motor turns clockwise.

(b)

Reverse the polarity and check that the motor turns coun-
terclockwise.

If operation is not as specified, replace the power window mo-
tor.

7.

Rear Left Door:
INSPECT POWER WINDOW MOTOR OPERATION

(a)

Connect the positive (+) lead from the battery to terminal
1 and the negative (–) lead to terminal 2, and check that
the motor turns clockwise.

I15354

2

1

I14317

2

1

I14318

2

1

I21531

2

1

I21532

2

1

–

BODY ELECTRICAL

POWER WINDOW CONTROL SYSTEM

BE–71

3475

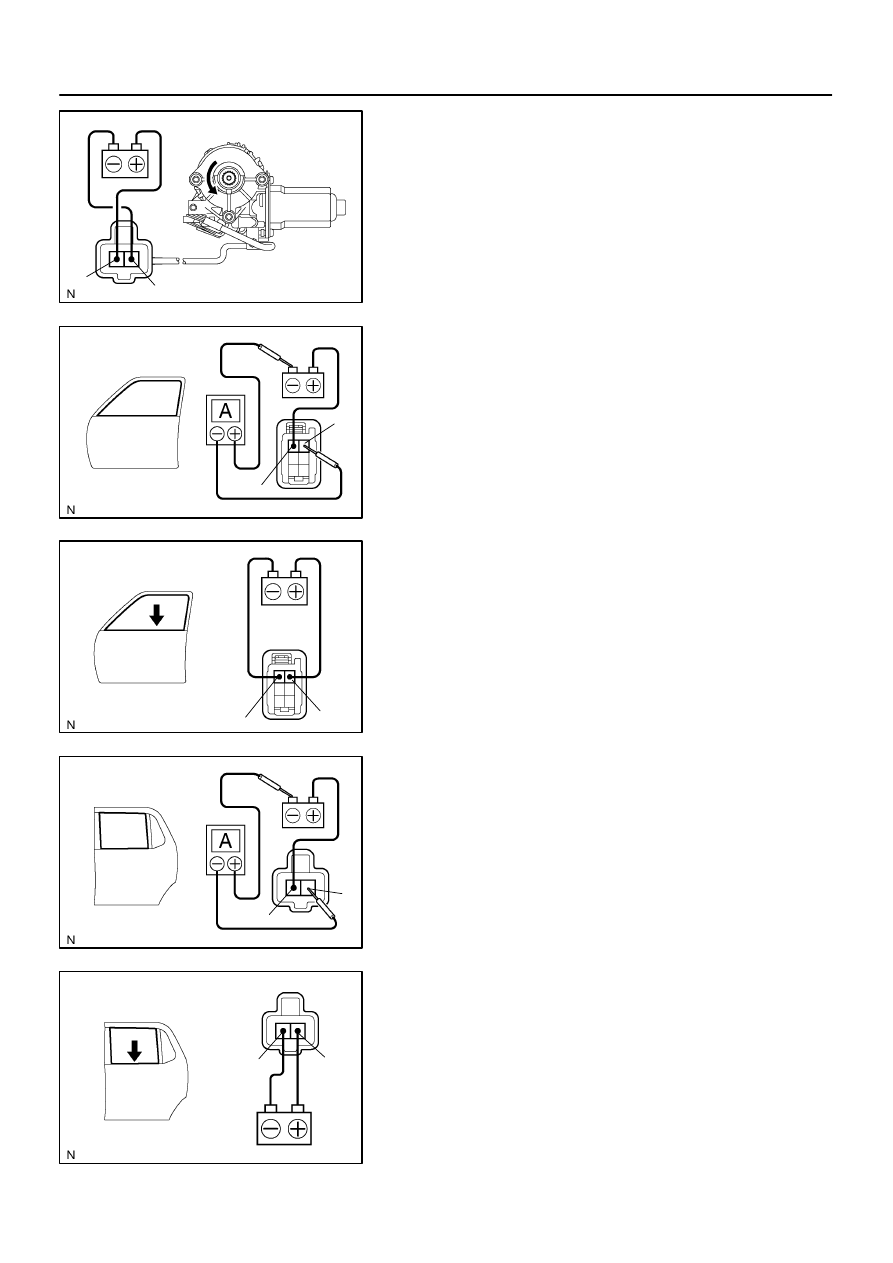

(b)

Reverse the polarity and check that the motor turns coun-
terclockwise.

If operation is not as specified, replace the power window mo-
tor.

8.

Front Door:
INSPECT PTC OPERATION

(a)

Disconnect the connector from the wire harness side con-
nector.

(b)

Connect the negative (–) lead from the ammeter to termi-
nal 1 of the motor side connector and the positive (+) lead
to negative terminal of the battery.

(c)

Connect the positive (+) lead from the battery to terminal
2 of the motor side connector, and raise the window to the
fully closed position.

(d)

Continue to apply voltage and check that the current
changes from approximately 14 A to less than 1 A within
4 to 90 seconds.

(e)

Disconnect the leads from the terminals.

(f)

Approximately 90 seconds later, connect the positive (+)
lead from the battery to terminal 1 and the negative (–)
lead to terminal 2, and check that the window begins to
goes down.

If operation is not as specified, replace the power window mo-
tor.
9.

Rear Door:
INSPECT PTC OPERATION

(a)

Disconnect the connector from the wire harness side con-
nector.

(b)

Connect the negative (–) lead from the ammeter to termi-
nal 1 of the motor side connector and the positive (+) lead
to negative terminal of the battery.

(c)

Connect the positive (+) lead from the battery to terminal
2 of the motor side connector, and raise the window to the
fully closed position.

(d)

Continue to apply voltage and check that the current
changes from approximately 14 A to less than 1 A within
4 to 90 seconds.

(e)

Disconnect the leads from the terminals.

(f)

Approximately 90 seconds later, connect the positive (+)
lead from the battery to terminal 1 and the negative (–)
lead to terminal 2, and check that the window begins to
goes down.

If operation is not as specified, replace the power window mo-
tor.

BE–72

–

BODY ELECTRICAL

POWER WINDOW CONTROL SYSTEM

3476

10.

INSPECT JAM PROTECTION FUNCTION

NOTICE:
Be careful not to be caught any part of your body when
checking.
HINT:
When performing resetting of the limit switch, do checking after
repeating up and down of the glass with automatic operation.
(a)

Confirmation of AUTO up operation:
Confirm that the window will be fully closed with AUTO up
operation.

(b)

Checking operation of the jam protection function:
(1)

Move up the window with AUTO up operation and
check that the window will go down when it touches
the inserted handle of the hammer.

(2)

Confirm that the window will then stop going down
about 200 mm (7.87 in.).

HINT:
When removing the glass, glass guide, regulator, etc. be sure
to perform checking of the jam protection function.
If the jam protection is not functioning properly, adjust the power
window motor limit switch and pulse switch.
