Toyota Sequoia (2005). Manual - part 844

RS0BL–11

H23231

RS–82

–

SUPPLEMENTAL RESTRAINT SYSTEM

AIRBAG SENSOR ASSEMBLY

3365

REMOVAL

NOTICE:

If the wiring connector of the SRS is disconnected
with the ignition switch in the ON position, DTCs will
be recorded.

Never use airbag parts from another vehicle. When
replacing parts, replace them with new ones.

1.

PRECAUTION (SEE PAGE

RS–1

 and

RS–3

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.

Never reuse an airbag sensor assembly if the airbag
has previously deployed in a collision.

3.

REMOVE SHIFTING HOLE COVER (SEE PAGE

BO–89

)

4.

REMOVE UPPER CONSOLE PANEL (SEE PAGE

BO–89

)

5.

REMOVE REAR CONSOLE BOX (SEE PAGE

BO–89

)

6.

REMOVE FRONT CONSOLE BOX (SEE PAGE

BO–89

)

7.

REMOVE AIRBAG SENSOR ASSEMBLY

(a)

Disconnect the holder (with connectors) from the airbag
sensor assembly.

(b)

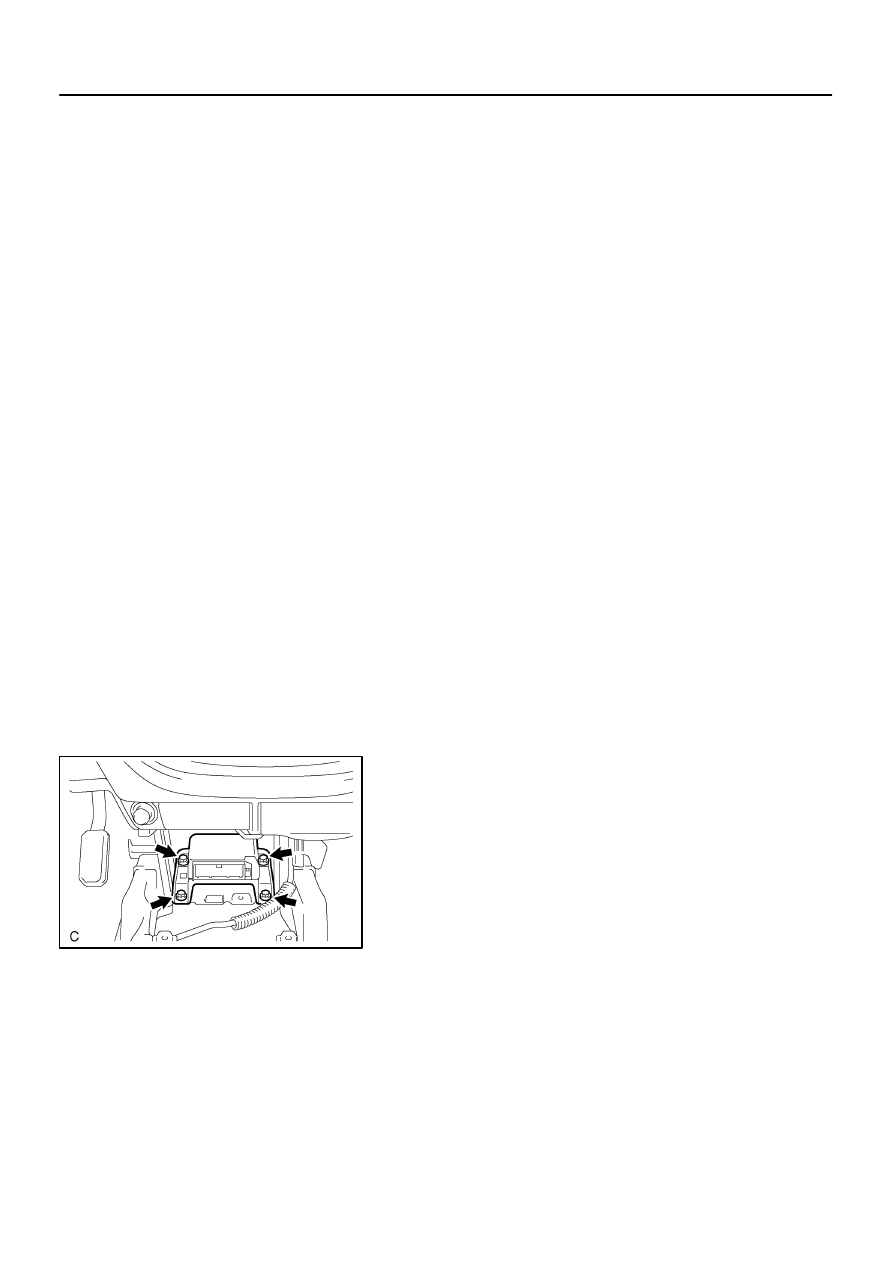

Remove the 4 bolts and airbag sensor assembly.

RS0BM–06

–

SUPPLEMENTAL RESTRAINT SYSTEM

AIRBAG SENSOR ASSEMBLY

RS–83

3366

INSPECTION

1.

VEHICLE NOT INVOLVED IN COLLISION

Perform a diagnostic system check (see page

DI–1147

).

2.

VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED

Perform a diagnostic system check (see page

DI–1147

).

3.

VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED

Replace the airbag sensor assembly (see page

DI–1147

).

RS0BN–05

RS–84

–

SUPPLEMENTAL RESTRAINT SYSTEM

AIRBAG SENSOR ASSEMBLY

3367

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the airbag sensor assembly with a new one.

The SRS has been deployed in a collision.

The airbag sensor assembly has been found to be faulty in troubleshooting.

The airbag sensor assembly has been dropped.

CAUTION:
For removal and installation of the airbag sensor assembly, see page

RS–82

 and

RS–85

. Be sure to

follow the correct procedure.

RS0BO–11

H23231

–

SUPPLEMENTAL RESTRAINT SYSTEM

AIRBAG SENSOR ASSEMBLY

RS–85

3368

INSTALLATION

NOTICE:

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new ones.

Never reuse the airbag sensor assembly involved in
a collision when the airbag has deployed.

If the airbag sensor assembly center has been
dropped, or there are any cracks, dents or other de-
fects in the case, bracket or connector, replace it with
a new one.

When installing the airbag sensor assembly center,
be careful that the SRS wiring does not interfere with
other parts and that it is not pinched between other
parts.

After installing, shake the airbag sensor assembly to
check that there is no looseness.

1.

INSTALL AIRBAG SENSOR ASSEMBLY

(a)

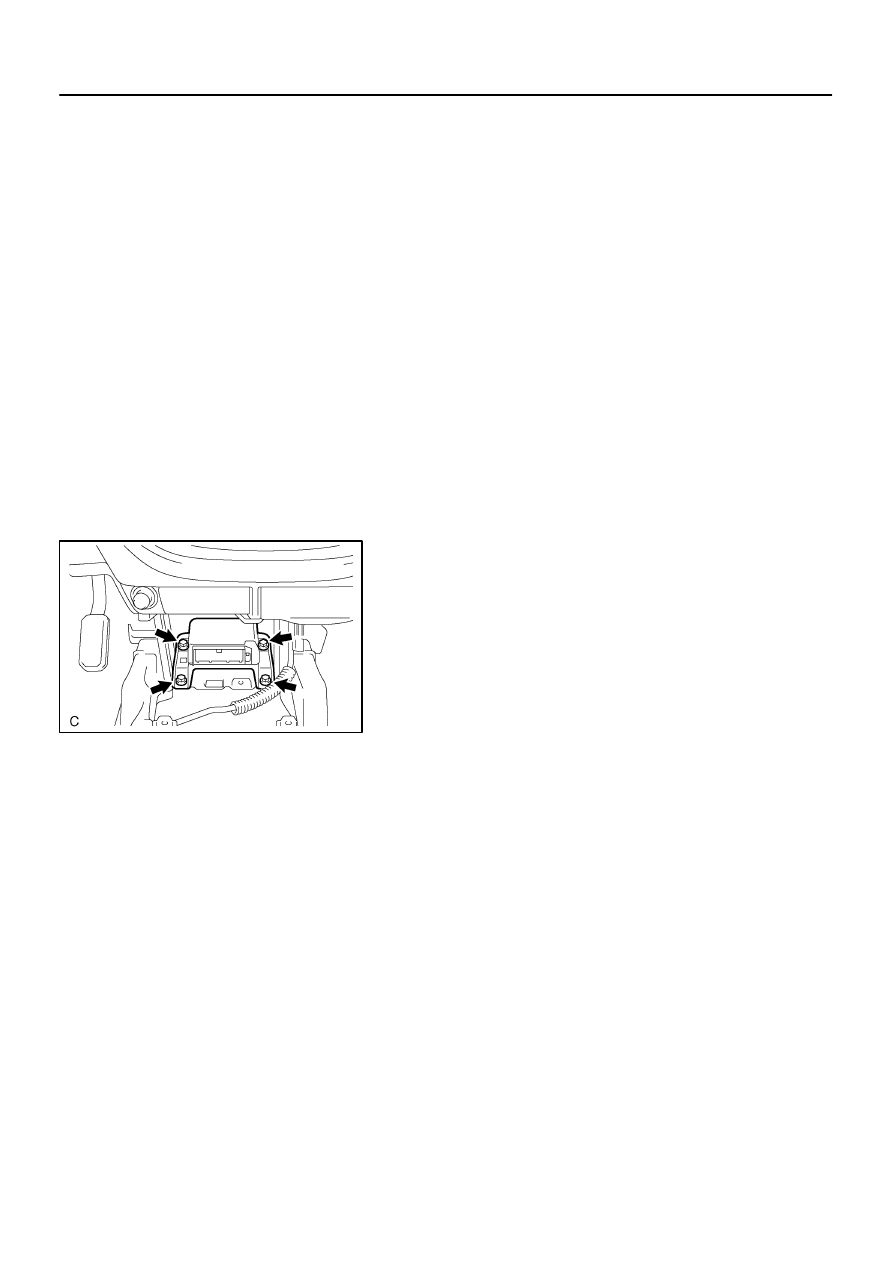

Install the airbag sensor assembly with the 4 bolts.
Torque: 17.5 N·m (179 kgf·cm, 13 ft·lbf)

(b)

Connect the airbag sensor holder (with connectors).

2.

INSTALL FRONT CONSOLE BOX ASSEMBLY
(SEE PAGE

BO–89

)

3.

INSTALL REAR CONSOLE BOX ASSEMBLY
(SEE PAGE

BO–89

)

4.

INSTALL UPPER CONSOLE PANEL
(SEE PAGE

BO–89

)

5.

INSTALL SHIFTING HOLE COVER
(SEE PAGE

BO–89

)

6.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

7.

PERFORM INITIALIZATION (SEE PAGE

BE–77

)

Some system need initialization when disconnecting the cable
from the negative battery terminal.
8.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)
