RS–2

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3285



If the steering wheel pad, front passenger airbag assembly, side airbag assembly, curtain
shield airbag assembly, airbag sensor assembly, front airbag sensor, side airbag sensor as-
sembly, curtain shield airbag sensor assembly, seat position sensor assembly or occupant
classification ECU has been dropped, or if there are any cracks, dents or other defects in the
case, bracket or connector, replace it with a new one.



Use a volt/ohmmeter with high impedance (10 k

/V minimum) for troubleshooting the electrical

circuits.



Information labels are attached to the periphery of the SRS components. Follow the instruc-
tions in the caution.



After work on the SRS is completed, perform the SRS warning light check (see page

DI–1137

).



When the negative (–) terminal cable is disconnected from the battery, the memory will be
cleared. Because of this, be sure to make a record of the contents memorized in each system
before starting work. When work is finished, adjust each system as it was before. Never use
a back–up power supply from outside the vehicle to avoid erasing the memory in any system.

RS116–01

H24695

H23918

Spiral Cable

H16182

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–3

3286

OPERATION

CAUTION:
Be sure to perform the initialization of the occupant classi-
fication ECU if any of the following conditions occur (see
page

DI–1128

). If the initialization is not performed, the SRS

may not operate properly.



The occupant classification ECU is replaced.



Accessories (seatback tray, seat cover, etc.) are
installed to the vehicle.



The passenger seat is removed from the vehicle, and
then reinstalled or replaced.



The passenger airbag ON/OFF indicator light (”OFF”)
comes on when the passenger seat is not occupied.



The vehicle is brought to the workshop for repair due
to an accident or collision.

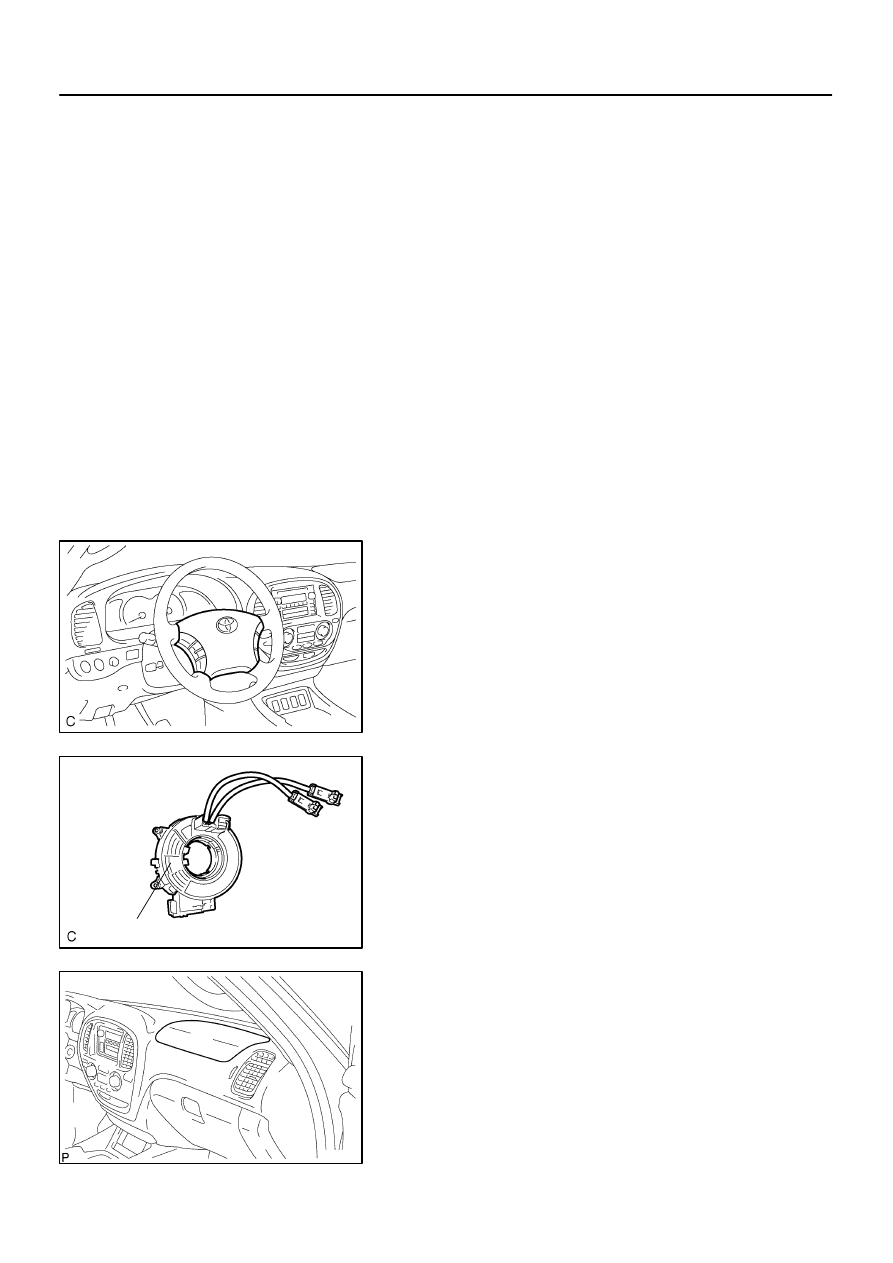

1.

STEERING WHEEL PAD

The inflator and bag of the SRS are stored in the steering wheel
pad and cannot be disassembled. The inflator contains a squib,
igniter charge, and gas generator, etc., and inflates the bag
when instructed by the airbag sensor assembly. The steering
wheel pad cannot be disassembled.

2.

SPIRAL CABLE

A spiral cable is used as an electrical joint from the vehicle body
side to the steering wheel. The spiral cable cannot be disas-
sembled.

3.

FRONT PASSENGER AIRBAG ASSEMBLY

The inflator and bag of the SRS are stored in the front passen-
ger airbag assembly and cannot be disassembled. The inflator
contains a squib, igniter charge, gas generator, etc., and in-
flates the bag when instructed by the airbag sensor assembly.
The front passenger airbag assembly cannot be disassembled.

H17489

H23919

H16185

H23920

H16187

RS–4

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

3287

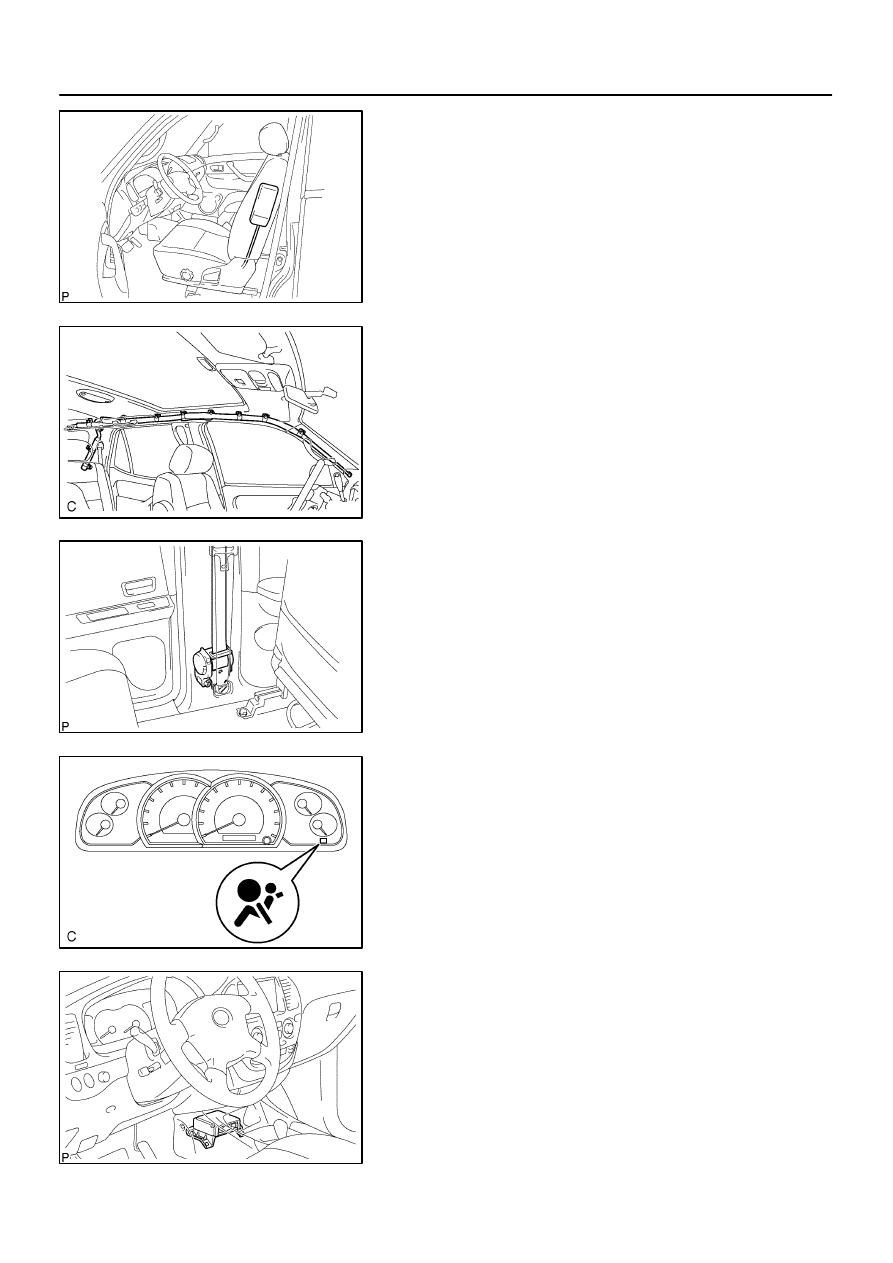

4.

SIDE AIRBAG ASSEMBLY

The inflator and bag of the SRS are stored in the side airbag as-
sembly and cannot be disassembled. The inflator contains a
squib, igniter charge



and gas generator, etc., and inflates the

bag when instructed by the airbag sensor assembly. The side
airbag assembly cannot be disassembled.

5.

CURTAIN SHIELD AIRBAG ASSEMBLY

The inflator and bag of the SRS are stored in the curtain shield
airbag assembly and cannot be disassembled. The inflator con-
tains a squib, igniter charge, gas generator, etc., and inflates
the bag when instructed by the airbag sensor assembly. The
curtain shield airbag assembly cannot be disassembled.

6.

SEAT BELT PRETENSIONER

The front seat outer belt has the seat belt pretensioner system.
The pretensioner operates in the event of a frontal collision. The
seat belt pretensioner cannot be disassembled.

7.

SRS WARNING LIGHT

The SRS warning light is located on the combination meter. It
comes on to alert the driver of trouble in the system when a mal-
function is detected in the airbag sensor assembly. In normal
operation conditions when the ignition switch is turned to the
ON position, the light comes on for approximately 6 seconds
and then goes off.

8.

AIRBAG SENSOR ASSEMBLY

The airbag sensor assembly is mounted on the floor inside the
lower center finish panel. The airbag sensor assembly consists
of an airbag sensor, safing sensor, diagnosis circuit, ignition
control, drive circuit, etc. It receives signals from the airbag sen-
sor, front airbag sensor, side and curtain shield airbag sensor
and curtain shield airbag sensor, and judges whether the SRS
must be activated or not. The airbag sensor assembly cannot
be disassembled.

H23921

H20065

H23922

H23923

H23924

SUPPLEMENTAL RESTRAINT SYSTEM

SRS AIRBAG

RS–5

3288

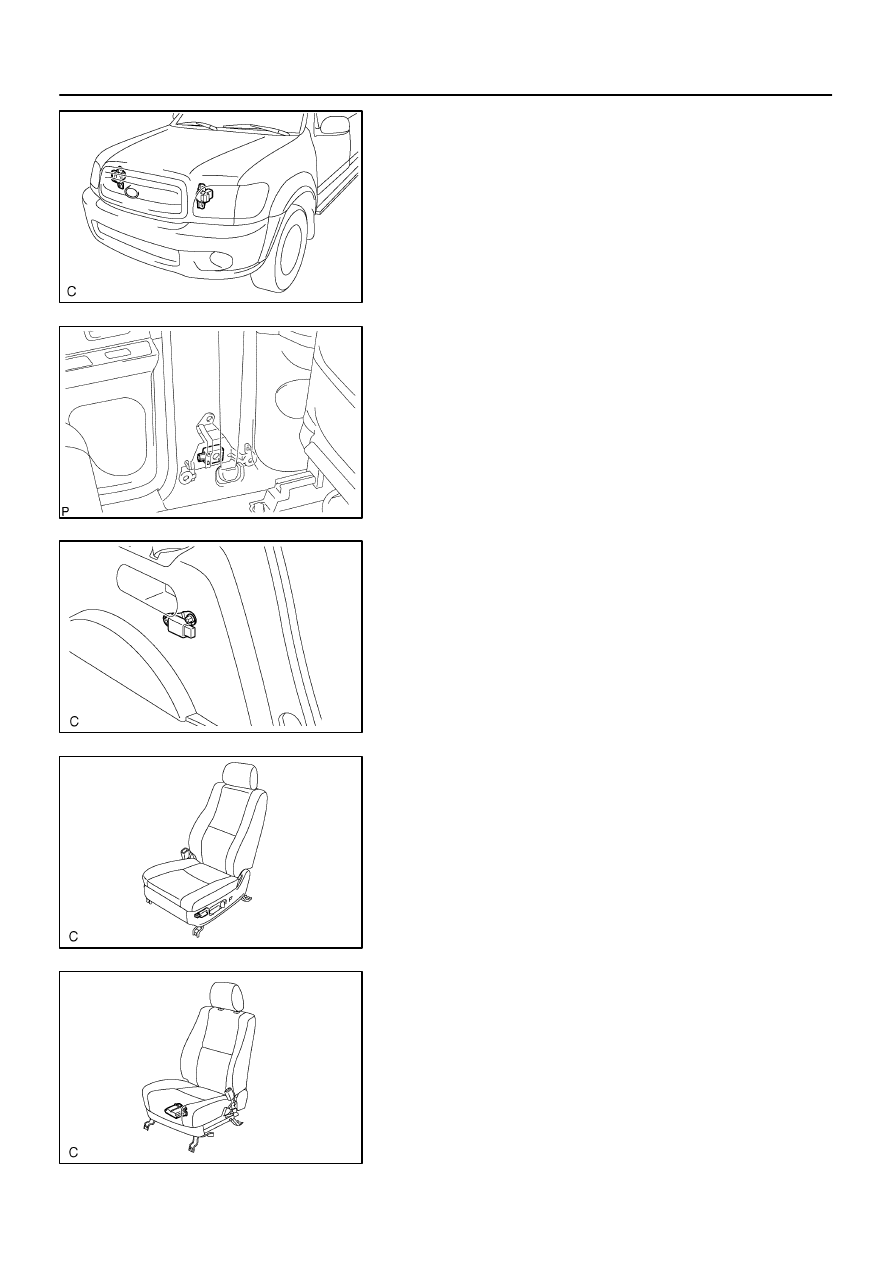

9.

FRONT AIRBAG SENSOR

The front airbag sensor is mounted inside each of the radiator
support. The front airbag sensor consists of an airbag sensor,
diagnosis circuit, etc. It sends signals to the airbag sensor as-
sembly to judge whether the SRS must be activated or not. The
front airbag sensor cannot be disassembled.

10.

SIDE AIRBAG SENSOR ASSEMBLY

The side airbag sensor assembly is mounted in the LH and RH
center pillars. The side airbag sensor assembly consists of an
airbag sensor, diagnosis circuit, etc. It sends signals to the air-
bag sensor assembly to judge whether the SRS must be acti-
vated or not. The side airbag sensor assembly cannot be disas-
sembled.

11.

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

The curtain shield airbag sensor assembly is mounted in the LH
and RH quarter panels. The curtain shield airbag sensor as-
sembly consists of an airbag sensor, diagnosis circuit, etc. It
sends signals to the airbag sensor assembly to judge whether
the SRS must be activated or not. The curtain shield airbag sen-
sor assembly cannot be disassembled.

12.

SEAT POSITION SENSOR ASSEMBLY

The seat position sensor assembly is mounted in the driver’s
seat. The sensor unit consists of a magnet sensor, etc. It judges
the seat sliding position and sends the signal to the airbag sen-
sor assembly. The seat position sensor assembly cannot be
disassembled.

13.

OCCUPANT CLASSIFICATION ECU

The occupant classification ECU is mounted in the passenger
seat. Based on the information sent from the occupant classifi-
cation ECU, the airbag sensor assembly determines whether
the SRS should be activated or not. The occupant classification
ECU cannot be disassembled.
