SUSPENSION AND AXLE

REAR HEIGHT CONTROL SENSOR

SA–169

3165

REMOVAL

1.

DISCONNECT CONNECTOR

2.

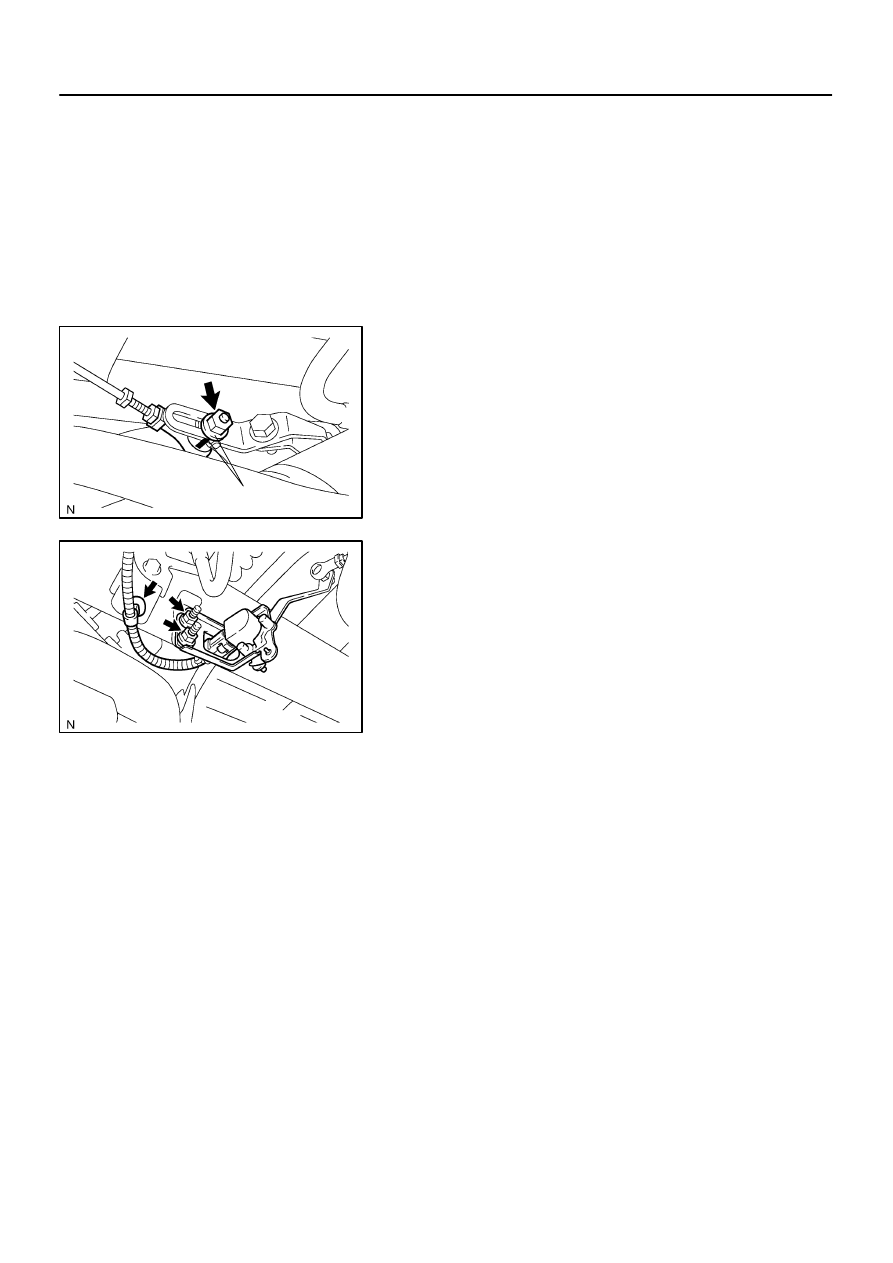

DISCONNECT HEIGHT CONTROL SENSOR LINK

(a)

Put matchmarks on the height control sensor link and
bracket.

(b)

Remove the nut and disconnect the sensor link.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

3.

REMOVE REAR HEIGHT CONTROL SENSOR

(a)

Disconnect the wire harness clamp.

(b)

Remove the 2 bolts and rear height control sensor.
Torque: 29 N·m (300 kgf·cm, 21 ft·lbf)

SA1IB–03

SA–170

–

SUSPENSION AND AXLE

REAR HEIGHT CONTROL SENSOR

3166

INSTALLATION

Installation is in the reverse order of removal (See page

SA–169

).

SA2CW–01

F16828

F16828

–

SUSPENSION AND AXLE

SUSPENSION CONTROL ECU

SA–171

3167

SUSPENSION CONTROL ECU

REPLACEMENT

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE INTEGRATION CONTROL PANEL
(See page

BO–89

)

3.

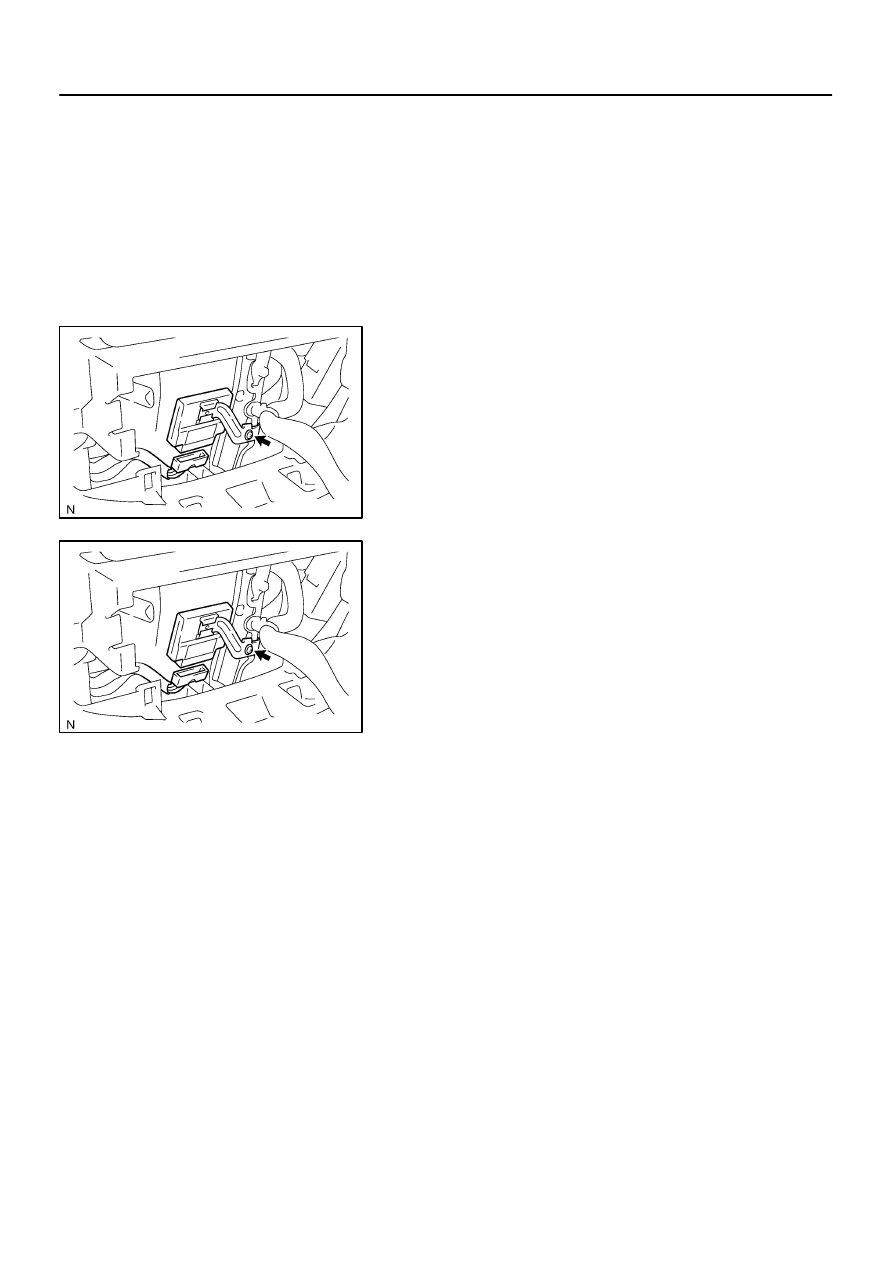

REMOVE SUSPENSION CONTROL ECU

(a)

Disconnect the connector.

(b)

Remove the screw and suspension control ECU.

4.

INSTALL SUSPENSION CONTROL ECU

(a)

Install the suspension control ECU with the screw.

(b)

Connect the connector.

5.

INSTALL INTEGRATION CONTROL PANEL
(See page

BO–97

)

6.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

7.

PERFORM INITIALIZATION (See page

IN–20

)

Some systems need initialization when disconnecting the cable
from the negative battery terminal.

BR0A9–04

–

BRAKE

BRAKE SYSTEM

BR–1

3168

BRAKE SYSTEM

PRECAUTION

Care must be taken to replace each part properly as it could affect the performance of the brake
system and result in a driving hazard. Replace the parts with parts having the same part number
or equivalent.

It is very important to keep parts and the area clean when repairing the brake system.

If the vehicle is equipped with a mobile communication system, refer to the precautions in the
IN section.
