SUSPENSION AND AXLE

FRONT WHEEL HUB BOLT

SA–29

3025

FRONT WHEEL HUB BOLT

REPLACEMENT

1.

REMOVE FRONT WHEEL

2.

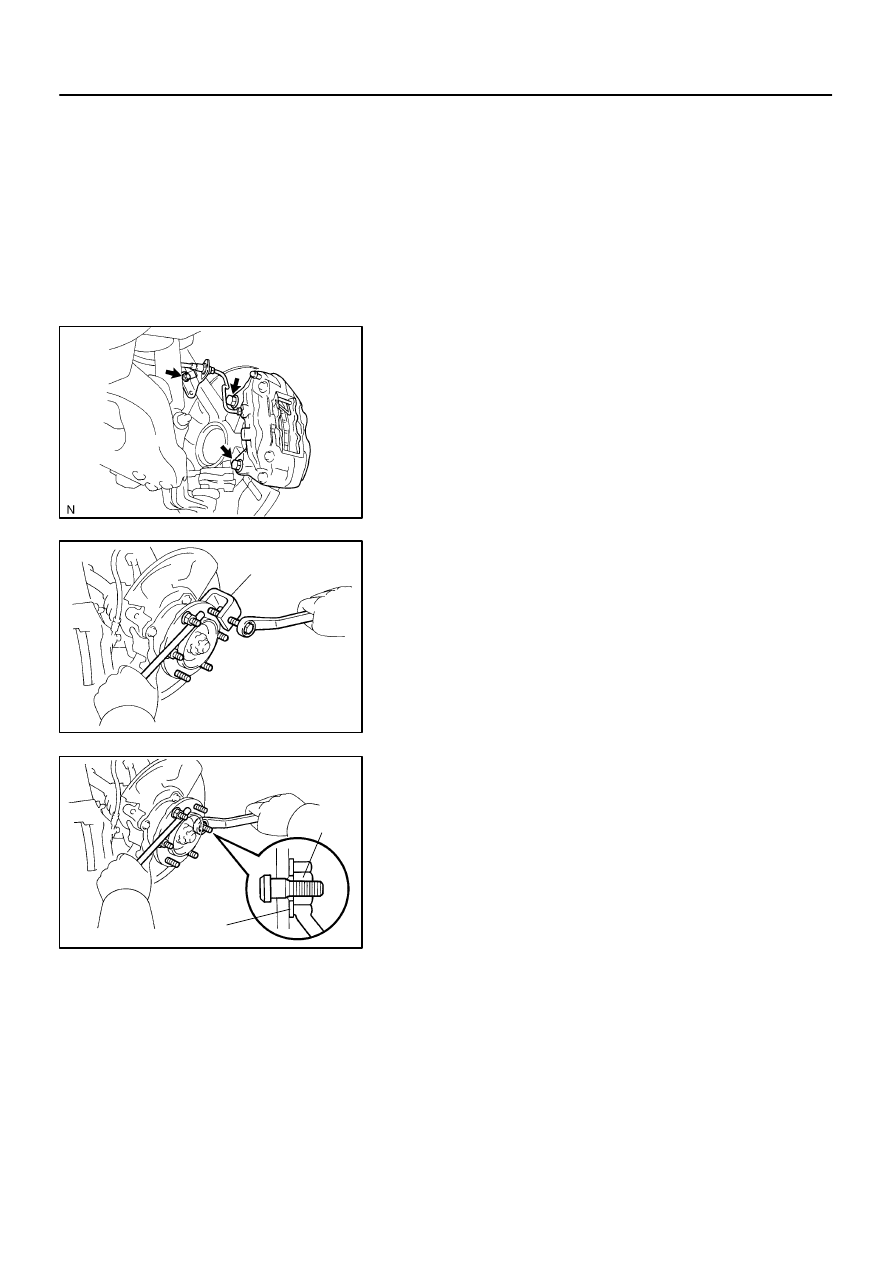

REMOVE BRAKE CALIPER AND DISC

(a)

Remove the bolt and brake line clamp from the steering
knuckle.

(b)

Remove the 2 bolts, brake caliper and disc.

(c)

Support the brake caliper securely.

3.

REMOVE HUB BOLT

Using SST and a screwdriver or an equivalent, remove the hub
bolt.

SST

09650–17011

4.

INSTALL HUB BOLT

(a)

Install a washer and nut to a new hub bolt as shown in the
illustration.

(b)

Using a screwdriver or an equivalent to hold, install the
hub bolt by torquing the nut.

(c)

Remove the nut and washer.

5.

INSTALL BRAKE DISC AND CALIPER

(a)

Install the brake disc, caliper and 2 bolts.
Torque: 123 N·m (1,250 kgf·cm, 90 ft·lbf)

(b)

Install the brake line clamp to the steering knuckle with the
bolt.
Torque: 28 N·m (285 kgf·cm, 21 ft·lbf)

6.

INSTALL FRONT WHEEL
Torque: 110 N·m (1,150 kgf·cm, 83 ft·lbf)

7.

DEPRESS BRAKE PEDAL SEVERAL TIMES

SA14E–08

F06645

 Snap Ring

Drive Shaft

 Dust Cover

Inboard Joint Shaft

 Inboard Joint Boot

 Outboard Joint Boot

 Boot Clamp

 Dust Seal

Outboard Joint Shaft

 Cotter Pin

 Cotter Pin

Grease Cap

Lock Cap

Lock Nut

235 (2,400, 173)

140 (1,450, 103)

 Non–reusable part

N·m (kgf·cm, ft·lbf) : Specified torque

Shock Absorber
with Coil Spring

135 (1,400, 100)

LH side:

64 (650, 47)

SA–30

–

SUSPENSION AND AXLE

FRONT DRIVE SHAFT

3026

FRONT DRIVE SHAFT

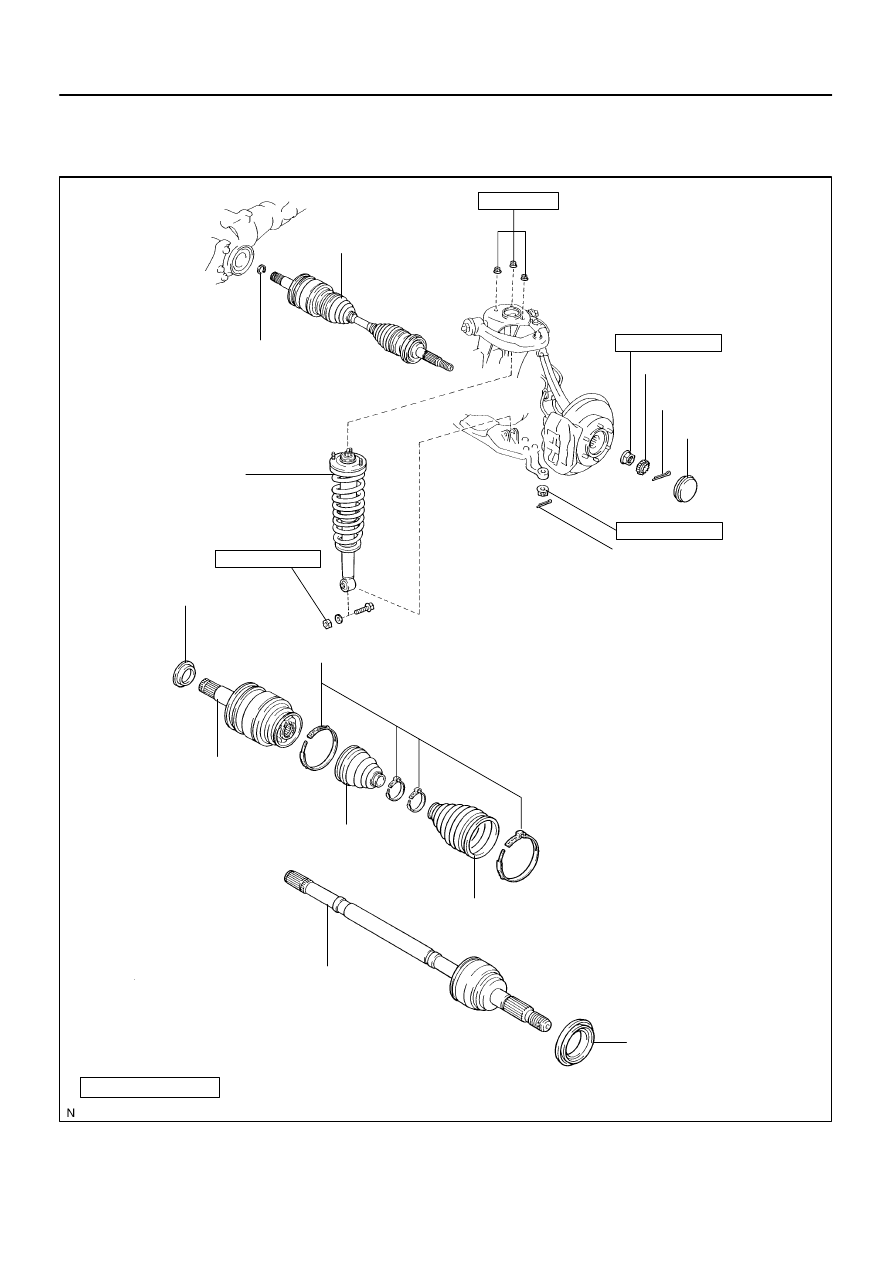

COMPONENTS

SA24L–03

F06624

R12863

SST

R13233

–

SUSPENSION AND AXLE

FRONT DRIVE SHAFT

SA–31

3027

REMOVAL

1.

REMOVE FRONT WHEEL

2.

REMOVE ENGINE UNDER COVER

3.

DRAIN DIFFERENTIAL OIL

4.

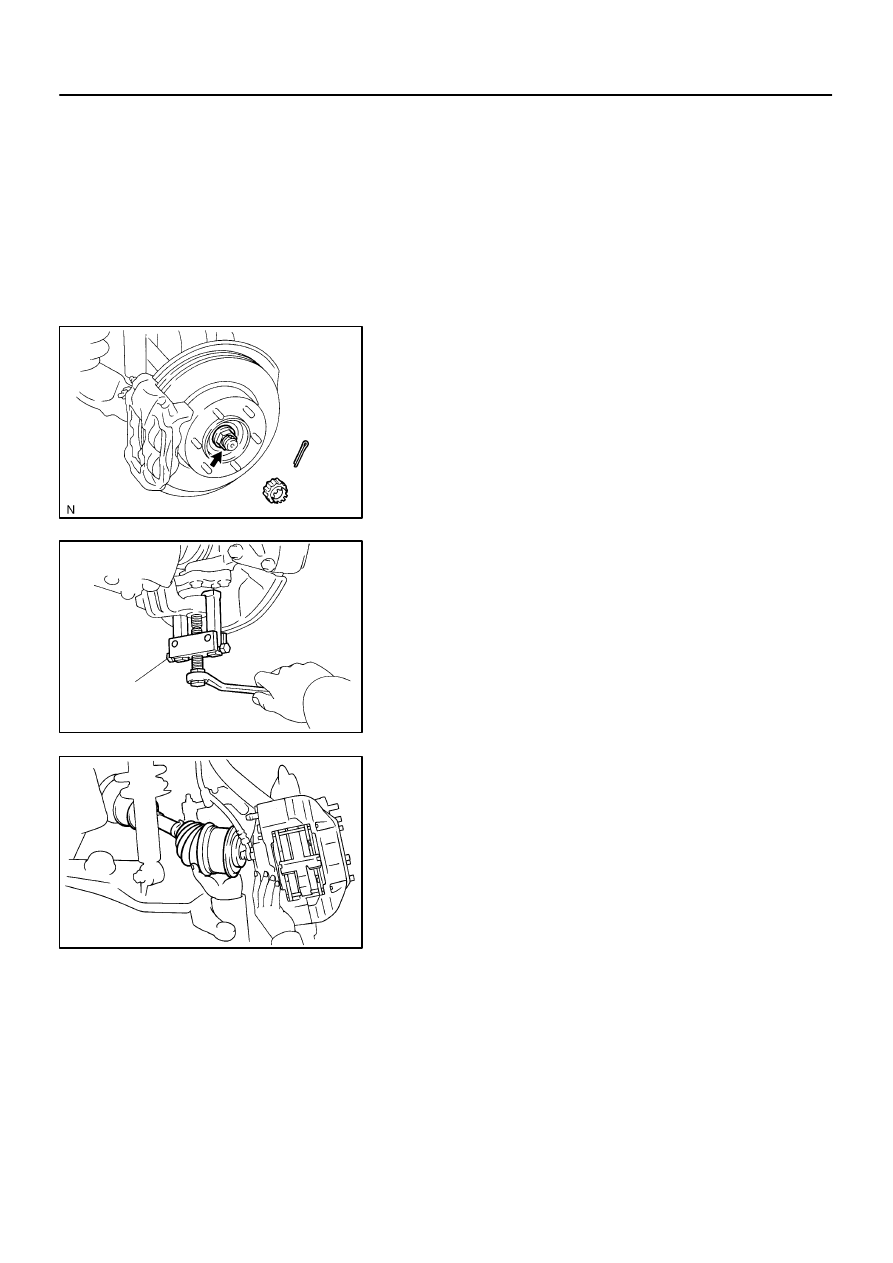

REMOVE DRIVE SHAFT LOCK NUT

(a)

Using a screwdriver and hammer, remove the grease cap.

(b)

Remove the cotter pin and lock cap.

(c)

While applying the brakes, remove the lock nut.

5.

DISCONNECT LOWER SUSPENSION ARM FROM
LOWER BALL JOINT

(a)

Remove the cotter pin and nut.

(b)

Using SST, disconnect the lower suspension arm from the
lower ball joint.
SST

09628–62011

6.

DISCONNECT DRIVE SHAFT FROM STEERING
KNUCKLE

(a)

Using a plastic hammer, disengage the drive shaft from
the axle hub.

(b)

Push the steering knuckle outward and disconnect the
drive shaft from the steering knuckle.

NOTICE:
Be careful not to damage the oil seal, boots and dust seal.
7.

LH drive shaft:
REMOVE LH SHOCK ABSORBER (See page

SA–64

)

F07267

SST

LH:

RH:

SST

SA–32

–

SUSPENSION AND AXLE

FRONT DRIVE SHAFT

3028

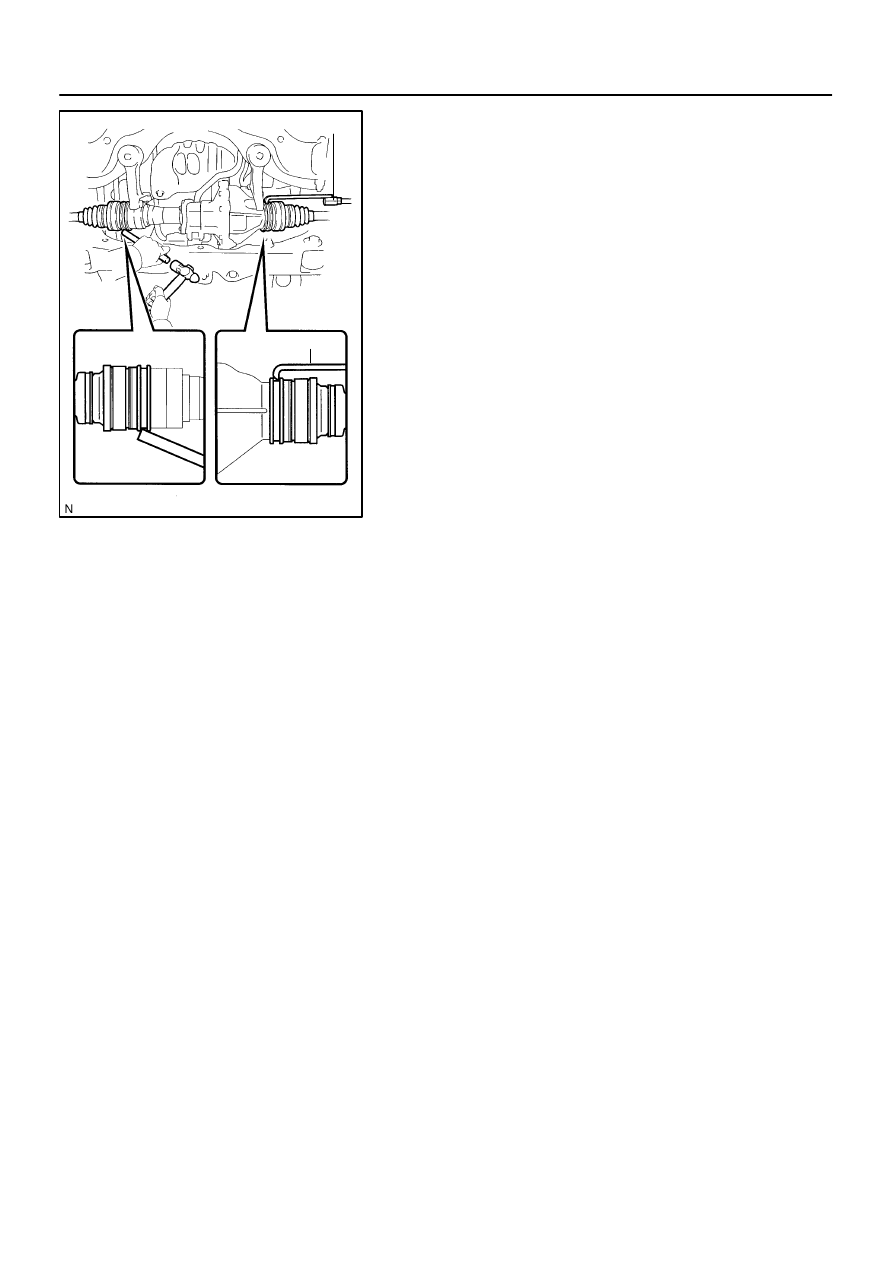

8.

REMOVE DRIVE SHAFT

(a)

RH drive shaft:
Using a brass bar and hammer, remove the RH drive
shaft.

NOTICE:
Be careful not to damage the dust cover and oil seal.
(b)

LH drive shaft:
Using SST, remove the LH drive shaft.
SST

09520–01010, 09520–24010 (09520–32040)

NOTICE:
Be careful not to damage the dust cover and oil seal.
(c)

Using a screwdriver, remove the snap ring from the in-
board joint shaft.
