DIDIU–01

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–543

737

INITIALIZATION

1.

RESET MEMORY

NOTICE:

Perform the RESET MEMORY (AT initialization) when replacing the automatic transmission
assy or ECM.

The RESET MEMORY can be performed only with the Hand–held tester.

HINT:
The ECM memorizes the condition that the ECT controls the automatic transmission assy and engine assy
according to those characteristics. Therefore, when the automatic transmission assy, engine assy, or ECM
has been replaced, it is necessary to reset the memory so that the ECM can memorize the new information.
Reset procedure is as follows.
(a)

Turn the ignition switch off.

(b)

Connect the hand–held tester to the DLC3.

(c)

Turn the ignition switch to the ON position.

(d)

Turn the hand–held tester main switch on.

(e)

Select the item ”DIAGNOSIS/ENHANCED OBD II”.

(f)

Perform the reset memory procedure from the ENGINE menu.

D13545

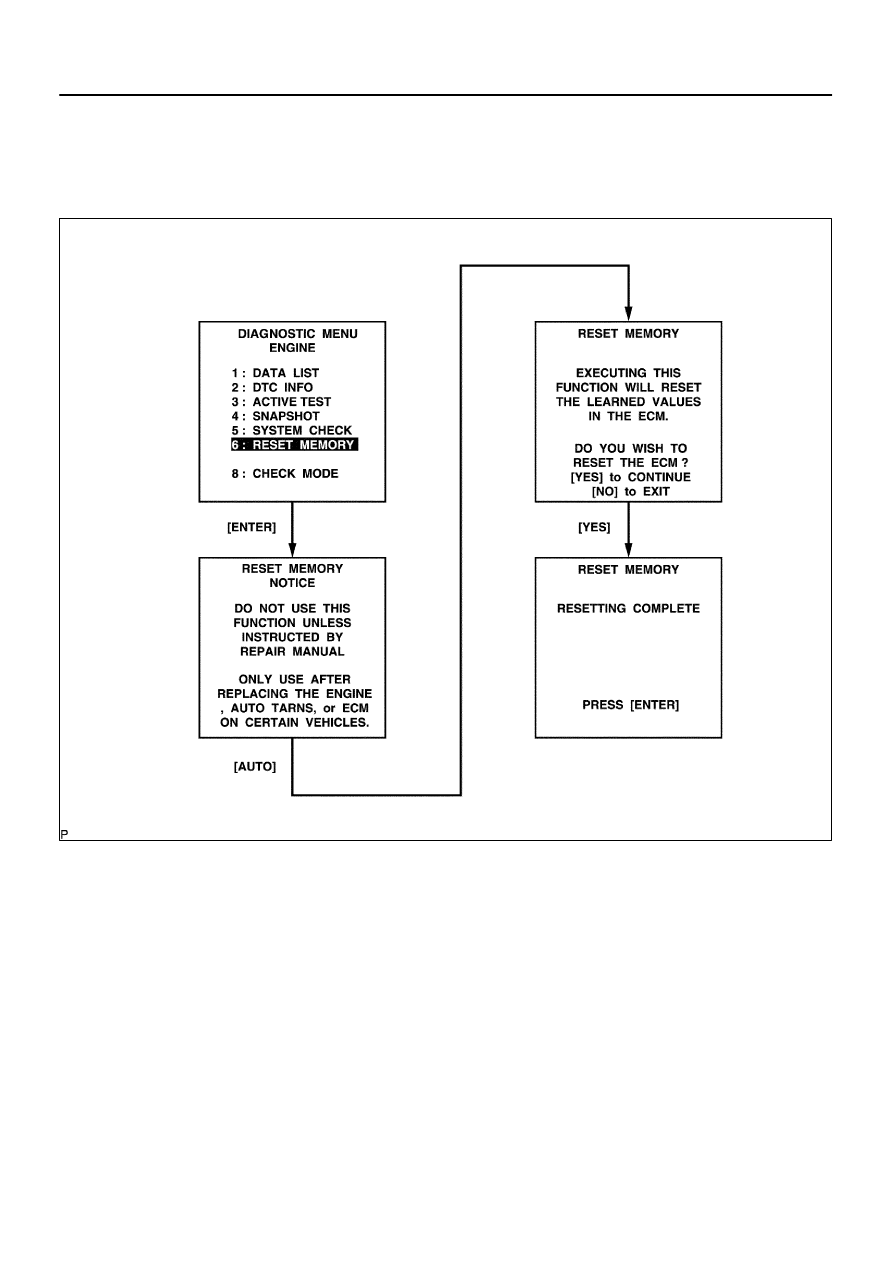

Tester menu flow:

DI–544

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

738

NOTICE:
After performing the RESET MEMORY, be sure to perform the ROAD TEST (See page

DI–535

) de-

scribed earlier.
HINT:
The ECM learns through use of the ROAD TEST.

DIDIV–01

A21570

A22717

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–545

739

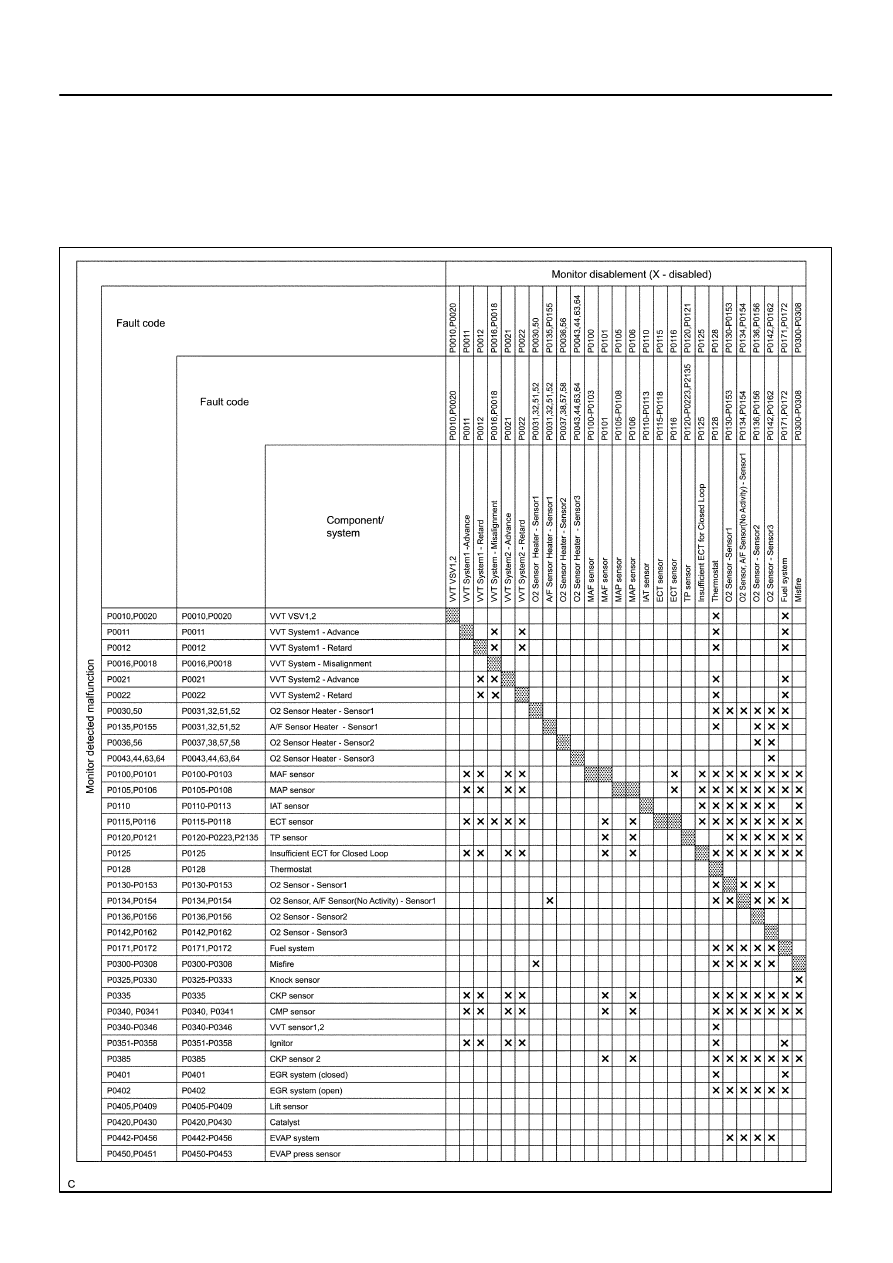

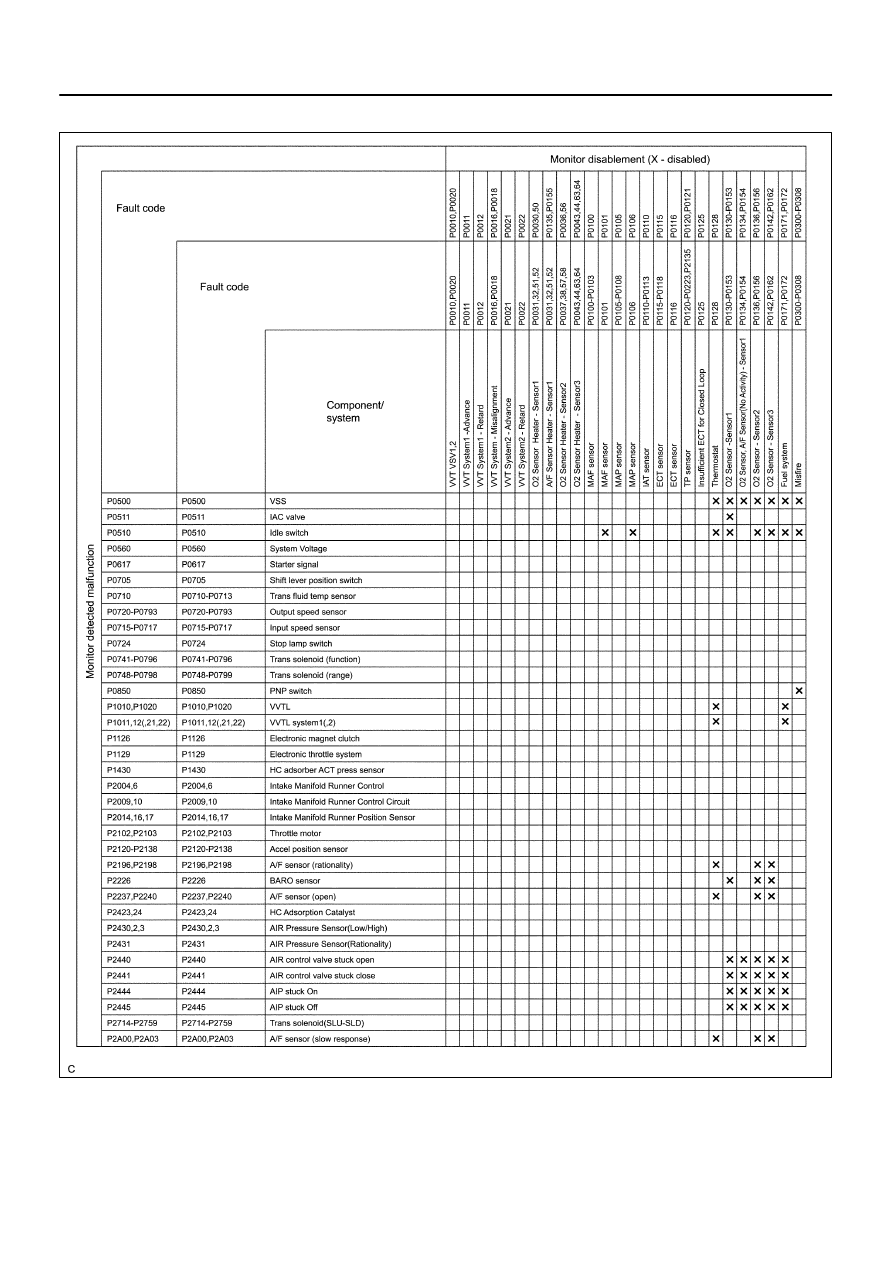

LIST OF DISABLE A MONITOR

HINT:
This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on
the left are being set.
As for the ”X” mark, when the DTC on the left is stored, detection of the DTC in the upper column is not per-
formed.

A21571

DI–546

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

740
