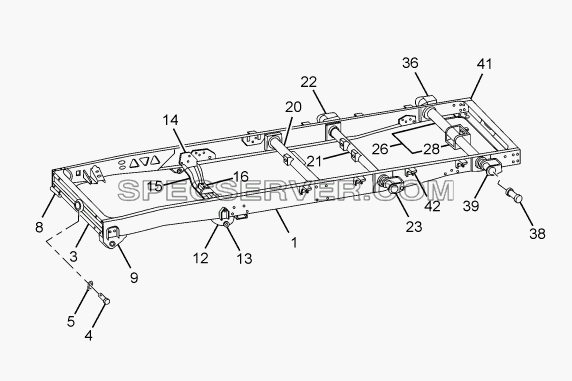

Запчасти: FRAME 357171, 357174 для SFC 407 LHD Euro II

№	Номер детали	Наименование запчасти
1	265131000117	ASSY.FRAME(3100 W.B.TRUCK LHD)
3	264031200110	ASSY. FRONT CROSS MEMBER (WITH TOWING HOOK)
4	265131406701	PIN
5	265131406702	PIN
8	265132100124	ASSY. FRONT SPRING BRACKET FRONT RH
9	265132100123	ASSY. FRONT SPRING BRACKET FRONT LH
12	265132100113	ASSY. FRONT SPRING BRACKET WITH BUSH REAR
13	265132403401	BUSH
14	265131408266	SUPPORT GEAR BOX MOUNTING
15	265131400140	ASSY. GEAR BOX MOUNTING CROSS MEMBER
16	265131400135	ASSY. BRACKET
20	265131400172	ASSY.CENTRE BRG.CROSS MEMBER-FOR LHD
21	265131400167	ASSY.CROSS MEMBER-LHD(REAR SPR.FRT)
22	265132400132	ASSY. REAR SPRING BRACKET FRONT RH
23	265132400130	ASSY. REAR SPRING BRACKET FRONT LH
26	265131400176	ASSY. CROSS MEMBER - (SPARE WHEEL CARRIER)
28	265731400101	ASSY. REAR SPRING REAR CROSS MEMBER
36	265132400165	ASSY. REAR SPRING BRACKET COMP. WITH BUSH (RH)
38	265132403401	BUSH
39	265132400164	ASSY. REAR SPRING BRACKET COMP. WITH BUSH (LH)
41	265131408252	END CROSS MEMBER
42	264131400111	ASSY. CLEAT

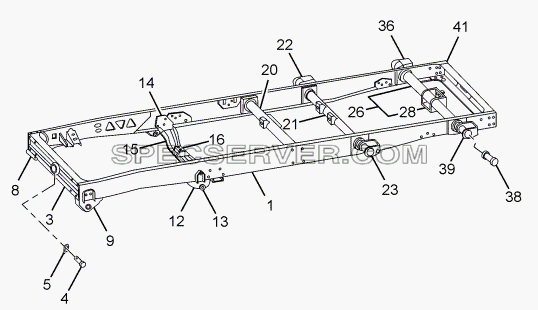

№	Номер детали	Наименование запчасти
1	265131000117	ASSY.FRAME(3100 W.B.TRUCK LHD)
3	264031200110	ASSY. FRONT CROSS MEMBER (WITH TOWING HOOK)
4	265131406701	PIN
5	265131406702	PIN
8	265132100124	ASSY. FRONT SPRING BRACKET FRONT RH
9	265132100123	ASSY. FRONT SPRING BRACKET FRONT LH
12	265132100113	ASSY. FRONT SPRING BRACKET WITH BUSH REAR
13	265132403401	BUSH
14	265131408266	SUPPORT GEAR BOX MOUNTING
15	265131400140	ASSY. GEAR BOX MOUNTING CROSS MEMBER
16	265131400135	ASSY. BRACKET
20	265131400172	ASSY.CENTRE BRG.CROSS MEMBER-FOR LHD
21	265131400167	ASSY.CROSS MEMBER-LHD(REAR SPR.FRT)
22	265132400132	ASSY. REAR SPRING BRACKET FRONT RH
23	265132400130	ASSY. REAR SPRING BRACKET FRONT LH
26	265131400176	ASSY. CROSS MEMBER - (SPARE WHEEL CARRIER)
28	265731400101	ASSY. REAR SPRING REAR CROSS MEMBER
36	265132400165	ASSY. REAR SPRING BRACKET COMP. WITH BUSH (RH)
38	265132403401	BUSH
39	265132400164	ASSY. REAR SPRING BRACKET COMP. WITH BUSH (LH)
41	265131408252	END CROSS MEMBER

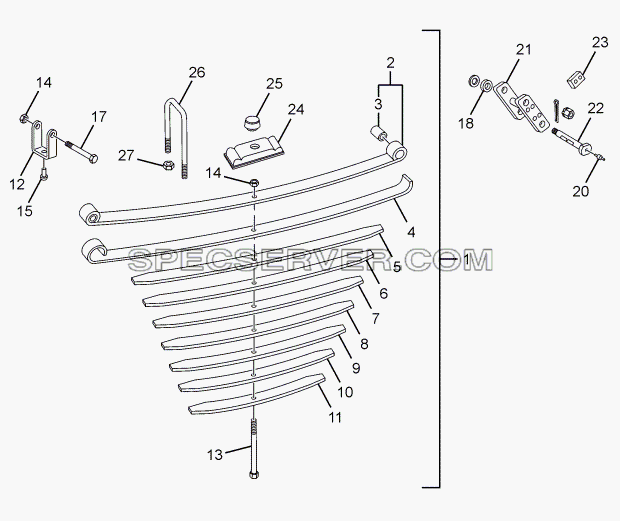

№	Номер детали	Наименование запчасти
-	265132107139	PLATE
1	265132100162	ASSY. FRONT SPRING
2	265132100163	ASSY. FIRST LEAF WITH BUSH
3	265132403401	BUSH
4	265132117124	SECOND LEAF
5	265132117125	THIRD LEAF
6	265132117126	FOURTH LEAF
7	265132117127	FIFTH LEAF
8	265132117128	SIXTH LEAF
9	265132117129	SEVENTH LEAF
10	265132117130	EIGHTH LEAF
11	265132117131	NINTH LEAF
12	265132404230	SPRING CLIP
12	265132404231	SPRING CLIP
13	11084110797	CENTRE BOLT M10X85X1
14	NSP	HEX. NUT M 10
15	13300509201	SNAP HEAD RIVET 10X18
17	265132106701	SPRING PIN
18	265132400126	ASSY. SEALING RING
20	17170600801	GREASE NIPPLE AM 8X1
21	265132100146	ASSY. SHACKLE (FRONT SPRING)
22	265132106704	SPRING PIN (SHACKLE END)
23	265132107173	LOCK PLATE
24	270532200101	ASSY. GUIDE PLATE (FRONT SPRING)
25	265132207704	RUBBER BUFFER FRONT SPRING
26	265132204204	‘U’ CLAMP
27	NSP	HEX. NUT M 10

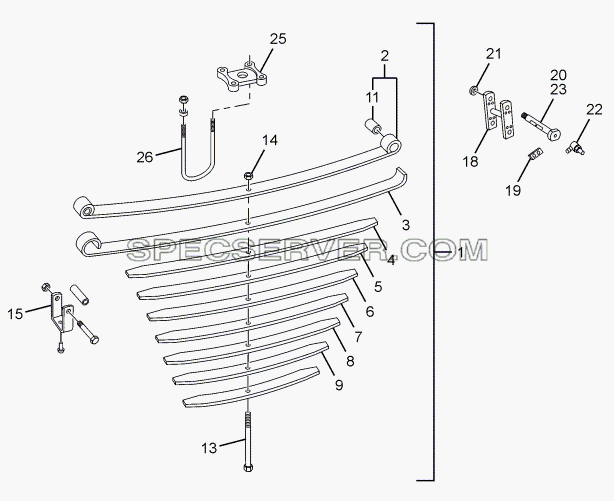

№	Номер детали	Наименование запчасти
-	265131400112	ASSY REAR AXLE STOPPER
-	270532400114	ASSY BUMP STOP BRACKET
1	265132410108	ASSY. REAR SPRING
2	265132410109	ASSY. FIRST LEAF WITH BUSH
3	265132417193	SECOND LEAF
4	265132417194	THIRD LEAF
5	265132417195	FOURTH LEAF
6	265132417196	FIFTH LEAF
7	265132417197	SIXTH LEAF
8	265132417198	SEVENTH LEAF
9	265132417199	EIGHTH LEAF
11	265132403401	BUSH
13	11084110703	CENTRE BOLT M 10X110X10
14	NSP	HEX. NUT M 10
15	265132404227	SPRING CLIP
18	265132400183	ASSY. SHACKLE (REAR SPRING)
19	265132407199	LOCK PLATE
20	265132106704	SPRING PIN (SHACKLE END)
21	265132400126	ASSY. SEALING RING
22	17170600801	GREASE NIPPLE AM 8X1
23	265132106701	SPRING PIN
25	265132503701	GUIDE PLATE REAR SPRING
26	270532504202	‘U’ CLAMP REAR

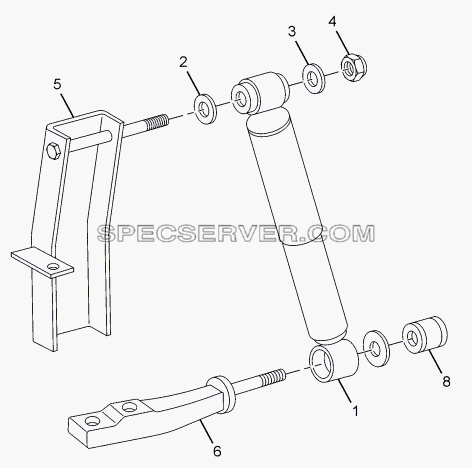

№	Номер детали	Наименование запчасти
1	265132300103	FRONT SHOCK ABSORBER
2	265132308201	WASHER
3	NSP	HEX. NUT M 10
4	12140601401	NYLOC NUT M 14X1.5
5	265132300109	ASSY. BRACKET FOR FRONT SHOCK ABSORBER AND CAB MTG. RH
5	265132300126	ASSY. BRACKET FOR FRONT SHOCK ABSORBER AND CAB MTG. LH
6	265132305107	BRACKET BOTTOM (FRONT SHOCK ABSORBER)
8	265132308601	BUSH

№	Номер детали	Наименование запчасти
1	265132600130	ASSY. BRACKET
3	265132600121	REAR SHOCK ABSORBER
4	265132608210	WASHER
5	12140601606	NYLOC NUT M 16X1.5
6	11063996116	HEX. BOLT M16X1.5X85
7	11063916694	HEX. BOLT M16X1.5X110

№	Номер детали	Наименование запчасти
1	265132800104	ASSY. ANTI - ROLL BAR FRONT
2	265132800105	ASSY. CONNECTING ROD (FRONT ARB.)
3	265132807703	RUBBER BUFFER
4	265132806902	SPACER TUBE
5	265132808203	CUP
6	265132807705	BEARING BLOCK (FRONT ARB.)
7	265132803802	CLAMP SUPPORT
8	264032804202	‘U’ CLAMP (ANTI - ROLL BAR)
9	264032807103	CLAMP PLATE
10	11063996108	HEX BOLT M 14X1.5X70
11	259632807701	RUBBER BUSH
12	259632806901	TUBE

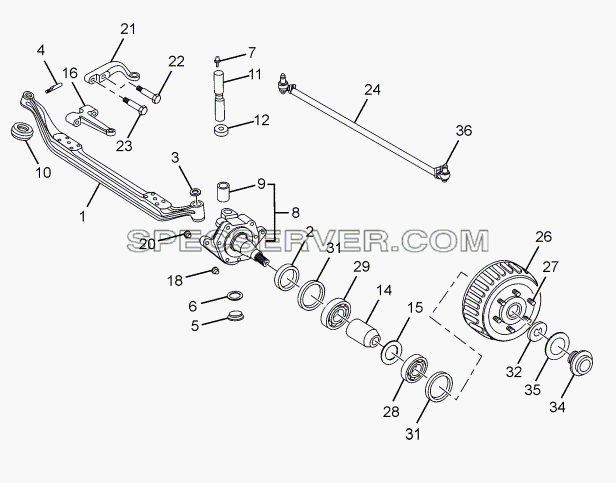

№	Номер детали	Наименование запчасти
-	265133000109	ASSY FRT.AXLE WITH BRAKES-LHD
-	885433010407	KING PIN KIT WITH MINOR KIT & BUSH R/S I CONSISTING OF
-	885433020407	KING PIN KIT WITH MINOR KIT & BUSH R/S II CONSISTING OF
-	885433030407	KING PIN KIT WITH MINOR KIT & BUSH STD I CONSISTING OF
-	885433040407	KING PIN KIT WITH MINOR KIT & W/O BUSH STD CONSISTING OF
-	885433050407	KING PIN KIT WITH MINOR KIT & W/O BUSH R/S I CONSISTING OF
-	885433060407	KING PIN KIT WITH MINOR KIT & W/O BUSH R/S II CONSISTING OF
-	885433070407	KING PIN KIT WITH MINOR KIT & W/O BUSH STD I CONSISTING OF
-	885433080407	KING PIN MINOR KIT CONSISTING OF:
-	885433180407	KING PIN KIT WITH MINOR KIT & BUSH STD CONSISTING OF
-	CIRCLIP B-30
-	COTTER BOLT
-	GREASE NIPPLE
-	HEX NUT M8
-	KING PIN BUSH
-	KING PIN BUSH
-	KING PIN BUSH
-	KING PIN BUSH
-	MINOR KIT
-	MINOR KIT
-	MINOR KIT
-	MINOR KIT
-	MINOR KIT
-	MINOR KIT
-	MINOR KIT
-	MINOR KIT
-	O’ RING
-	SEALING CAP
-	SPRING WASHER
1	265133105111	FRONT AXLE BEAM
2	264033408601	SEAL RACE (STUB AXLE)
3	265133208604	SHIM 0.1 MM THICK
3	265133208605	SHIM 0.2 MM THICK
3	265133208607	SHIM 0.4 MM THICK
3	265133208608	SHIM 0.5 MM THICK
3	265133208610	SHIM 0.7 MM THICK
3	265133208612	SHIM 0.8 MM THICK
3	265133208613	SHIM 0.9 MM THICK
3	265133208614	SHIM 1.0 MM THICK
3	265133208615	SHIM 1.1 MM THICK
3	265133208616	SHIM 1.2 MM THICK
3	265133208617	SHIM 1.3 MM THICK
3	265133208618	SHIM 1.4 MM THICK
3	265133208619	SHIM 1.5 MM THICK
3	265133208620	SHIM 1.6 MM THICK
4	265133109902	COTTOR BOLT
5	265133209905	KING PIN CAP
6	17050501230	‘O’ RING 29.82X2.65
7	17170700805	GREASE NIPPLE BM 6X1
8	265133200131	ASSY. STUB AXLE (NORMAL)
9	265133203404	STEERING BUSH
10	265133403105	BEARING STEERING PIVOT (STD)
11	265133206706	KING PIN (STD)
11	KING PIN R/S I
11	KING PIN R/S I
11	KING PIN R/S II
11	KING PIN R/S II
11	KING PIN STD
11	KING PIN STD
11	KING PIN STD I
11	KING PIN STD I
12	265133403132	ASSY THRUST PAD(NORMAL) M/S TEXSPIN
14	265133209907	SPACER
15	265133208630	SHIM
15	265133208631	SHIM
15	265133208632	SHIM
15	265133208633	SHIM
15	265133208634	SHIM
15	265133208635	SHIM
15	265133208636	SHIM
15	265133208637	SHIM
15	265133208638	SHIM
15	265133208639	SHIM
16	265133805112	STEERING ARM ( LHD)
18	265133206304	DUST CAP
20	265133206302	DUST CAP
21	265133805109	TIE ROD ARM LH
21	265133805110	TIE ROD ARM RH
22	265133803206	BOLT
23	265133803207	BOLT
24	265133800106	TIE ROD ASSY.
26	265133403713	FRONT BRAKE DRUM WITH HUB
27	264040106703	WHEEL MOUNTING PIN
28	250626303101	TAPER ROLLER BEARING
29	265135603101	TAPER ROLLER BEARING
31	265133407804	OIL SEAL
32	265133409204	THRUST WASHER
34	264033408206	HUB COVER (FRONT AXLE)
35	264033405302	GASKET
36	265133800104	BALL JOINT ASSY. WITH LH THREAD
36	265133800105	BALL JOINT ASSY. WITH RH THREAD

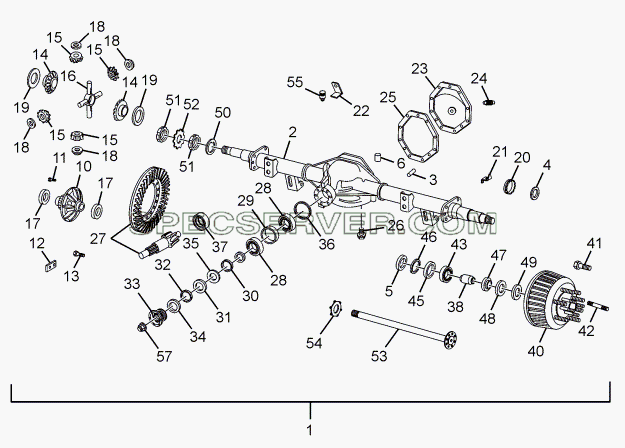

REAR AXLE (SINGLE TYRE-CHINA BEAM) для SFC 407 LHD Euro II (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	265135308001	HEX SCREW (CROWN WHEEL)
-	266535300104	DIFFERENTIAL GEAR KIT WITH SPIDER, CONSISTING OF :
1	266535000114	ASSY. RA COMP. WITH BRK. AND HAND BRAKE CABLE
2	266535100106	ASSY.R.A.HSG. WITH SUPPORTING TUBE
3	265142803401	THREADED PLUG
4	265135108202	SLINGER
5	265135108602	PRESSURE RING
6	265135106701	CYLINDRICAL PIN
10	265135300101	DIFFERENTIAL HOUSING ASSY.
11	265135308002	HEX. COLLAR BOLT DIFFERENTIAL
12	265135306101	LOCKING PLATE DIFFERENTIAL
13	265135308001	HEX SCREW (CROWN WHEEL)
14	REAR AXLE SHAFT GEAR
15	DIFFERENTIAL BEVEL PINION
16	DIFFERNTIAL SPIDER
17	266535303112	TAPER ROLLER BEARING DIFFERENTIAL
18	265135309210	SPHERICAL WASHER
18	SPHERICAL WASHER
19	265135309202	THRUST WASHER 1.25 THICK
19	265135309203	THRUST WASHER 1.30 THICK
19	265135309204	THRUST WASHER 1.35 THICK
19	265135309205	THRUST WASHER 1.40 THICK
19	265135309206	THRUST WASHER 1.45 THICK
19	265135309207	THRUST WASHER 1.50 THICK
19	265135309208	THRUST WASHER 1.55 THICK
19	THRUST WASHER
20	265135306502	THREADED RING DIFFERENTIAL
21	265135308202	LOCKING PLATE
22	3129941201	LOCKING PLATE
23	265135100102	ASSY. REAR COVER
24	9970506	SCREW PLUG OIL FILLING
25	265135105301	GASKET REAR COVER
26	250626107203	MAGNETIC DRAIN PLUG (HEX HEAD TYPE)
27	266535300102	ASSY. CROWN WHEEL AND PINION 35/9
28	265135303102	TAPER ROLLER BEARING TAIL PINION
29	265135308602	SPACER BET HYP. PINION BEARING
30	266535308601	SPACER BET FLANGE
31	266535306501	THREADED RING TAIL PINION
32	265135307701	OIL SEAL
33	266433350101	ASSY. COUPLING FLANGE
34	266535308201	DUST COVER
35	265135308604	SPACER RING TAIL PINION 7.56 THICK
35	265135308605	SPACER RING TAIL PINION 7.54 THICK
35	265135308607	SPACER RING TAIL PINION 7.50 THICK
35	265135308608	SPACER RING TAIL PINION 7.48 THICK
35	265135308610	SPACER RING TAIL PINION 7.44 THICK
35	265135308611	SPACER RING TAIL PINION 7.42 THICK
35	265135308612	SPACER RING TAIL PINION 7.40 THICK
35	265135308613	SPACER RING TAIL PINION 7.38 THICK
35	265135308614	SPACER RING TAIL PINION 7.36 THICK
35	265135308615	SPACER RING TAIL PINION 7.34 THICK
35	265135308616	SPACER RING TAIL PINION 7.32 THICK
35	265135308620	SPACER RING TAIL PINION 7.60 THICK
35	265135308621	SPACER RING TAIL PINION 7.70 THICK
35	265135308623	SPACER RING TAIL PINION 7.90 THICK
35	265135308626	SPACER RING TAIL PINION 7.72 THICK
35	265135308627	SPACER RING TAIL PINION 7.74 THICK
35	265135308628	SPACER RING TAIL PINION 7.76 THICK
35	265135308630	SPACER RING TAIL PINION 7.82 THICK
35	265135308631	SPACER RING TAIL PINION 7.84 THICK
35	265135308632	SPACER RING TAIL PINION 7.86 THICK
35	265135308633	SPACER RING TAIL PINION 7.88 THICK
35	265135308634	SPACER RING TAIL PINION 7.58 THICK
35	265135308635	SPACER RING TAIL PINION 7.62 THICK
35	265135308636	SPACER RING TAIL PINION 7.64 THICK
35	265135308637	SPACER RING TAIL PINION 7.66 THICK
35	265135308638	SPACER RING TAIL PINION 7.68 THICK
35	265135308639	SPACER RING TAIL PINION 7.92 THICK
35	265135308640	SPACER RING TAIL PINION 7.94 THICK
35	265135308641	SPACER RING TAIL PINION 7.96 THICK
35	265135308642	SPACER RING TAIL PINION 7.98 THICK
35	265135308643	SPACER RING TAIL PINION 8.00 THICK
35	265135308644	SPACER RING TAIL PINION 8.02 THICK
35	265135308645	SPACER RING TAIL PINION 8.10 THICK
35	265135308646	SPACER RING TAIL PINION 8.20 THICK
36	265135308303	SHIM 0.10 THICK
36	265135308304	SHIM 0.15 THICK
36	265135308305	SHIM 0.20 THICK
36	265135308306	SHIM 0.25 THICK
36	265135308307	SHIM 0.50 THICK
36	265135308308	SHIM 1.50 THICK
36	265135308309	SHIM 0.30 THICK
36	265135308310	SHIM 0.45 THICK
37	265135303103	CYLINDRICAL ROLLER BEARING TAIL PINION
38	266535608601	SPACER TUBE (BETWEEN HUB BEARING)
40	266535603701	REAR BRAKE DRUM WITH HUB
41	264040106703	WHEEL MOUNTING PIN
42	266535608801	STUD M16
43	265135603101	TAPER ROLLER BEARING
45	265135608602	SPACER BET OIL SEAL AND INNER BEARING
46	265135607701	OIL SEAL HUB INNER
47	266535603108	TAPER ROLLER BEARING HUB OUTER
48	265135608603	SPACER OIL SEAL AND OUTER BEARING
49	265135607702	OIL SEAL HUB OUTER
50	265135608601	SPACER BETWEEN OUTER BEARING AND LOCKING RING
50	265135608605	SPACER BETWEEN OUTER BEARING AND LOCKING RING
51

№	Номер детали	Наименование запчасти
-	265135308001	HEX SCREW (CROWN WHEEL)
-	266535000137	ASSY REAR AXLE WITH BRKS 35/9 W/SD CHINA BEAM
-	266535110103	ASSY.CARRIER HOUSING
-	266535300104	DIFFERENTIAL GEAR KIT WITH SPIDER, CONSISTING OF :
1	266535000136	ASSY RA WITH HUBS 35/9 W/SD CHINA BEAM
2	266535100120	ASSY.REAR AXLE BEAM (MACHINED) SD CHINA
5	265135108602	PRESSURE RING
10	265135300101	DIFFERENTIAL HOUSING ASSY.
11	265135308002	HEX. COLLAR BOLT DIFFERENTIAL
12	265135306101	LOCKING PLATE DIFFERENTIAL
13	265135308001	HEX SCREW (CROWN WHEEL)
14	REAR AXLE SHAFT GEAR
15	DIFFERENTIAL BEVEL PINION
16	DIFFERNTIAL SPIDER
17	266535303112	TAPER ROLLER BEARING DIFFERENTIAL
18	265135309210	SPHERICAL WASHER
18	SPHERICAL WASHER
19	265135309202	THRUST WASHER 1.25 THICK
19	265135309203	THRUST WASHER 1.30 THICK
19	265135309204	THRUST WASHER 1.35 THICK
19	265135309205	THRUST WASHER 1.40 THICK
19	265135309206	THRUST WASHER 1.45 THICK
19	265135309207	THRUST WASHER 1.50 THICK
19	265135309208	THRUST WASHER 1.55 THICK
19	THRUST WASHER
20	265135306502	THREADED RING DIFFERENTIAL
21	265135308202	LOCKING PLATE
22	3129941201	LOCKING PLATE
25	266535115301	GASKET (BETWEEN CARRIER & BEAM)
26	266335107201	MAGNETIC DRAIN PLUG
27	266535300102	ASSY. CROWN WHEEL AND PINION 35/9
28	265135303102	TAPER ROLLER BEARING TAIL PINION
29	265135308602	SPACER BET HYP. PINION BEARING
30	266535308601	SPACER BET FLANGE
31	266535306501	THREADED RING TAIL PINION
32	265135307701	OIL SEAL
33	266433350101	ASSY. COUPLING FLANGE
34	266535308201	DUST COVER
35	265135308604	SPACER RING TAIL PINION 7.56 THICK
35	265135308605	SPACER RING TAIL PINION 7.54 THICK
35	265135308607	SPACER RING TAIL PINION 7.50 THICK
35	265135308608	SPACER RING TAIL PINION 7.48 THICK
35	265135308610	SPACER RING TAIL PINION 7.44 THICK
35	265135308611	SPACER RING TAIL PINION 7.42 THICK
35	265135308612	SPACER RING TAIL PINION 7.40 THICK
35	265135308613	SPACER RING TAIL PINION 7.38 THICK
35	265135308614	SPACER RING TAIL PINION 7.36 THICK
35	265135308615	SPACER RING TAIL PINION 7.34 THICK
35	265135308616	SPACER RING TAIL PINION 7.32 THICK
35	265135308620	SPACER RING TAIL PINION 7.60 THICK
35	265135308621	SPACER RING TAIL PINION 7.70 THICK
35	265135308623	SPACER RING TAIL PINION 7.90 THICK
35	265135308626	SPACER RING TAIL PINION 7.72 THICK
35	265135308627	SPACER RING TAIL PINION 7.74 THICK
35	265135308628	SPACER RING TAIL PINION 7.76 THICK
35	265135308630	SPACER RING TAIL PINION 7.82 THICK
35	265135308631	SPACER RING TAIL PINION 7.84 THICK
35	265135308632	SPACER RING TAIL PINION 7.86 THICK
35	265135308633	SPACER RING TAIL PINION 7.88 THICK
35	265135308634	SPACER RING TAIL PINION 7.58 THICK
35	265135308635	SPACER RING TAIL PINION 7.62 THICK
35	265135308636	SPACER RING TAIL PINION 7.64 THICK
35	265135308637	SPACER RING TAIL PINION 7.66 THICK
35	265135308638	SPACER RING TAIL PINION 7.68 THICK
35	265135308639	SPACER RING TAIL PINION 7.92 THICK
35	265135308640	SPACER RING TAIL PINION 7.94 THICK
35	265135308641	SPACER RING TAIL PINION 7.96 THICK
35	265135308642	SPACER RING TAIL PINION 7.98 THICK
35	265135308643	SPACER RING TAIL PINION 8.00 THICK
35	265135308644	SPACER RING TAIL PINION 8.02 THICK
35	265135308645	SPACER RING TAIL PINION 8.10 THICK
35	265135308646	SPACER RING TAIL PINION 8.20 THICK
36	265135308303	SHIM 0.10 THICK
36	265135308304	SHIM 0.15 THICK
36	265135308305	SHIM 0.20 THICK
36	265135308306	SHIM 0.25 THICK
36	265135308307	SHIM 0.50 THICK
36	265135308308	SHIM 1.50 THICK
36	265135308309	SHIM 0.30 THICK
36	265135308310	SHIM 0.45 THICK
37	265135303103	CYLINDRICAL ROLLER BEARING TAIL PINION
38	266535608601	SPACER TUBE (BETWEEN HUB BEARING)
40	266535603701	REAR BRAKE DRUM WITH HUB
41	264040106703	WHEEL MOUNTING PIN
42	266535608801	STUD M16
43	265135603101	TAPER ROLLER BEARING
45	265135608602	SPACER BET OIL SEAL AND INNER BEARING
46	265135607701	OIL SEAL HUB INNER
47	266535603108	TAPER ROLLER BEARING HUB OUTER
48	265135608603	SPACER OIL SEAL AND OUTER BEARING
49	265135607702	OIL SEAL HUB OUTER
50	265135608601	SPACER BETWEEN OUTER BEARING AND LOCKING RING
50	265135608605	SPACER BETWEEN OUTER BEARING AND LOCKING RING
51	265135606501	LOCKING RING
52	266535605301	GASKET
53	266535707902	REAR AXLE SHAFT
54	266535605301	GASKET

FRAME 357171, 357174 для SFC 407 LHD Euro II (список запасных частей)

FRAME 357172, 357173, 357175 для SFC 407 LHD Euro II (список запасных частей)

FRONT SPRING AND SUSPENSION для SFC 407 LHD Euro II (список запасных частей)

REAR SPRING AND SUSPENSION для SFC 407 LHD Euro II (список запасных частей)

FRONT SHOCK ABSORBER для SFC 407 LHD Euro II (список запасных частей)

REAR SHOCK ABSORBER для SFC 407 LHD Euro II (список запасных частей)

FRONT ANTIROLL BAR для SFC 407 LHD Euro II (список запасных частей)

FRONT AXLE для SFC 407 LHD Euro II (список запасных частей)

REAR AXLE(SINGLE TYPE) для SFC 407 LHD Euro II (список запасных частей)

REAR AXLE (SINGLE TYRE-CHINA BEAM) для SFC 407 LHD Euro II (список запасных частей)
