Body Electrical Control System:  10B-3

Schematic and Routing Diagram

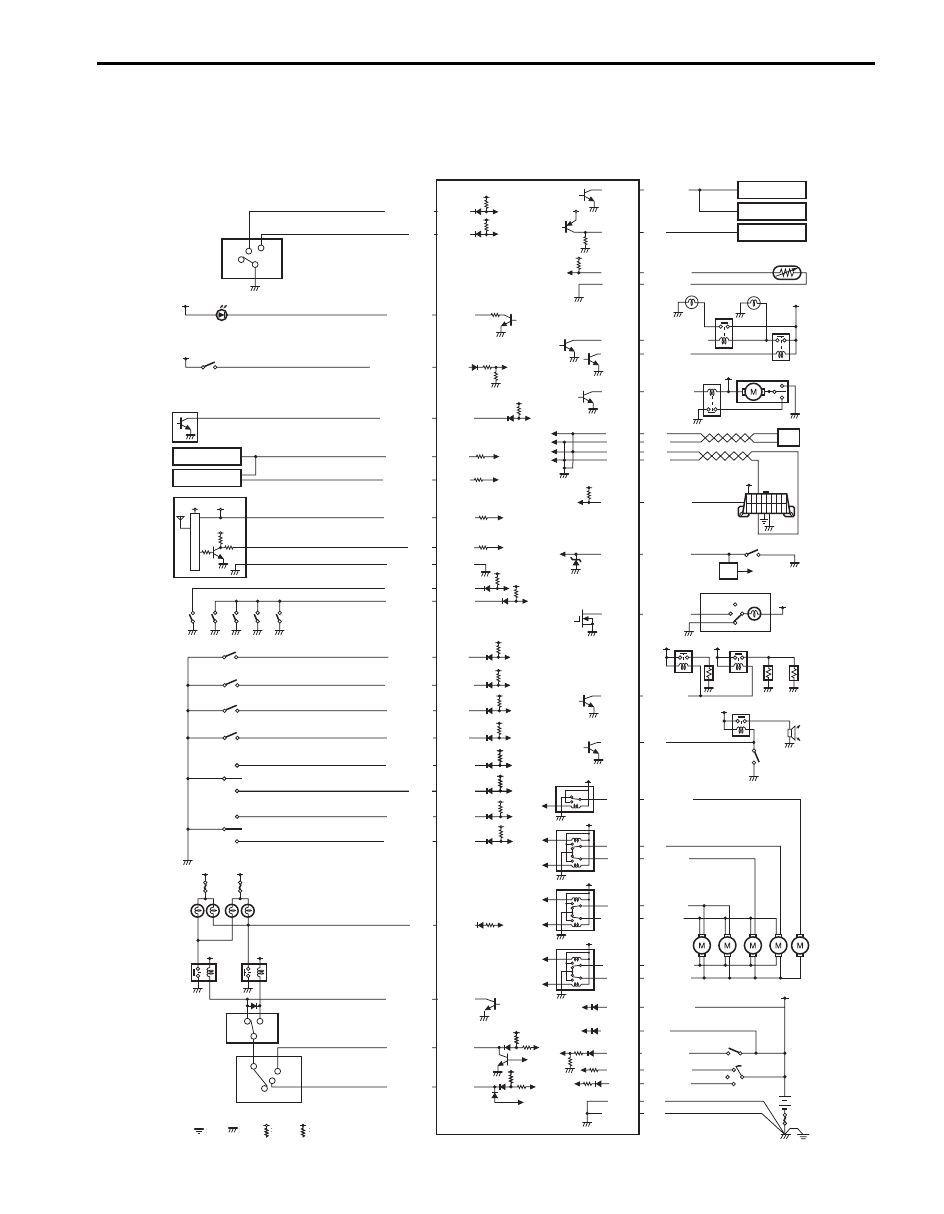

Body Electrical Control System Wiring Circuit Diagram

S5JB0BA202001

RED/BLK

PPL/GRN

PNK/BLK

PNK/GRN

RED/BLK

RED

WHT

WHT/BLK

IG1

PNK/BLK

YEL/BLK

YEL/RED

YEL/GRN

BRN

YEL/BLK

BLK/ORN

BLK/RED

IG1

G31-1

G31-3

PPL/WHT

ON

DOOR

OFF

BLK/RED

G32-15

YEL/RED

G31-34

+B

+B

+B

RED/BLU

G31-12

G31-13

+B

YEL

G30-19

BLU/BLK

G30-22

+B

+B

BLU

G31-15

BLU/BLK

G31-14

BLK/RED

G31-35

PNK/BLU

PNK/BLU

PNK

G32-2 BLU/YEL

G32-8 BLU

G32-9 BLU/BLK

G32-10 LT GRN

G32-11 GRN/RED

G32-3 BLU/RED

+B

+B

+B

G32-7 BLU/WHT

+B

G31-2

G31-4

LT GRN/RED

G31-17

PNK/GRN

+BB

GRN/YEL

G31-8

G31-7

G31-40

G31-27

G31-26

G31-24

G31-9

G31-39
G31-38

G31-18

G31-19

G31-20

G30-9

G30-16

G30-5

G30-4

G31-21

G31-36

G31-37

G31-10

LT GRN/BLK

WHT/RED

RED

WHT

1

22

24

40

6

25

26

4

3

27

30

38

37

23

39

41

28

42

51

52

44

45

46

33

33

33

33

36

36

35

34

29

48

2

49

32

31

43

47

50

5 V

12 V

20

19

18

17

16

9

13

14

14

14

14

12

15

11

10

21

8

7

5

GRN

GRN/RED

ON

INT

OFF

G30-7

G30-6

G30-11

RED/BLU

+B

HI

LO

C

H

+B

+B

+B

RED G32-12

RED/BLU G31-16

PNK/BLU G30-10

BLK

G32-1

G30-12

+B

PPL/RED

G30-1

BLK

WHT/BLK

G30-2

G32-5 RED/WHT

G30-3 BLU/RED

G32-13 WHT

I5JB0BA20003-02

10B-4 Body Electrical Control System:

1. BCM

22. Navigation (if equipped)

43. Dimmer and passing switch

2. Battery

23. To turn signal light

44. Horn relay

3. Rear wiper motor

24. Headlight auto leveling control module (if equipped)

45. Horn switch

4. Rear wiper relay

25. Front fog light relay (if equipped)

46. Horn

5. Rear wiper and washer switch

26. Tail light relay

47. Lighting switch

6. Outside air temperature sensor

27. Junction connector

48. Ignition switch

7. Ignition key switch

28. Door mirror heater relay (if equipped)

49. Body ground

8. Theft deterrent light

29. Rear end door lock actuator

50. Engine ground

9. Oil pressure switch

30. Data link connector (DLC)

51. Right side door mirror heater (if equipped)

10. Generator

31. Headlight high beam relay

52. Left side door mirror heater (if equipped)

11. Information display

32. Headlight low beam relay

INT: Intermittent position

12. Keyless entry receiver (if equipped)

33. Door lock motor relay

ON: Rear wiper ON position

13. Driver side door switch

34. Driver side door lock actuator

LO: Low beam position

14. Other than driver side door switch

35. Passenger side door lock actuator

HI: High beam position

15. HVAC control module

36. Rear door lock actuator

C: Clearance position

16. Driver side seat belt switch

37. Turn signal and hazard warning relay

H: Head position

17. Brake fluid level switch

38. Hazard warning switch

18. Parking brake switch

39. Interior light

19. Door key cylinder switch (included in door

lock actuator)

40. Air bag control module

20. Manual door lock switch

41. Rear window defogger relay

21. Front fog light switch (if equipped)

42. Rear window defogger

Body Electrical Control System:  10B-5

Component Location

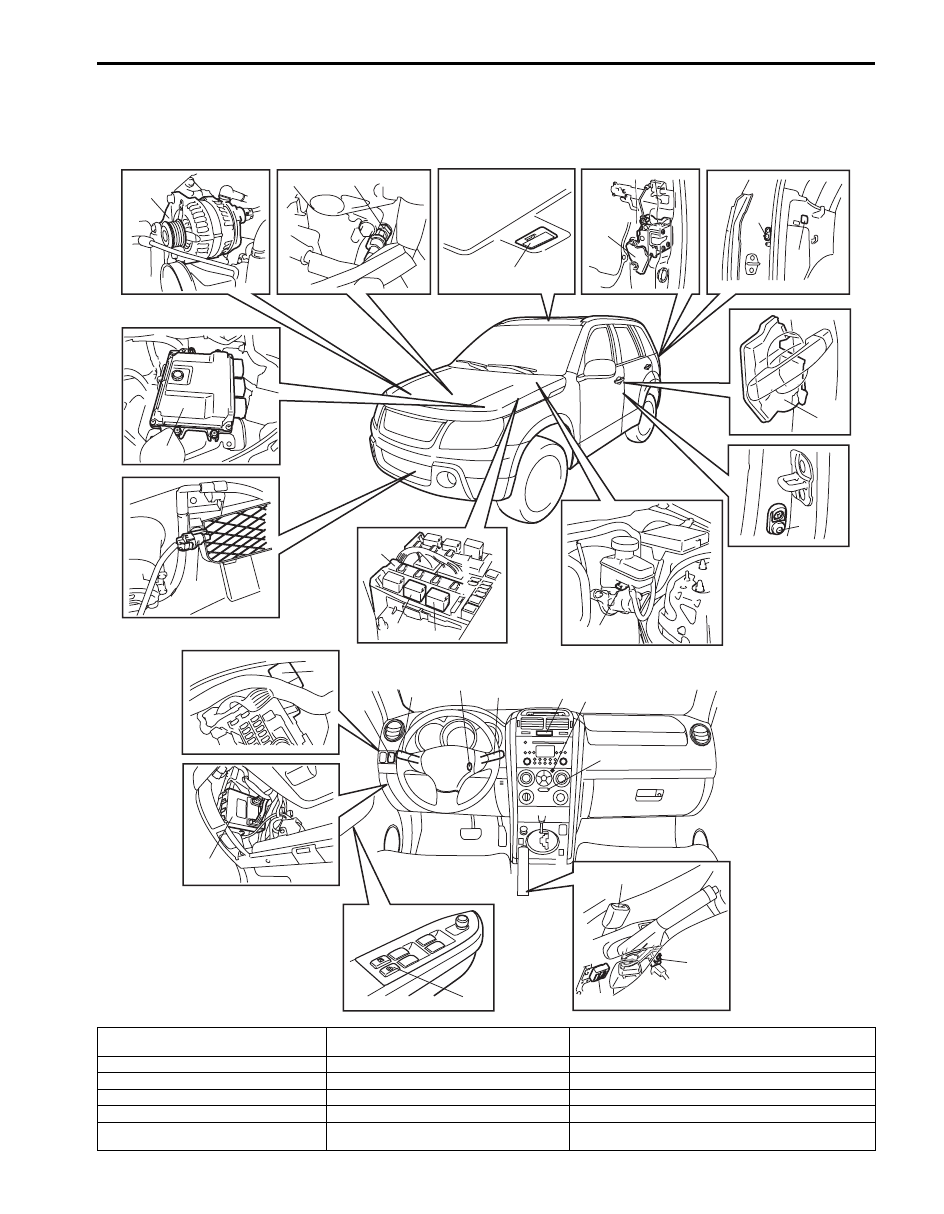

BCM and Related System Component Location

S5JB0BA203001

1

4

8

10

7

9

6

7

2

24

21

22

5

25

16

19

18

26

23

15

14

17

20

13

12

11

3

I5JB0BA20004-01

1. Generator

10. Rear end door lock actuator (incorporated

in door switch)

19. Lighting switch

2. Brake fluid level switch

11. Keyless entry receiver (if equipped)

20. Manual door lock switch

3. ECM

12. Parking brake switch

21. Headlight high beam relay

4. Oil pressure switch

13. Seat belt buckle switch

22. Headlight low beam relay

5. Outside air temperature sensor

14. Theft deterrent light

23. BCM

6. Door lock actuator (incorporated in key

cylinder switch)

15. Rear end door window defogger switch

24. Rear end window defogger, mirror heater, rear wiper and

front fog light relays (included in integration relay)

10B-6 Body Electrical Control System:

Diagnostic Information and Procedures

Scan Tool Data

S5JB0BA204003

7. Door switch

16. Front fog light switch (if equipped)

25. Turn signal and hazard warning relay

8. Interior light

17. Hazard warning switch

26.  Key reminder switch (included in ignition switch)

9. Luggage room light

18. Rear wiper switch

Scan tool Data

Condition

Normal condition /

reference value

Vehicle Speed

At stop with ignition switch turned ON

0 km/h

Outside air Temp

Reference value is relative to outside air temperature

–40

°C – 70 °C

(–40

°F – 158 °F)

Battery Voltage

At specified idle speed after warming up

10 – 14 V

Coolant Temp

At specified idle speed after warming up

80

°C – 100 °C

(176

°F – 212 °F)

Engine Speed

Engine idling with no load applied after warming up

Desired idle speed

± 50 rpm

Fuel Consumption

At specified idle speed after warming up

0.0 km/l

Key Reminder Sw

Ignition key inserted in ignition key cylinder

Key in

Ignition key pulled out from ignition key cylinder

Pulled

Door key Sw

Key cylinder switch of driver side door at lock position

LOCK

Key cylinder switch of driver side door not turned

Neutral

Key cylinder switch of driver side door at unlock position

Unlock

Door Lock Sw

Lock side of manual door lock switch pressed

LOCK

Manual door lock switch not pressed

Neutral

Unlock side of manual door lock switch pressed

Unlock

Driv Door Sw

Driver side door open

Open

Driver side door closed

Close

Pass Door Sw

Doors other than driver side door open

Open

Doors other than driver side door closed

Close

Brake Fluid Level

Brake fluid level at MIN level or higher

Normal

Brake fluid level lower than MIN level

Low

Parking Brake Sw

Parking brake lever pulled

ON

Parking brake lever released

OFF

Rear Defogger Sw

Rear end door window defogger switch turned ON with engine
running

ON

Rear end door window defogger switch turned OFF with engine
running

OFF

Tail Light Sw

Lighting switch at HEAD or CLEARANCE position

ON

Lighting switch at OFF position

OFF

Driv Seat belt Sw

Driver side seat belt fastened

Fasten

Driver side seat belt unfastened

Unfasten

Charge Lamp

Engine at stop with ignition switch turned ON

ON

Engine running

OFF

Oil pressure switch

Engine at stop with ignition switch turned ON

ON

Engine running

OFF

A/C Switch

A/C and ignition switch turned ON

ON

A/C switch turned OFF

OFF

Rear Wiper Sw

Rear wiper switch at ON position

ON

Rear wiper switch at INT position

INT

Rear wiper switch at OFF position

OFF

Front Fog Light Sw

Lighting switch at HEAD or CLEARANCE position and front fog
light switch at ON position

ON

Lighting switch at HEAD or CLEARANCE position and front fog
light switch at OFF position

OFF

Headlight Sw

Lighting switch at HEAD position

ON

Lighting switch at OFF position

OFF
