Wiring Systems: 9A-6

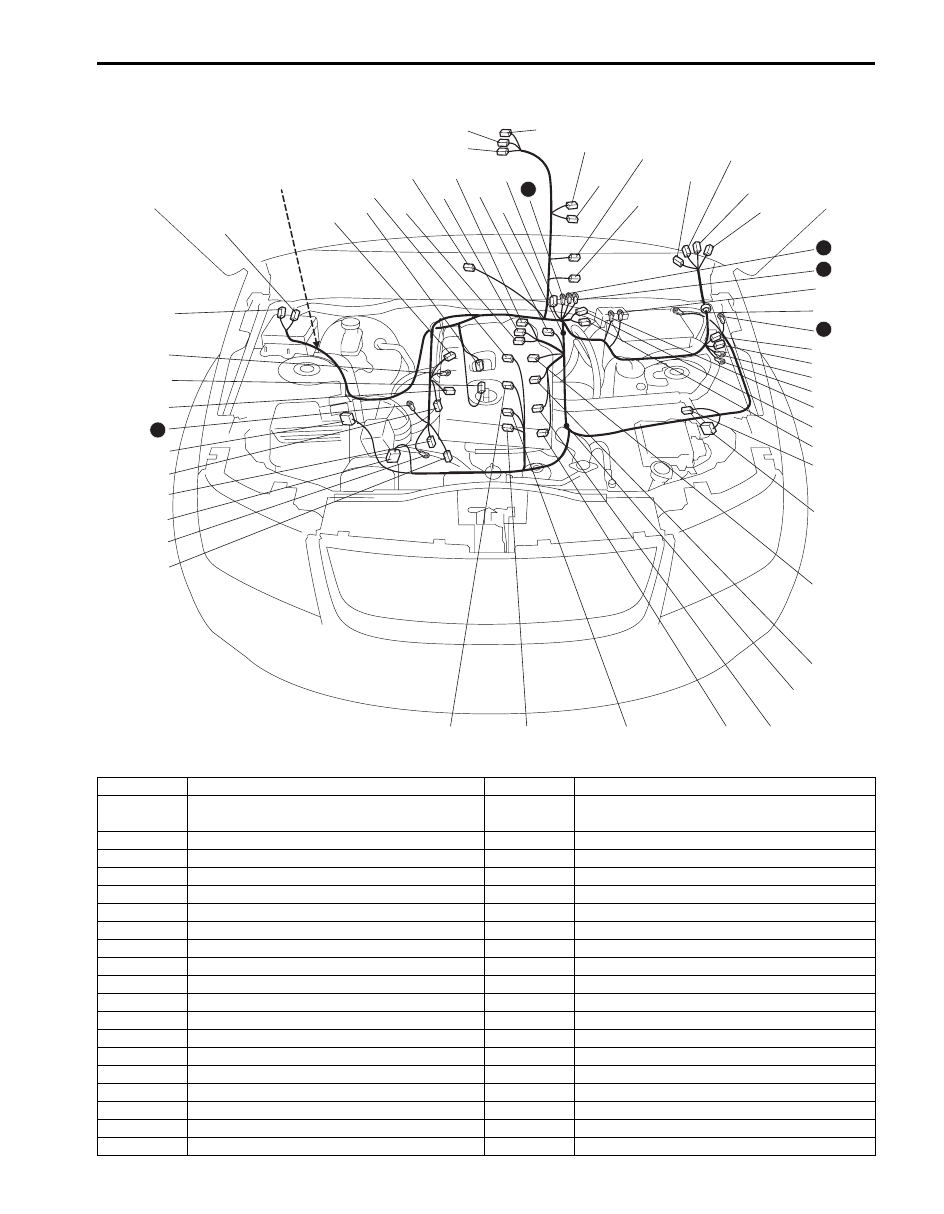

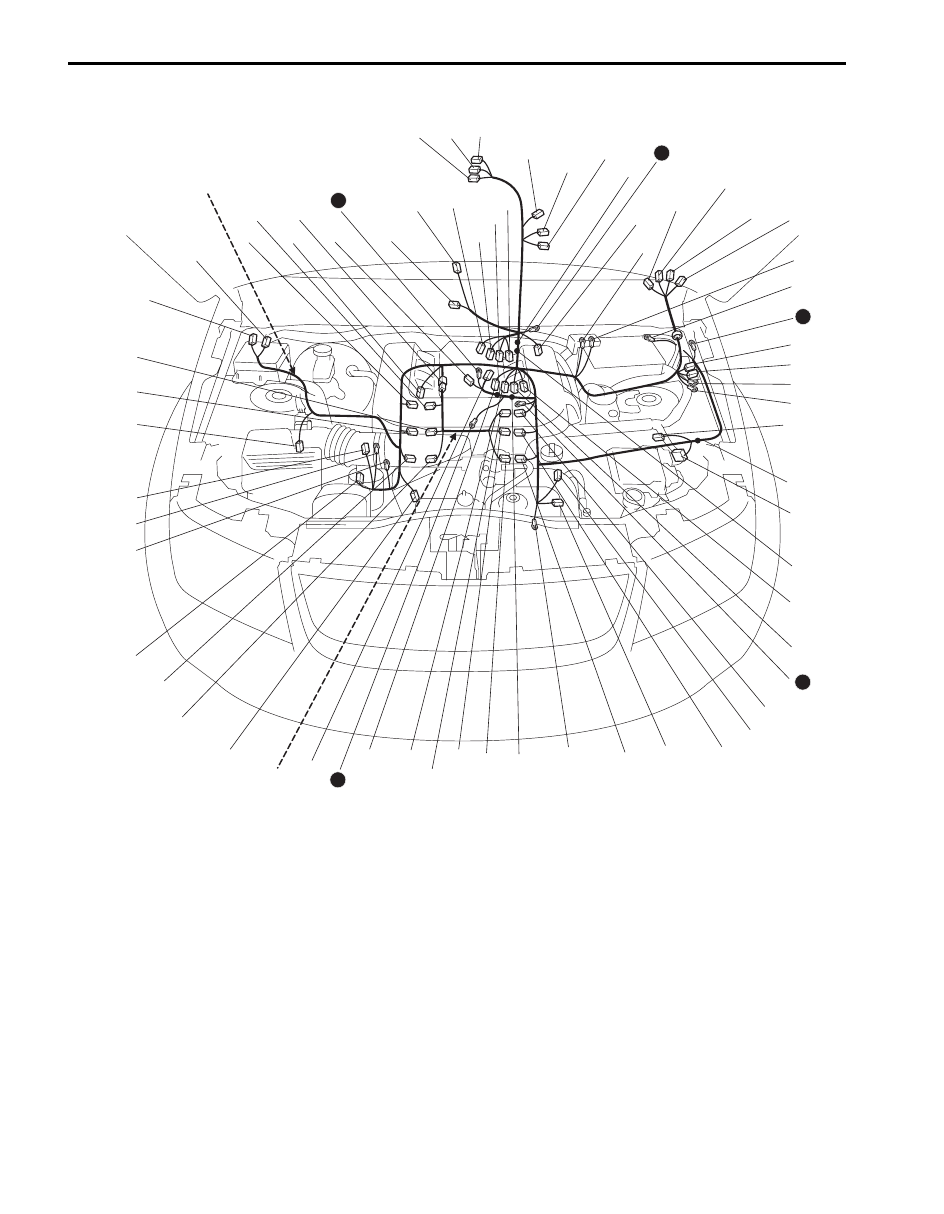

C: Engine harness (J20A RHD)

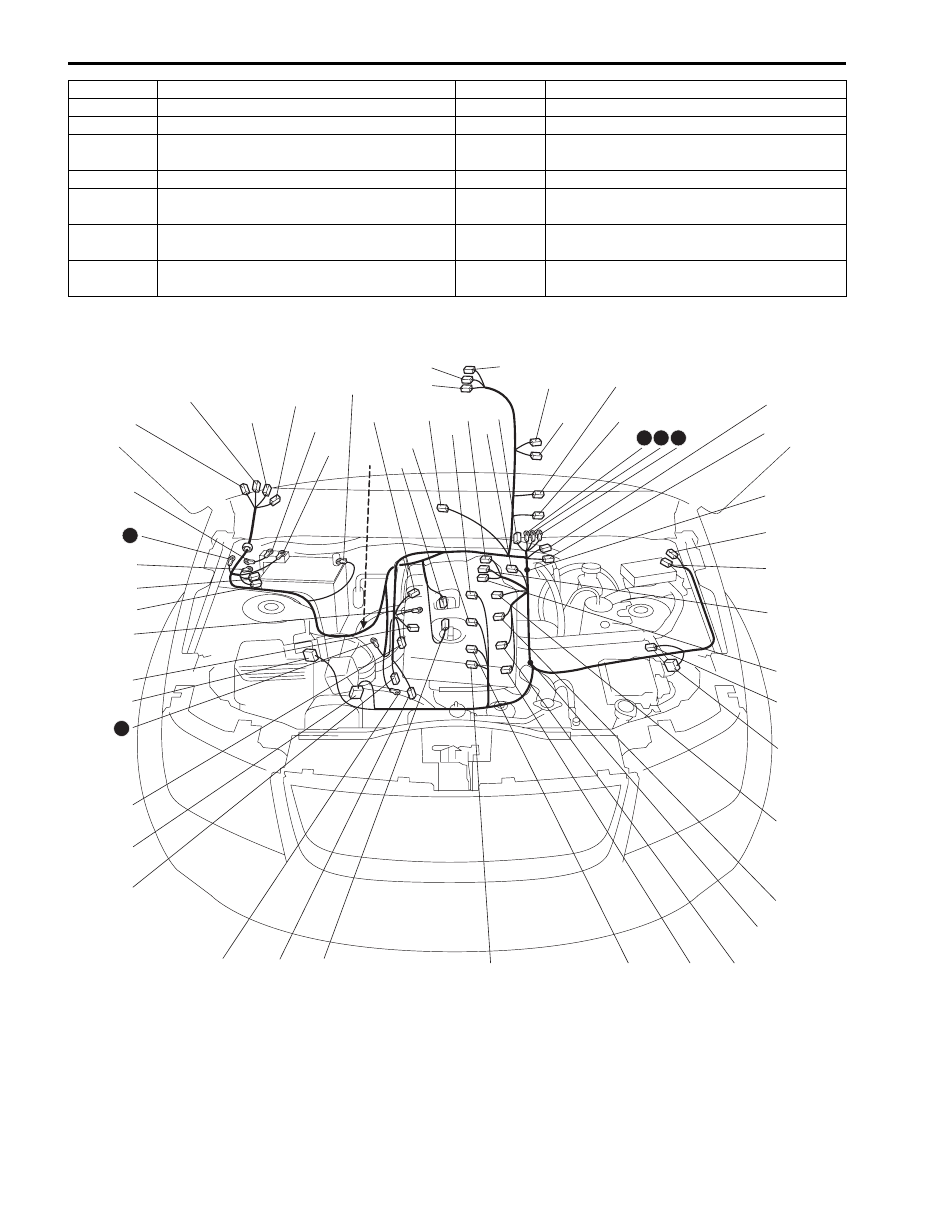

C: Engine harness
C34
(TO E54)
C49
(TO E88)
C50
(TO E89)
C27
(A/T)
C30
(M/T)
C25
(A/T)
C29
(A/T)
C48
(TO E87)
C35
(TO E55)
1
5
4
C01
C32
C39
C38
C03
C31
C02
C07
C54
C52
C53
C47
C55
C18
C08
C10
C09
C28
C23
C24
C14
C26
C21
C22
C33
C12
C13
C11
C06
C04
C05
C40
C41
C42
C43
C56
C37
C46
C20
C36
C51
C15
C
2
3
I5JB0B910901-03
No./Color
Connective position
No./Color
Connective position
C01/-
Battery (–)
C30/BLK
(M/T)
Back-up light switch
C02/-
Battery fuse box
C31/-
Battery fuse box
C03/-
Fuse box No.1
C32/-
Fuse box No.1
C04/GRY Injector #1
C33/N
P/S pump pressure switch
C05/GRY Injector #2
C34/N
Main harness (To E54)
C06/GRY Injector #3
C35/BLU
Main harness (To E55)
C07/GRY Injector #4
C36/GRY A/F sensor
C08/GRY CMP sensor
C37/GRY ECM
C09/BLK
ECT sensor
C38/BLK
Current sensor
C10/GRY EGR stepper motor
C39/GRY Fuse box No.1
C11/BLK
Throttle position sensor
C40/GRY IG coil #1
C12/BLK
MAP sensor
C41/GRY IG coil #2
C13/BLK
MAF sensor
C42/GRY IG coil #3
C14/BLK
EVAP canister purge valve
C43/GRY IG coil #4
C15/N
Heated oxygen sensor
C46/BRN Intake control valve
C18/N
Oil pressure sensor
C47/N
Noise filter
C20/GRY CKP sensor
C48/N
Main harness (To E87)
C21/GRN Generator #1
C49/N
Main harness (To E88)
C22/-
Generator #2
C50/N
Main harness (To E89)
