Suzuki Grand Vitara JB416 / JB420. Manual - part 405

9M-1 Exterior Trim:

Body, Cab and Accessories

Exterior Trim

Repair Instructions

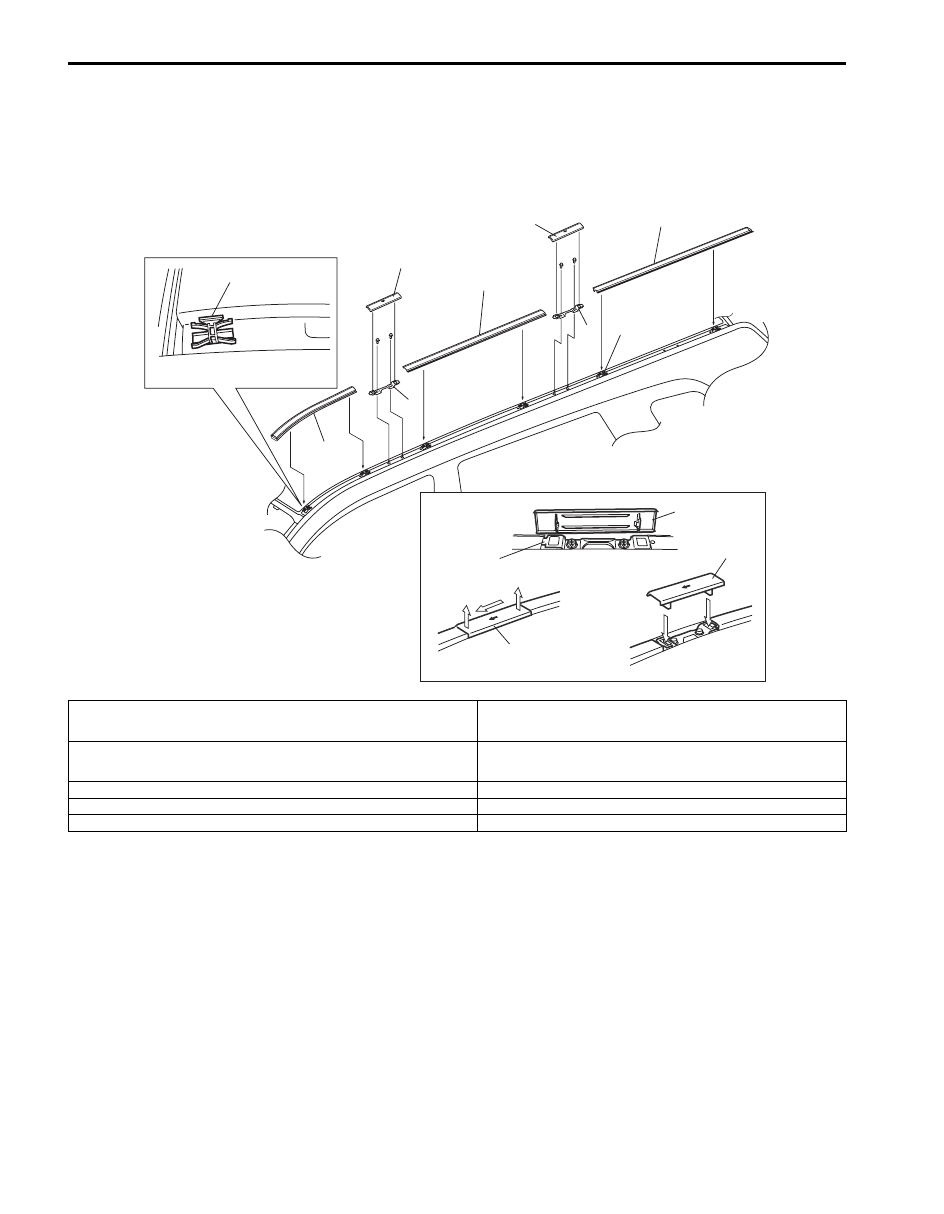

Roof Drip Molding Removal and Installation (If Equipped)

S5JB0A9D06005

*

1

3

2

4

4

6

5

5

[A]

[B]

a

a

b

b

c

5

5

5

4

I5JB0A9D0001-02

[A]: Molding Cap Removal

Remove cap by pushing in arrow direction shown on cap and then pulling in
alphabetical order indicated in figure.

4. Roof carrier bracket

[B]: Molding Cap Installation

Be sure to direct arrow mark of left side molding cap to vehicle forward and
arrow mark of right side molding cap to vehicle rearward.

5. Roof drip molding cap

1. Roof drip front molding

6. Roof drip molding clip (Push-in type)

2. Roof drip center molding

*: 5 door model only

 3. Roof drip rear molding

Exterior Trim:  9M-2

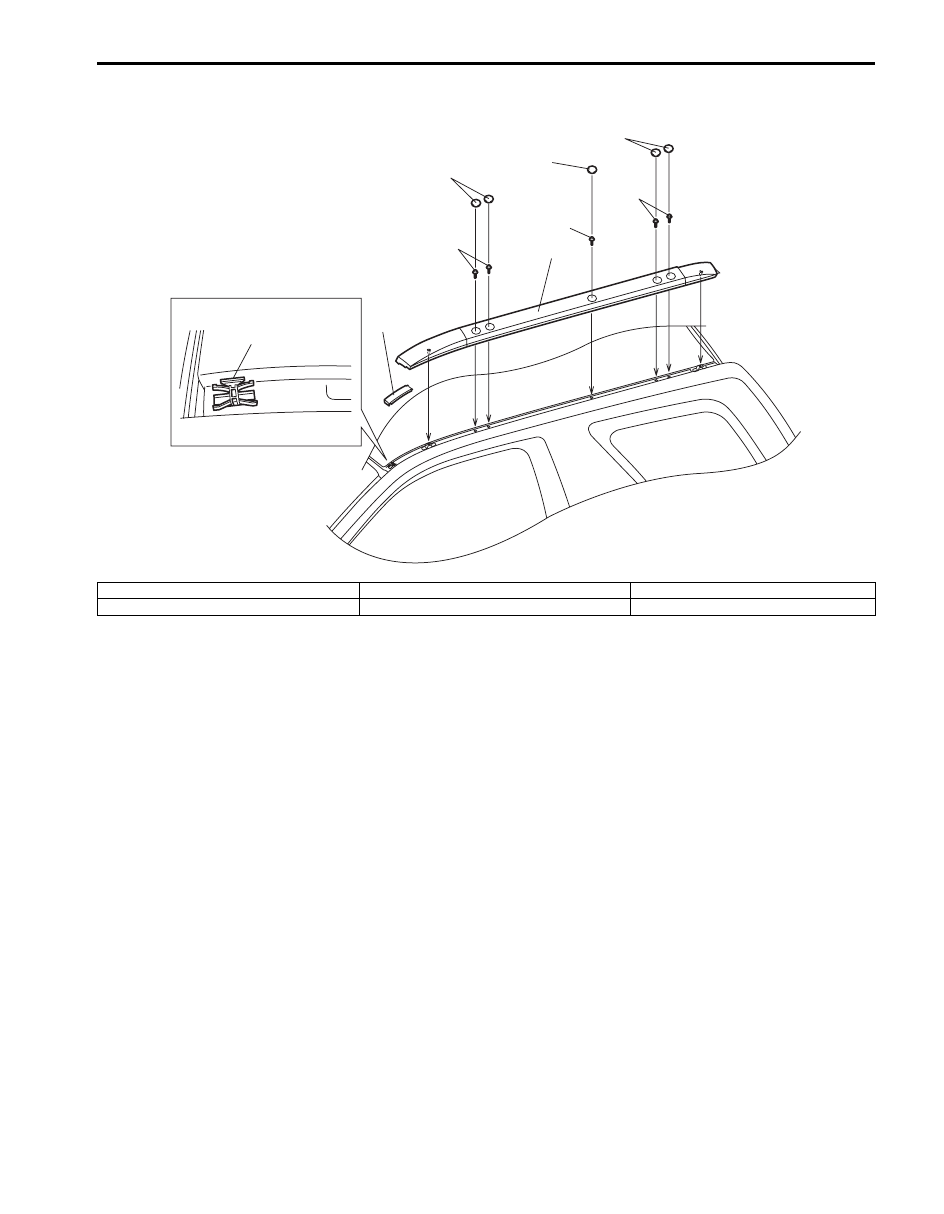

Roof Rail Removal and Installation (If Equipped)

S5JB0A9D06007

1

2

3

4

4

4*

5

5

5*

I5JB0A9D0002-03

1. Roof rail

 3. Roof drip molding clip (Push-in type)

5. Roof rail bolt

2. Roof drip front molding

4. Roof rail cap

*: 5 door model only

9M-3 Exterior Trim:

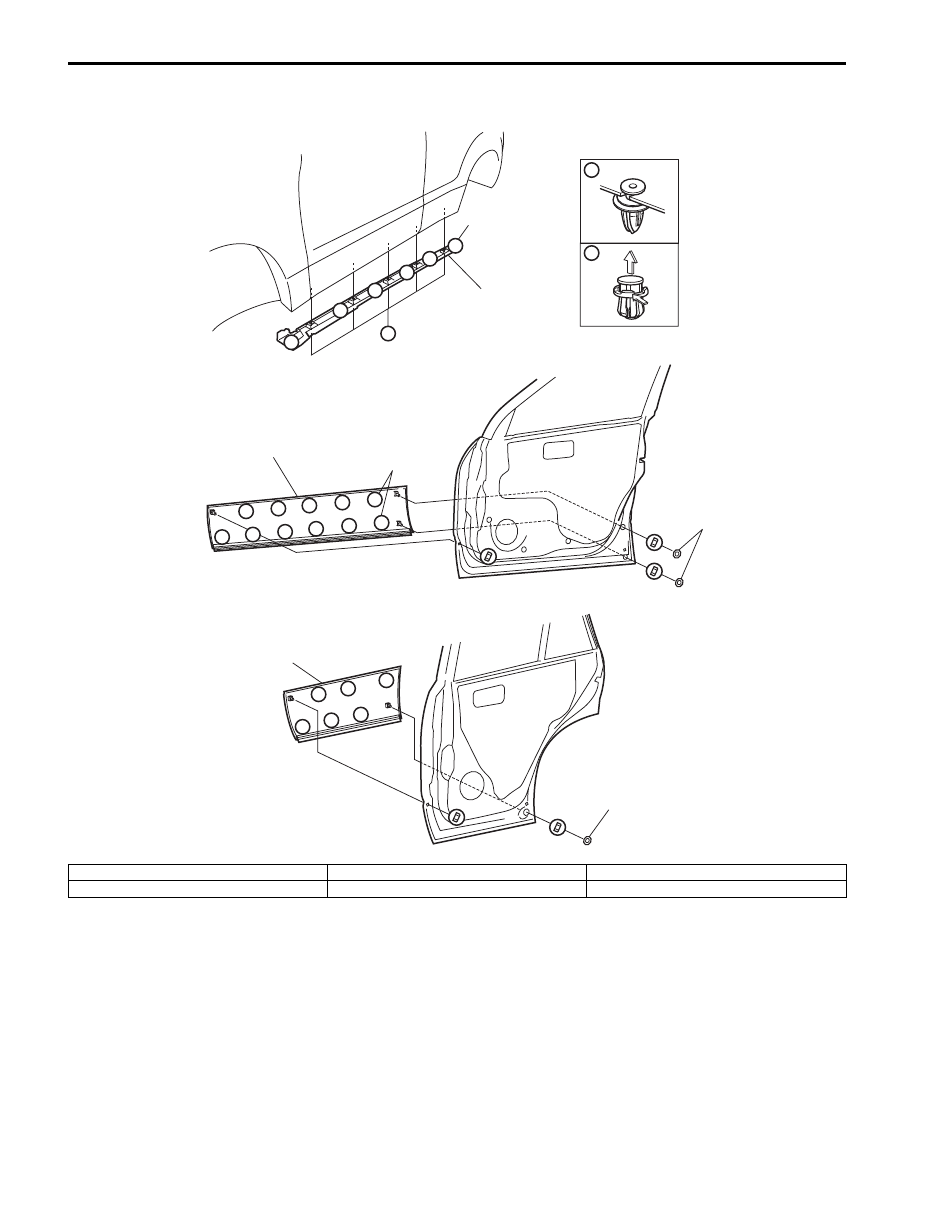

Splash Guard Removal and Installation (If Equipped)

S5JB0A9D06006

A

*

A

A

B

A

A

A

A

A

B

1

**

2

A

A

A

A

A

A

A

A

A

A

A

3**

A

A

A

A

A

A

4

4

I5JB0A9D0003-02

1. Side sill splash guard

3. Rear door splash guard

*: 3 door model only

2. Front door splash guard

4. Cap

**: 5 door model only
