5A-90 Automatic Transmission/Transaxle:

Oil Cooler Hose and Pipe Components

S5JB0A5106058

Oil Cooler Hose and Pipes Removal and
Installation

S5JB0A5106059

Removal

1) Lift up vehicle.
2) Make sure to wash dirt off from around pipe joints.
3) With engine is cool, loosen oil cooler pipe union bolts

(2) with oil outlet union locked and remove oil cooler
pipes (1) from oil outlet unions and hoses.

NOTE
To avoid fluid leakage, plug open ends of oil
outlet unions and hoses right after they are
disconnected.



I5JB0A510032-03

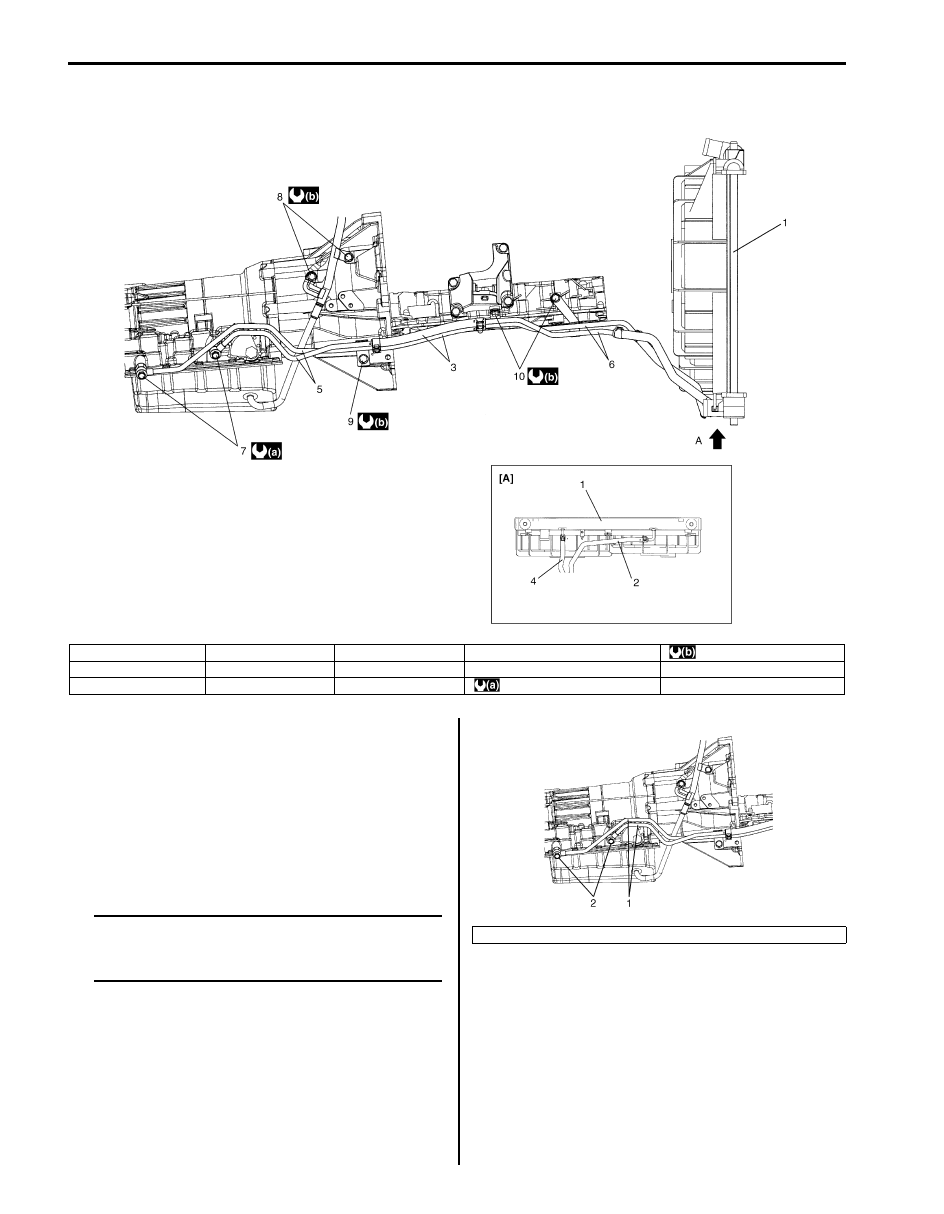

[A]: View from A side

3. Oil hose No.1

6. Oil pipe No.2

9. Oil pipe No.1 bolt

: 10 N

⋅m (1.0 kgf-m, 7.5 lb-ft)

1. Radiator

4. Oil hose No.4

7. Oil pipe union bolt

10. Oil pipe No.2 bolt

2. Oil hose No.3

5. Oil pipe No.1

8. Oil pipe tube bolt

: 25 N

⋅m (2.5 kgf-m, 18.0lb-ft)

3. Pipe bolt

I5JB0A510153-01

Automatic Transmission/Transaxle:  5A-91

Installation
When replacing them, be sure to note the followings.
• To replace clamps at the same time
• To insert hose as far as its limit mark
• To clamp hose securely

1) Use new union gaskets and connect oil cooler pipes

to oil outlet unions.

2) Connect hoses to pipes and clamp them securely.
3) Tighten union bolts to specified torque with oil outlet

union locked referring to “Oil Cooler Hose and Pipe
Components”.

4) Tighten pipe bolt to specified torque referring to “Oil

Cooler Hose and Pipe Components”.

5) Check A/T fluid level according to procedure

described in “A/T Fluid Level Check”. Add if
necessary.

6) Check for fluid leakage after warming up A/T.

Solenoid Valves (Shift Solenoid-A, Shift
Solenoid-B, TCC Pressure Control Solenoid and
Pressure Control Solenoid Removal and
Installation

S5JB0A5106060

Removal

1) Disconnect negative cable at battery.
2) Pull out fluid level gauge and lift up vehicle.
3) Remove drain plug (3) and drain A/T fluid.
4) Install drain plug (3) with new gasket.

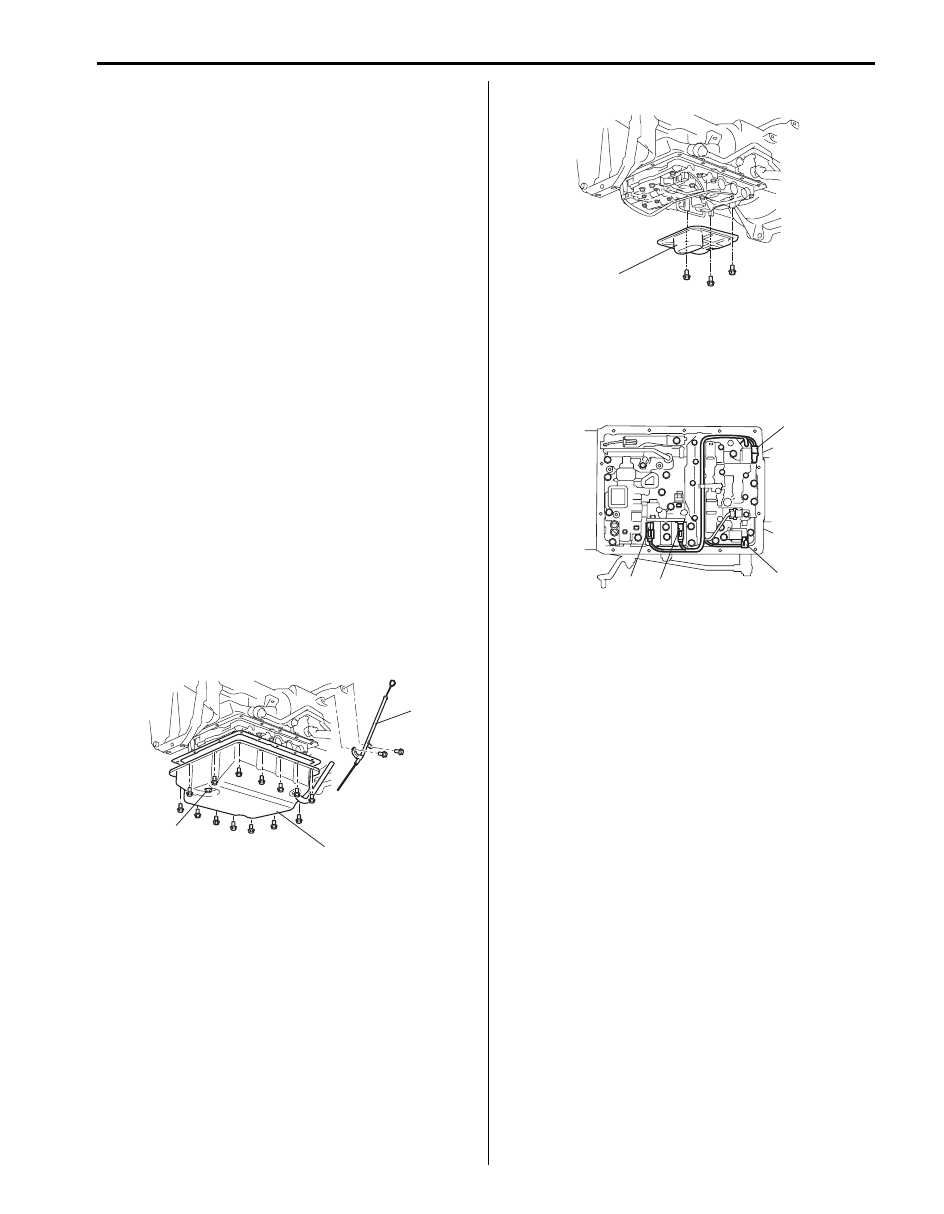

5) Remove oil filler tube (2) and A/T oil pan (1).

6) Remove A/T oil strainer (1).

7) Disconnect shift solenoid–A connector (1), shift

solenoid–B connector (2), TCC pressure control
solenoid connector (4) and Pressure control solenoid
connector (3).

8) Remove solenoid valves.

Installation
Remove removal procedure to install solenoid valves,
noting the following points.
• For details of solenoid valves and their connectors

installation, refer to “Automatic Transmission Unit
Assembly”. Use new O-ring.

• For details of A/T oil pan installation, refer to

“Automatic Transmission Unit Assembly”.

• Tighten exhaust No.1 pipe bolts & nuts and exhaust

bracket bolts & nuts.

• Fill A/T fluid and check fluid level according to

procedure described in “A/T Fluid Change”.

• Check for fluid leakage after warming up A/T.

2

1

3

I5JB0A510051-02

1

I5JB0A510052-01

3

4

1

2

I5JB0A510053-01

5A-92 Automatic Transmission/Transaxle:

Solenoid Valves (Shift Solenoid-A, Shift
Solenoid-B, TCC Pressure Control Solenoid and
Pressure Control Solenoid Inspection

S5JB0A5106061

Solenoid Valves (Shift Solenoid–A and Shift
Solenoid–B)
Resistance check

CAUTION

!



Be very careful as dust etc. does not enter
when solenoid valves are inspected.



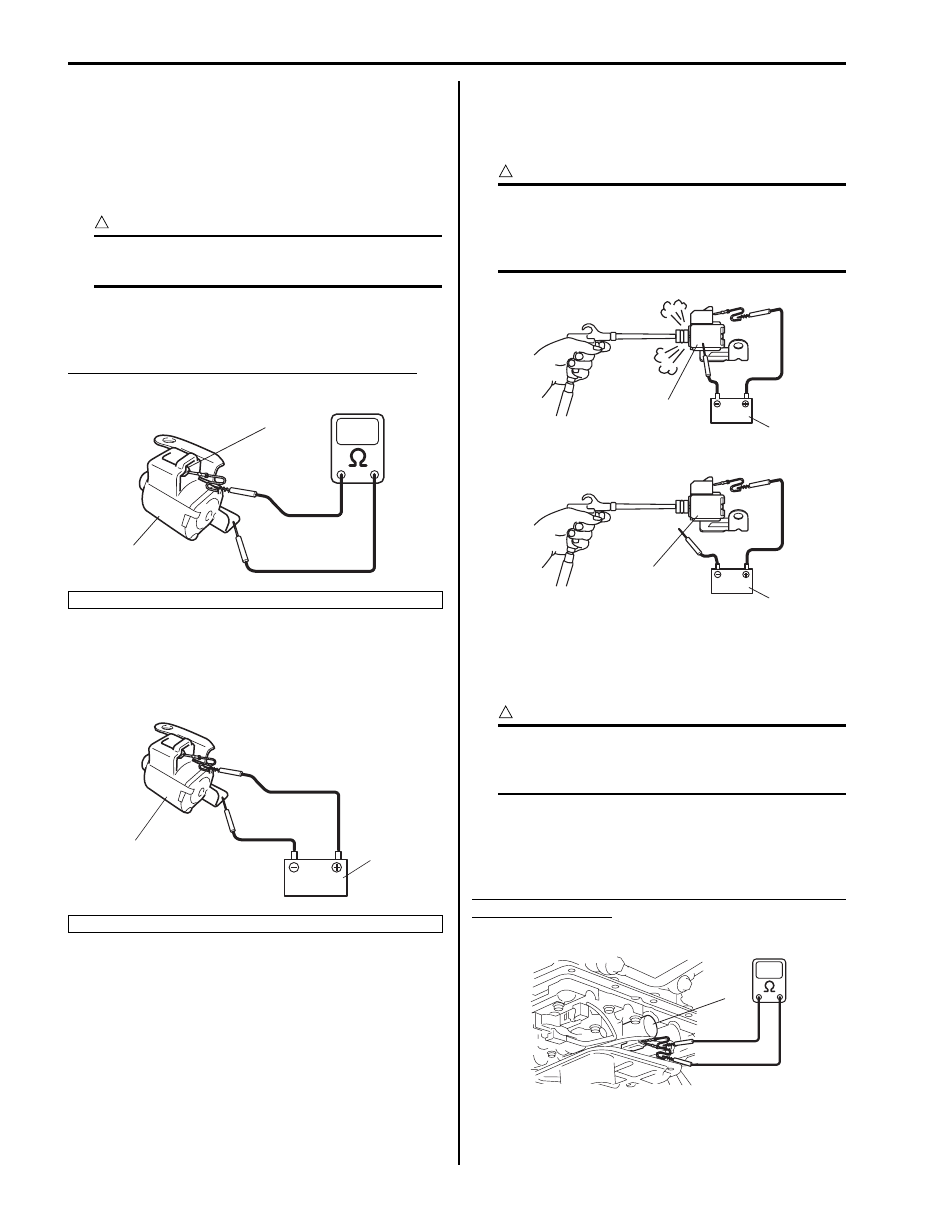

Measure resistance between terminal (2) and solenoid
valve body. If resistance is out of specification, replace
solenoid valve.

Shift solenoid–A and Shift solenoid–B resistance
Standard: 11 – 15

Ω (at 20 °C (68 °F))

Operation Check
• With solenoid connected to battery (2) as shown in the

figure, check that solenoid valve is actuated with click
sound.

• With shift solenoid valve (1) connected to battery (2),

confirm that shift solenoid valve is open by blowing air
(50 – 200 kPa, 0.5 – 2.0 kg/cm

2

, 7 – 28.5 psi) into

solenoid valve as shown in the figure.

• With shift solenoid valve (1) not connected to battery

(2), confirm that shift solenoid valve is closed by
blowing air (50 – 200 kPa, 0.5 – 2.0 kg/cm

2

, 7 – 28.5

psi) into solenoid valve as shown in the figure.

CAUTION

!



Do not insert air gun against strainer
installed on inlet of solenoid valve too deeply,
when blowing air into solenoid valve. If not,
the strainer will be damaged.



Pressure Control Solenoid Valve and TCC Pressure
Control Solenoid Valve
Resistance check

CAUTION

!



Be very careful as dust etc. does not enter
when pressure control solenoid valves are
inspected.



Measure resistance between pressure control solenoid
valves (Pressure control solenoid and TCC pressure
control solenoid) (1) terminals. If resistance is out of
specification, replace valve body assembly.

Pressure control solenoid and TCC pressure control
solenoid resistance
Standard: 5.0 – 5.6

Ω (at 20 °C (68 °F))

1. Shift solenoids

1. Shift solenoids

1

2

I5JB0A510054-01

1

2

I5JB0A510055-01

1

2

1

2

I5JB0A510056-01

1

I5JB0A510057-01

Automatic Transmission/Transaxle:  5A-93

Operation check
Check pressure control solenoid valves (Pressure
control solenoid and TCC pressure control solenoid) (1)
operation in either of the following methods.
[Using regulated DC power supply]

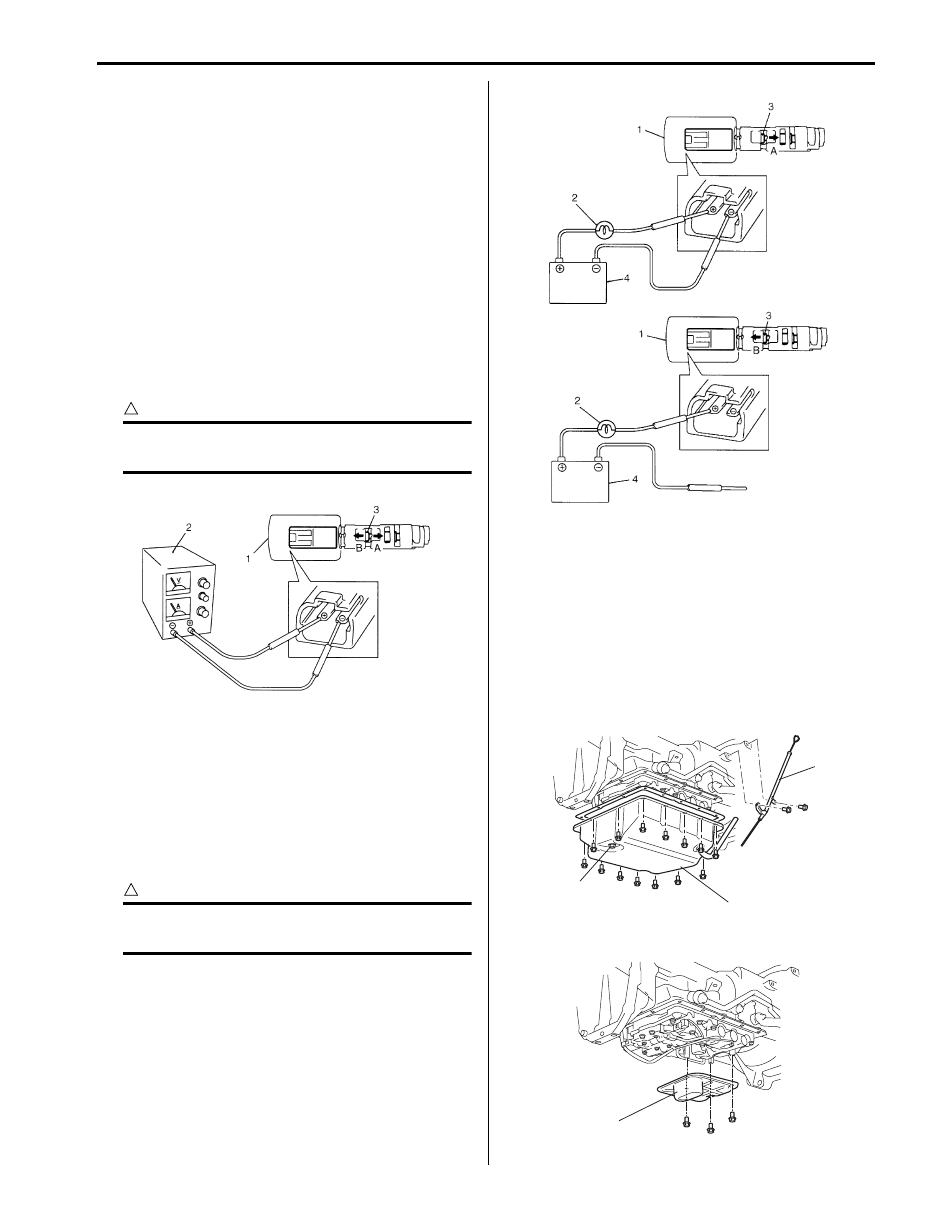

1) Connect pressure control solenoid valve (1) with

regulated DC power supply (2) as shown in the
figure.

2) Turn regulated DC power supply switch ON,

increase voltage of power supply keeping current
within 1.0 A.

3) Check that valve (3) moves gradually in arrow “A”

direction as voltage increases.

4) Check that valve (3) moves in arrow “B” direction as

voltage decreases.

5) Turn power supply switch OFF.

CAUTION

!



Do not feed current 1.0 A or more, or
pressure control solenoid will be burned out.



[Not using regulated DC power supply]

1) Connect pressure control solenoid valve (1) to

battery (4) setting 21 W bulb (2) in between as
shown in the figure.

2) Check that valve (3) moves in arrow “A” direction.
3) Disconnect pressure control solenoid valve (1) from

battery (4) and check that valve (3) moves in arrow
“B” direction as shown in the figure.

CAUTION

!



Set 21 W bulb in between, or pressure control
solenoid valve will be burned out.



Transmission Fluid Temperature Sensor
Removal and Installation

S5JB0A5106062

Removal

1) Disconnect negative cable at battery.
2) Pull out fluid level gauge and lift up vehicle.
3) Remove drain plug and drain A/T fluid.
4) Install drain plug with new gasket.
5) Remove oil filler tube (2) and A/T oil pan (1).

6) Remove A/T oil strainer (1).

I4JA01512033-01

I4JA01512034-01

2

1

3

I5JB0A510051-02

1

I5JB0A510052-01
