5A-14 Automatic Transmission/Transaxle:

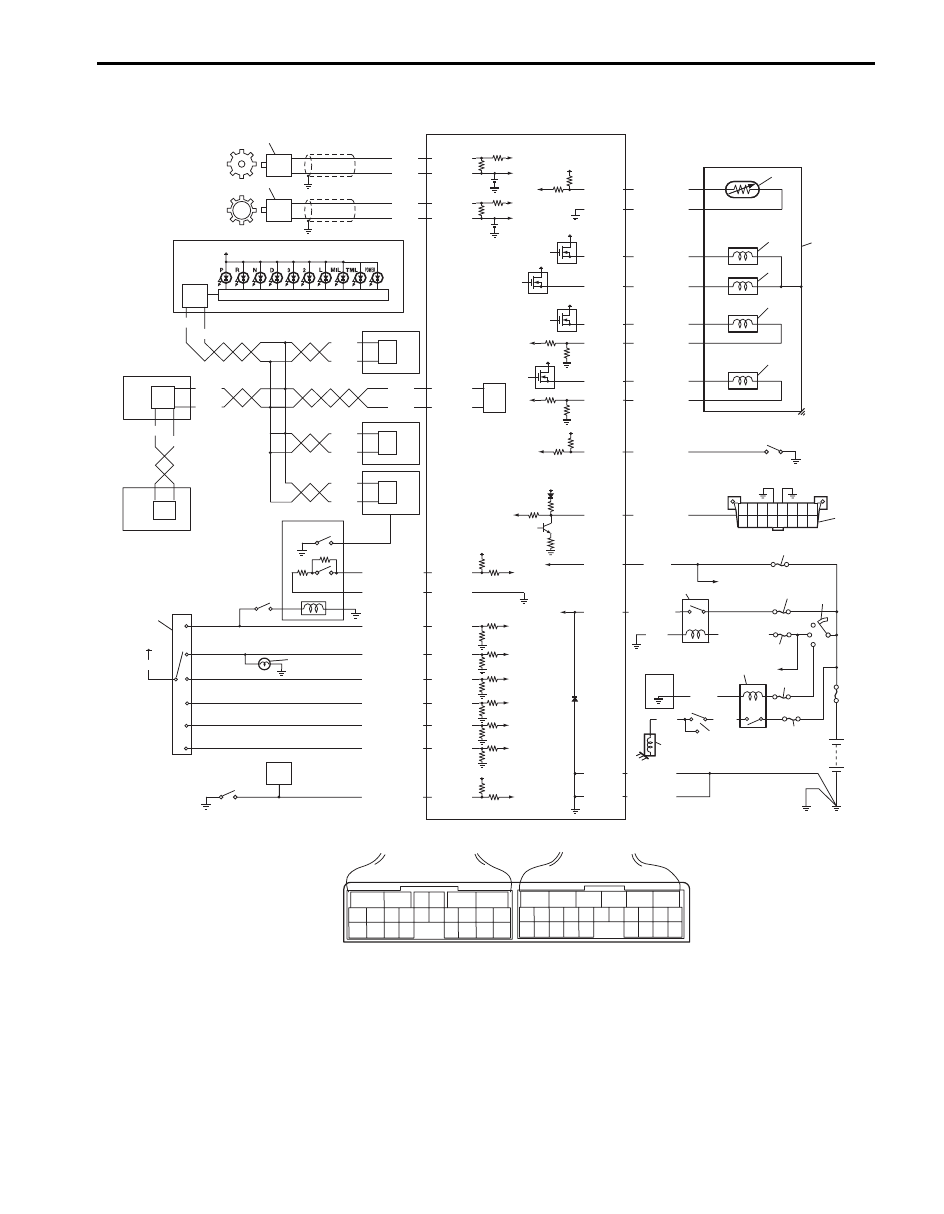

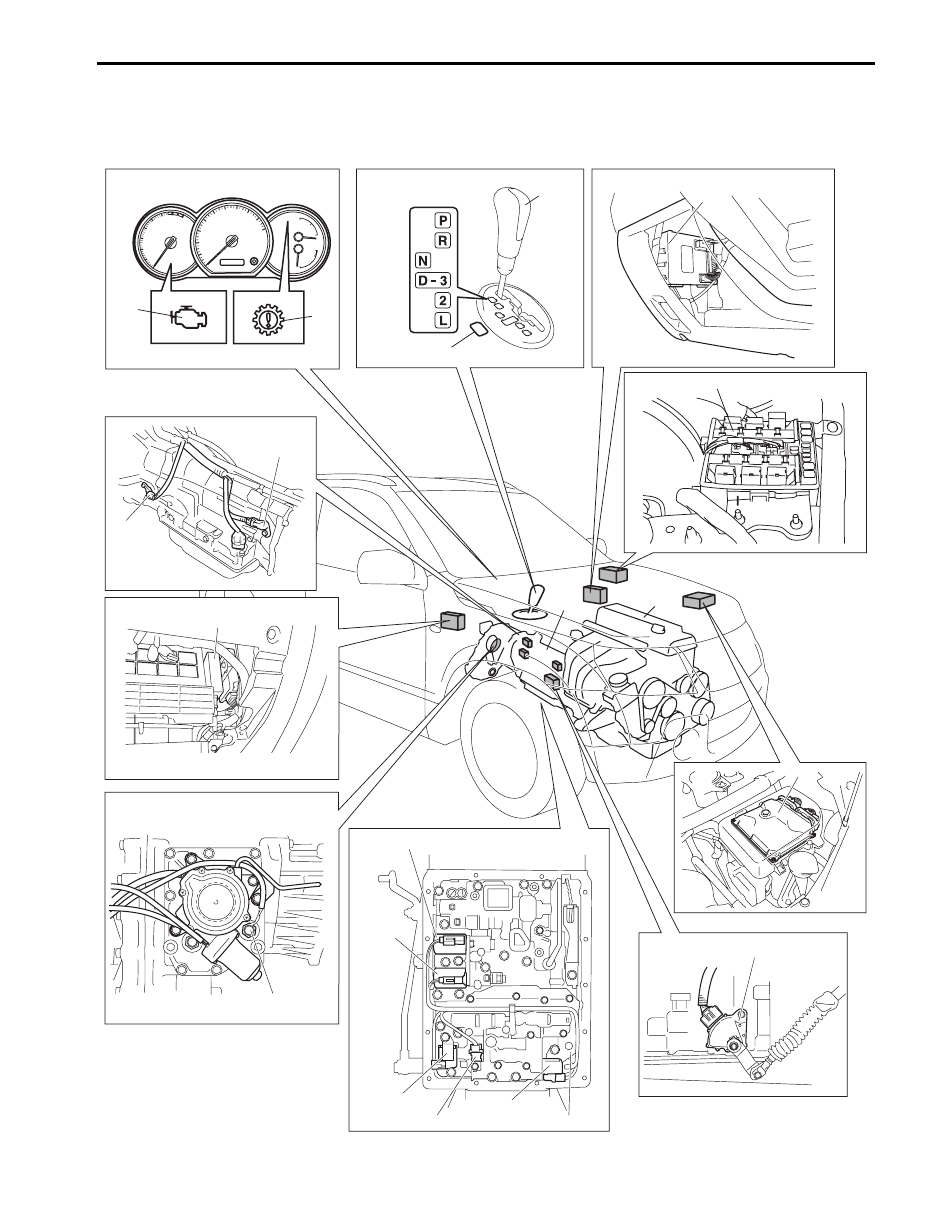

Schematic and Routing Diagram
Electronic Shift Control Input / Output Diagram
S5JB0A5102003
NOTE
*1: For vehicle not equipped with engine diagnosis connector model (Except RH steering vehicle not
equipped with rear fog light model)
*2: For vehicle not equipped with engine diagnosis connector model
*3: For vehicle equipped with engine diagnosis connector model
INPUT
OUTPUT
TCM
ECM
-Accelerator pedal position
-Coolant temperature
-Engine torque
-Engine speed
-A/C ON/OFF
-Brake light switch
-Vehicle speed
-Cruise control signal
BCM
-P/N mode signal
Gear shift control
4th gear inhibit control
Slope shift control
Cruise shift control
Lock up control
Slip control (* 1)
Torque control
Line pressure control
Overrun control
Reverse control
Squat control
P/N mode switch
Input shaft speed
sensor
Output shaft speed
sensor
"3" position switch
ATF temp. sensor
4L/N switch
Shift switch
- Range "P" signal
- Range "R" signal
- Range "N" signal
- Range "D" signal
- Range "2" signal
- Range "L" signal
Fail safe function
Self diagnosis
Warning function
ECM
-Torque red. request
-Slip control signal (*1)
-Shift position signal
COMB. METER
-Shift indicator
-POWER mode lamp
-MIL (*2)
-Transmission
warning light (*3)
Shift solenoid valve-A
Shift solenoid valve-B
TCC pressure control
solenoid valve
Pressure control
solenoid valve
Signal on CAN
communincation line
I5JB0A510008-03
