Suzuki Grand Vitara JB416 / JB420. Manual - part 212

4E-25 ABS:

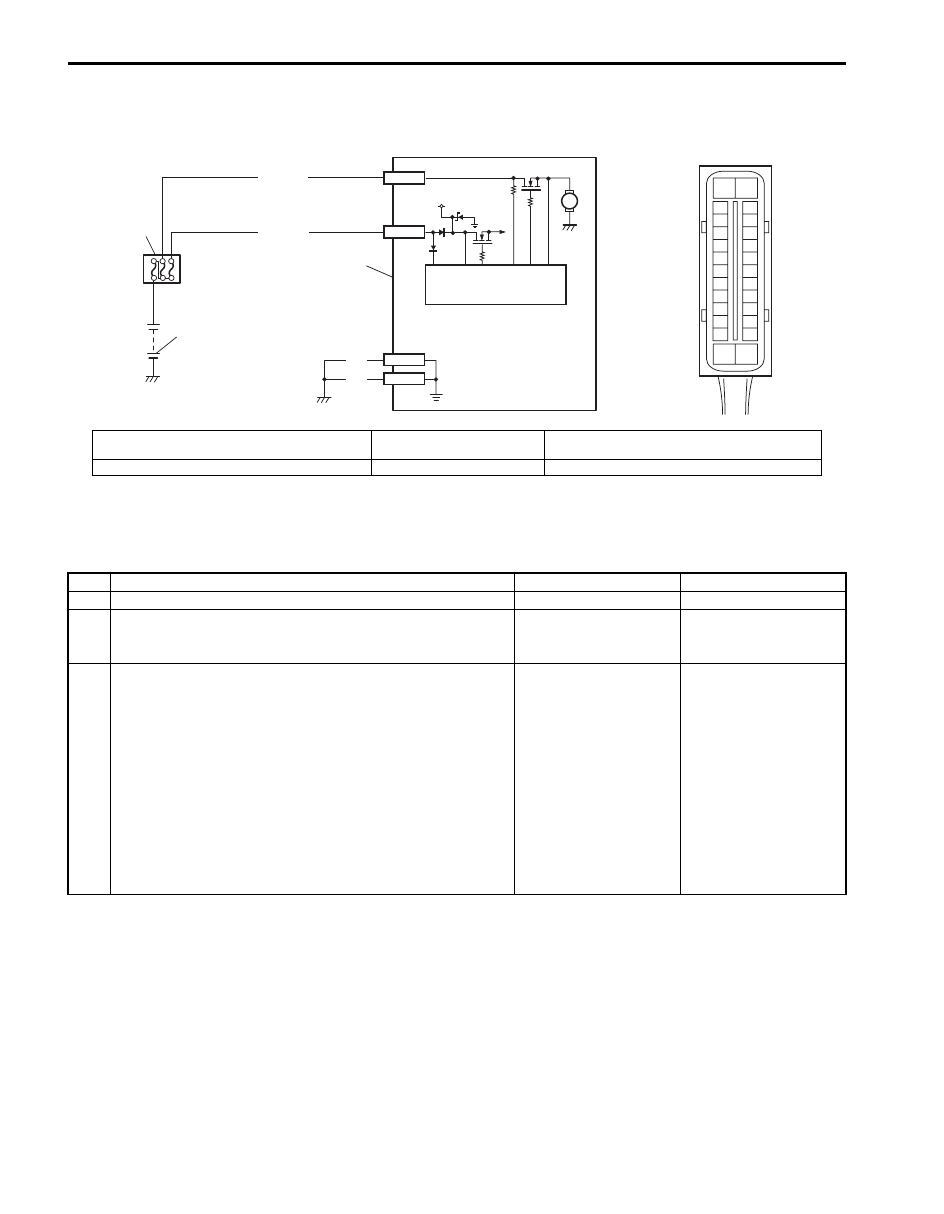

DTC C1061: ABS Pump Motor and/or Motor Driver Circuit

S5JB0A4504016

Wiring Diagram

DTC Detecting Condition
The ABS control module monitors the voltage at monitor terminal of pump motor circuit constantly with the ignition
switch turned ON. It sets this DTC when the voltage at the monitor terminal does not become high / low according to
ON/OFF commands to the motor driver (transistor) of the module (does not follow these commands).

DTC Troubleshooting

5

1) Measure voltage between terminals “E03-14” and “E03-

13” with engine running.

Is voltage 18

±

 1.0 V or less?

Poor connection of
“E03-14” and/or “E03-
13” terminals. If the
terminals are in good
condition, substitute a
known-good ABS
hydraulic unit / control
module and recheck.

Check charging system
referring to “Generator
Test (Overcharged
Battery Check) in
Section 1J”.

Step

Action

Yes

No

4

5

1

2

WHT/BLU

3

12V

M

12V

BLK

BLK

E03-13

E03-26

E03-1

[A]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

I5JB0A450017-02

[A]: ABS hydraulic unit / control module connector

(viewed from terminal side)

2. Main fuse box

4. ABS pump motor

1. Battery

3. Pump motor driver (transistor)

5. ABS hydraulic unit / control module assembly

Step

Action

Yes

No

1

Was “ABS Check” performed?

Go to Step 2.

Go to “ABS Check”.

2

1) Turn Ignition switch to OFF position.
2) Disconnect ABS hydraulic unit / control module

connector.

3) Check for proper connection to ABS hydraulic unit /

control module connector at terminal “E03-1”.

4) If OK, then measure voltage between terminal “E03-1” of

module connector and body ground.

Is it 10 – 14 V?

Go to Step 3.

“WHT/BLU” circuit
open.

3

Measure resistance between terminal “E03-13” and “E03-
26” of ABS hydraulic unit / control module connector and
vehicle body ground.

Is resistance less than 1

Ω

?

Substitute a known-
good ABS hydraulic unit
/ control module
assembly and recheck.

Ground circuit for ABS
hydraulic unit / control
module open or high
resistance.

ABS: 4E-26

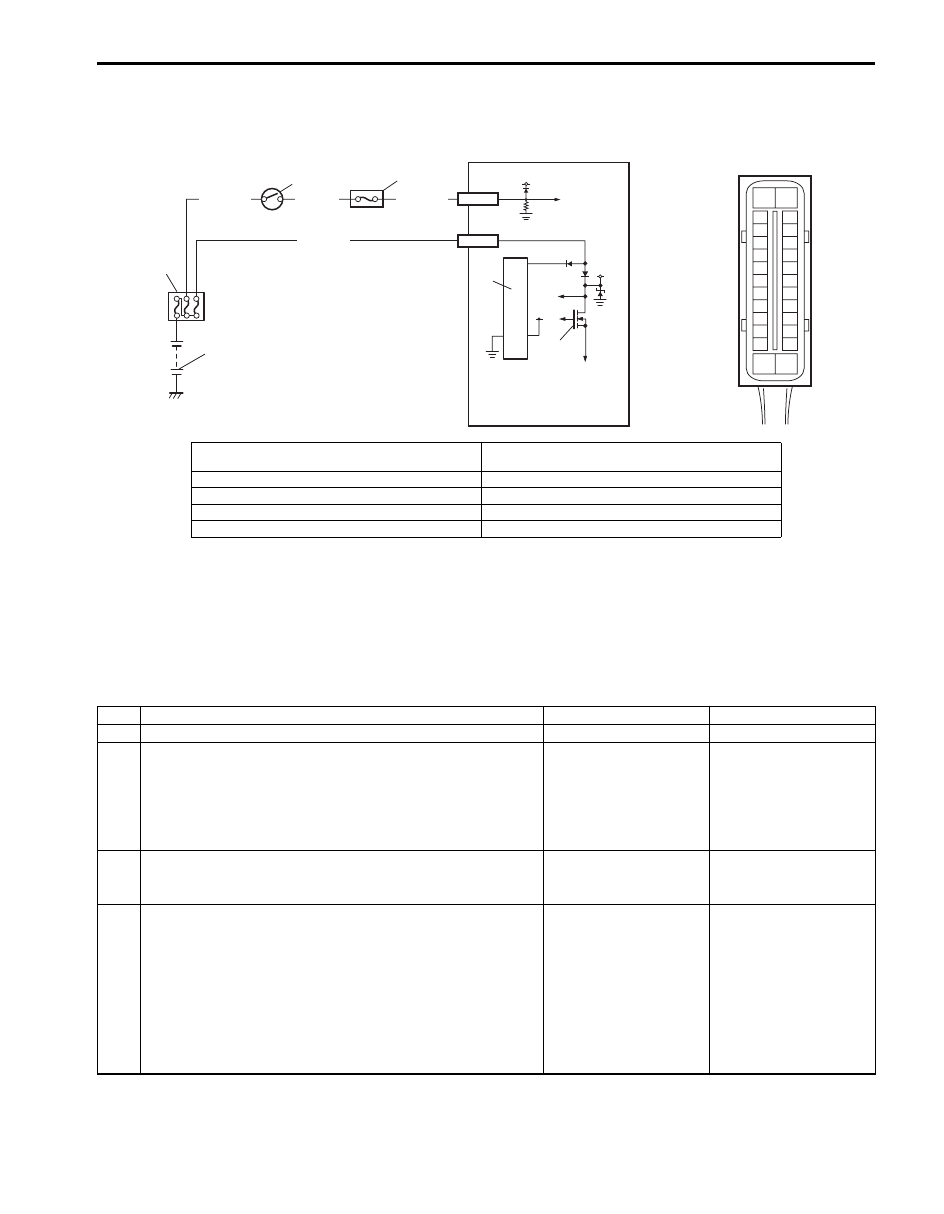

DTC C1063: Solenoid Valve Power Supply Driver Circuit

S5JB0A4504017

Wiring Diagram

DTC Detecting Condition
ABS control module monitors the voltage at the terminal of solenoid circuit constantly with ignition switch turned ON.
Also, immediately after ignition switch is turned ON, perform initial check as follows.
Switch solenoid valve power supply driver (transistor) in the order of OFF

→ ON and check if voltage changes to Low

→ High. If anything faulty is found in the initial check and when the voltage is low with ignition switch turned ON, this
DTC will be set.

DTC Troubleshooting

3

4

12V

GRN/ORN

BLK/YEL

5

5V

12V

WHT/GRN

E03-7

E03-14

WHT/RED

[A]

E03

6

8

7

1

2

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

I5JB0A450018-02

[A]: ABS hydraulic unit / control module connector

(viewed from terminal side)

5. Solenoid valve power supply driver (transistor)

1. Battery

6. ABS hydraulic unit / control module assembly

2. Main fuse box

7. To solenoid valve

3. Ignition switch

8. ABS power control module

4. Circuit fuse box (in junction block assembly)

Step

Action

Yes

No

1

Was “ABS Check” performed?

Go to Step 2.

Go to “ABS Check”.

2

Check battery voltage.

Is it about 11 V or higher?

Go to Step 3.

Check charging system
referring to “Battery
Inspection in Section
1J” and “Generator Test
(Undercharged Battery
Check) in Section 1J”.

3

Check main fuse for ABS solenoid and its terminal.

Is it in good condition?

Go to Step 4.

Replace fuse and check
for short circuit to
ground.

4

1) Turn ignition switch to OFF position.
2) Disconnect ABS hydraulic unit / control module

connector.

3) Check for proper connection to ABS hydraulic unit /

control module at terminal “E03-14”.

4) If OK, then measure voltage between connector terminal

“E03-14” and body ground.

Is it 10 – 14 V?

Substitute a known-
good ABS hydraulic unit
/ control module
assembly and recheck.

“WHT/BLU” circuit
imperfect short to
ground.

4E-27 ABS:

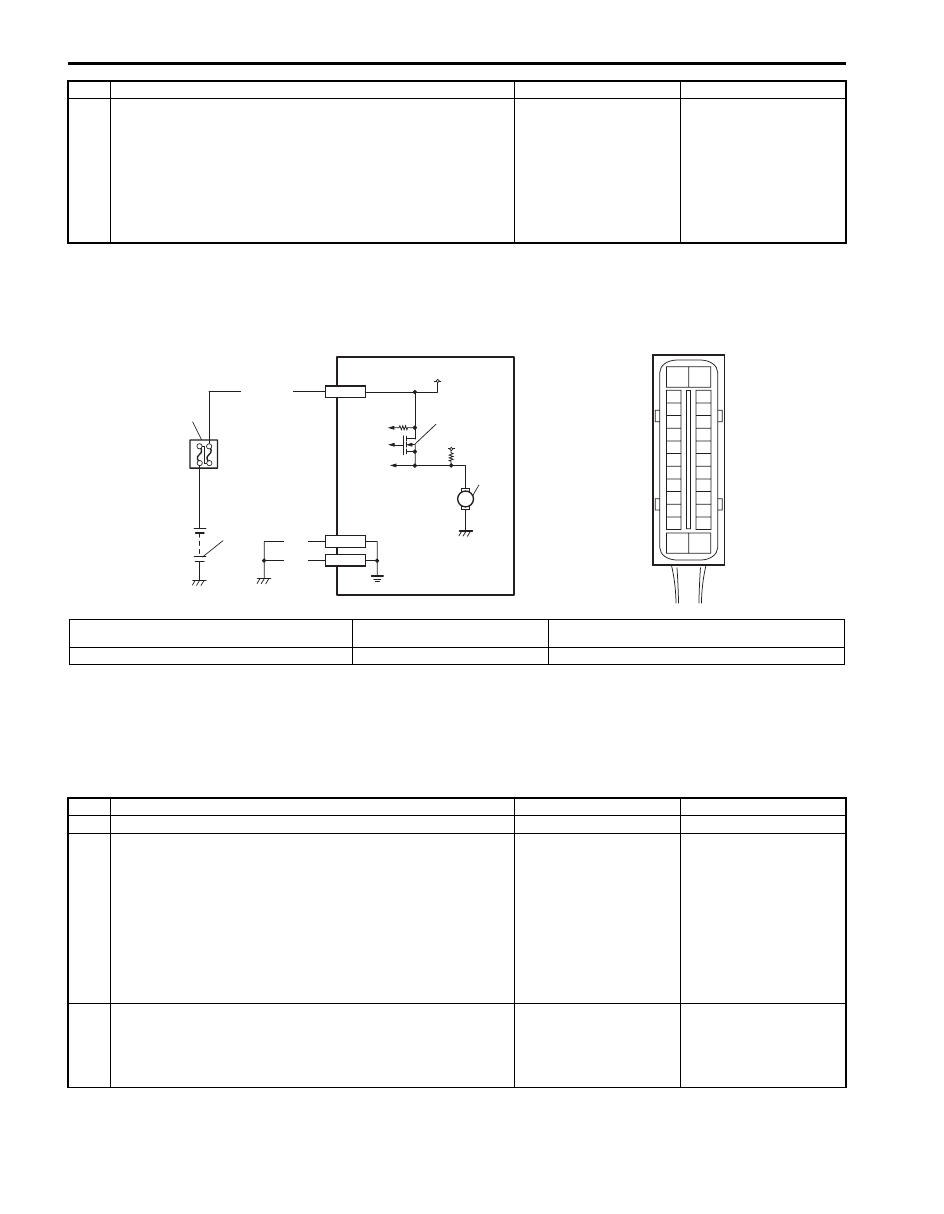

DTC C1071: ABS Control Module

S5JB0A4504018

Wiring Diagram

DTC Detecting Condition
This DTC will be set when an internal malfunction is detected in the ABS control module.

DTC Troubleshooting

1

2

WHT/BLU

12V

M

3

4

E03-1

E03-14

BLK

BLK

E03-13

E03-26

WHT/RED

[A]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

I5JB0A450019-02

[A]: ABS hydraulic unit / control module connector

(viewed from terminal side)

2. Main fuse box

4. ABS hydraulic unit / control module assembly

1. Battery

3. ABS power control module

Step

Action

Yes

No

1

Was “ABS Check” performed?

Go to Step 2.

Go to “ABS Check”.

2

Clear all DTCs and check DTC.

Is it DTC C1071?

Go to Step 3.

Could be a temporary
malfunction of the ABS
control module.

3

1) Check for proper connection of ABS hydraulic unit /

control module connector.

2) If OK, disconnect ABS hydraulic unit / control module

connector and check the following.
• Voltage “E03-1” terminal: 10 – 14 V
• Voltage “E03-14” terminal: 10 – 14 V
• Resistance between “E03-13” and body ground:

Continuity

• Resistance between “E03-26” and body ground:

Continuity

Are the check result as specified?

Replace ABS hydraulic
unit / control module
assembly.

Repair “WHT/RED”,
“WHT/BLU” and/or
“BLK” circuit and
recheck.

ABS: 4E-28

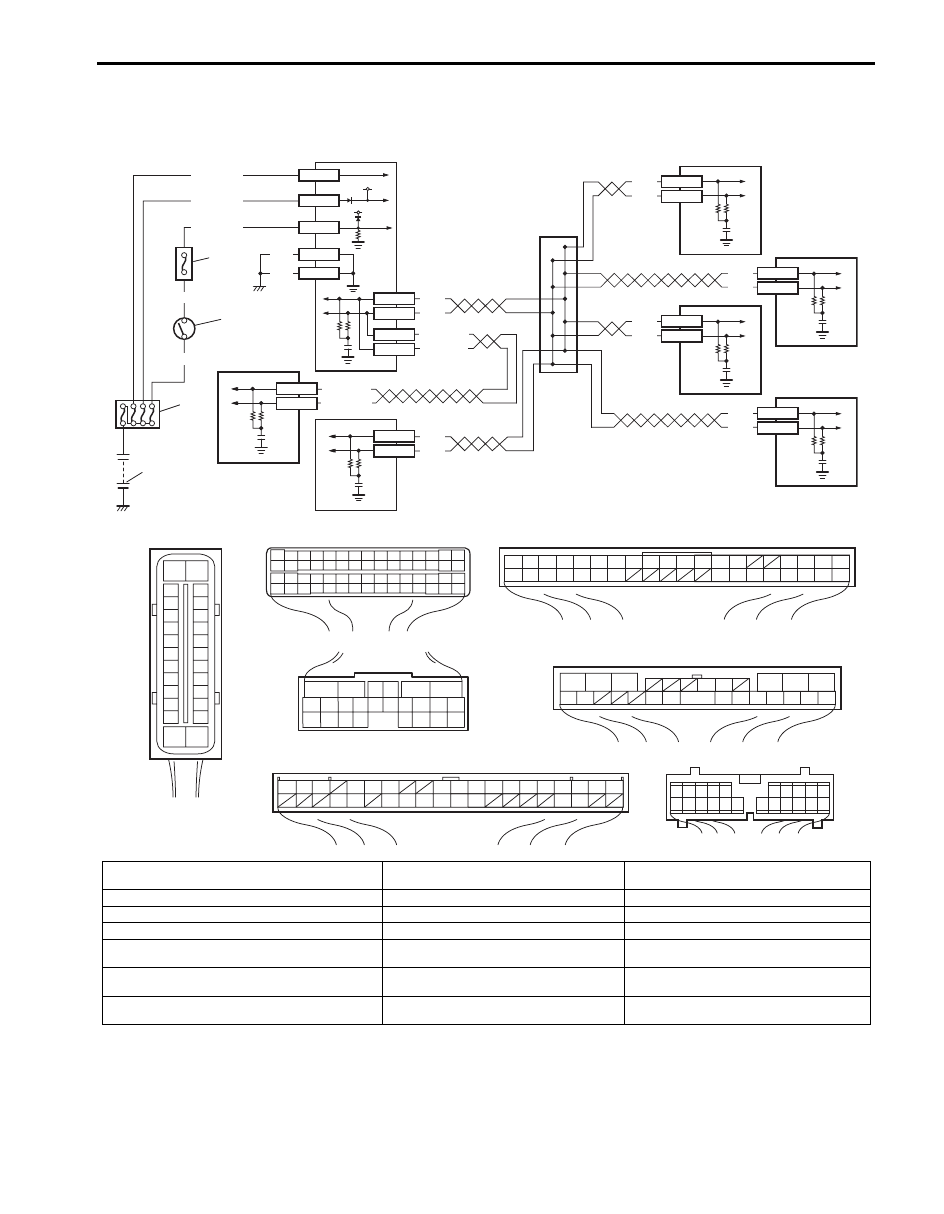

DTC U1073: Control Module Communication Bus Off

S5JB0A4504020

Wiring Diagram

DTC Detecting Condition
Transmission error that is inconsistent between transmission data and transmission monitor (CAN bus monitor) data is
detected more than 7 times continuously.

WHT

RED

WHT

RED

WHT/BLU

WHT/RED

WHT

RED

WHT

RED

E92-17

E92-7

E03-12

E03-6

E03-10

E03-8

12V

12V

E03-1

E03-14

E03-7

E03-13

E03-26

GRN/ORN

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

[A]

[D]

WHT/BLU

WHT/RED

E23-19

E23-4

E91-22

E91-23

WHT

RED

WHT

RED

BLK

BLK

E03

G31-1

G31-3

[B]

[C]

[G]

[F]

G44

1

2

3

4

5

6

7

8

9

10

11

14

15

16
36

34 33 32 31 30 29

24 23

37

18

19

20

6

5

16 15 14 13 12 11

4 3

24 23

21

22

10 9

8

7

2

1

19

20

18 17

E92

2 1

E23

3

4

18

19

5

6

7

10

11

17

20

47 46

49

50

51

21

22

52

16

25

9

24

14

29

55

57

5453

59

60

58

26

27

28

15
30

56

48

32 31

34

35

36

37

40

42

3938

44

45

43

41

33

12

13

23

8

1

2

3

4

5

6

7

8

9

10

11

17

1615141312

2221201918

G28

G31

1

2

3

4

7

8

9

10

11

14

15

16
36

34

35

24 23

21

22

28 27

25

26

37

39 38

40

18 17

13 12

19

20

E91

1

2

3

10

11

12

16

17

18

15 14 13

19

20

21

25

26

5

6

[E]

G44-18

G44-19

G28-10

G28-8

6

7

1

2

3

4

5

12

8

9

10

11

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

I5JB0A450020-02

[A]: ABS hydraulic unit / control module connector

(viewed from terminal side)

1. Battery

8. TCM (for A/T model)

[B]: ECM connector (viewed from harness side)

2. Main fuse box

9. 4WD control module (if equipped)

[C]: BCM connector (viewed from harness side)

3. Ignition switch

10. Keyless start control module (if equipped)

[D]: TCM connector (viewed from harness side)

4. Circuit fuse (in junction block assembly)

11. Combination meter

[E]: 4WD control module connector

(viewed from harness side)

5. ABS hydraulic unit / control module

assembly

12. CAN junction

[F]: Keyless start control module connector

(viewed from harness side)

6. ECM

[G]: Combination meter connector (viewed from

harness side)

7. BCM
