1A-213 Engine General Information and Diagnosis:

DTC Confirmation Procedure
DTC P2227:

WARNING

!



• When performing a road test, select a place where there is no traffic or possibility of a traffic

accident and be very careful during testing to avoid occurrence of an accident.

• Road test should be carried out by 2 persons, a driver and a tester, on a level road.



1) Connect scan tool to DLC with ignition switch turned OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and warm up

engine to normal operating temperature.

3) Check DTC and pending DTC by using scan tool.

DTC P2228 / P2229:

1) Connect scan tool to DLC with ignition switch turned OFF.
2) Turn ON ignition switch, clear DTC by using scan tool and run engine for 1 min.
3) Check DTC and pending DTC by using scan tool.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

Is DTC P2227 set?

Go to Step 3.

Substitute a known-
good ECM and recheck.

3

MAP sensor check
1) Check MAP sensor and its circuit referring to “DTC

P0107: Manifold Absolute Pressure Circuit Low
Input”and/or “DTC P0108: Manifold Absolute Pressure
Circuit High Input”.

Is check result satisfactory?

Substitute a known-
good ECM and recheck.

MAP sensor or its circuit
malfunction.

Engine General Information and Diagnosis:  1A-214

Inspection of ECM and Its Circuits

S5JB0A1104063

ECM and its circuits can be checked by measuring voltage, pulse signal and resistance with special tool connected.

CAUTION

!



ECM cannot be checked by itself. It is strictly prohibited to connect voltmeter or ohmmeter to ECM
with ECM connectors disconnected from it.



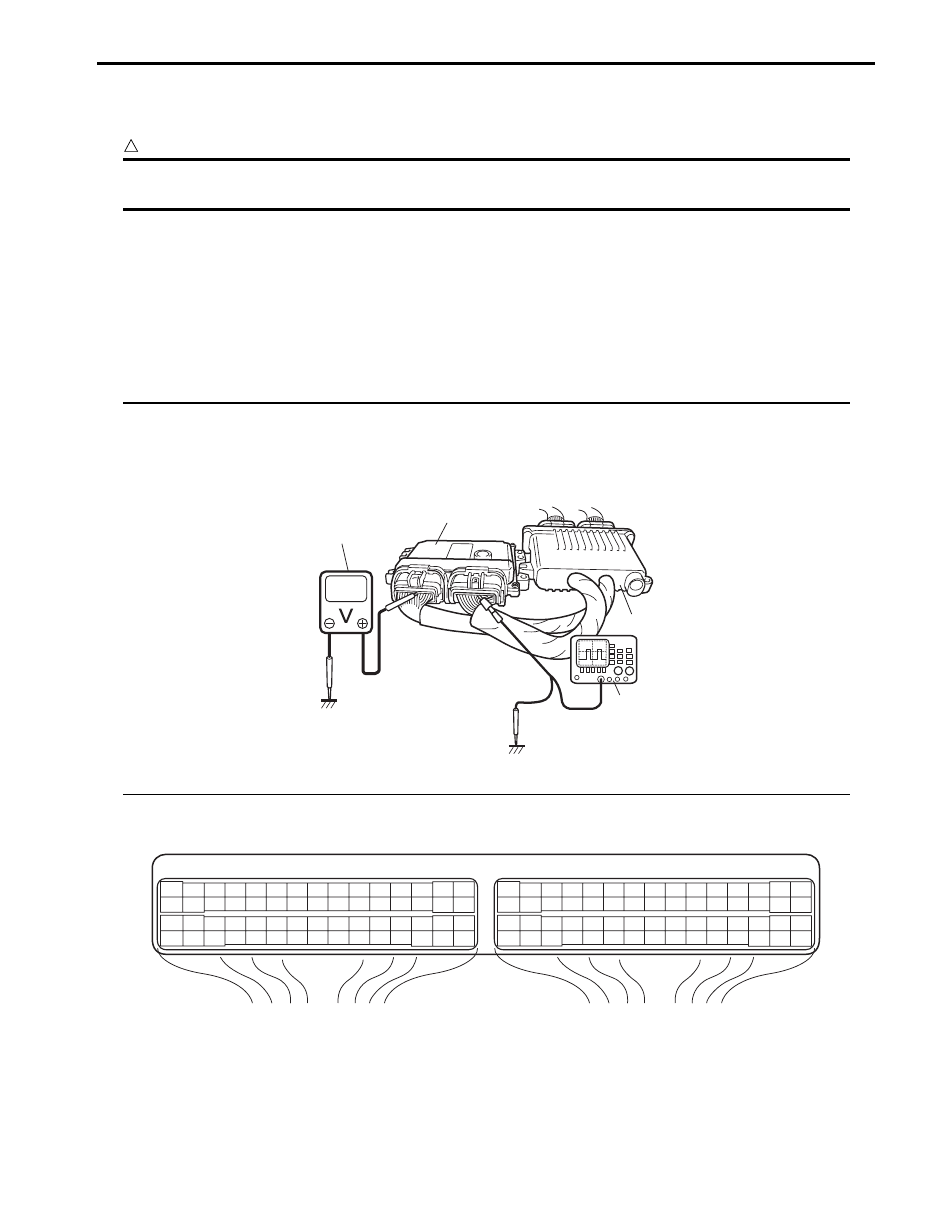

Voltage Check

1) Remove ECM (1) from its bracket referring to “Engine Control Module (ECM) Removal and Installation in Section

1C”.

2) Connect special tool between ECM and ECM connectors securely.

Special tool
(A):  09933–06320

3) Check voltage and/or pulse signal using voltmeter (2) and oscilloscope (3).

NOTE

• As each terminal voltage is affected by battery voltage, confirm that it is 11 V or more when ignition

switch is turned ON.

• Voltage with asterisk (*) cannot be measured with voltmeter because it is pulse signal. Use

oscilloscope for its check if necessary.

• Before performed this inspection, be sure to read the “Precautions of ECM Circuit Inspection”.



Viewed from harness side

1

2

3

(A)

I5JB0A110073-01

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

I4RS0A110055-01

1A-215 Engine General Information and Diagnosis:

Terminal

No.

Wire

color

Circuit

Normal voltage

Condition

Remarks

C37-1

PNK

Fuel injector No.1

10 – 14 V

Ignition switch turned ON.

—

*0 – 0.6 V

↑↓

10 – 14 V

(“Reference

waveform No.1: ”,

“Reference waveform

No.2: ” and

“Reference waveform

No.31: ”)

Engine running at idle
after warmed up engine.

Output signal is active low
pulse. Pulse frequency
varies depending on
engine speed.

C37-2

PNK/

BLK

Fuel injector No.2

10 – 14 V

Ignition switch turned ON.

—

*0 – 0.6 V

↑↓

10 – 14 V

(“Reference

waveform No.1: ” and
“Reference waveform

No.3: ”)

Engine running at idle
after warmed up engine.

Output signal is active low
pulse. Pulse frequency
varies depending on
engine speed.

C37-3

YEL/
GRN

EGR valve
(stepper motor coil
3)

10 – 14 V

Ignition switch turned ON.

—

*0 – 1 V

↑↓

10 – 14 V

(“Reference

waveform No.4: ”)

Ignition switch is turned to
ST (cranking) position.

Output signal is active low
duty pulse. Number of
pulse generated times
varies depending on
vehicle condition.

C37-4

YEL

EGR valve
(stepper motor coil
4)

10 – 14 V

Ignition switch turned ON.

—

*0 – 1 V

↑↓

10 – 14 V

(“Reference

waveform No.4: ”)

Ignition switch is turned to
ST (cranking) position.

Output signal is active low
duty pulse. Number of
pulse generated times
varies depending on
vehicle condition.

C37-5

YEL/

BLK

EGR valve
(stepper motor coil
1)

10 – 14 V

Ignition switch turned ON.

—

*0 – 1 V

↑↓

10 – 14 V

(“Reference

waveform No.4: ”)

Ignition switch is turned to
ST (cranking) position.

Output signal is active low
duty pulse. Number of
pulse generated times
varies depending on
vehicle condition.

C37-6

YEL/

RED

EGR valve
(stepper motor coil
2)

10 – 14 V

Ignition switch turned ON.

—

*0 – 1 V

↑↓

10 – 14 V

(“Reference

waveform No.4: ”)

Ignition switch is turned to
ST (cranking) position.

Output signal is active low
duty pulse. Number of
pulse generated times
varies depending on
vehicle condition.

C37-7

BLU/
ORN

Power steering
pump pressure
switch signal

10 – 14 V

Ignition switch turned ON.

—

0 – 1 V

With engine at idle speed,
turning steering wheel to
the right or left as far as it
stops.

C37-8

BRN/

RED

(for M16

engine)

BRN/

BLK (for

J20

engine)

Generator field coil
monitor signal

10 – 14 V

Ignition switch turned ON.

Signal is duty pulse. Duty
ratio varies depending on
vehicle condition.

*0 – 1 V

↑↓

10 – 14 V

(“Reference

waveform No.5: ” and
“Reference waveform

No.6: ”)

Engine running at idle
after warmed up engine.

Engine General Information and Diagnosis:  1A-216

C37-9

BLU

Electric load
current sensor
signal (for J20
engine)

0.5 – 1.0 V

Ignition switch turned ON.

—

1.3 – 1.7 V

Run engine at 2000 rpm,
headlight switch turned
ON.

1.8 – 2.4 V

Run engine at 2000 rpm,
headlight switch ON and
blower selector at HI
position.

C37-10

GRN/

WHT

CO adjusting
resistor signal (for
J20 engine, if
equipped)

0 – 5 V

Ignition switch turned ON.

—

C37-11

RED

Oxygen signal of
heated oxygen
sensor-2

4 – 5 V

Ignition switch turned ON.

—

*Approx. 0.15 V

(“Reference

waveform No.7: ” and
“Reference waveform

No.8: ”)

Engine running at idle
after warmed up engine.

C37-12

GRY/

BLK

A/C refrigerant
pressure sensor
signal (if equipped
with A/C)

1.38 – 1.52 V

Engine running, A/C
switch OFF and blower
selector at OFF position,
A/C refrigerant pressure:
800 kPa (116 psi)

—

2.15 – 2.38 V

Engine running, A/C
switch ON and blower
selector at 1st position or
more, A/C refrigerant
pressure: 1400 kPa (203
psi)

2.67 – 2.95 V

Engine running, A/C
switch ON and blower
selector at 1st position or
more, A/C refrigerant
pressure: 1800 kPa (261
psi)

C37-13

GRN/

BLK

EVAP canister
purge valve output

10 – 14 V

Ignition switch turned ON
with engine at stop.

—

*0 – 0.6 V

↑↓

10 – 14 V

(“Reference

waveform No.9: ”)

Set EVAP canister purge
valve at 52% by using
“Misc Test” of scan tool.

Output signal is active low
duty pulse. Duty ratio
varies depending on
vehicle condition.

C37-14

GRY/

RED

Output of 5 V
power source for
MAP sensor, A/C
refrigerant
pressure sensor,
electric load
current sensor (for
J20 engine) and
CO adjusting
resistor (if
equipped)

4.5 – 5.5 V

Ignition switch turned ON.

—

C37-15

BLK/
ORN

Ground for ECM

Below 0.3 V

Ignition switch turned ON.

—

Terminal

No.

Wire

color

Circuit

Normal voltage

Condition

Remarks
