1A-129 Engine General Information and Diagnosis:

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Crank engine for 3 – 5 sec.
4) Check DTC and pending DTC.

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

CKP sensor and connector for proper installation check

Is CKP sensor installed properly and connector connected
securely?

Go to Step 3.

Correct.

3

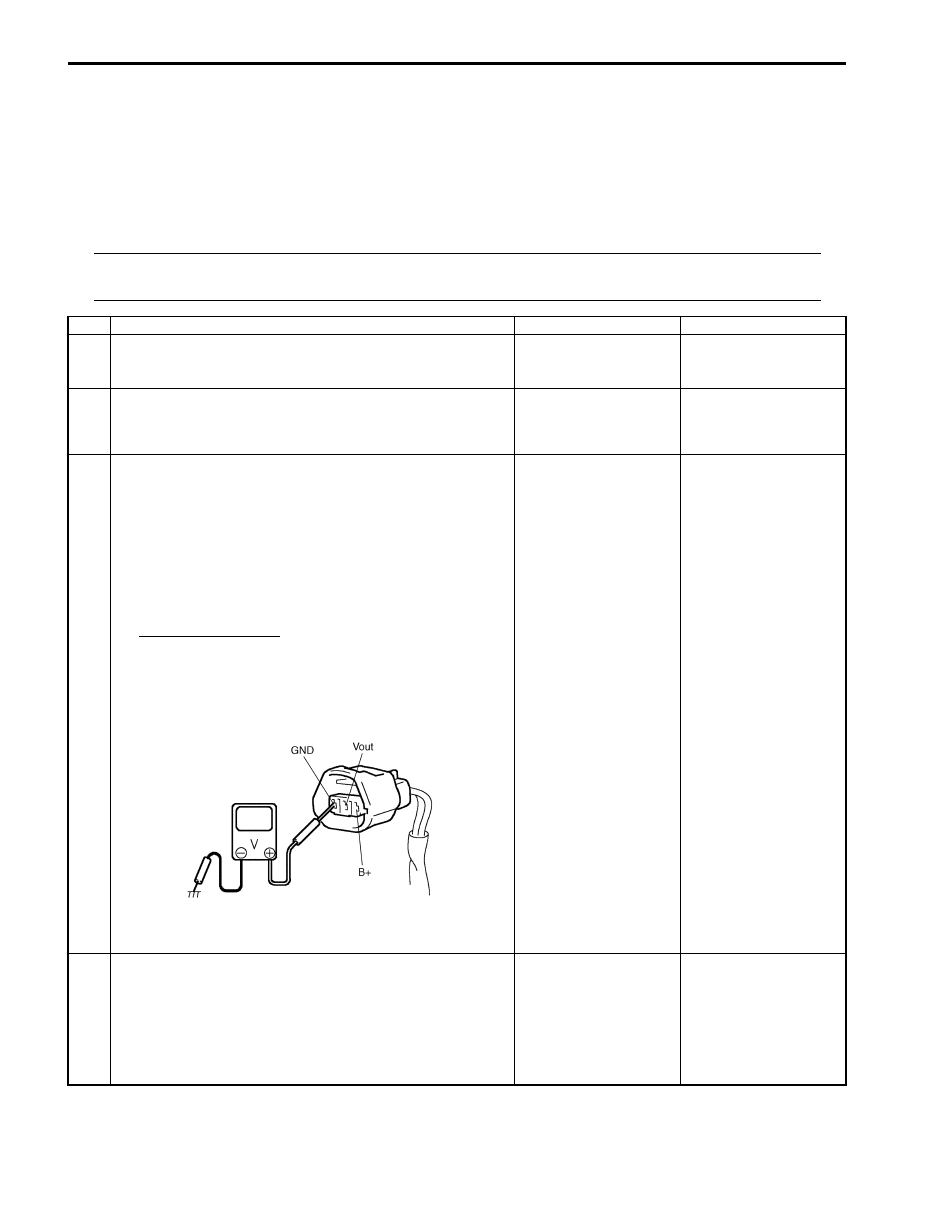

Wire harness and connection check
1) Disconnect connector from CKP sensor with ignition

switch turned OFF.

2) Check for proper connection to CKP sensor at “BLU/

BLK”, “WHT/BLU” and “BLK/YEL” wire terminals.

3) If OK, turn ON ignition switch and check voltage at “BLU/

BLK”, “WHT/BLU” and “BLK/YEL” wire terminals of
disconnected CKP sensor connector.

CKP sensor voltage
Terminal “B+”: 10 – 14 V
Terminal “Vout”: 4 – 5 V
Terminal “GND”: 0 V

Is check result satisfactory?

Go to Step 7.

Go to Step 4.

4

Was terminal “Vout” voltage in Step 3 within specification?

Go to Step 5.

“WHT/BLU” wire is open
or shorted to ground /
power supply circuit.
If wire and connection
are OK, substitute a
known-good ECM and
recheck.

I2RH0B110048-01

Engine General Information and Diagnosis:  1A-130

5

Ground circuit check
1) Turn ignition switch to OFF position.
2) Measure resistance between “BLK/YEL” wire terminal of

CKP sensor connector and engine ground.

Is measured resistance value less than 3

Ω

?

Go to Step 6.

“BLK/YEL” wire is open
or high resistance.

6

Was terminal “B+” voltage in Step 3 within specification?

Go to Step 7.

“BLU/BLK” wire is open
circuit. If wire and
connection are OK,
substitute a known-
good ECM and recheck.

7

Engine start signal check
1) Check starting motor circuit for opening and short

referring to Step 2 of “DTC P0616: Starter Relay Circuit
Low” and Step 3 and 4 of “DTC P0617: Starter Relay
Circuit High”.

Is check result satisfactory?

Go to Step 8.

Repair or replace.

8

CKP sensor check
1) Check CKP sensor and sensor plate tooth referring to

“Camshaft Position (CMP) Sensor Inspection in Section
1C”.

Is check result satisfactory?

Substitute a known-
good ECM and recheck.

Replace CKP sensor
and/or sensor plate.

Step

Action

Yes

No

1A-131 Engine General Information and Diagnosis:

DTC P0340: Camshaft Position (CMP) Sensor Circuit

S5JB0A1104041

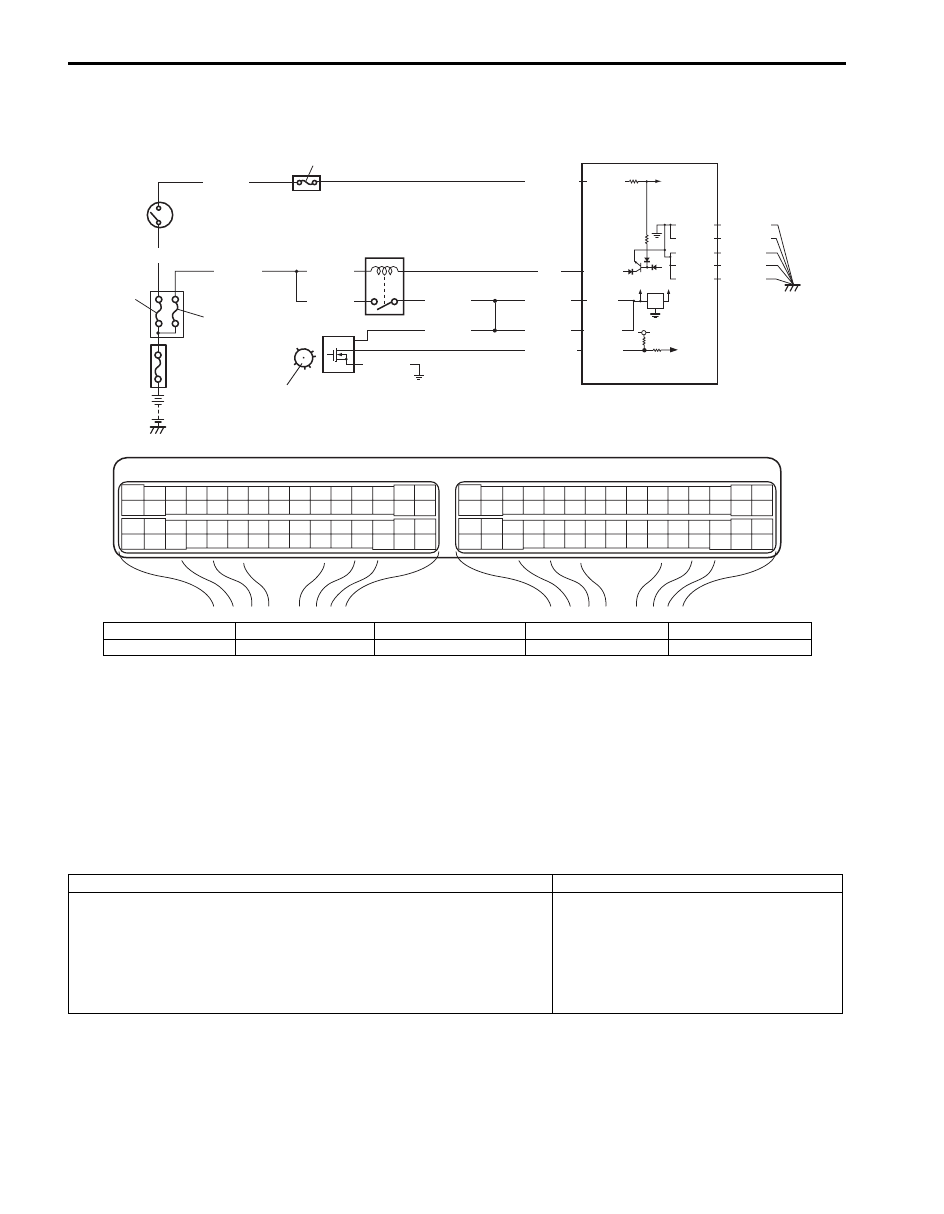

Wiring Diagram

System Description
The CMP sensor located on the transmission side of cylinder head (for M16 engine) or cylinder head cover (for J20
engine) consists of the signal generator (magnetic sensor) and signal rotor (intake camshaft portion).
The signal generator generates reference signal through slits in the slit plate which turns together with the camshaft.

Reference signal
The CMP sensor generates 6 pulses of signals each of which has a different waveform length while the camshaft
makes one full rotation. Refer to “Inspection of ECM and Its Circuits”.
Based on these signals, ECM judges which cylinder piston is in the compression stroke and the engine speed.

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) With ignition switch turned OFF, connect scan tool.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Crank engine for 5 sec.
4) Check DTC and pending DTC.

E23

C37

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

3

4

18

19

5

6

7

10

11

17

20

47

46

49

50

51

21

22

52

16

25

9

24

14
29

55

57

54 53

59

60

58

2

26

27

28

15
30

56

48

32

31

34

35

36

37

40

42

39 38

44

45

43

41

33

1

12

13

23

8

12V

5V

BLU/BLK

BLU/BLK

BLK/RED

BLK/RED

BLK/RED

BLU

5

6

4

8

3

E23-29

E23-1

E23-60

7

E23-16

1

C37-52

5V

BLK/YEL

BLK/WHT

9

WHT/GRN

2

WHT/RED

BLU/BLK

BLU/BLK

BLK/YEL

C37-15

C37-29
C37-48

BLK/ORN

C37-58

C37-30  BLK/ORN

BLK/YEL
BLK/YEL
BLK/YEL

I5JB0A110049-01

1. CMP sensor

3. ECM

5. Ignition switch

7. “FI” fuse

9. “IGN” fuse

2. Signal rotor

4. Main relay

6. Fuse box No.2

8. “IG COIL” fuse

DTC detecting condition

Trouble area

• CMP sensor pulse is less than 20 pulses per crankshaft 8 revolutions
• CMP sensor pulse is more than 28 pulses per crankshaft 8 revolutions
• CMP sensor pulse is less than 20 pulses between BTDC 155

° crank

angle (for M16 engine) or BTDC 75

° crank angle (for J20 engine) and

BTDC 5

° crank angle with crankshaft 8 revolutions from engine start.

(1 driving cycle detection logic)

• CMP sensor circuit open or short
• Signal rotor teeth damaged
• CMP sensor malfunction, foreign

material being attached or improper
installation

• ECM

Engine General Information and Diagnosis:  1A-132

DTC Troubleshooting

NOTE
Before this trouble shooting is performed, read the precautions for DTC troubleshooting referring to
“Precautions For DTC Troubleshooting”.



Step

Action

Yes

No

1

Was “Engine and Emission Control System Check”
performed?

Go to Step 2.

Go to “Engine and
Emission Control
System Check”.

2

CMP sensor and connector for proper installation check

Is CMP sensor installed properly and connector connected
securely?

Go to Step 3.

Correct.

3

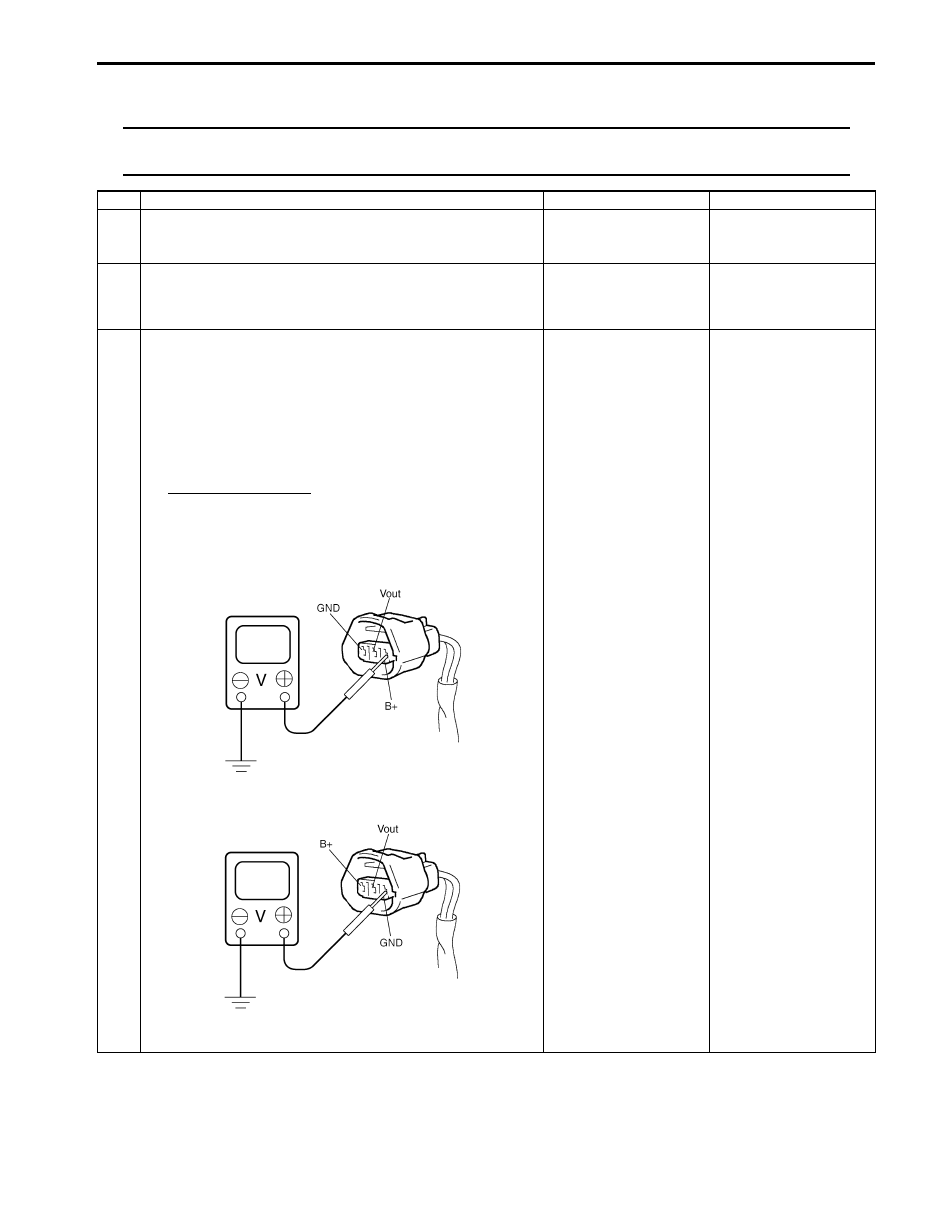

Wire harness and connection check
1) Disconnect connector from CMP sensor.
2) Check for proper connection to CMP sensor at “BLU/

BLK”, “WHT/RED” and “BLK/YEL” wire terminals.

3) If OK, turn ON ignition switch and check voltage at “BLU/

BLK”, “WHT/RED” and “BLK/YEL” wire terminals of
disconnected CMP sensor connector.

CMP sensor voltage
Terminal “B+”: 10 – 14 V
Terminal “Vout”: 4 – 5 V
Terminal “GND”: 0 V

For J20 engine

For M16 engine

Is check result satisfactory?

Go to Step 7.

Go to Step 4.

I5JB0A110050-01

I4RS0B110094-01
