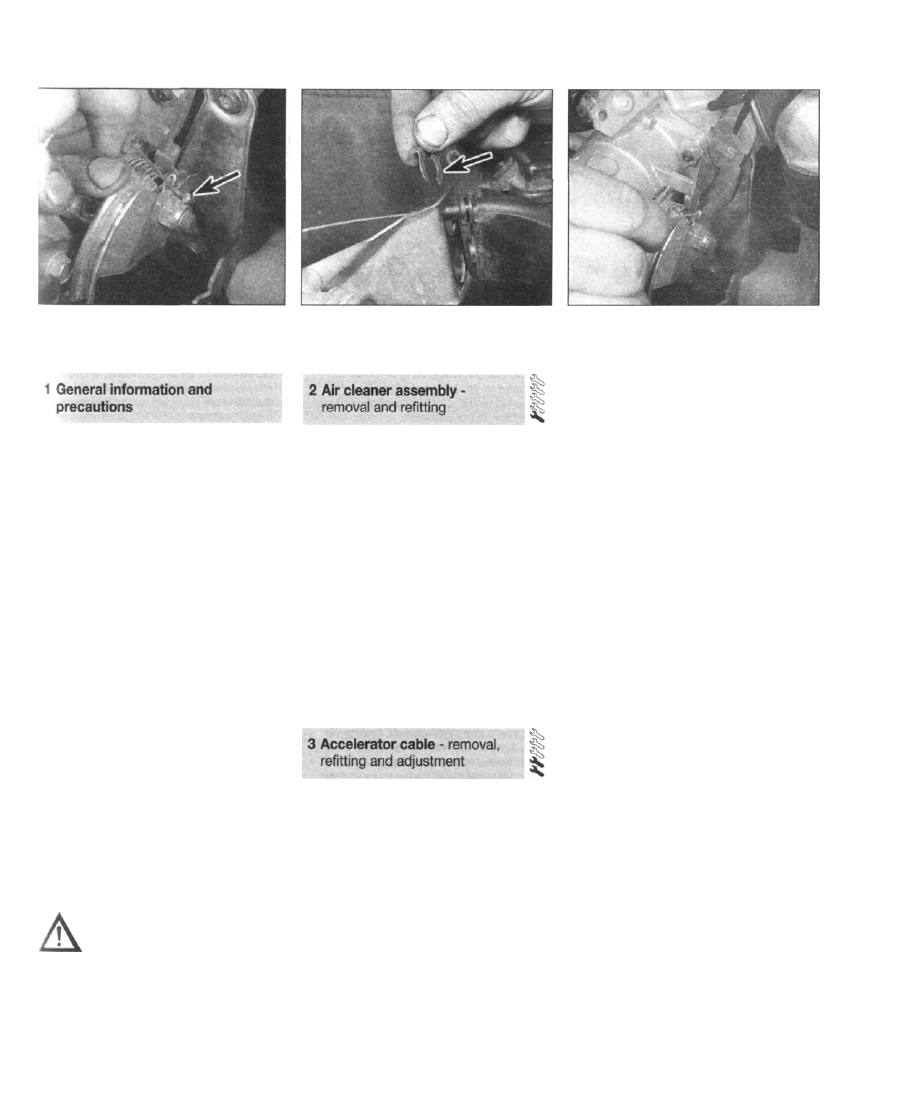

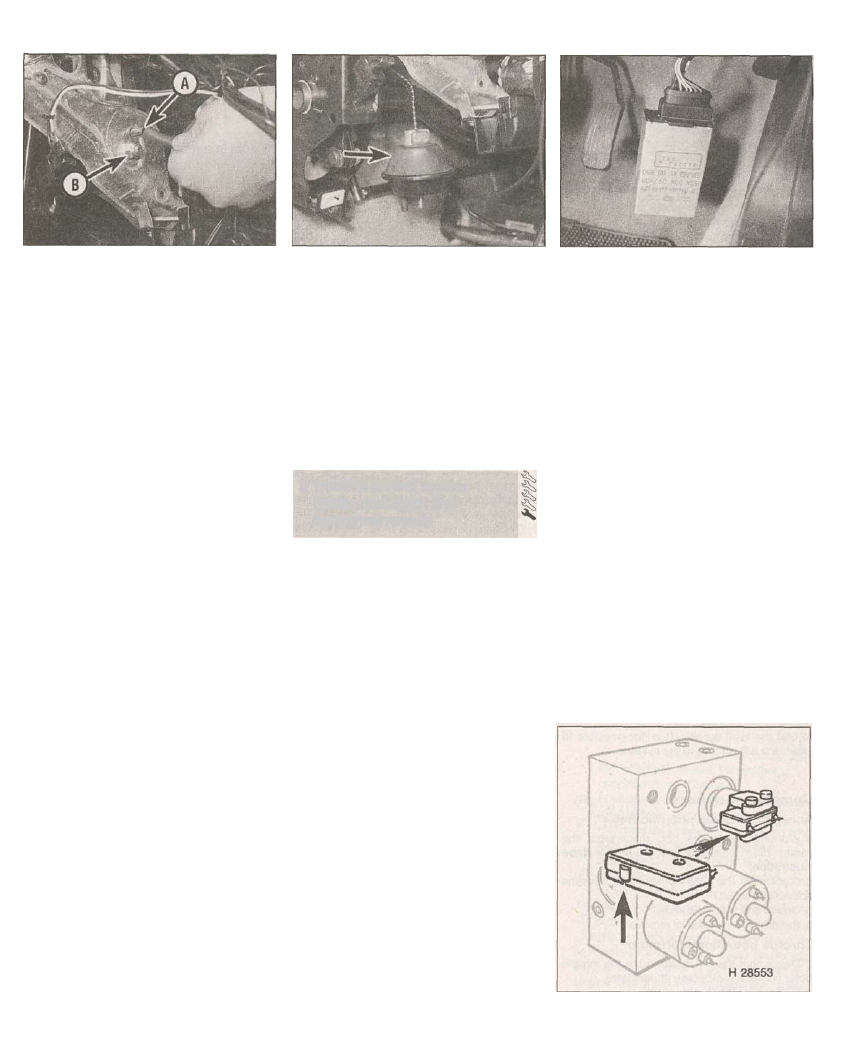

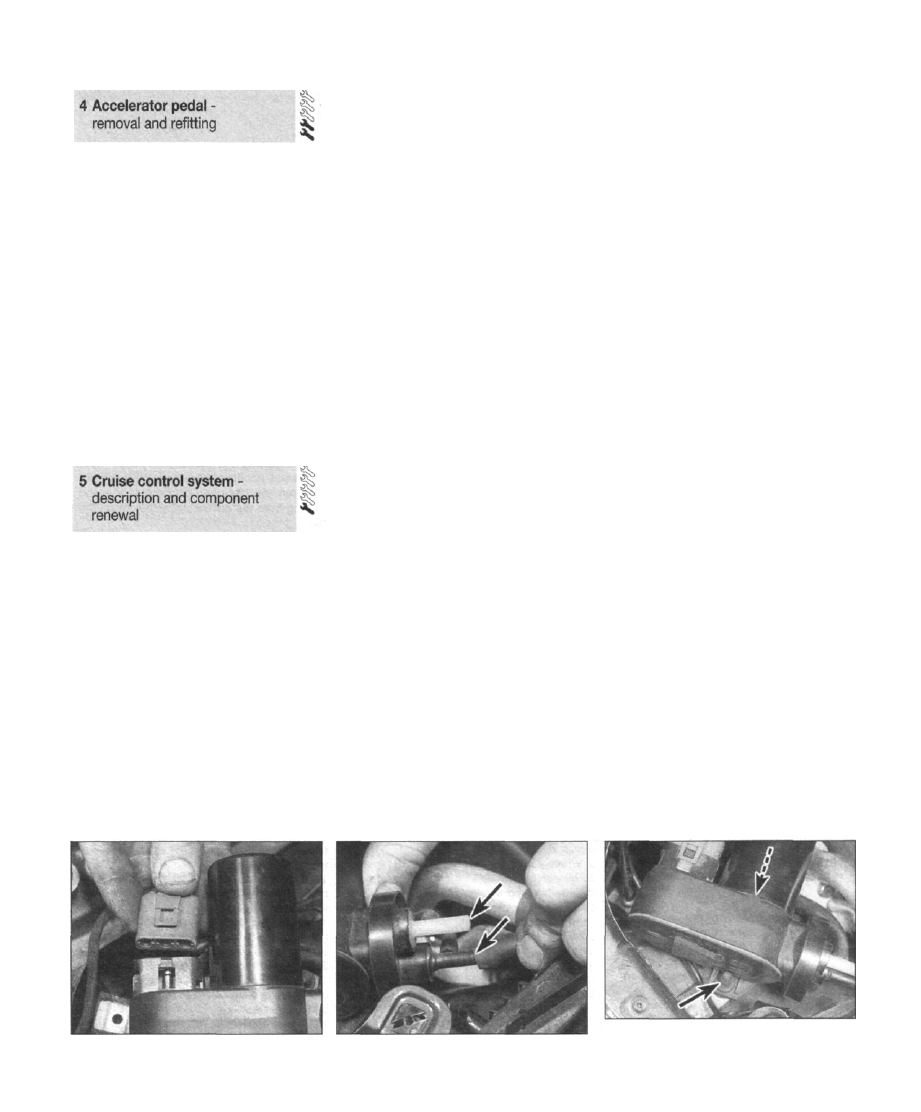

4A•2 Fuel and exhaust systems Fuel system data (Trionic engine management system) (continued) Inlet air temperature (AIC) sensor: Temperature (°C) Voltage (approx) -30 4.5 -10 3.9 20 2.4 40 1.5 Throttle position switch: Resistance Voltage Pins 1 and 2 1.6 to 2.4 5 ± 0.1 Crankshaft position sensor: Resistance (pins 1 and 2) 540 ± 55 ohms Fuel pressure regulator: Pressure 3.0 ± 0.1 bars Injectors: Resistance at 20°C: Turbo engine 12.0 ± 0.35 ohms Non-turbo engine 14.5 ± 0.35 ohms Flow capacity: Turbo engine 176 ± 14 ml/30 seconds Non-turbo engine 127 ± 10 ml/30 seconds Maximum flow difference between injectors: Turbo engine 18 ml Non-turbo engine 13 ml Idle air control valve: Resistance at 20°C 7.7 ± 1 ohms Fuel pump: Type Electric immersed in fuel tank Fuel gauge sender unit winding resistance 33 to 370 ohms Turbocharger Type: Models from 1985 to 1988 Garrett T3 Fuel tank Capacity: 1985 to 1989 models 68 litres Recommended fuel Non-turbo models 95 RON Premium unleaded or 98 RON Super unleaded Turbo models 98 RON Super unleaded Torque wrench settings Mm lbf ft Crankshaft position sensor 8 6 T3/TEO5 40 30 Exhaust system section flange joints 40 30 B202 engine 18 13 Intercooler-to-condenser mounting bolts 8 6 |
